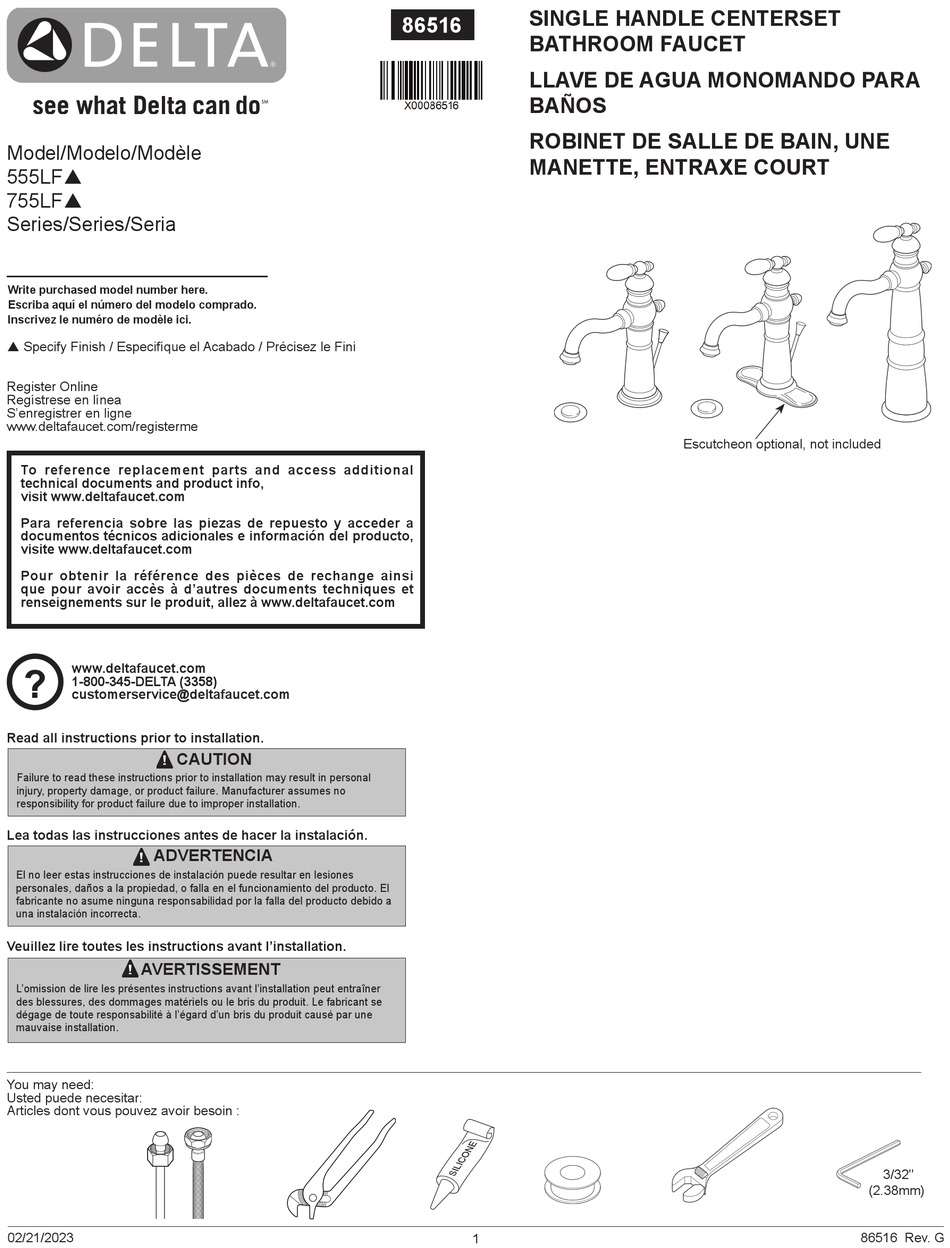

Delta Victorian 555LF-R Quick Start Manual

Delta Victorian 555LF-R Quick Start Manual

Single handle centerset bathroom faucet
Hide thumbs
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual
Model/Modelo/Modèle
555LFp
755LFp
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
p Specify Finish / Especifíque el Acabado / Précisez le Fini
Register Online
Regístrese en línea
S'enregistrer en ligne
www.deltafaucet.com/registerme
To reference replacement parts and access additional
technical documents and product info,
visit www.deltafaucet.com
Para referencia sobre las piezas de repuesto y acceder a
documentos técnicos adicionales e información del producto,
visite www.deltafaucet.com
Pour obtenir la référence des pièces de rechange ainsi
que pour avoir accès à d'autres documents techniques et
renseignements sur le produit, allez à www.deltafaucet.com
?
www.deltafaucet.com
1-800-345-DELTA (3358)
customerservice@deltafaucet.com
Read all instructions prior to installation.
CAUTION
!
Failure to read these instructions prior to installation may result in personal
injury, property damage, or product failure. Manufacturer assumes no
responsibility for product failure due to improper installation.
Lea todas las instrucciones antes de hacer la instalación.
ADVERTENCIA
!
El no leer estas instrucciones de instalación puede resultar en lesiones
personales, daños a la propiedad, o falla en el funcionamiento del producto. El
fabricante no asume ninguna responsabilidad por la falla del producto debido a
una instalación incorrecta.
Veuillez lire toutes les instructions avant l'installation.
AVERTISSEMENT
!
L'omission de lire les présentes instructions avant l'installation peut entraîner
des blessures, des dommages matériels ou le bris du produit. Le fabricant se
dégage de toute responsabilité à l'égard d'un bris du produit causé par une
mauvaise installation.
You may need:
Usted puede necesitar:
Articles dont vous pouvez avoir besoin :
02/21/2023
SINGLE HANDLE CENTERSET
86516
BATHROOM FAUCET
LLAVE DE AGUA MONOMANDO PARA
BAÑOS
ROBINET DE SALLE DE BAIN, UNE
MANETTE, ENTRAXE COURT
1
Escutcheon optional, not included
86516 Rev. G
3/32"
(2.38mm)

Advertisement

loading

Related Manuals for Delta Victorian 555LF-R

Summary of Contents for Delta Victorian 555LF-R

  • Page 1 Pour obtenir la référence des pièces de rechange ainsi que pour avoir accès à d’autres documents techniques et renseignements sur le produit, allez à www.deltafaucet.com www.deltafaucet.com 1-800-345-DELTA (3358) customerservice@deltafaucet.com Read all instructions prior to installation. CAUTION Failure to read these instructions prior to installation may result in personal injury, property damage, or product failure.

  • Page 2: Cleaning And Care

    Cleaning and Care Care should be given to the cleaning of this product. Although its finish is extremely durable, it can be damaged by harsh abrasives or polish. To clean, simply wipe gently with a damp cloth and blot dry with a soft towel. Limpieza y Cuidado de su Llave Tenga cuidado al limpiar este producto.
  • Page 3 1/2" (12.70mm) IPS 1/2 po (12.70mm) IPS Supply Line Connections Turn on hot and cold water supplies and flush water lines into a container for one minute. Important: This flushes away any debris that could cause damage to internal parts. Faucet Installation Position faucet (1) with gasket (2) or faucet (1) with three hole escutcheon (3) Make connections to water lines: Use 1/2"...
  • Page 4 Metal Pop-Up Remove stopper (1) and flange (2). Apply silicone to underside of flange (1). Insert Remove pivot nut (1). Install horizontal rod body (2) into sink. Screw flange (1) into body (2). (2) and stopper (3) as removable (4) or non-removable (5).

  • Page 5: Maintenance

    3/32" (2.38mm) Maintenance SHUT OFF WATER SUPPLIES If faucet leaks from under handle: Remove handle and ensure bonnet (1) is tight. If leak persists: Replace valve cartridge (2) RP50265. If faucet leaks from spout outlet: Replace valve cartridge (2) RP50265. If faucet exhibits very low flow: FLUSH SYSTEM / CHECK FOR LEAKS.
  • Page 6 What You Must Do To Obtain Warranty Service or Replacement Parts: A warranty claim may be made and replacement parts may be obtained by calling 1 800 345 DELTA (3358) or by contacting us by mail or online as follows (please include your model number and date of original purchase): ©...
