Page 1

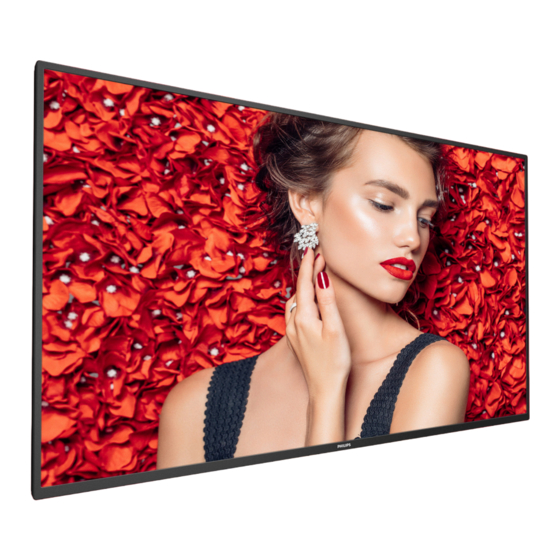

Professional Display Solutions D Line 65BDL4510D/75BDL4510D 86BDL4510D www.philips.com/welcome User Manual (English)
Page 2
When turning off the display by detaching the power cord, wait 6 seconds before re-attaching the power cord for normal operation. • Ensure the use of an approved power cord provided by Philips at all times. If your power cord is missing, please contact your local service center. •...
Page 3
65BDL4510D_75BDL4510D_86BDL4510D • Only the lifetime of the display stated in this specification is guaranteed if the display is used under the proper operation conditions. IMPORTANT: Always activate a moving screen saver program when you leave your display unattended. Always activate a periodic screen refresh application if the unit will display unchanging static content.
Page 4
65BDL4510D_75BDL4510D_86BDL4510D Warning: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential environment this equipment may cause radio interference. Federal Communications Commission (FCC) Notice (U.S. Only) NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
Page 5
65BDL4510D_75BDL4510D_86BDL4510D Polish Center for Testing and Certification Notice The equipment should draw power from a socket with an attached protection circuit (a three-prong socket). All equipment that works together (computer, display, printer, and so on) should have the same power supply source. The phasing conductor of the room’s electrical installation should have a reserve short-circuit protection device in the form of a fuse with a nominal value no larger than 16 amperes (A).
Page 6
65BDL4510D_75BDL4510D_86BDL4510D Information for U.K. only WARNING - THIS APPLIANCE MUST BE EARTHED. Important: This apparatus is supplied with an approved moulded 13A plug. To change a fuse in this type of plug proceed as follows:+ 1. Remove fuse cover and fuse. 2.
Page 8
Please find out about the local regulations on how to dispose of your old display from your local Philips dealer. (For customers in Canada and U.S.A.) This product may contain lead and/or mercury.
Page 9
For more information about E -waste please visit http://www.india.philips.com/about/sustainability/recycling/index. page and to know where you can drop off your waste equipment for recycling in India please contact on below given contact details.
Page 10
65BDL4510D_75BDL4510D_86BDL4510D Batteries For EU: The crossed-out wheeled bin implies that used batteries should not be put to the general household waste! There is a separate collection system for used batteries, to allow proper treatment and recycling in accordance with legislation. Please contact your local authority for details on the collection and recycling schemes.
IR Sensor cable * The supplied power cord varies depending on destination. • AC Switch cover • USB cover • Philips logo plate Power Cord RS232 Cable RS232 Daisy Chain Cable IR Sensor Cable Philips logo plate AC Switch Cover x 1 USB Cover x 1 * Differences according to regions.
4. For the wall-mounting kit, use M8 mounting screws (with a length 15 mm longer than the thickness of the mounting bracket) and tighten them securely. 1.4.1. VESA Grid 65BDL4510D 400(H) x 400(V) mm 75BDL4510D 600(H) x 400(V) mm...
65BDL4510D_75BDL4510D_86BDL4510D 1.5. Mounting in Portrait Orientation This display can be installed in portrait orientation. Rotate the display 90 degrees Counterclockwise. The “ ” logo should be on the right side when facing the display. 90° 90° 1.5.1. How to remove the logo 1.
65BDL4510D_75BDL4510D_86BDL4510D Parts and Functions 2.1. Control Panel [ ] button [MENU] button Press this button to turn the display On or turn the Return to the previous menu while the OSD menu is On. display to standby mode. This button can also be used to activate the OSD menu when the OSD menu is Off.
65BDL4510D_75BDL4510D_86BDL4510D 2.2. Input/Output Terminals 65BDL4510D RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 100-240V DP IN DP OUT HDMI 2 IN HDMI 3 IN HDMI OUT 50/60Hz 2.5A HDMI 1 IN DVI-I IN 11 12...
Page 17
65BDL4510D_75BDL4510D_86BDL4510D 75BDL4510D/86BDL4510D RJ45 USB 2.0 Service Port PC LINE IN AUDIO OUT IR-OUT IR-IN RS232 RS232 100-240V DP IN DP OUT HDMI 1 IN HDMI 2 IN HDMI 3 IN HDMI OUT 50/60Hz 2.5A DVI-I IN 11 12 AC OUT AUDIO OUT AC power supply to the AC IN jack of a media player.
65BDL4510D_75BDL4510D_86BDL4510D 2.3. Remote Control [ ] POWER button Turn the display on or put the display to standby mode. 2.3.1. General functions [PLAY] buttons Control playback of media files. ] SOURCE button Choose input source. Press [ ] or [ ] button to choose NORMAL Network HDMI 1...
65BDL4510D_75BDL4510D_86BDL4510D 2.3.2. ID Remote Control Press [ID] button. The red LED blinks twice. 1. Press [ID SET] button for more than 1 second to enter the Set the remote control ID if you intend to use this remote ID Mode. The red LED lights up. control on several different displays.
65BDL4510D_75BDL4510D_86BDL4510D 2.3.3. Inserting the batteries in the remote control The remote control is powered by two 1.5V AAA batteries. To install or replace batteries: 1. Press and then slide the cover to open it. 2. Insert batteries with the correct polarity (+) and (-). 3.
2.4. USB Cover • Use the USB cover and screws to cover the USB stick. 65BDL4510D 1. Release the screw as shown. Keep it in a suitable place. 2. Plug the USB stick. 3. Install the USB cover. 4. Use the screw provided to fix the USB cover.
65BDL4510D_75BDL4510D_86BDL4510D 2.5. AC Switch Cover cover the AC switch. • Use AC Switch Cover to 1. Install the AC Switch Cover. 2. Fix the AC Switch Cover with the screw in step1. 65BDL4510D 75BDL4510D/86BDL4510D...
65BDL4510D_75BDL4510D_86BDL4510D Connecting External Equipment 3.1. Connecting External Equipment (DVD/VCR/VCD) 3.1.1. Using HDMI video input RS232 RS232 HDMI 1 IN HDMI 2 IN HDMI 3 IN DVI-I [HDMI IN] HDMI Out DVD / VCR / VCD 3.2. Connecting a PC 3.2.1. Using DVI input [PC LINE IN] PC LINE IN RS232...
65BDL4510D_75BDL4510D_86BDL4510D 3.2.3. Using DP input RS232 RS232 DVI-I DP IN [DP IN] DP Out 3.3. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a menu board. 3.3.1. Display control connection Connect the [RS232 OUT] connector of DISPLAY 1 to the [RS232 IN] connector of DISPLAY 2.
65BDL4510D_75BDL4510D_86BDL4510D 3.5. IR Pass-through Connection [IR OUT] DVD / VCR / VCD [IR IN] NORMAL (DVD / VCR / VCD) SOURCE FORMAT LIST INFO ADJUST OPTIONS ID SET ENTER Remote Control 3.6. Wire-connecting to Network INTERNET ROUTER [RJ-45] [RJ-45] Network Settings: 1.
65BDL4510D_75BDL4510D_86BDL4510D Operation 1 / 2 NOTE: The control button described in this section is mainly on the remote control unless specified otherwise. 4.1. Play multimedia files from USB device Return aaa1 aaa2 aaa3 1. Connect your USB device to the USB port on the display. xxx1 xxx2 xxx3...
65BDL4510D_75BDL4510D_86BDL4510D OSD Menu 5.2. OSD Menu Overview An overview of the On-Screen Display (OSD) structure 5.2.1. Picture menu is shown below. You can use it as a reference for further adjustment of your display. Brightness Picture Contrast 5.1. Navigating the OSD Menu Sharpness Screen Black Level...
65BDL4510D_75BDL4510D_86BDL4510D NOTE: This function is only availavle when “Audio Out Sync” H position is on. Moves the horizontal position of the image left or right. Sync. Volume Enable/disable audio out (line out) volume adjustability to V position sync with internal speakers volume, but PD Internal speaker Moves the vertical position of the image up or sound will be forced to be mute.
Choose from : {Off} / { On} Set the period of time the information OSD is displayed on the upper right corner of the screen. The information OSD Light sensor (require Philips accessory CRD41 External will display when input signal is changed. Sensor Box)
Page 31
65BDL4510D_75BDL4510D_86BDL4510D operated by the remote control. (In primary mode, IR Monitor information key will always be processed regardless the monitor id/ Shows information about your display, including Input group settings). source, Resolution, Model name, SW version, serial number, operation hours and MAC address. •...
Page 32
65BDL4510D_75BDL4510D_86BDL4510D The existing daylight on/off menu should be replaced by • {On Time} - Press [ ] or [ ] button to adjust and the the following menu structure: display will turn on at the specified time. The menu item {Daylight saving} opens the submenu that •...
Page 33
65BDL4510D_75BDL4510D_86BDL4510D suspend. To make sure failover starts from the 1 priority source after powering on, please set the 1 priority source as boot on source too. Power Save Mode 1 [TCP off, WOL on, auto off] Mode 2 [TCP off, WOL on, auto on/off] Mode 3 [TCP on, WOL off, auto on/off] Mode 4 [TCP on, WOL off, no auto on/off] USB Autoplay...
65BDL4510D_75BDL4510D_86BDL4510D Supported Media Formats USB Multimedia Formats Video format Video Codec Resolution Bit Rate MPEG1/2 1080P@30fps 40Mbps H.264 1080P@30fps 50Mbps WMV3 1080P@30fps 40Mbps Motion JPEG 640x480@30fps 40Mbps Audio format Audio Codec Sampling Rate Channel Bit Rate MPEG1/2 Layer1 16KHz-48KHz Up to 2 32Kbps-448Kbps MPEG1/2 Layer2 16KHz-48KHz Up to 2...
However, pixel or sub-pixel defects on the PDP / TFT panels used in Plasma- & LCD- displays are sometimes unavoidable. No manufacturer can guarantee that all panels will be free from pixel defects, but Philips guarantees that any Plasma- & LCD- displays with an unacceptable number of defects will be repaired during the warranty period in line with your local guarantee conditions.
Pixel Defect Tolerances In order to qualify for repair due to pixel defects during the warranty period, a PDP / TFT panel in a Philips Plasma / LCD- display must have pixel or sub-pixel defects exceeding the tolerances listed in the following table.
65BDL4510D_75BDL4510D_86BDL4510D HOW TO AVOID MURA Although we can not guarantee the complete eradication of Mura every time, in general the appearance of Mura can be minimized by these methods: • Lower the backlight brightness • Use a screen saver • Reduce the ambient temperature around the unit Cleaning and Troubleshooting 9.1.
65BDL4510D_75BDL4510D_86BDL4510D 9.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back 2. Make sure the power switch is of the display is not switched on. switched on.
65BDL4510D_75BDL4510D_86BDL4510D Warranty Statement Warranty period for PHILIPS signage display is listed as below, for areas not covered in this table, please follow their warranty statement. Region Warranty Period USA, Canada 3 years China 1 year Asia Pacific 3 years Europe...
65BDL4510D_75BDL4510D_86BDL4510D Technical Specifications Display: Item Specifications 65BDL4510D 75BDL4510D 86BDL4510D Screen Size (Active Area) 1639 mm / 64.5 inch 1893 mm / 74.5 inch 2174 mm / 85.6 inch Aspect Ratio 16:9 16:9 16:9 Number of pixels 3840 (H) x 2160 (V)
Page 42
65BDL4510D_75BDL4510D_86BDL4510D General: Item Specifications 65BDL4510D 75BDL4510D 86BDL4510D Power Input 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz 100 - 240V~, 50/60Hz Power Consumption (Max) 310 W 370 W 625 W Power Consumption (typ.) 150 W 185 W 350 W Power Consumption (Standby &...
Page 43
This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are regis- tered trademarks of Koninklijke Philips N.V. and are used under license.
