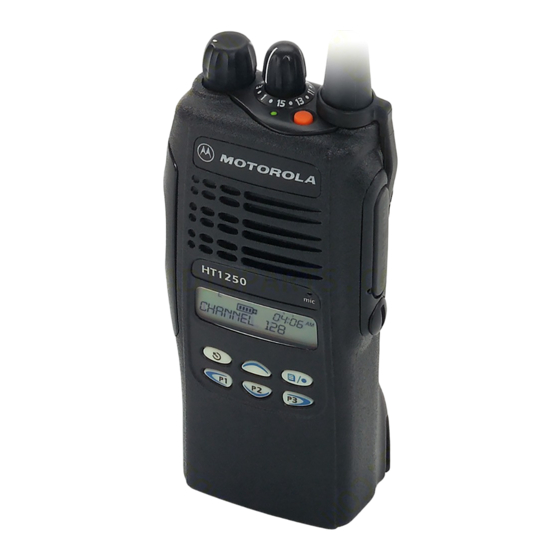

- Page 1 HT 1250 Introduction Hot Zone Radio The Motorola HT1250 Portable radios are designed for use on VHF conventional operation with, ruggedness, and versatility. HT1250 radios will operate in hostile environments...
- Page 2 HT 1250 Introduction Hot Zone Radio...
- Page 3 HT1250 Includes •Ni-MH High Capacity Battery •2 1/2-Inch Belt Clip •Antenna •Single Unit Rapid Rate Intelli-Charger •Operator’s Manual •Two Year Warranty- Parts and Labor • 16 Conventional Channels •Three types of Scan: System, All Group and Auto Group •Home Channel Revert / Continuous Rotary •User-Defined Scan Lists •Conventional Talkaround...
- Page 4 Programmable Button Features Available •System Scan •All Group Scan •Nuisance Channel Delete •Telephone Interconnect •Speed Dial •Home Channel Revert •Radio (MDC) Call •Call Light •Conventional Repeater Talkaround •Squelch Levels •Option Board Operation •Keypad Lock •Battery Gauge •Emergency Siren •Volume Set •High/Low Power...
- Page 5 HT 1250 Hot Zone Radio HT Series Accessories Batteries Battery Chargers Audio Accessories Carrying Cases...
- Page 6 HT 1250 Hot Zone Radio HT1250 radio features · 14-character alphanumeric display, with icons. · Audio and LED Indications alert users of the radio’s changing status. · 6 Programmable Instant Access Feature Buttons. for one-push button access to commonly used features, such...
- Page 7 HT 1250 Hot Zone Radio Controls on Top of Radio · Power On/Off and Volume. Turns the radio on or off and adjusts the volume to a comfortable listening level. · Zone/Channel Select. Rotate the Zone/Channel Select knob to the desired position to access conventional channels.
- Page 8 HT 1250 Hot Zone Radio · Top Programmable Button. This button can be programmed to activate a specific function. All programmable buttons can be programmed to activate the following functions with the press of a single button: Monitor (Conventional mode). Allows user to monitor the channel for activity when PL is activated.
- Page 9 HT 1250 Hot Zone Radio Controls on Front of Radio 14-Character Alphanumeric Display. Identifies conventional channels using easily understandable aliases. Menu Select. One of the menu keys used to scroll through menu selectable functions when in menu mode. The Menu Select button is used to enter the Menu Mode and to make menu selections.
- Page 10 HT 1250 Hot Zone Radio Controls on Front of Radio, continued Menu Exit. One of the menu keys used to scroll through menu selectable functions when in menu mode. The Menu Exit button is used to move to the previous Menu Selection (short press), or to exit the Menu Mode (long press).
- Page 11 HT 1250 Hot Zone Radio Controls on Left Side of Radio Push-To-Talk. The Push-to-Talk (PTT) switch is located on the side of the radio for easy operation while holding the radio. Pressing the PTT switch causes the radio to begin transmitting.
- Page 12 HT 1250 Hot Zone Radio Controls on Back of Radio Battery and Belt Clip. Battery used to power the radio. A variety of batteries are available to suit different operating conditions. Batteries have removable clips that can be used to securely attach the radio to a belt or other object.
- Page 13 HT 1250 Hot Zone Radio Indicator Icons The top two LCD rows of the HT1250·LS screen display icons that indicate menu and radio status information. The following are descriptions of each of the icons on the display. Companding The companding feature is activated. When in narrow band, this feature improves audio quality.
- Page 14 HT 1250 Hot Zone Radio Indicator Icons, continued Scan Indicates that the Scan feature has been activated. This icon also indicates whether this activity on a non-priority channel. A flashing dot next to the arrow indicates that there is some activity on a Priority 1 channel.
- Page 15 HT 1250 Hot Zone Radio Indicator Icons, continued Option Board An Option Board is activated. Battery Level The number of bars (0-4) shown indicates the remaining charge in the installed battery. Not Assigned Not currently assigned. Clock Shows the time of day in 12-hour or 24-hour...
- Page 16 These tones can be divided into the following categories: · Alert Tones · Button Tones Alert Tones The conditions that produce an Alert Tones by a Motorola HT1250 Portable radio: · Successful Power-Up · Valid (Good) Button Press · Invalid Button Press ·...
- Page 17 HT 1250 Hot Zone Radio Button Tones In addition to having visual indicators, some of the programmable buttons use Button Tones to indicate one of two modes. The functions that produce button tones are listed below. · Talk Permit · Start Scan ·...
- Page 18 HT 1250 Hot Zone Radio Menu Navigation The Motorola HT1250 radio has a menu system for accessing and initiating functions. Selective Call Scan Home Channel Revert...
- Page 19 HT 1250 Hot Zone Radio SCANNING There are three types of scan available in the HT1250 radios. System Scan can be st arted or stopped by pressing the preprogrammed feature button. System Scan can also be implemented using the Menu.
- Page 20 HT 1250 Hot Zone Radio Home Channel Revert Home Channel revert lets you automatically return to a preferred channel or talk-group. Home Channel Revert can be activated by pressing the preprogrammed feature button designated for Home Channel Revert.
- Page 21 HT 1250 Hot Zone Radio Troubleshooting Checklist A guideline for identifying user level problems and their associated solutions. The column on the left describes to symptom that the radio user might be experiencing. The middle column describes the probable cause of the problem, and the last column describes the possible solution.
- Page 22 HT 1250 Hot Zone Radio Troubleshooting...
- Page 23 HT 1250 Hot Zone Radio Factory Mutual Approvals Factory Mutual has given the HT•1250 an intrinsically safe rating for use in classes I, II, III, Division 1, Groups C,D,E,F and G, as well as non-incendentive use in Class 1, Division 2, Groups A, B, C and D on models...
