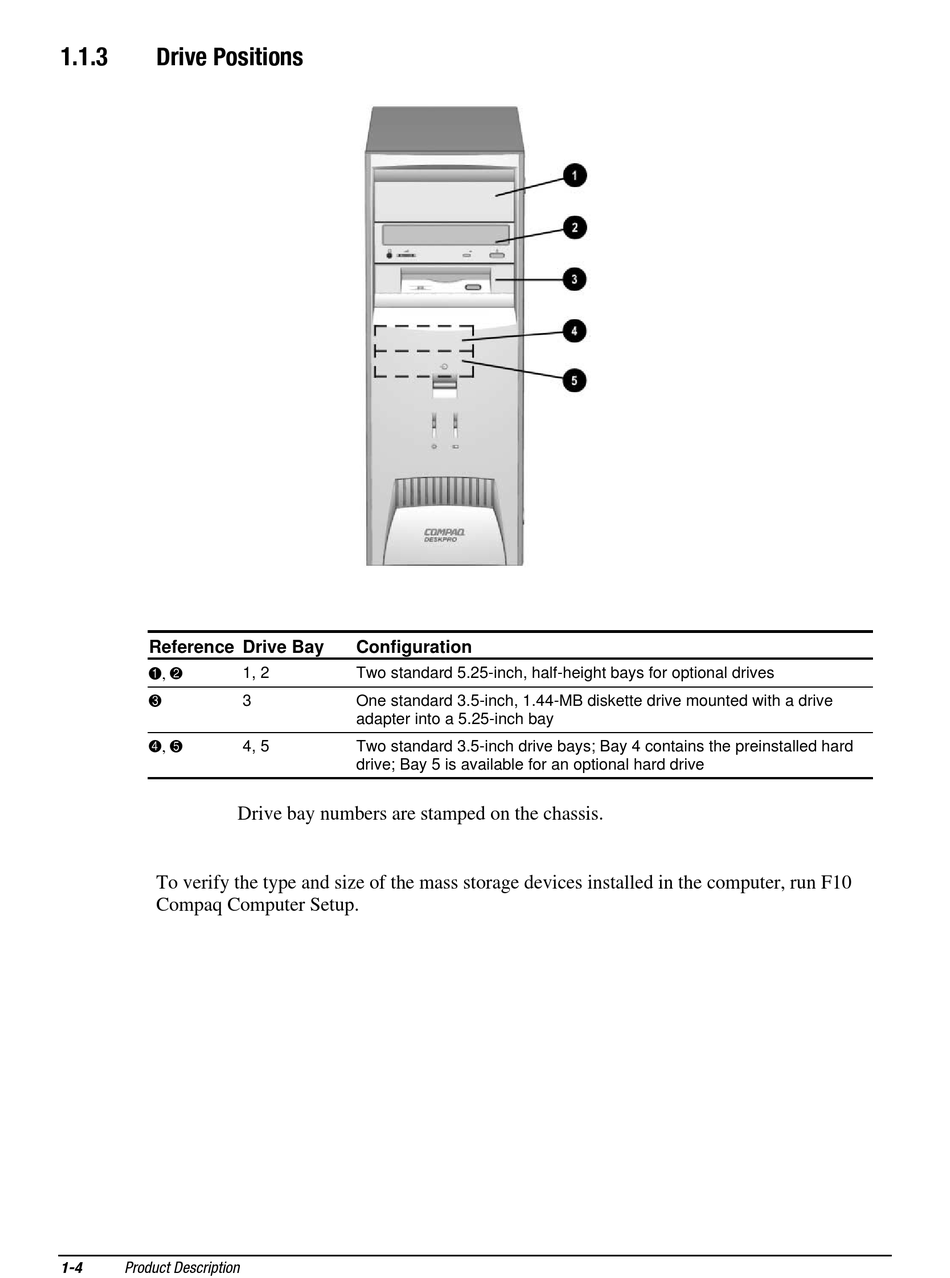

Drive Positions

Reference Drive Bay
1, 2
3
4, 5
Drive bay numbers are stamped on the chassis.
To verify the type and size of the mass storage devices installed in the computer, run F10
Compaq Computer Setup.
1-4 Product Description
Configuration
1, 2 Two standard 5.25-inch, half-height bays for optional drives
3 One standard 3.5-inch, 1.44-MB diskette drive mounted with a drive
adapter into a 5.25-inch bay
4, 5 Two standard 3.5-inch drive bays; Bay 4 contains the preinstalled hard
drive; Bay 5 is available for an optional hard drive
