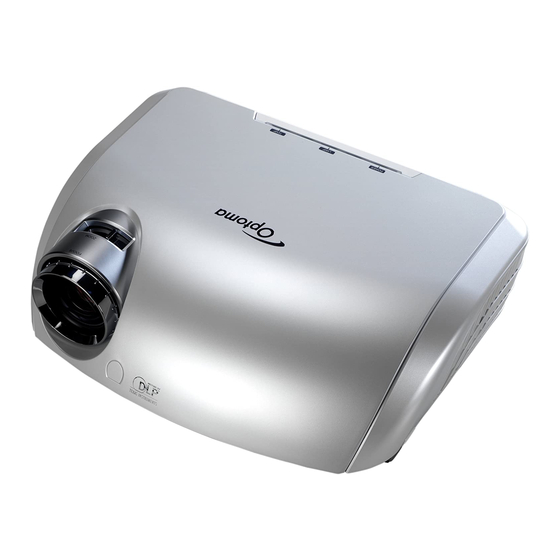

Optoma HD81 Command List

Optoma HD81 RS-232 Protocol Function List
Interface
3 wires RS-232C Protocol
Baud Rate : 9600
Data Bits: 8
Parity: None
Stop Bits: 1
Flow Control :None
Command Sequence
Write
Header :
Address Code :
Command Code :
Data :
Terminator Code :
Acknowledgement
Receive OK ( in standby
Receive OK ( in normal mode )
Invalid Command
Function List
Function Description
Power On
Power Off
Menu
Up
Down
Left
Right
Enter
Re-Sync
Source-CVBS1
Source-CVBS2
Source-CVBS3
Source-S Video1
Source-S Video2
Source-S Video3
Source-YPbPr1
Source-YPbPr2
Source-BNC1
Source-BNC2
Source-HDMI1
Source-HDMI2
Source-HDMI3
Source-VGA
Aspect Ratio-16:9
Basic Protocol
'*'
'0' fixed
ASCII Text
Fixed 3 digits
Carriage Return
Basic Protocol
*x00<CR>
*x10<CR>
*x01<CR>
('x' is don't care.)
Basic(Original) Basic (Update)
*0IR001<CR>
*0IR002<CR>
*0IR003<CR>
*0IR004<CR>
*0IR005<CR>
*0IR006<CR>
*0IR007<CR>
*0IR008<CR>
*0IR009<CR>
*0IR010<CR>
*0IR011<CR>
*0IR012<CR>
*0IR013<CR>
*0IR014<CR>
*0IR015<CR>
*0IR016<CR>
*0IR017<CR>
*0IR018<CR>
*0IR019<CR>
*0IR020<CR>
*0IR021<CR>
*0IR022<CR>
*0IR023<CR>
*0IR024<CR>
Function Description
Aspect Ratio-4:3
Aspect Ratio-Native
Aspect Ratio-Format1
Aspect Ratio-Format2
Aspect Ratio-LBX
Mode-ISF Day
Mode-ISF Night
Mode-User1
Mode-User2
Mode-User3
Zoom In
Zoom Out
Shift Up
Shift Down
Gamma
Image Mode
NR
Sharpness
Color
Contrast
Brite Mode
IRIS
Demo
Basic(Original) Basic (Update)
*0IR025<CR>
*0IR026<CR>
*0IR027<CR>
*0IR028<CR>
*0IR029<CR>
*0IR030<CR>
*0IR031<CR>
*0IR032<CR>
*0IR033<CR>
*0IR034<CR>
*0IR035<CR>
*0IR036<CR>
*0IR037<CR>
*0IR038<CR>
*0IR039<CR>
*0IR040<CR>
*0IR041<CR>
*0IR042<CR>
*0IR043<CR>
*0IR044<CR>
*0IR045<CR>
*0IR046<CR>
*0IR047<CR>
