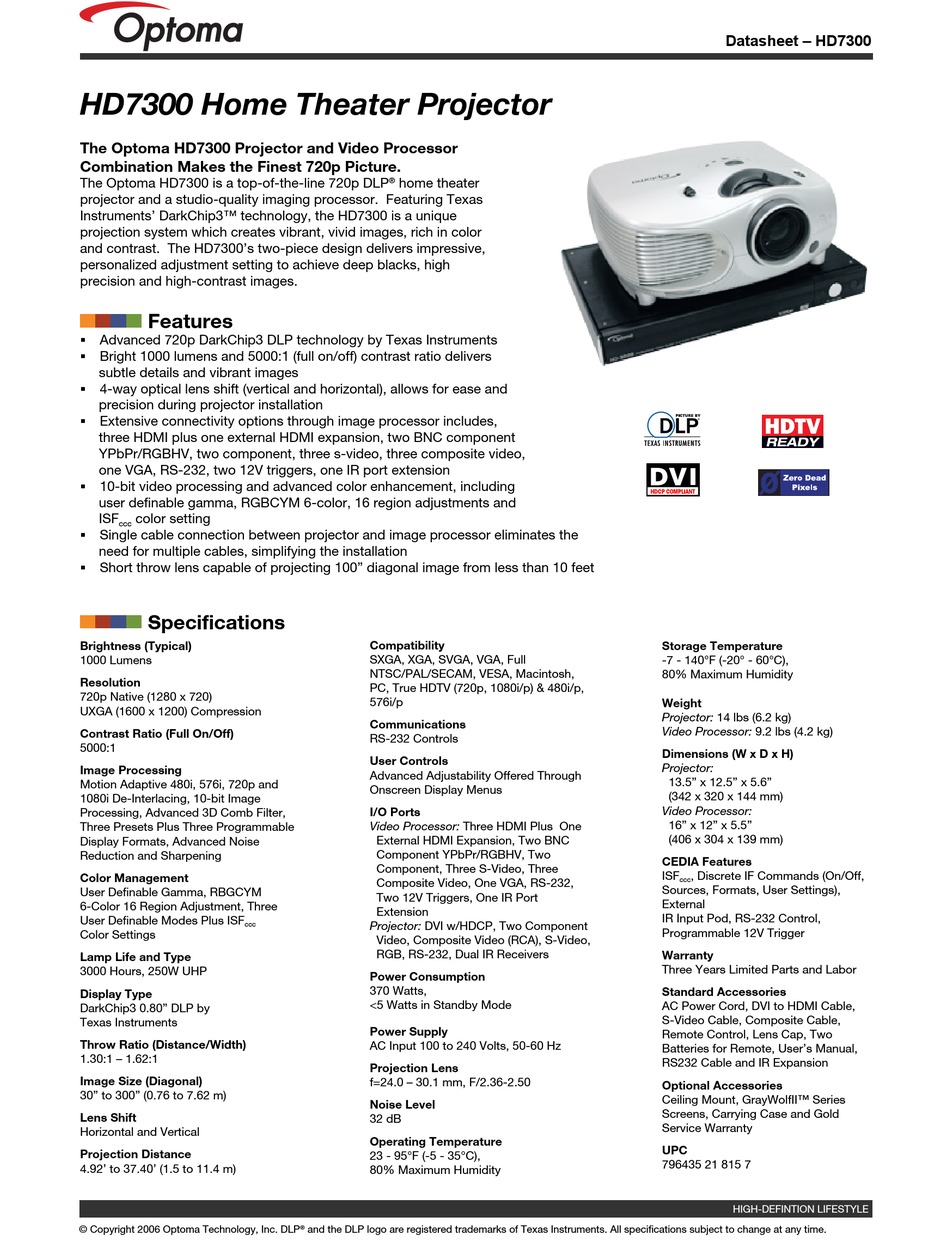

Optoma HD7300 Specifications

HD7300 Home Theater Projector
The Optoma HD7300 Projector and Video Processor
Combination Makes the Finest 720p Picture.
The Optoma HD7300 is a top-of-the-line 720p DLP
projector and a studio-quality imaging processor. Featuring Texas
Instruments' DarkChip3™ technology, the HD7300 is a unique
projection system which creates vibrant, vivid images, rich in color
and contrast. The HD7300's two-piece design delivers impressive,
personalized adjustment setting to achieve deep blacks, high
precision and high-contrast images.
Features
 Advanced 720p DarkChip3 DLP technology by Texas Instruments
 Bright 1000 lumens and 5000:1 (full on/off) contrast ratio delivers
subtle details and vibrant images
 4-way optical lens shift (vertical and horizontal), allows for ease and
precision during projector installation
 Extensive connectivity options through image processor includes,
three HDMI plus one external HDMI expansion, two BNC component
YPbPr/RGBHV, two component, three s-video, three composite video,
one VGA, RS-232, two 12V triggers, one IR port extension
 10-bit video processing and advanced color enhancement, including
user definable gamma, RGBCYM 6-color, 16 region adjustments and
ISF color setting
ccc
 Single cable connection between projector and image processor eliminates the
need for multiple cables, simplifying the installation
 Short throw lens capable of projecting 100" diagonal image from less than 10 feet

Specifications

Brightness (Typical)
1000 Lumens
Resolution
720p Native (1280 x 720)
UXGA (1600 x 1200) Compression
Contrast Ratio (Full On/Off)
5000:1
Image Processing
Motion Adaptive 480i, 576i, 720p and
1080i De-Interlacing, 10-bit Image
Processing, Advanced 3D Comb Filter,
Three Presets Plus Three Programmable
Display Formats, Advanced Noise
Reduction and Sharpening
Color Management
User Definable Gamma, RBGCYM
6-Color 16 Region Adjustment, Three
User Definable Modes Plus ISF
ccc
Color Settings
Lamp Life and Type
3000 Hours, 250W UHP
Display Type
DarkChip3 0.80" DLP by
Texas Instruments
Throw Ratio (Distance/Width)
1.30:1 – 1.62:1
Image Size (Diagonal)
30" to 300" (0.76 to 7.62 m)
Lens Shift
Horizontal and Vertical
Projection Distance
4.92' to 37.40' (1.5 to 11.4 m)
© Copyright 2006 Optoma Technology, Inc. DLP
home theater
®
Compatibility
SXGA, XGA, SVGA, VGA, Full
NTSC/PAL/SECAM, VESA, Macintosh,
PC, True HDTV (720p, 1080i/p) & 480i/p,
576i/p
Communications
RS-232 Controls
User Controls
Advanced Adjustability Offered Through
Onscreen Display Menus
I/O Ports
Video Processor: Three HDMI Plus One
External HDMI Expansion, Two BNC
Component YPbPr/RGBHV, Two
Component, Three S-Video, Three
Composite Video, One VGA, RS-232,
Two 12V Triggers, One IR Port
Extension
Projector: DVI w/HDCP, Two Component
Video, Composite Video (RCA), S-Video,
RGB, RS-232, Dual IR Receivers
Power Consumption
370 Watts,
<5 Watts in Standby Mode
Power Supply
AC Input 100 to 240 Volts, 50-60 Hz
Projection Lens
f=24.0 – 30.1 mm, F/2.36-2.50
Noise Level
32 dB
Operating Temperature
23 - 95°F (-5 - 35°C),
80% Maximum Humidity
and the DLP logo are registered trademarks of Texas Instruments. All specifications subject to change at any time.
®
Datasheet – HD7300
READY
Storage Temperature
-7 - 140°F (-20° - 60°C),
80% Maximum Humidity
Weight
Projector: 14 lbs (6.2 kg)
Video Processor: 9.2 lbs (4.2 kg)
Dimensions (W x D x H)
Projector:
13.5" x 12.5" x 5.6"
(342 x 320 x 144 mm)
Video Processor:
16" x 12" x 5.5"
(406 x 304 x 139 mm)
CEDIA Features
ISF , Discrete IF Commands (On/Off,
ccc
Sources, Formats, User Settings),
External
IR Input Pod, RS-232 Control,
Programmable 12V Trigger
Warranty
Three Years Limited Parts and Labor
Standard Accessories
AC Power Cord, DVI to HDMI Cable,
S-Video Cable, Composite Cable,
Remote Control, Lens Cap, Two
Batteries for Remote, User's Manual,
RS232 Cable and IR Expansion
Optional Accessories
Ceiling Mount, GrayWolfII™ Series
Screens, Carrying Case and Gold
Service Warranty
UPC
796435 21 815 7
HIGH-DEFINTION LIFESTYLE
