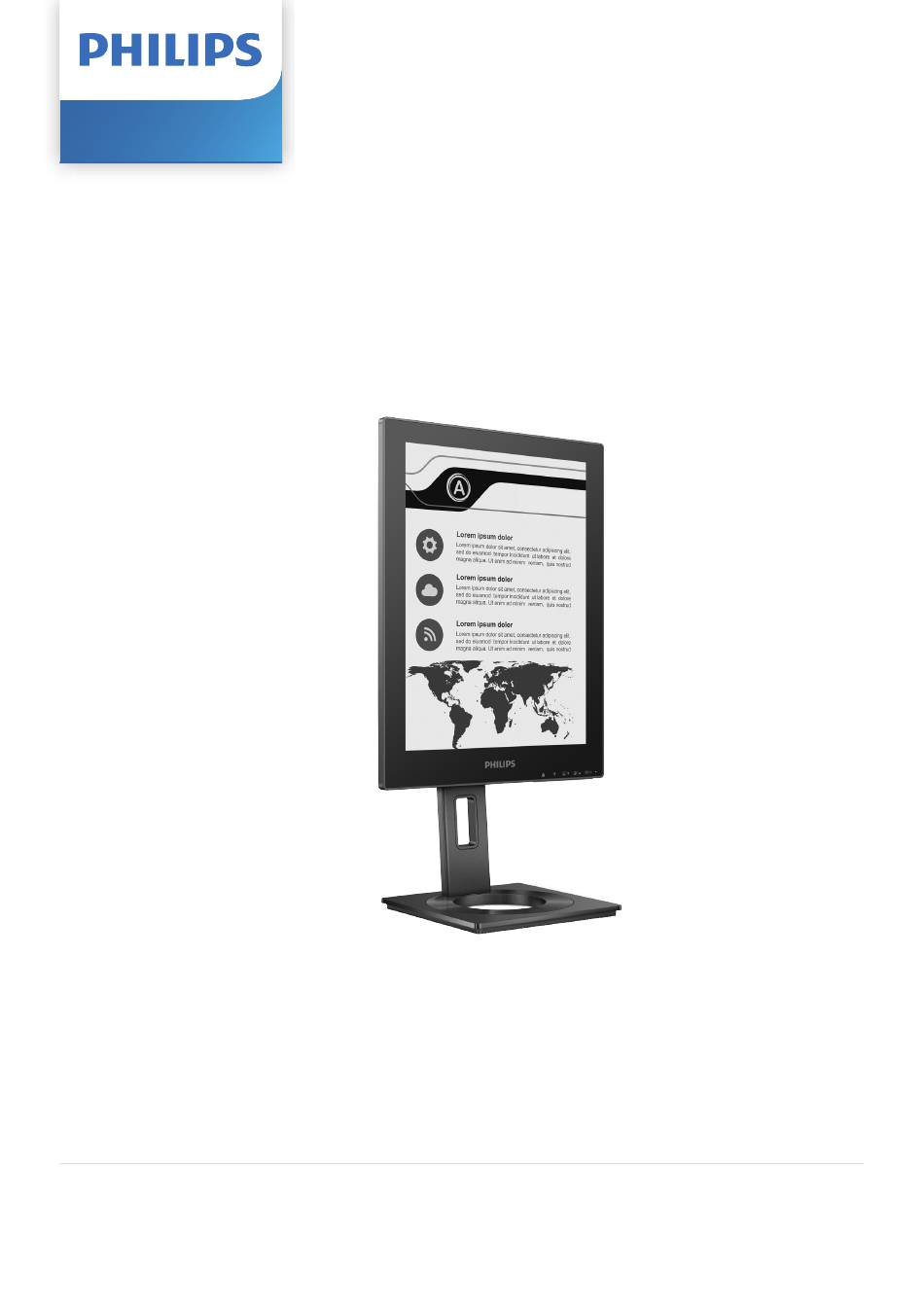

- Page 1 Business Monitor 3000 Series 13B1K3300 User manual Customer care and warranty Troubleshooting and FAQs Register your product and get support at www.philips.com/welcome...
-
Page 2: Table Of Contents
Table of Contents Important 1 1.1 Safety precautions and maintenance ........1 1.2 Notational Descriptions ....3 1.3 Disposal of product and packing material ..........4 2 Setting up the monitor 5 2.1 Installation ........5 2.2 Operating the monitor ....8 2.3 Remove the Base Assembly for VESA Mounting ...... -
Page 3: Important
• Please use approved power cord 1.1 Safety precautions and provided by Philips all the time. If your power cord is missing, please contact maintenance your local service center. (Please refer to Service contact information listed in Warnings Important information manual.) - Page 4 • Do not knock or drop the monitor • Oil-based cleaning solutions may during operation or transportation. damage the plastic parts and void the warranty. • The USB Type-C port could only be connected to specify equipment with • Unplug the monitor if you are not fire enclosure in compliance with IEC going to use it for an extensive period 62368-1 or IEC 60950-1.
-
Page 5: Notational Descriptions
1.2 Notational Descriptions Service • The casing cover should be opened The following subsections describe only by qualified service personnel. notational conventions used in this • If there is any need for any document document. for repair or integration, please Notes, Cautions and Warnings contact with your local service center. -
Page 6: Disposal Of Product And Packing Material
From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily This marking on the product or on its entails participation in national take- packaging illustrates that, under European... -
Page 7: Setting Up The Monitor
Monitor 3000 Series 13B1K3300 Quick start Register your product and get support at www.philips.com/welcome 2. Hold the stand with both hands. (1) Gently attach the base to the stand. (2) Use your fingers to tighten the screw located at the bottom of the base. - Page 8 Connecting to your PC Connect to PC 1. Connect the power cord to the back of the monitor firmly. 2. Turn off your computer and unplug its power cable. 3. Connect the monitor signal cable to the video connector on the back of your computer.
- Page 9 Power Delivery With power adapter connected to the Without power adapter connected to the monitor: monitor: ≥15W ≤15W 5V/3A This monitor’s USB-C port is able to supply The monitor is able to be powered by 15W and 5V/3A of power for charging device through USB-C which support up to your device.
-
Page 10: Operating The Monitor
2.2 Operating the monitor The OSD Menu Below is an overall view of the structure of Description of the control buttons the On-Screen Display. You can use this as a reference when you want to work your way around the different adjustments later on. - Page 11 Resolution notification Smart Clean This monitor is designed for optimal performance at its native resolution, Input Input 1200 x 1600. When the monitor is HDMI 1.4 powered on at a different resolution, an Language DisplayPort alert is displayed on screen: Use 1200 x USB C Reset 1600 for best results.
- Page 12 Physical Function Height adjustment Tilt 25° -5° 100mm Pivot Swivel +180° -180° 0° 0° -90° 90° Warning • To avoid potential screen damage, such as panel peeling, ensure that the monitor does not tilt downward by more than -5 degrees. •...
-
Page 13: Remove The Base Assembly For Vesa Mounting
2.3 Remove the Base Assembly for VESA Mounting Before you start disassembling the monitor base, please follow the instructions below to avoid any possible damage or injury. 1. Extend the monitor base to its maximum height. Note This monitor accepts a 100mm x 100mm VESA-Compliant mounting interface. -
Page 14: Smartremote 12
You may SmartRemote app. use the mouse to move between quadrants. Installation Go to Philips support site at: www. 5. Show file at 100% original size. philips.com/welcome and download the 6. Search for text in files. SmartRemote app. SmartRemote can... - Page 15 The file contents will be shown on the EPD. You can read and switch between the files using this easy view interface. Please note, five files are the maximum that can be loaded in this interface. If you drag additional file into the interface, the oldest file will be removed from the file STEP 3 viewer interface.
-
Page 16: Technical Specifications 14
4 Technical Specifications Picture/Display Monitor Panel Type Panel Size 13.3" (33.8 cm) Aspect Ratio Pixel Pitch 0.169 (H) mm x 0.169 (V) mm Resolution 1200 x 1600 Display Screen Coating Anti-Glare 3H, Haze 15% Display Colors 4 bits grey scale Connectivity 1x HDMI 1.4 (HDCP 1.4) 1x DisplayPort 1.2 (HDCP 1.4) Connectors... - Page 17 Off mode 0.3 W (typ.) 0.3 W (typ.) 0.3 W (typ.) AC Input Voltage AC Input Voltage AC Input Voltage Heat Dissipation* at 100VAC , at 115VAC , at 230VAC , 50Hz 50Hz 50Hz 22.18 BTU/hr 22.18 BTU/hr 22.87 BTU/hr Normal Operation (typ.) (typ.)
- Page 18 Note • This data is subject to change without notice. Go to www.philips.com/support to download the latest version of leaflet. • Please notice that your display works best at native resolution of 1200 x 1600. For best display quality, please follow this resolution recommendation.
-
Page 19: Power Management 17
5 Power Management If you have VESA DPM compliance display card or software installed in your PC, the monitor can automatically reduce its power consumption when not in use. If an input from a keyboard, mouse or other input device is detected, the monitor will 'wake up' automatically. -
Page 20: Customer Care And Warranty 18
Please contact our Philips Customer Service Representative or local contact center (by Consumer care number) for more details. •... -
Page 21: Troubleshooting & Faqs 19
If the problem • Contact Philips customer service still persists after you have tried these representative immediately. solutions, contact Philips customer service Imaging Problems representative. An “after-image” after the power has Common Problems been turned off. -
Page 22: General Faqs
Ans.: These are the driver files for your PC, workstation or Mac? monitor. Your computer may ask Ans.: Yes. All Philips monitors are fully you for monitor drivers (.inf and compatible with standard PCs, .icm files) when you first install your Macs and workstations. - Page 23 Use the SmartRemote app for a quicker and easier way to view your files. Q12: Where can I find Important Information manual mentioned in EDFU? Ans.: Important Information manual can be download on the Philips website support page.
- Page 24 This product has been manufactured by and is sold under the responsibility of Top Victory Investments Ltd., and Top Victory Investments Ltd. is the warrantor in relation to this product. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
