General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden trailer sprayer.
BEFORE RETURNING THIS PRODUCT
FOR ANY REASON, PLEASE CALL
1-870-935-3291
If you should have a question or experience a problem with
your SMA Product: call the Toll free number above.
Our technical support representatives will be happy to
help you. In most cases a customer service rep. can
resolve the problem over the phone.
To obtain prompt, efficient service, always remember to give
the following information....
• Correct Part Description and/or part number
• Model number and Serial Number
Part descriptions and numbers can be obtained from the
illustrated parts list section(s) of this manual.
Retain a copy of your receipt for your unit, as it will be required
to validate any warranty service.
Warranted against manufacturer or workmanship defects from
date of purchase with copy of receipt:
Homeowner Usage: One Year
Commercial Usage: 90 Days.

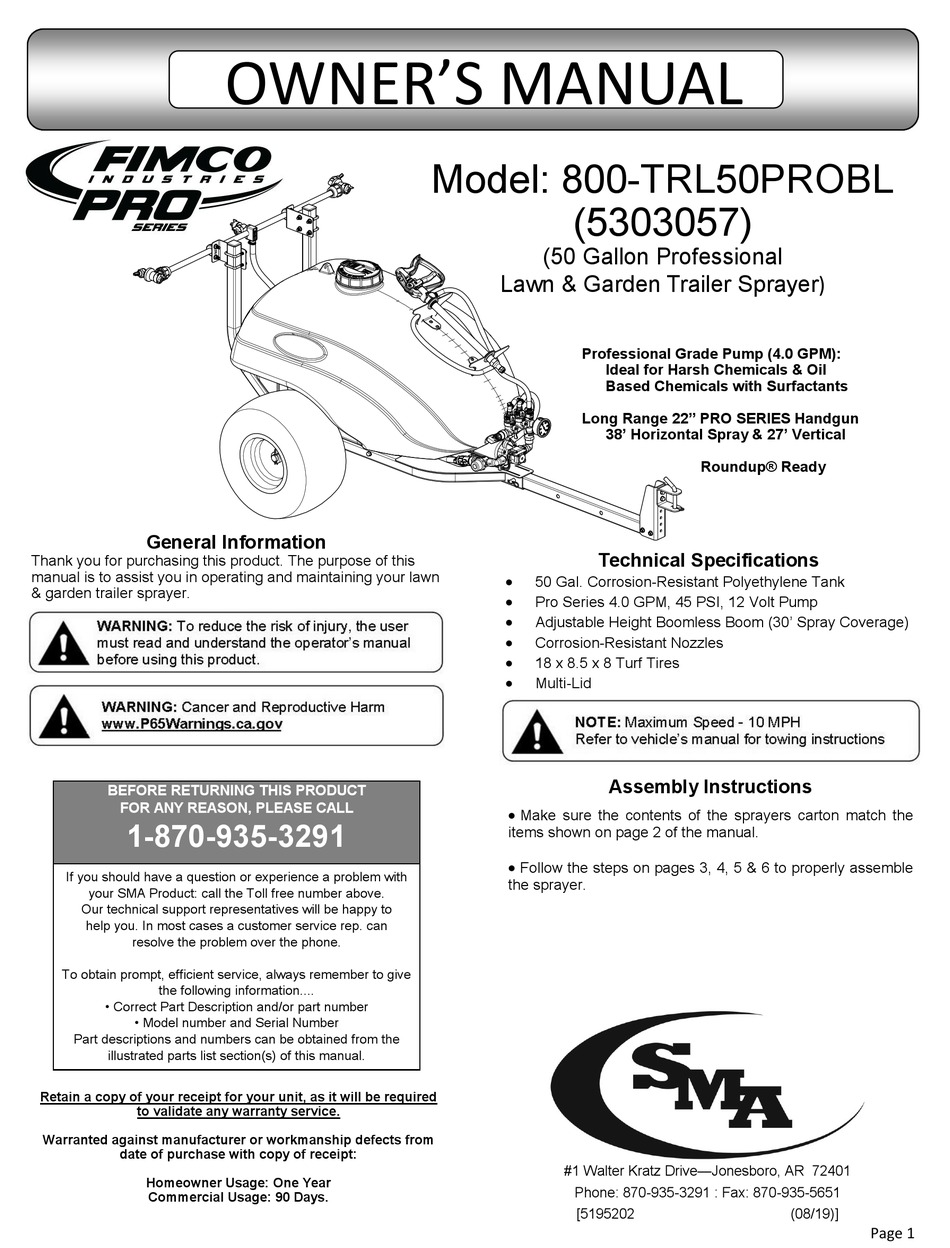

OWNER'S MANUAL
Model: 800-TRL50PROBL
(5303057)
(50 Gallon Professional
Lawn & Garden Trailer Sprayer)
Professional Grade Pump (4.0 GPM):
Ideal for Harsh Chemicals & Oil
Based Chemicals with Surfactants
Long Range 22" PRO SERIES Handgun
38' Horizontal Spray & 27' Vertical
Technical Specifications
50 Gal. Corrosion-Resistant Polyethylene Tank
Pro Series 4.0 GPM, 45 PSI, 12 Volt Pump
Adjustable Height Boomless Boom (30' Spray Coverage)
Corrosion-Resistant Nozzles
18 x 8.5 x 8 Turf Tires
Multi-Lid
Assembly Instructions
Make sure the contents of the sprayers carton match the
items shown on page 2 of the manual.
Follow the steps on pages 3, 4, 5 & 6 to properly assemble
the sprayer.
#1 Walter Kratz Drive—Jonesboro, AR 72401
Phone: 870-935-3291 : Fax: 870-935-5651
[5195202
Roundup® Ready
(08/19)]
Page 1
Advertisement
Related Manuals for SMA Fimco Pro Series
Summary of Contents for SMA Fimco Pro Series
- Page 1 If you should have a question or experience a problem with the sprayer. your SMA Product: call the Toll free number above. Our technical support representatives will be happy to help you. In most cases a customer service rep. can resolve the problem over the phone.
- Page 2 Contents of your sprayer’s carton (800-TRL50PROBL) Tank/Plumbing Pre-Assembly Owner’s Manual Tongue Assembly “Wet Boom” Sub-Assembly End Nozzle (5275122) Pkg. of 2: #5275713 Contents of Parts Bag (5281302) 1” x 32” Axle Shaft Turf Tires Boom Mount Kit (#5281316) Page 2...
- Page 3 Step 1 Your tank comes already mounted to the main frame and pre- assembled with the pump, manifold, bypass, intake assembly, lid, handgun, handgun hose amd handgun hose quick connect already attached. Assembling the tongue to the frame. Locate the (2) bent clevis Detail A pins from the parts bag.
- Page 4 Step 4 Step 5 Install the pressure gauge. Hand tighten securely. • A phillips head screwdriver is required for this step ** DO NOT OVER-TIGHTEN ** Locate the (4) #10 x 1/2” screws, (2) hose wraps and (2) rubber grommets. Insert the rubber grommets into the hose wraps.
- Page 5 End Nozzle Assembly Procedure For Boomless “Wet”Boom Your boom will come with the (2) end nozzle assemblies NOT affixed to your boom tube. Follow the instructions below to attach these properly to the boom tube, as shown. Assembled End Nozzle Item 2 is shipped inside of Step 7 the end nozzle assembly.
- Page 6 Step 8 Attach the boom to the boom mount brackets with the (2) u-bolts and (4) whiz locknuts. Make sure the u-bolts are positioned within the grooves of the grommets on the boom tube NOTE: The purpose of these grommets is to prevent metal-to-metal contact between the u-bolts, boom tube and boom mounting brackets.
-
Page 7: Operation
IMPORTANT: Remove tank lid and be sure the tank is clean and free of Manifold Valves CLOSED any foreign material. Rinse tank out of any tank residue before filling with water to test. Testing the Sprayer NOTE: It is VERY important for you to test your sprayer with plain water before actual spraying is attempted. - Page 8 Calibration Speed Chart Chemical labels may show application rates in gallons per acre, gallons per 1000 square feet or gallons per 100 square feet. You will note that the tip Time Required in seconds to travel a distance of chart shows 2 of these rating systems. Once you know how much you are Speed in M.P.H.
-
Page 9: Troubleshooting The Pump
4.0 GPM Pump Model: 5151073 Available Replacement Parts Ref. # Mfg. # Description 94-230-55 Switch Assembly 94-237-05 Check Valve Assembly 94-231-30 Upper Housing 94-232-05 Valve Assembly 94-238-21 Drive Assembly DON’T Clean and rinse your pump after each use with Fimco Tank ... -
Page 10: Exploded View
Boom Assembly & Parts List Page 12 Plumbing Detail Next Page Exploded View 800-TRL50PROBL (5303057) (See Next Page for Parts List) Bulkhead Fittings Page 10... - Page 11 Parts List: 800-TRL50PROBL (5303057) Plumbing Detail Manifold Detail Intake Assembly This sprayer comes with an On/ Off (shut-off) valve located just before the strainer. You must make sure the valve is in the “open” position before using your sprayer. Page 11...
- Page 12 Boomless “Wet” Boom Assembly Exploded View/Parts List (5275260) Boom Sub-Assembly 5275712 Center Nozzle End Nozzle Assembly Assembly 5275122 5275123 Page 12...
- Page 13 NOTES: Page 13...
-
Page 14: Warranty
Warranty LIMITED WARRANTY FOR NEW FIMCO, IND. EQUIPMENT WHO MAY USE THIS LIMITED WARRANTY. This limited warranty (the “Limited Warranty”) is provided by Fimco, Ind. to the original purchaser (“you”) of the Equipment (as defined below) from Fimco, Ind. or one of Fimco, Ind.’s authorized dealers. This Limited Warranty does not apply to any subsequent owner or other transferee of the Equipment.
