QANBA TITAN B1 Instruction Manual

ARCADE JOYSTICK
TITAN
Instruction Manual
Model: B1
Operating Instructions
1. Turn on your PlayStation®4 console or PlayStation®5 console.
2. Use the COMPATIBILITY switch (15) to select the appropriate
PS5™ setting or PS4™ setting.
PS5
PS4
PC
3. Ensure the LOCK/UNLOCK switch (16) is set to unlocked.
4. Plug your joystick into your console.
5. Press the PS button (8) to initialize the joystick.
6. Press and hold the PS button (8) if you would like to change
the player assignment.
* PC compatibility not tested nor endorsed by Sony Interactive
Entertainment.
LOCK/UNLOCK Switch (Tournament Mode)
• To enable tournament mode, slide the LOCK/UNLOCK
switch (16) to the locked setting.
• In a competitive setting, players may choose to disable these
buttons:
• CREATE button (SHARE button for PS4™ consoles) (11)
• TURBO button (10)
• PS button (8)
• OPTIONS button (7)
~2~
English

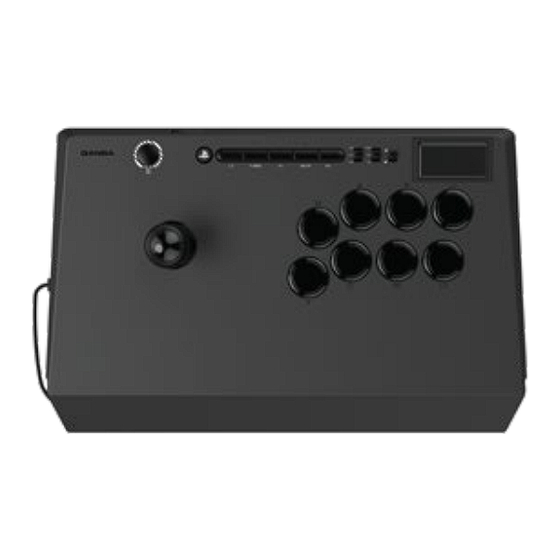

Features
6 5 4
DP PS5
LS PS4
RS PC
L3 TURBO MUTE R3
2
1
TURBO
L3 TURBO
8 9 10
7
1. USB cord and compartment
2. Sanwa lever
3. Sanwa 30mm buttons
4. Touch pad
5. Mini buttons
6. 3.5mm headphone jack
7. OPTIONS button
8. PS button
9. L3 button
MODE Switch
• The Sanwa lever (2) can be toggled between three unique
control modes:
• Directional Pad (DP)
• Left Analog Stick (LS)
• Right Analog Stick (RS)
• Slide the MODE switch (14) to toggle between the three
unique control modes.
DP
LS
RS
MUTE Button
• When the 3.5mm headphone jack (6) is not used, the MUTE
button (12) has no function
• When headphones are connected to the 3.5mm headphone
jack (6), the headphone's microphone can be toggled
between two unique control modes:
• Microphone active (default setting) - MUTE button
LED off
• Microphone off - MUTE button LED on
• Press the MUTE button (12) to cycle between the two
unique control modes
3
MUTE
DP PS5
LS PS4
RS PC
MUTE R3
11 12 13 14 15 16
10. TURBO button
11. CREATE button (SHARE
button for PS4™ consoles)
12. MUTE button
13. R3 button
14. MODE switch
15. COMPATIBILITY switch
16. LOCK/UNLOCK switch
17. Qanba lever access hole
~1~
English
MUTE
~3~ English
17
