INSTRUCTIONS
F I T
FITNESS APP FOR SMARTPHONES AND TABLETS
LIVE / ON-DEMAND CLASSES
"THE EXTRA MILE"
lead by certified instructors
to warm-up and cool-down
SCENIC RIDES
STAY TOGETHER
recorded in beautiful locations
by connecting with family & friends
Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
Google Play and the Google Play logo are trademarks of Google Inc.
Read instructions carefully and thoroughly before first use
Advertisement
Table of Contents

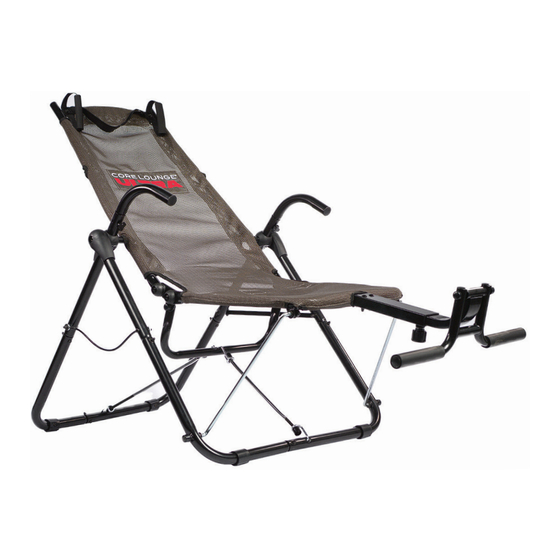

Summary of Contents for Echelon CORE LOUNGE ULTRA
- Page 1 INSTRUCTIONS F I T FITNESS APP FOR SMARTPHONES AND TABLETS LIVE / ON-DEMAND CLASSES “THE EXTRA MILE” lead by certified instructors to warm-up and cool-down SCENIC RIDES STAY TOGETHER recorded in beautiful locations by connecting with family & friends Apple and the Apple logo are trademarks of Apple Inc., registered in the U.S. and other countries. App Store is a service mark of Apple Inc., registered in the U.S.
-
Page 2: Unit Diagram
UNIT DIAGRAM WARNING LABEL 1 WARNING LABEL 2 WARNING LABEL 3 CAUTION LABEL 1 250 LBS... - Page 3 PARTS LIST EXPLODED VIEW...
-
Page 4: Parts Diagram
PARTS DIAGRAM NOTE: Some parts may be pre-lubricated. To protect your flooring or anything the parts may contact, lay down a newspaper or cloth. For an instructional video to aid in assembly, visit CORELOUNGEULTRA.COM... - Page 5 ASSEMBLY Remove all parts from packing and lay out pieces as illustrated in PARTS DIAGRAM. FIG. 1 Slide Front Leg pieces (1) together. Secure with an M6x39mm Carriage Bolt, Curved Washer, and Acorn Nut (see fig. 1a). Tighten nut with wrench provided.
- Page 6 ASSEMBLY FIG. 2 As shown in fig. 2, slide Rear Leg pieces (4) together. Secure with an M6x39mm Carriage Bolt, Curved Washer, and Acorn Nut. Bolts should enter f rom bottom of f rame tubes with washer and nut on top (fig. 3a). Tighten Nut with wrench provided.
- Page 7 ASSEMBLY Lift left side up so right side remains on floor and rotate Rear Frame Assembly around until unit is oriented as shown in Fig. 3. Starting on the right side of the unit, position one end of Cable on Inside of Right Front Frame (1) and align bolt holes.
- Page 8 ASSEMBLY FIG. 5 other end of Long Band to hole on Rear Frame (a). Make sure hooks are inserted completely (fig. 5c). NOTE: Chair will pivot easily at this point. Make sure you hold Frame firmly in place as you attach bands. 17.
- Page 9 ASSEMBLY FIG. 7a 22. As shown is fig. 7a, working from front of unit, slide Headrest Bar through fabric pocket at top of back rest making sure Headrest Bar is in front of Upper Support Tubes and the bend is pointed up.
-
Page 10: Adjusting Foot Rest
GETTING ON Stand next to the unit near foot rest (fig. 1). 2. Place one hand lightly on handlebar and carefully step over footrest cross bar connecting seat and foot rest (fig. 2). 3. Facing the foot rest, slowly sit down on seat (fig. 3). 4. -
Page 11: Folding Unit
FOLDING UNIT Always review these instructions prior to folding unit. Lay unit on right side as shown in Fig. 1 below. 2. Unhook Short Band from Front Frame and Long Band from Rear Frame. Leave both Bands connected to Seat Support Frame for storage (fig. 1a). 3. - Page 12 CARE • Keep equipment clean by wiping sweat, dust, or other residue off seat, foot rest, and handlebars with a soft, clean cloth after each use. • Before each use, check bands, fabric, and stitching for signs of fraying. If you notice any wear, stop using immediately.
- Page 13 EXERCISES EXTENDED ARM JACKKNIFE STEP 1 STEP 2 EXTENDED LEG JACKKNIFE STEP 1 STEP 2 ADVANCED JACKKNIFE STEP 1 STEP 2 LATERAL JACKKNIFE STEP 1 STEP 2...
-
Page 14: Important Safety Instructions
Read the user manual fully and follow all instructions. This ensures your safety. WARNINGS • ALWAYS use the Core Lounge Ultra on solid, level ground and in a well lit and ventilated area. • ALWAYS check that the unit is secure before use. - Page 15 USE ONLY. • ALWAYS warm up/stretch before starting exercise. • ALWAYS be cautious when getting on and off the Core Lounge Ultra. • ALWAYS keep hands away from moving parts. • NEVER overexert yourself or work to exhaustion. If you feel faint,...
-
Page 16: Contact Customer Service
QUESTIONS? CONTACT CUSTOMER SERVICE 1-888-784-2835 Read Instructions MADE IN PATENT 041019 VIATEKPRODUCTS.COM Rev: CHINA Before Operating PENDING For questions, assistance, or replacement parts, do not return to your retailer. Contact Viatek customer service below. ® For refunds on items not purchased from Viatek directly, please contact your retailer.
