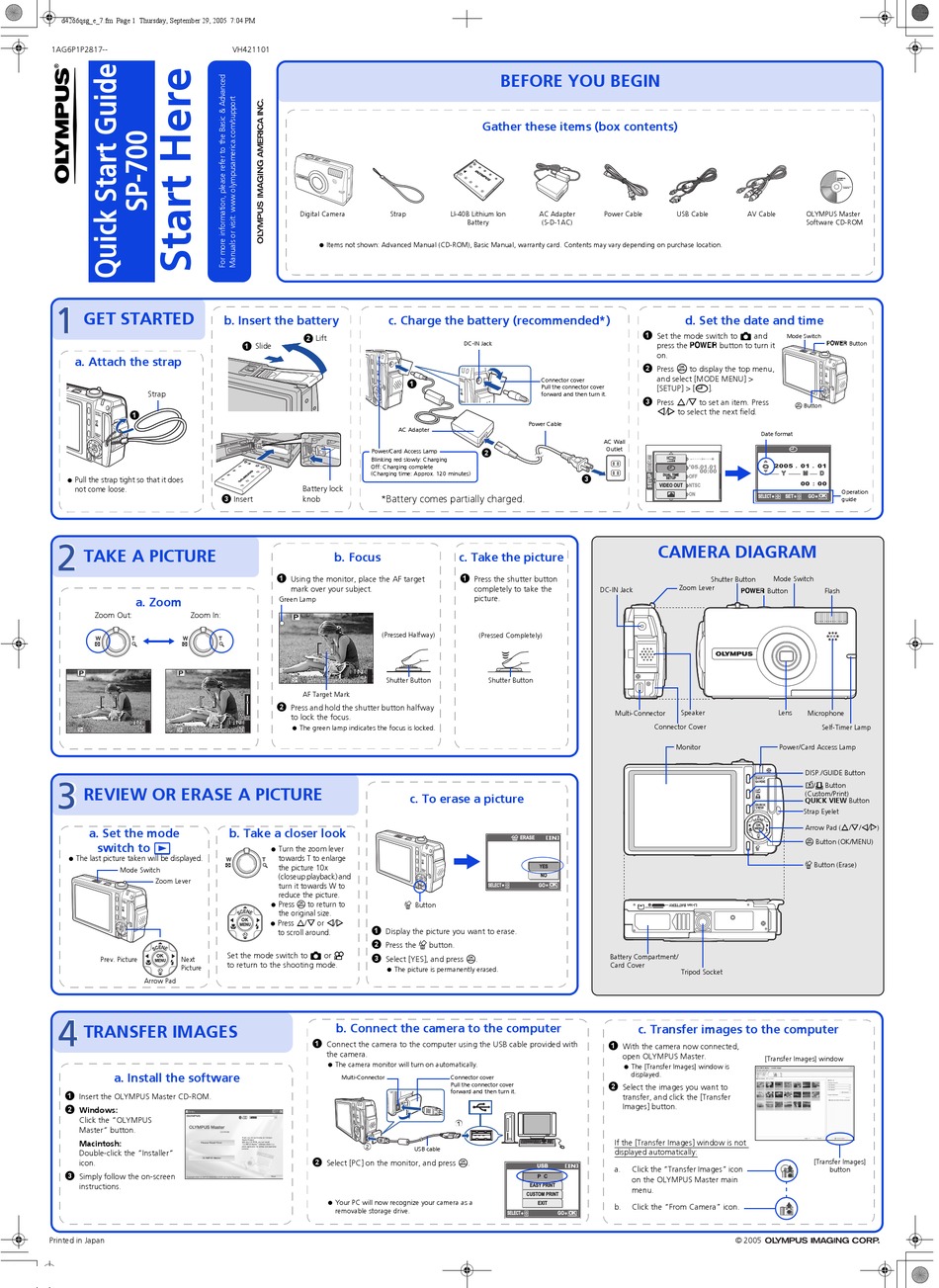

Olympus SP-700 Quick Start Manual

d4266qsg_e_7.fm Page 1 Thursday, September 29, 2005 7:04 PM
1AG6P1P2817--

GET STARTED

b. Insert the battery
a. Attach the strap
Strap
1
Pull the strap tight so that it does
not come loose.
3

TAKE A PICTURE

a. Zoom
Zoom Out: Zoom In:
4 4
6M 6M 6M 6M
REVIEW OR ERASE A PICTURE
a. Set the mode
switch to q
The last picture taken will be displayed.
Mode Switch
Zoom Lever
Prev. Picture Next
Arrow Pad

TRANSFER IMAGES

a. Install the software
1
Insert the OLYMPUS Master CD-ROM.
2
Windows:
Click the "OLYMPUS
Master" button.
Macintosh:
Double-click the "Installer"
icon.
3
Simply follow the on-screen
instructions.
Printed in Japan
VH421101
Digital Camera Strap
Items not shown: Advanced Manual (CD-ROM), Basic Manual, warranty card. Contents may vary depending on purchase location.
c. Charge the battery (recommended*)
Lift
2
1 Slide
AC Adapter
Power/Card Access Lamp
Blinking red slowly: Charging
Off: Charging complete
(Charging time: Approx. 120 minutes)
Battery lock
*Battery comes partially charged.
Insert knob
b. Focus
1
Using the monitor, place the AF target
mark over your subject.
Green Lamp
(Pressed Halfway)
4 4
6M 6M
Shutter Button
AF Target Mark
2
Press and hold the shutter button halfway
to lock the focus.
4 4 The green lamp indicates the focus is locked.
b. Take a closer look
Turn the zoom lever
towards T to enlarge
the picture 10x
(closeup playback) and
turn it towards W to
reduce the picture.
Press Z to return to
the original size.
Press O/N or X/Y
1
Display the picture you want to erase.
to scroll around.
2 Press the S button.
Set the mode switch to K or A
3
Select [YES], and press Z.
to return to the shooting mode.
The picture is permanently erased.
b. Connect the camera to the computer
1
Connect the camera to the computer using the USB cable provided with
the camera.
The camera monitor will turn on automatically.
Multi-Connector
2
2
Select [PC] on the monitor, and press Z.
Your PC will now recognize your camera as a
removable storage drive.

BEFORE YOU BEGIN

Gather these items (box contents)
LI-40B Lithium Ion AC Adapter
Battery (S-D-1AC)
DC-IN Jack
Connector cover
1
Pull the connector cover
forward and then turn it.
Power Cable
2
c. Take the picture
1
Press the shutter button
completely to take the
picture.
(Pressed Completely)
Shutter Button
c. To erase a picture
ERASE
YES
NO
SELECT GO OK
S Button
Connector cover
Pull the connector cover
forward and then turn it.
1
USB cable
USB
P C
EASY PRINT
CUSTOM PRINT
EXIT
SELECT GO OK
Power Cable USB Cable AV Cable
d. Set the date and time
1
Set the mode switch to K and
press the o button to turn it
on.
2 Z
Press to display the top menu,
and select [MODE MENU] >
[SETUP] > [X].
3 Press O/N to set an item. Press
X/Y to select the next field.
AC Wall
Outlet
'05.01.01
00:00
DUAL TIME
OFF
3
SETUP
VIDEO OUT NTSC
u ON

CAMERA DIAGRAM

Shutter Button
Zoom Lever
DC-IN Jack
o Button
Multi-Connector Speaker
Connector Cover
Monitor
Battery Compartment/
Card Cover
Tripod Socket
c. Transfer images to the computer
1
With the camera now connected,
open OLYMPUS Master.
The [Transfer Images] window is
displayed.
2
Select the images you want to
transfer, and click the [Transfer
Images] button.
If the [Transfer Images] window is not
displayed automatically:
a. Click the "Transfer Images" icon
on the OLYMPUS Master main
menu.
b. Click the "From Camera" icon.
© 2005
OLYMPUS Master
Software CD-ROM
Mode Switch
o Button
Z Button
Date format
2005 . 01 . 01
Y M D
00 : 00
Operation
SELECT SET GO OK
guide
Mode Switch
Flash
Lens Microphone
Self-Timer Lamp
Power/Card Access Lamp
DISP./GUIDE Button
z/< Button
(Custom/Print)
QUICK VIEW Button
Strap Eyelet
Arrow Pad (O/N/X/Y)
Z Button (OK/MENU)
S Button (Erase)
[Transfer Images] window
[Transfer Images]
button
