Compaq Armada M300 Quickspecs

Compaq notebook pc quickspecs
Hide thumbs Also See for Armada M300:

Advertisement

Quick Links

Download this manual See also: Feature Manual, Quickspecs
A
A G
T
L A N C E
Ultralight weight (1.4 to 1.5 kg
depending on configuration)
Less than 2.3 cm thin
Full set of system ports
Choice of Intel Mobile Pentium
II
®
or Mobile Celeron™ 333-MHz
processor
Optional Mobile Expansion Unit
Choice of Windows NT or 95;
Support for Windows 98.
Integrated Mini PCI modem
Keyboard 95% of full size
User removable hard drive
Full magnesium enclosure
Protected by a one-year,
Worldwide Limited Warranty
,
1
Pick-Up anywhere in Australia
with 48-hour service workshop
turnaround repair time.
Q
S
UICK
PECS

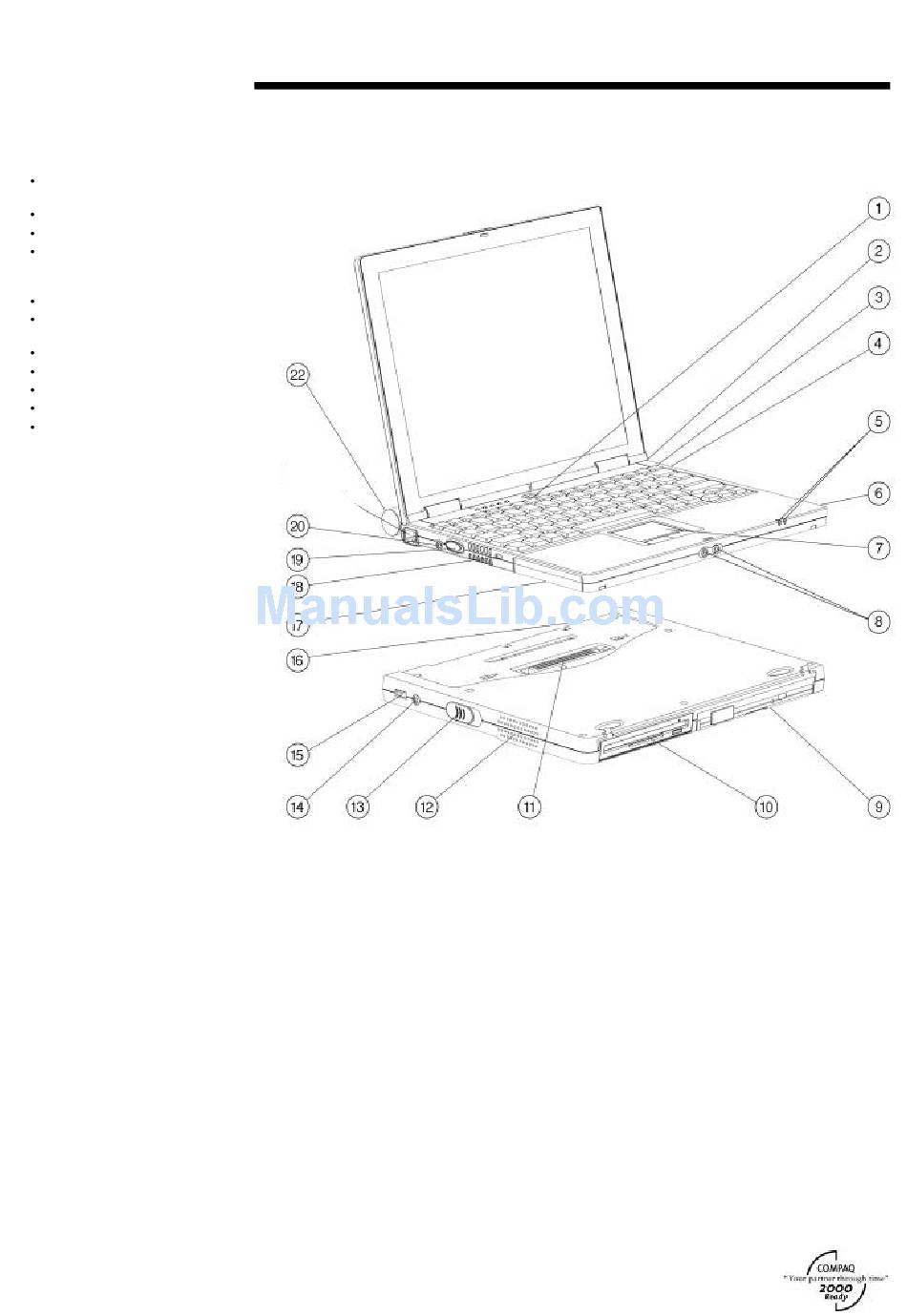

Overview
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
1. Suspend/Resume Button
. .
. .
2. System ports (USB, Serial, Parallel, IR, VGA)
. .
. .
3. Keyboard (95% of fullsize)
. .
. .
. .
4. RJ-11 Jack (Internal modem models only)
. .
. .
5. Power/Battery light
. .
. .
6. PC Card Slot
. .
. .
7. Touchpad Pointing Device
. .
. .
8. Audio In/Out Jacks
. .
. .
. .
9. Common Armada MultiBay (supports second Hard
. .
. .
Drive, SuperDisk LS-120, Battery, CD-ROM or
. .
DVD-ROM)
. .
. .
10. Diskette Drive Bay
. .
. .
. .
11. System Connector
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
. .
.
1
7/26/99
Division – Portables
Compaq Armada M300
12. Stereo Speakers
13. Diskette Drive Release Latch
14. AC Power Connector
15. USB Port
16. MEU Ports (Serial, Parallel, Docking, VGA ,
PS/2)
17. Hard Drive Bay
18. Security Cable Slot
19. On/Off Button
20. AC Power Connector
22. Li-Ion Battery

Advertisement

loading

Related Manuals for Compaq Armada M300

Summary of Contents for Compaq Armada M300

  • Page 1 Drive, SuperDisk LS-120, Battery, CD-ROM or DVD-ROM) 10. Diskette Drive Bay 11. System Connector Division – Portables Compaq Armada M300 12. Stereo Speakers 13. Diskette Drive Release Latch 14. AC Power Connector 15. USB Port 16. MEU Ports (Serial, Parallel, Docking, VGA , PS/2) 17.

  • Page 2: Standard Features

    102 keys compatible keyboard 95 percent of full size, with special hotkey features for instant access to battery conservation, toggle between internal, and external or simultaneous displays, system volume mute/restore and adjust, screen brightness, battery charge status, embedded numeric keypad, and Quick Controls Synaptics TouchPad w/2 selection buttons Division – Portables Compaq Armada M300...
  • Page 3 6.4 GB 6333/T/6400/0/M/3 6333/T/6400/0/M/1 4.3 GB C333/T/4300/0/M/3 C333/T/4300/0/M/1 Multimedia Compaq PremierSound for enhanced stereo audio (with optional MEU) Integrated 16-bit Sound Blaster Pro-compatible stereo audio Integrated speaker and microphone Software/hardware volume control Headphone Out Jack Microphone In Jacks Software MPEG1 support...
  • Page 4 UICK PECS Standard Features Software Microsoft Windows NT Workstation 4.0 Compaq Insight Management Agents Compaq Security 32 Compaq Diagnostics Compaq Power Management Online Safety and Comfort Guide Online Reference Guide Carbon Copy 32 Host QuickRestore CD Kit CardWare for Windows NT...
  • Page 5 Pop-ups with three presets One custom level of power conservation Service and Support Compaq Services provides a range of services for the Armada M300, including a one-year, Worldwide Limited Warranty . In Australia warranty includes Pick-up anywhere in Australia with 48-hour service workshop turnaround repair time.
  • Page 6 Compaq Microcom 520 56K Modem + 10/100 Ethernet PC Card 10/100 TX PC Card UTP Controller Compaq Microcom 420 56K Global Modem Compaq Speedpaq GSM Radio PC Card 7/26/99 Division – Portables Compaq Armada M300 Power MultiBay Battery (6 Cell) 400313-B21 Main Battery –...
  • Page 7 Support for up to 128 MB of SDRAM is available with the removal of the standard 64-MB Memory Module and the installation of optional SDRAM Memory Upgrade. Up To Slot 128 MB Following are memory options available from Compaq: 128-MB Memory Upgrade 7/26/99 Division – Portables Compaq Armada M300...
  • Page 8 Up to 1 Up to 1 Up to 1 Up to 1 SMART Hard Drive Up to 1 Division – Portables Compaq Armada M300 Drive Bay Supported External connects via parallel port Hard Drive Bay Hard Drive Bay Drive Bay...

  • Page 9: Technical Specifications

    Non-operating Pitch Format Configuration Division – Portables Compaq Armada M300 0.89 x 10.4 x 9 in/2.3 x 26.4 x 22.9 cm 3.06 lbs to 3.26 lbs/1.39 kg to 1.48 kg 14.2 VDC 41° to 95°F/5° to 35°C –22° to 140°F/–30° to 60°C 10% to 90% relative humidity, non-condensing 5% to 90% relative humidity, 101.6°F/38.7°C Maximum...

  • Page 10: Technical Specification

    Average (high/low) Settling time Latency average Operating Voltage Operating Current Operating Frequency Range Maximum Transient Division – Portables Compaq Armada M300 Seek Time (typical reads, including settling) Single Track 4 ms Average 13 ms (read) Full-Stroke 23 ms Rotational Speed...
  • Page 11 IrDA 4 MB compliant. IR performance will vary depending on performance of IR peripherals and applications used. When tested in the standard configuration using the Ziff-Davis BatteryMark test version 1.0, the battery life of the Armada M300 family will range from 2 hours and 0 minutes to 3 hours and 0 minutes depending on individual usage.
