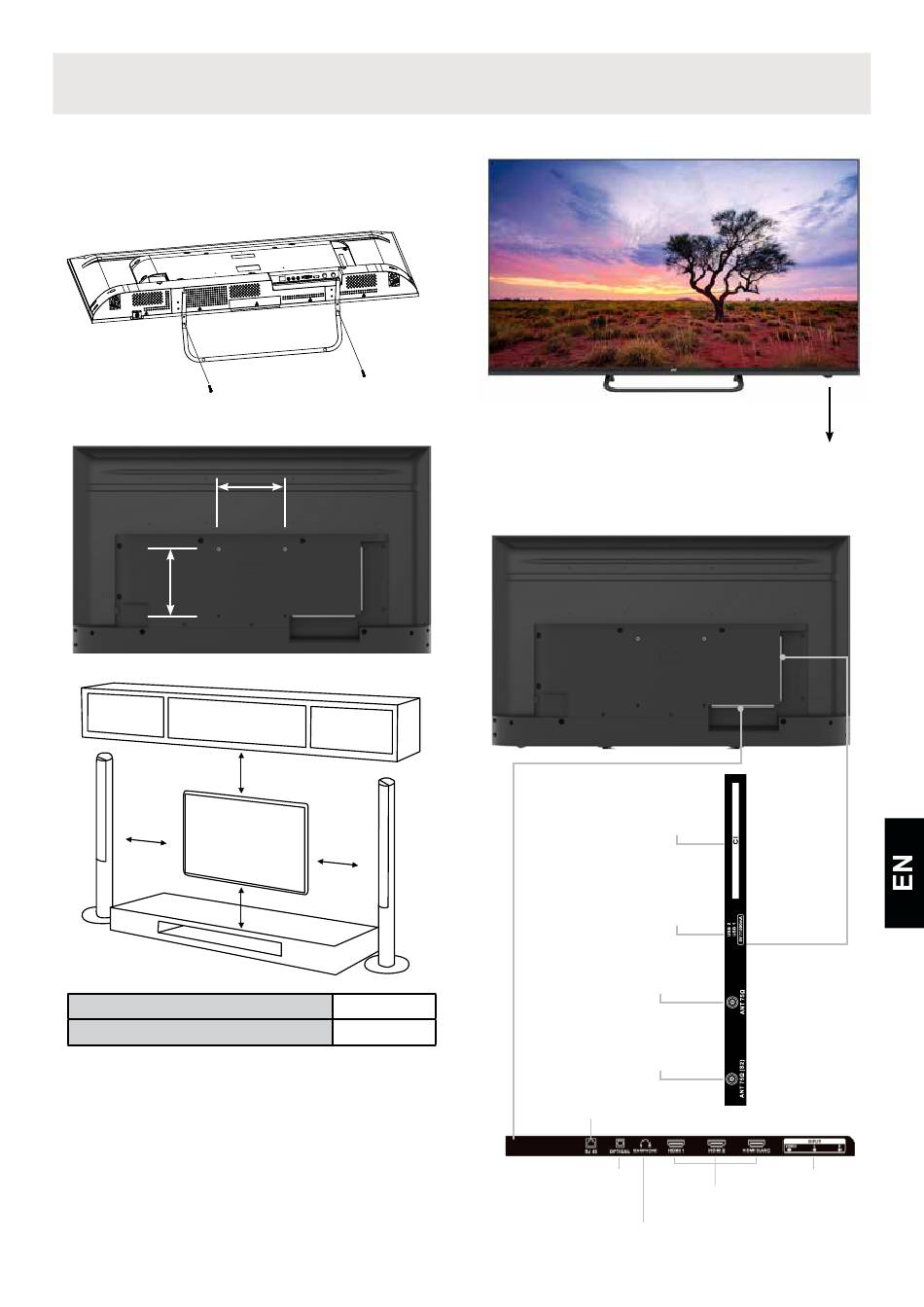

ASSEMBLY

Stand Assembly
Place the TV unit face down on a soft, flat surface to
prevent any damage to the screen.
Attach the stand to the bottom of the TV using the
included screws.
Wall Mounting
200 mm
200 mm
1 0 c m
Wall mount hole pattern VESA (mm)
Wall mount screw size (mm)
• The TV can be mounted on a wall using a
200mm x 200 mm VESA kit sold separately.
• Place the TV face down on a clean, safe and
cushioned surface. Remove the TV stand if you
have already attached it.
• Mount the TV according to the instructions
supplied with the kit. Beware of electrical cables,
gas and water pipes in the wall.
• To complete the installation, please contact the
store from which you purchase the TV.
1 0 c m
1 0 c m
1 0 c m
200 x 200mm
M6 x 100mm

OVERVIEW

Front View
Rear View
USB ports
Antenna socket
Satellite socket
Ethernet port
OPTICAL jack
Earphone
jack
Power on/Standby button
CI slot
Audio/Video
input jacks
HDMI ports
