Attwood NV6LC1 Quick Start Manual

NV6LC1 / NV6SP1
2 NM NAVIGATION LIGHTS
BI-COLOR POLE LIGHT, LED, 12VDC
SAVE THESE INSTRUCTIONS
Form number 69577 Rev. A
2 NM BI-COLOR COMBINATION BOW LIGHT
- For boats up to 20 meters / 65.6 feet in length
- Meets USCG CFR 183.810, ABYC A-16 and all applicable standards as
tested by Imanna Laboratories and ISO19009 requirements
- 2 nautical mile visibility
- Impact resistant, UV stable polycarbonate housing
CAUTION MAKE SURE POWER SOURCE IS 12-VOLT DC ONLY. HIGHER
VOLTAGE WILL DAMAGE LIGHT AND CIRCUITRY.
CAUTION Read all instructions carefully before installing and using this
product. All positive (+12V DC) lighting wires require a 1-amp fuse to
protect circuits and vessel. The aluminum light pole is not grounded.
WARNING To prevent personal injury, disconnect power when installing
or servicing this product. Remove boat from water before using any
120V AC power tools.
LOCATION
Lights must be mounted to an unobstructed smooth surface on the
gunwale, deck or superstructure. Locate Bi-color Combination Light
in an area as far forward as possible. (Figure 1)
INSTALLATION
All positive (+12V DC) wires must be fused to protect your circuits
and vessel. The Bi-color navigation light requires a 1-amp fuse. The
aluminum pole is not connected to an electrical ground (Figure 2).
Regulations require lights to be operated with a three-position switch
for running lights (bow lights and all-round light) and anchor lights
(all-round light only).
BASES THAT DO NOT USE LOCKING COLLARS (NV6SP1)
1. Align pole screw with the slot (or locking spring) in the existing
base. Insert pole into base (Figure 2).
2. Press down firmly to engage electrical connectors. With Easy Lock
base, be sure locking spring clicks over pole screw.
3. To remove:
• Pull locking spring back (on Easy Lock Base)
• Pull pole straight up.
BASES THAT USE LOCKING COLLARS (NV6LC1)
1. Align pole screw with the slot (or locking spring) in the existing
base. Insert pole into base (Figure 3).
2. Press down firmly to engage electrical connectors.
3. Slide locking collar down to base, rotate clockwise until threads
are fully engaged
NOTE: Periodically check pole to make sure it is secure.
4. To remove:
• Rotate locking collar in counter clockwise direction until it
loosens
• Pull pole straight up
After installation, check lights to verify proper operation.
BASE WIRING
IMPORTANT LED-based lights MUST be wired for correct polarity
(Figure 4). If your light does not function after installation, the light base may
require re-wiring.
To re-wire if necessary:
1. Unscrew or remove the base so you can reach wiring.
2. Locate the connection between base wiring and the boat's wiring
harness.
3. Cut wires. Add waterproof splice to each wire end.
4. Reverse polarity by reversing original wire connection to the wire
12/2016
harness.
5. Temporarily plug light into the base to check operation.
6. Remove light and reinstall base.
NOTE: Navigation light poles are designed to support only the light. They should
never be used as flag poles or handles.
MAINTENANCE
When not in use, store in Pole Light Storage Clips (Attwood part #7571).
Choose a storage location where light will not be damaged or be in constant
contact with water.

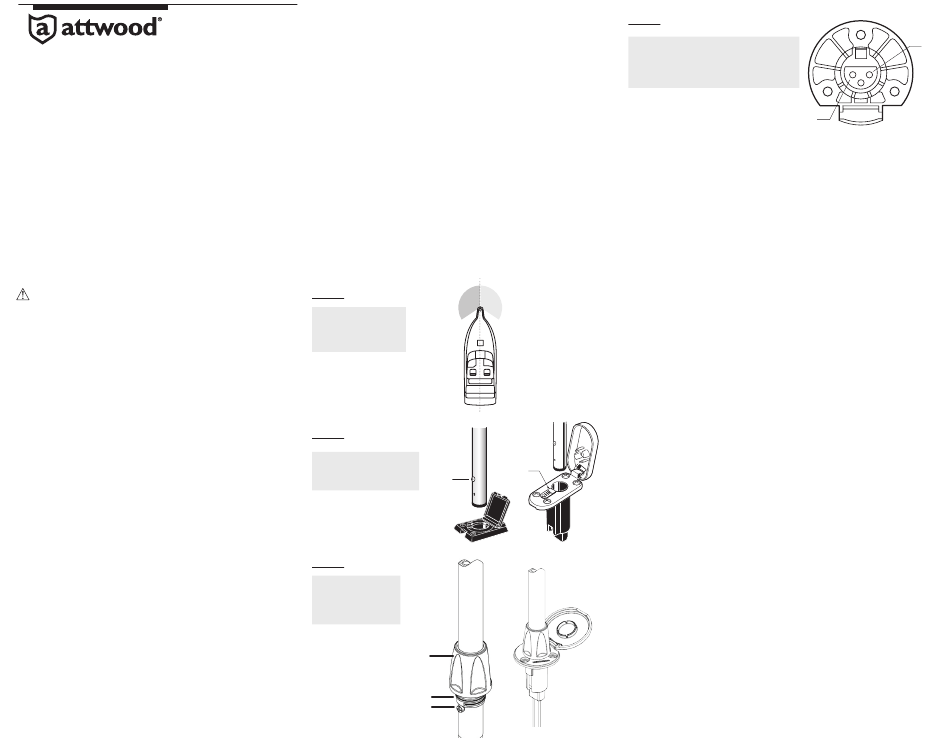

Figure 1
A. Red (Port)
B. Green (Starboard)
Figure 2
A. Pole Screw
B. Locking Spring
Figure 3
A. Locking Collar
B. Threads
C. Screw
A B
B
A
•
A
B
C
Figure 4
A. Black to negative 12 volt
B. Gray to positive 12 volt navigation light
switch with fuse
B
•
•
A
