Summary of Contents for Belkin PUREAV AP00002uk

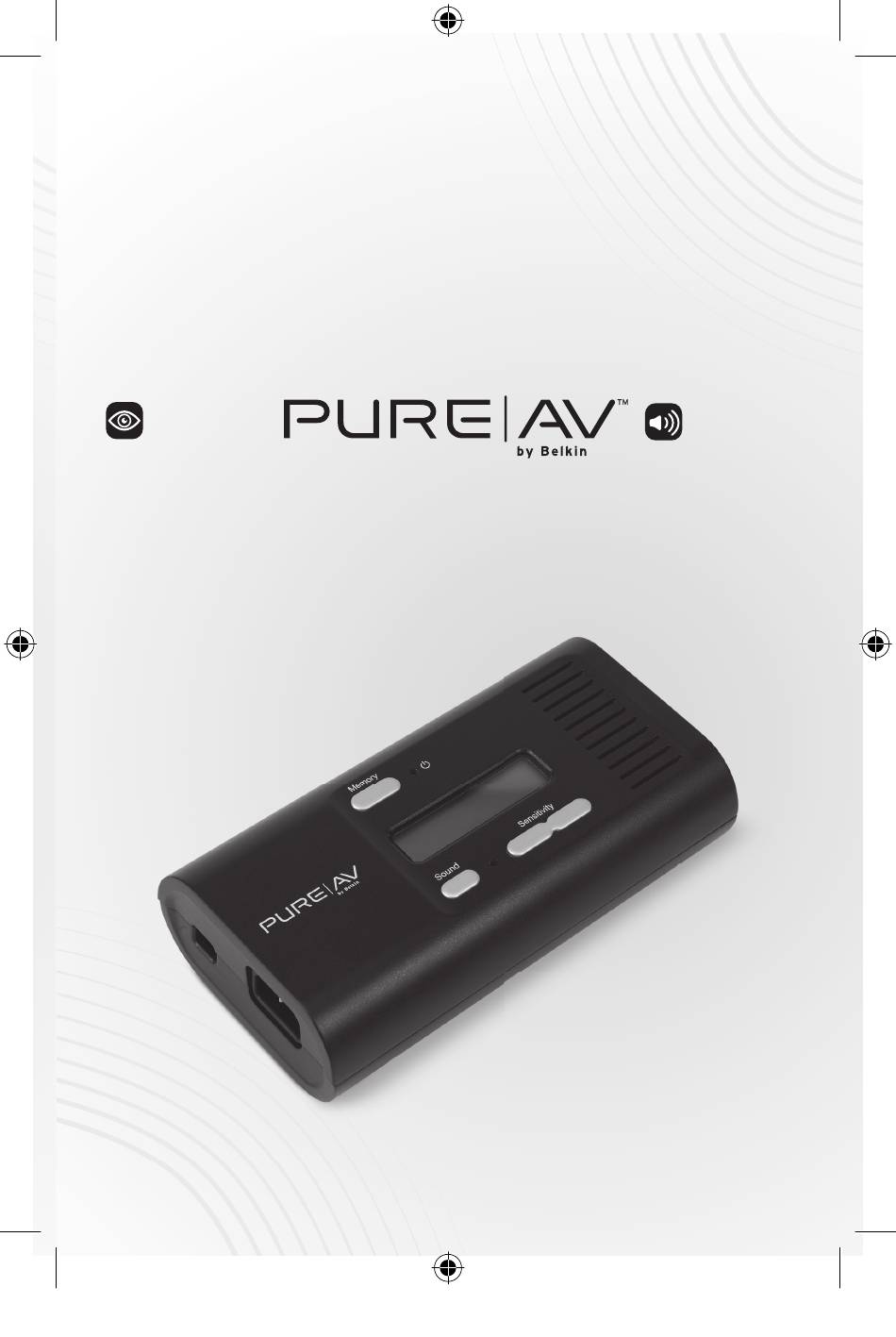

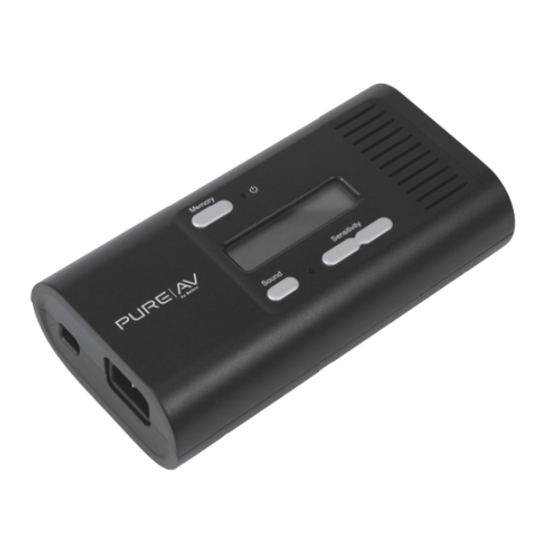

- Page 1 Clear Picture Clean Sound PureAV Power Line Sniffer Operating Instructions ™ Package Includes: - Sniffer Demo Unit - AC-Power Cable - Instruction Manual AP00002uk 5338uk_AP00002uk.indd 2 28/12/06 11:49:34 am...
- Page 2 5338uk_AP00002uk.indd 3 28/12/06 11:49:34 am...
- Page 3 Introduction: This Sniffer demonstration unit is used to provide a visual and audible representation of AC-power-line noise that is detected within an 115VAC or 230VAC electrical circuit at 50/60Hz. Technical Specifications: Input Power Supply: 115VAC or 230VAC +/-10%; 50/60Hz Operating Current: 30mA max Noise-Frequency Detection Range:...
- Page 4 Step 3: Adjusting the Sensitivity Level There are nine sensitivity levels displayed on the LCD. When the power is first connected, the default sensitivity level is 1. You can change the sensitivity level from 1 to 9 with the “Sensitivity ▲” and “Sensitivity ▼”...
- Page 5 (Figure 1) 1. Power-Supply Selection Switch: Selects either 115V or 230V 2. Power-Cable IEC-Connection Port: Connects input power to the Unit (Figure 2) 3. Memory Button: Press once to record the present AC-line-noise status 4. Power On/Off LED (green): Illuminates once AC-power cable is connected 5.
- Page 6 5-Year Product Warranty: Belkin Corporation warrants to the original purchaser of the PureAV Power Line Sniffer, that the PureAV Power Line Sniffer shall be free of defects in design, assembly, material, or workmanship, and will repair or replace, at its option, any defective unit free of charge up to five years from the date of purchase.
- Page 7 5338uk_AP00002uk.indd 8 28/12/06 11:49:43 am...
- Page 8 Shipton Way, Rushden NN10 6GL, United Kingdom +44 (0) 1933 35 2000 +44 (0) 1933 31 2000 fax © 2006 Belkin Corporation. All rights reserved. All trade names are registered trademarks of respective manufacturers listed. P75338uk 22868 60931 5338uk_AP00002uk.indd 1...
