TC 649 E
6490130
Control box LAN
Installation and operating
instructions
1. Basic safety information
WARNING
Danger of death through electric shock or fire!
Installation should only be carried out by a qualified
electrician!
•
The device is designed for installation on DIN top hat rails (in
accordance with IEC 60715)
•
It complies with product standard EN 60669-2-1
Do not operate the device outside the specified technical data
!
The device must be installed in an enclosed switchgear cabinet
made of metal or an appropriate fire-resistant material!
!
After proper installation, the housing component under the
cover must not be accessible!
2. Proper use
Control box TC 649 E is an annual time switch with astronomical
function, which can be controlled and updated via LAN and managed
centrally from a computer. The control box is used for lighting and
ventilation.
!
Do not use on safety devices, e.g. escape route doors, fire
safety equipment, etc.
Disposal
For an environmentally appropriate disposal, send the device back
to the owner
3. Installation and connection
Installing TC 649 E
click
Connecting TC 649 E
Connecting the power supply
Strip cable to 8 mm (max. 9 mm)
Insert the line into the terminal and fasten it
Plug terminal into power supply socket
Connect to power supply
▻ During the start of the operating system, all LEDs are flashing.
After approx. 150 s the start process is completed and the
power LED (PWR/TLS) flashes.
Wiring diagram
310539 02
Link to the
manual
http:/ /qr.theben.de/
o/urls/420
L
N
L Switch the load with a contactor.
!
If a load is switched directly, secure the device with a circuit
breaker of 6 A.

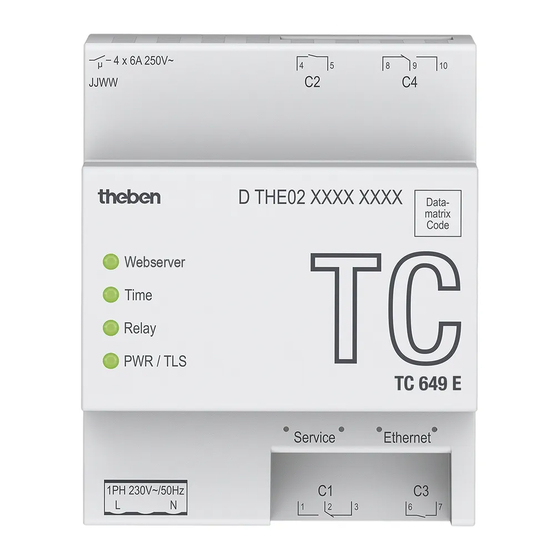

4. Device description
Connections
Voltage
L The performance specifications can be found on the side and on
the device shoulder (see picture). After installation they are not
visible any more!
N
L
L
L
L
L
L
L
N
Service interface
Connection to LAN
network
Power supply
socket (230 V)
1
