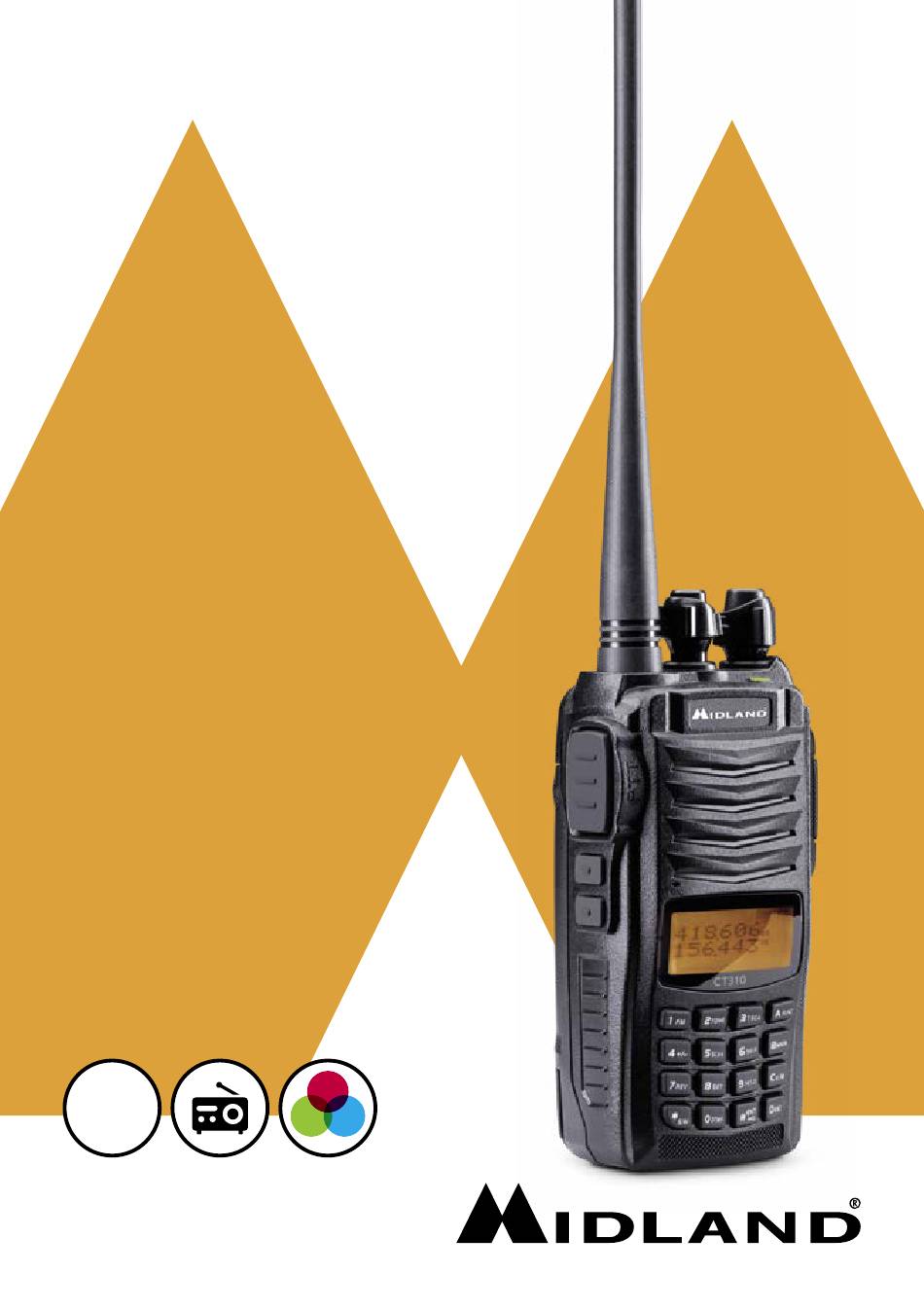

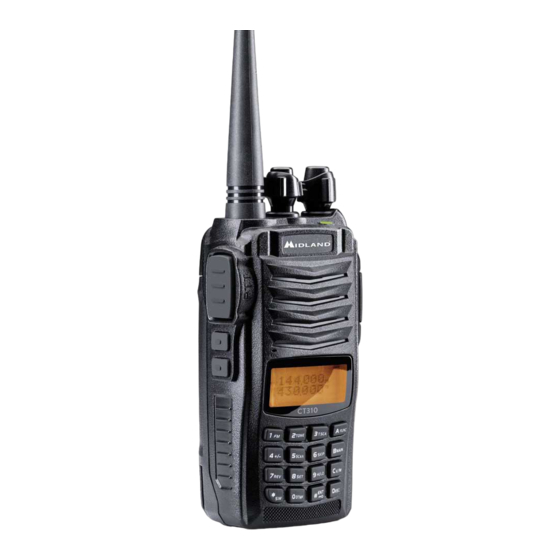

- Page 1 CT310 DUAL BAND VHF/UHF TRANSCEIVER › INSTRUCTION MANUAL SPECIAL FEATURES Memory FM radio 3 colors display channels...
- Page 2 Index Unpacking Supplied Accessories Maintenance Main features Programming software Charging Operation Battery Charger Type Charging notes How to Charge How to Store the Battery Warning Installation & Connection Installing / Removing the Antenna Installing / Removing the Belt Clip Installing Optional Speaker / Microphone Getting acquainted LCD Display Turn the Radio On &...
-
Page 3: Table Of Contents
Receiving Transmitting Emergency Alarm Side key PF2 function instruction Edit channel Delete channel Programming scan Turn On/ Off FM Radio CTCSS/DCS Setup CTCSS/DCS Scan Offset Frequency Direction Setup Frequency/Channel Scan Channel Scan Skip Frequency Reverse TX Power selection Stopwatch function DTMF code Transmit and Enquiry Keypad lock Single-band Switching... - Page 5 CT310 transceiver will provide you with reliable, clear and efficient communication service. This sturdy and reliable transceiver introduces innovative DSP digital signal processing technology, high degree integration and it is including plenty of professional functions. The transceiver is including plenty of TX, RX channels, as well as UU, VV and...
- Page 6 • Keep the Radio dry. Rainwater or damp will corrode electronic circuits. • If it appears that the Radio diffuses peculiar smell or smoke, please shut off its power immediately and take off the charger or battery from the radio. • Do not transmit without antenna. CT310 Instruction Manual...
- Page 7 • Li-Ion battery pack 7.4V 1200mAh • 2pin Kenwood accessory jack Programming software Thanks to the Midland Programming software PRG-G10, it is possible to increase the performance of your radio or to reduce its functionality by enabling or disabling some features.
- Page 8 Battery Charger Type Please use the original charger by Midland; other models may cause explosion and injure people. After installing the battery, if the radio red light twinkles, it means that the battery is discharged; please charge it. .
- Page 9 Orange (for 1 second) (No battery) Green Pre-charging Red light twinkles for 5 minutes Charge normally Full Charged Green Trouble Red twinkles for a long time NOTE: Trouble means battery heating, battery short-circuit or charger short- circuit. CT310 Instruction Manual...
- Page 10 • Never attempt to remove the casing from the battery pack. • Never assemble the battery in dangerous surroundings, spark may cause explosion. • Do not put the battery in hot environment or throw it into fire, it may also cause explosion. CT310 Instruction Manual...
- Page 11 Turn the screws counterclockwise to remove the belt clip. Installing Optional Speaker / Microphone Unveil the MIC-SP jack cover and then insert the Speaker/ Microphone plug into MIC-SP jack. Note: The transceiver is not completely waterproof while using the Speaker/ Microphone. CT310 Instruction Manual...
- Page 12 . . . CT310 Instruction Manual . . . ...
- Page 13 7. PTT key. Press PTT key to talk, release this key to receive. 8. PF1 key: multifunction button. The functions are selectable. 9. PF2 key: multifunction button. The functions are selectable. 10. Speaker/Microphone jack: suitable for external accessories and for pro- gramming software CT310 Instruction Manual...
- Page 14 13. Received signal strength 14. Busy channel 15. Hi/low power selection 16. FM radio 17. The arrows show the channel/frequency in use Note: Battery capacity indicator (full); No power, replace battery pack or charge it 10 | CT310 Instruction Manual...
- Page 15 NOTE: In transceiver mode, the arrow indicates the main band channel. If there is a null channel between two channels, the transceiver will skip it and will enter into the next channel directly. CT310 Instruction Manual | 11...
- Page 16 When the transceiver is in FM radio mode, press the FUNC key; the LCD displays icon, then press SCAN to start the FM searching. When one station is sought, the LCD displays the current station frequency. 12 | CT310 Instruction Manual...
-
Page 17: Receiving
In standby mode, press and hold PF1 which is programmed with ALARM function until LCD displays “ALARM”: the Emergency alarm function is activated. This transceiver has 4 Alarm modes available, which can be setup in programming software. Power off the transceiver to exit Alarm. CT310 Instruction Manual | 13... -
Page 18: Side Key Pf2 Function Instruction
Side Key PF1 function instruction 1. VOLT: Battery capacity inquiry: Under standby, press PF1, LCD displays current battery capacity, press this key again to exit. 2. CALL: Transmit the prestored DTMF/5TONE Encode signal in channel. 3. ALARM: Long pressing PF1, LCD display “ALARM”, transceiver will enable the preset alarm function. -
Page 19: Delete Channel
FM to turn off the FM radio and return to the transceiver mode. Re-start transceiver also can exit FM radio function. NOTE: To use the FM radio function, you must set RADIO function on 30th menu, otherwise the FM radio function cannot be used normally. CT310 Instruction Manual | 15... -
Page 20: Ctcss/Dcs Setup
In frequency mode (VFO) or channel mode, press FUNC, then press */- to choose a positive offset direction(+), minus offset direction (-) , shut offset off one by one (Please refer to the offset frequency setup). NOTE: This function is invalid in professional transceiver mode. 16 | CT310 Instruction Manual... -
Page 21: Frequency/Channel Scan
1. When LCD displays “R” icon, it means that the arrow shows the channel of the frequency reverse function; the TX frequency and RX frequency is interchanged, as well as the CTCSS/DCS (if set). 2. When “R” icon disappears, it means reverse function is deactivated. CT310 Instruction Manual | 17... -
Page 22: Tx Power Selection
FUNC, the top left corner of the LCD displays icon, then press and hold until the transceiver emits “DU” beep, the LCD displays icon. Now the keypad is locked. Repeat the above operation to unlock the kaypad. icon disappears. 18 | CT310 Instruction Manual... -
Page 23: Single-Band Switching
CTCSS, DCS or to disable these codes. If a DCS code has been selected, press S.W to switch positive code or reverse code. 3. Rotate the channel switch to choose the desired setting. 4. Press ESC or #/ENT to confirm and exit. CT310 Instruction Manual | 19... - Page 24 000N-777I CTCSS/DCS RT-CDC 62.5HZ-254.1Hz+Self defined Encode/Decode Synchronous 000N-777I TONDEC Optional signaling setup DTMF CTCSS/DCS SIGNAL Squelch mode setup TONE CT&TO CT/TO STEP Frequency step size setup 2.5K-50K Wide / Narrow Band Selection 25K/12.5K Frequency Reverse 20 | CT310 Instruction Manual...
-
Page 25: Function Menu Setup
CTCSS/DCS signaling, the transceiver can hear the conversation from the other party. 9 options in total Wide band/Narrow band Turn on Frequency reverse function, TX and RX frequency of the current channel will be interchanged. Close Frequency reverse function. CT310 Instruction Manual | 21... - Page 26 Sub band display setup VOLT BEEP Keypad Voice prompt setup ON/OFF Time-Out-Timer 1-27MIN Voice Operated Transmission (VOX) Setup 1-10 VDELAY VOX Delay Setup 0.5S-3S Automatic Power Off Setup 30MIN-2HOUR DTMF DTMF 50MS-500MS Transmitting Time Squelch level Setup 00-09 22 | CT310 Instruction Manual...
- Page 27 Total 27 levels available, each interval is 0.1S Disable the Automatic power off function 30minutes ~ 2hours: Total 3 levels available. Total 5 kinds of DTMF transmitting time available 10 levels of squelch available, “00” is minimum setup value (normally open) CT310 Instruction Manual | 23...
- Page 28 AUTO COLOR LCD Backlight Color BLUE/ORG/PUR Self ID inquiry 1750Hz/2100Hz/1450Hz/ TBST Tone Pulse Frequency Selection 1000Hz SAVE Battery Save Setup 1:2-1:8 AUTO RADIO FM radio ON/OFF VOLT CALL Self define PF1 ALARM key function SUBPTT 24 | CT310 Instruction Manual...
- Page 29 /1000Hz Turn off battery save function. Battery save time is 1:2-1:8 Battery save ratio is adjusting automatically. Allow/Prohibit using FM radio. Displays current battery capacity. Call function. Emergency alarm function. Sub band PTT. No function. CT310 Instruction Manual | 25...
-
Page 30: Display Mode Setup
4. Press ESC key to exit current selection. 5. Press #/ENT key to confirm current selection. Note: In power off state, hold ESC key to power on radio, the radio will resume to factory default. 26 | CT310 Instruction Manual... -
Page 31: Technical Specification
Audio Power Output 1000mW/10% Transmitter Wide band Narrow band Power Output 4W/1W (UHF) 5W/1W (VHF) Modulation 16KΦF3E 11KΦF3E Adjacent Channel Power ≥65dB ≥60dB Hum & Noise ≥40dB ≥40dB Spurious Emission ≤-36dB ≤-36dB Audio Distortion ≤5% CT310 Instruction Manual | 27... - Page 32 Prodotto o importato da: MIDLAND EUROPE s.r.l. Via R. Sevardi 7- 42124 Reggio Emilia Italia www.midlandreurope.com L’uso di questo apparato può essere soggetto a restrizioni nazionali. Prima dell’uso leggere attentamente le istruzioni. Produced or imported by: MIDLAND EUROPE s.r.l. Via R. Sevardi 7 - 42124 Mancasale Reggio Emilia Italy Imported by: ALAN - NEVADA UK Unit 1 Fitzherbert Spur Farlington Portsmouth Hants.
