A Quick Guide to Using the Nokia 8850 with an Infrared data connection in

SETTING UP A NEW CONNECTION

1. Go to the Start menu and select Settings

2. Select Modem

3. You should now have a list of available connections; just click on the New Connection... option.

4. Now complete the settings as shown in the figures below:

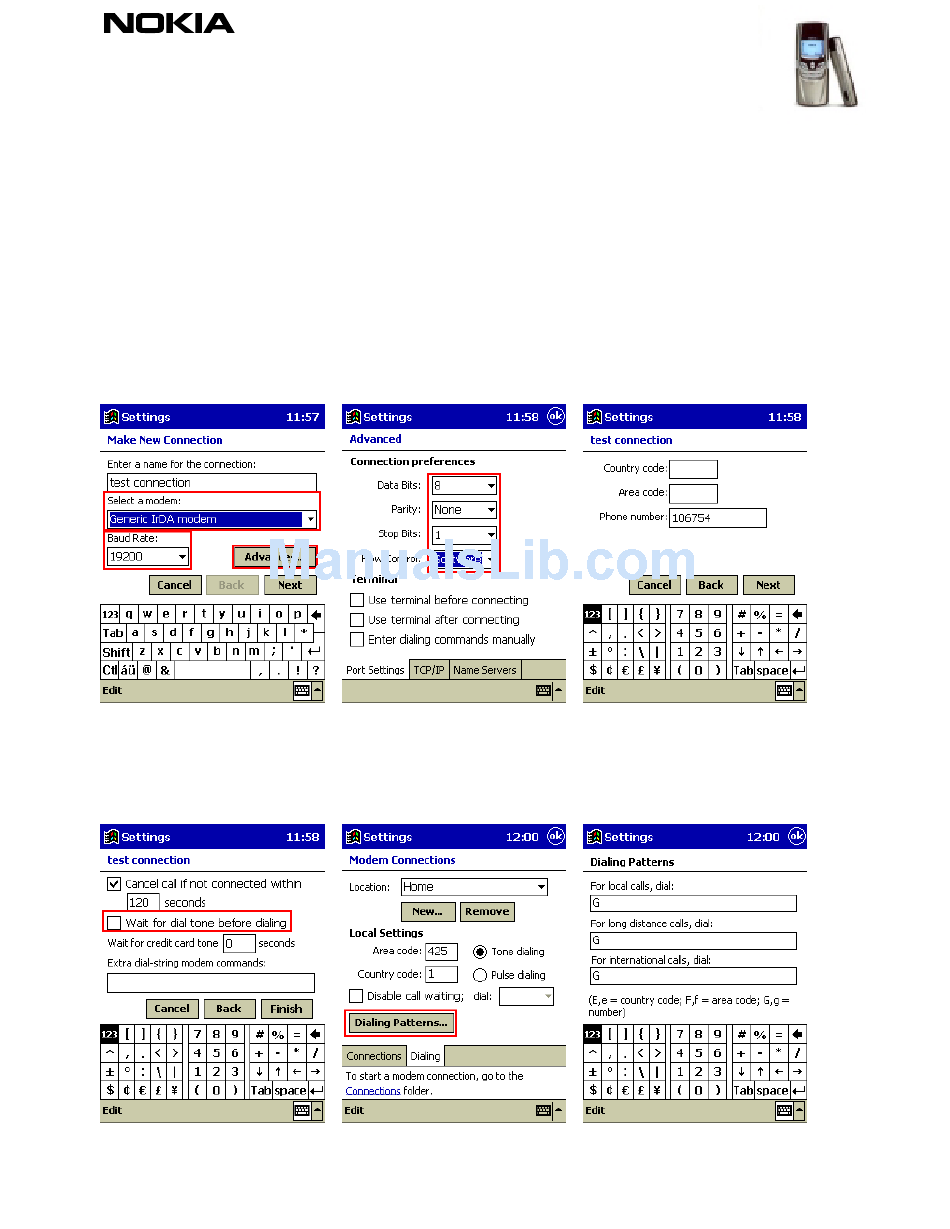

Figure 1. Select a modem and

check the Baud Rate. After that

tap Advanced...

Figure 4. Uncheck the Wait for

Dial tone before dialing check box

and tap Finish.

Nokia 8850

24.08.00

a PocketPC device

Figure 2. Check Connection

preferences. Especially that

the Flow Control selected is Software. Tap OK

on upper right corner and then tap

Figure 5. Now go to Dialing leaflet Figure 6. In some cases you may need

and go to Dialing Patterns...

Figure 3. Type in the ISP's phone

number and then tap Next.

to edit these to get the phone number

right when dialing.

1(3)

Page 1 A Quick Guide to Using the Nokia 8850 with an Infrared data connection in SETTING UP A NEW CONNECTION 1. Go to the Start menu and select Settings 2. Select Modem 3. You should now have a list of available connections; just click on the New Connection… option.
Page 2 5. Figures 9 and 10 shows the Status screens of the connection Figure 7. Figure 8. Figure 9. Figure 10. 6. You should now be connected to your ISP, so just start your Internet Explorer or Inbox. Copyright. ã 2000. Nokia Mobile Phones 2(3)
Page 3 The contents of this document are provided "as is". Except as required by the applicable law, no warranty of any kind, either express or implied, is made in relation to the accuracy, reliability or content of the document. Nokia reserves the right to revise the document or withdraw it at any time without prior notice.
