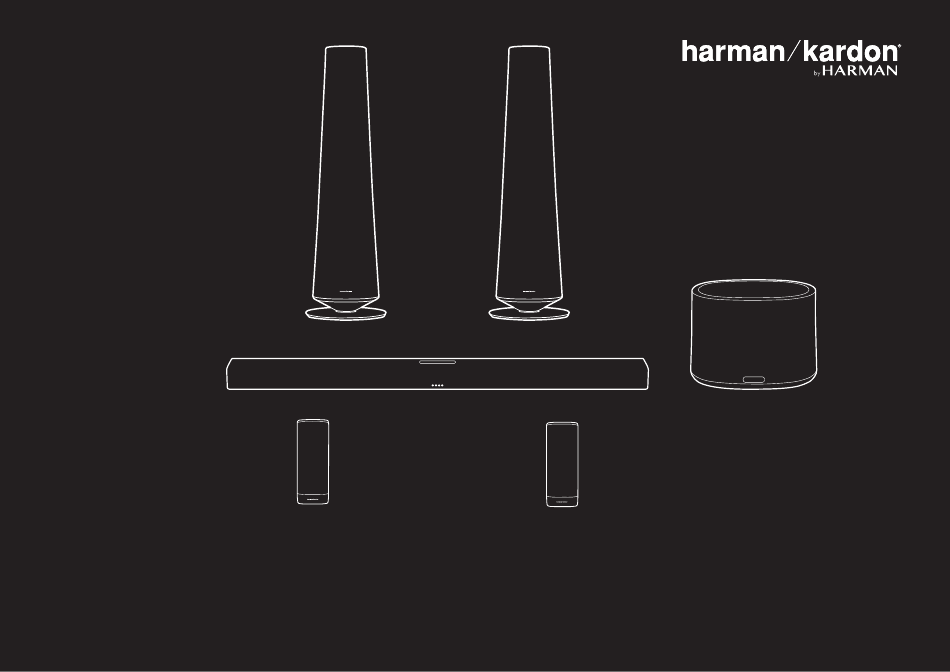

- Page 1 C I TAT I O N D E LU X E 5 . 1 C H A N N E L S E T U P G U I D E...
- Page 2 PLACE CITATION TOWER (secondary speaker) Front Left CITATION TOWER (primary speaker) CITATION BAR / CITATION MULTIBEAM 700 Front Right Rear Left CITATION SUB / CITATION SUB S Rear Right CITATION SURROUND...
- Page 3 PREPARE 2.1 CITATION TOWER Update the firmware of CITATION TOWER first Connect CITATION TOWER to power. On your iOS or Android device, add CITATION TOWER to your Home Wi-Fi network through the Google Home app. Follow the app On the primary speaker, select “Music” to enter the “Stereo Mode”. instructions to complete setup.
- Page 4 To prepare for the setup of a surround sound system to restore factory settings on the primary speaker. Then, select “Video” to enter the “Surround Mode”. After the firmware update, go to > Factory Brightness Reset Music Video Surround Mode CITATION TOWER CITATION TOWER (secondary speaker)
- Page 5 2.2 CITATION SURROUND The first time you use CITATION SURROUND, connect it to power. To restore factory settings or connect to another CITATION speaker press and hold (> 5 seconds). Pairing or disconnected Connected > Reset...
-
Page 6: Connect The Subwoofer
CONNECT 3.1 Connect the subwoofer > > On CITATION BAR / CITATION MULTIBEAM 700, swipe the touch screen up/down to select The first time you use CITATION SUB / CITATION SUB S, connect it to power. To restore factory settings or Follow onscreen instructions to complete setup. - Page 7 3.2 Connect the surround speakers Note: Please ensure all previous steps are complete before proceeding with this step. Citation Surround On CITATION BAR / CITATION MULTIBEAM 700, Rear Left do the following: Rear Right Citation Surround Citation Surround Citation Surround Rear Left Rear Left Rear Left...
- Page 8 Primary Tower Front Left Surround Check Front Right Do not use this speaker Primary Tower Citation Surround Primary Tower Front Left Front Left Rear Left Front Right Front Right Surround setup successful Rear Right Enjoy a 5.1 surround sound experience Secondary Tower to check the surround sound.
- Page 9 The 5.1 surround sound setup is complete. CITATION TOWER CITATION TOWER (secondary speaker) (primary speaker) CITATION BAR / CITATION MULTIBEAM 700 CITATION SUB / CITATION SUB S > CITATION SURROUND CITATION SURROUND (Rear Left) (Rear Right)
-
Page 10: Troubleshooting
TROUBLESHOOTING Cannot update the firmware of CITATION TOWER after the CITATION TOWER speakers join the 5.1 surround system On the primary speaker, press and hold RESET (> 5 seconds) to restore factory settings. Then, follow the steps under “CITATION TOWER” in the “PREPARE” chapter to update the firmware and have the CITATION TOWER speakers join the 5.1 surround system again.
