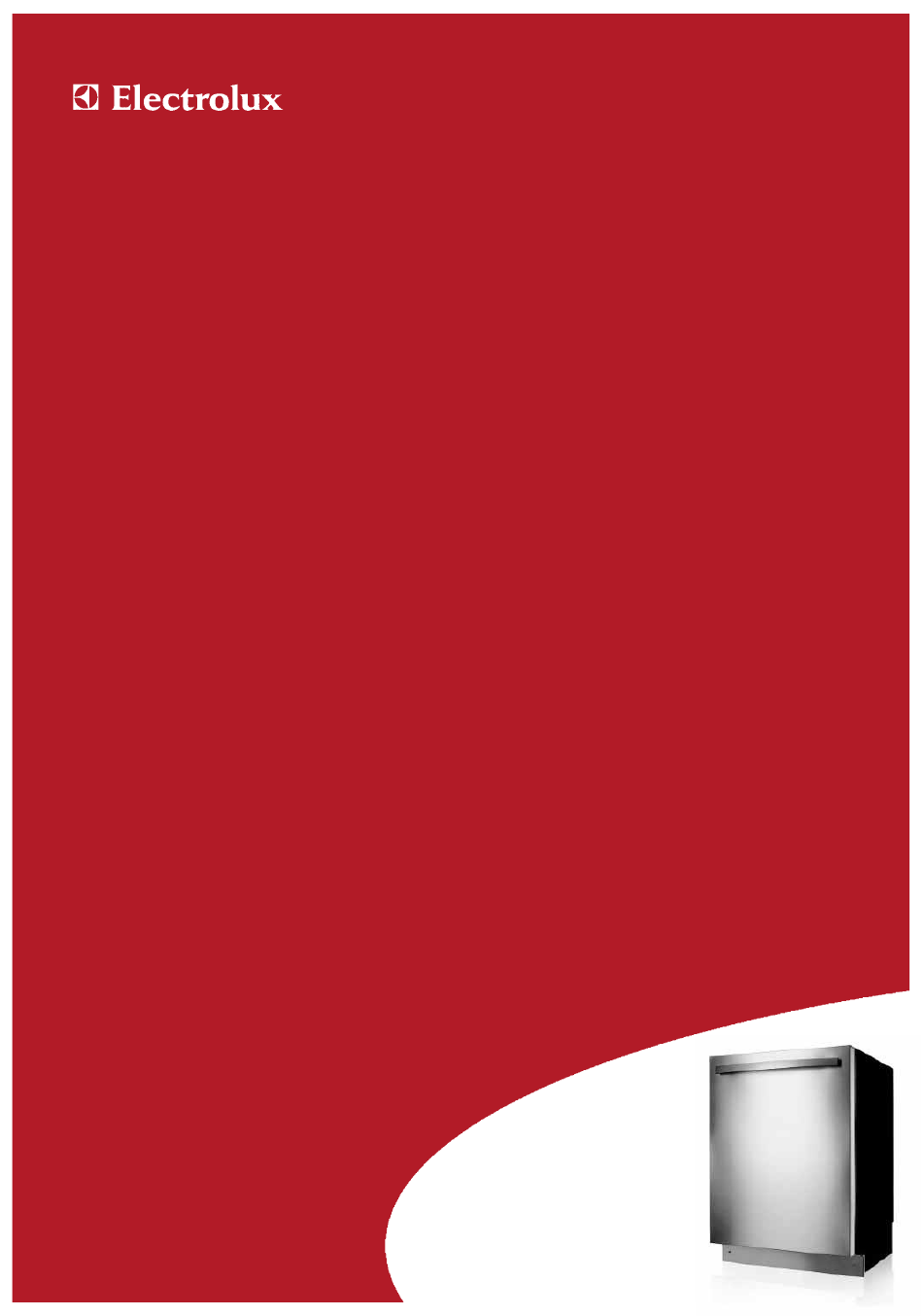

Page 1
USE & CARE MANUAL makes life a little easier...
Page 2
WELCOME TO THE WORLD OF ELECTROLUX CONGRATULATIONS ON THE PURCHASE OF YOUR NEW DISHWASHER. WE TRUST YOU WILL BE DELIGHTED WITH IT. Please read this instruction book carefully. It will give you the information you need to: • care for, and •...
INTRODUCTION Installation Double Checks: Before you use your dishwasher, check that the installer has: • Adjusted the leveling legs to ensure that the door opens & closes without rubbing against the sides of the tub. • Plugged in the power cord & turned on the power. •...
INTRODUCTION How your dishwasher works: The way your dishwasher works is quite simple • Water enters the unit though an inlet hose & a water valve. • A level switch controls the amount of water received into the unit. This dishwasher does not fill up, like a washing machine.
OPERATING INSTRUCTIONS Quick Start To run your dishwasher, follow these basic steps: • Load Dishwasher. (Refer pages 9 - 11) • Add Detergent. (Refer page 12) • Add Rinse Aid. (Refer page 13) Rinse aid must be added to ensure good drying performance. •...
OPERATING INSTRUCTIONS Program Selection Guide Wash Program Duration Wash times are approximate and vary by options selected. An automatic sensor checks the incoming water temperature for the main wash of each cycle, delaying the timer if necessary, until the water is hot enough. NOTE All values are indicative.
OPERATING INSTRUCTIONS Options Selection Guide Temperature Options The following options can be selected along with certain wash programs shown on previous page.
OPERATING INSTRUCTIONS Operation Selection Guide Start / Cancel Status Window To pause unit or to add / remove items after wash cycle starts. • Open door slightly and wait a few seconds until wash action stops before completely opening. • Add/remove the item. •...
LOADING YOUR DISHWASHER Dish Care & Preparation • Your dishwasher is not a waste disposal unit so please take care to remove all large food scraps from your dishes before loading in the dishwasher. • Place crockery and glassware so that they do not touch. This will stop them chipping.
LOADING YOUR DISHWASHER Loading The Upper Basket 12 Place Setting Load The upper basket is designed for flexibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc. • Load glasses in upper basket. • Load items with open ends facing down for better cleaning and draining.
LOADING YOUR DISHWASHER Loading The Lower Basket 12 Place Setting Load The lower basket is designed for plates, saucers, bowls, and cookware. • Large items should be placed along the edge so they do not block the middle spray arm rotation. •...
DETERGENT & RINSE AID DISPENSER Safety Warning Dishwasher detergents are very alkaline and extremely dangerous if swallowed. Be careful to: • Keep them away from your eyes and skin • Keep children away from the dishwasher when the door is open •...
DETERGENT & RINSE AID DISPENSER Filling The Detergent Dispenser • Do not use normal hand washing up detergents in your dishwasher. They will cause severe foaming. • Always use fresh, good quality machine dishwashing detergent. • Fill the detergent compartment labeled 25, or compartment 15 when you use a concentrate.
MAINTAINING YOUR DISHWASHER Cleaning the wash filters The filters should be checked and cleaned regularly. Blocked filters will give poor wash results. • Open the door, remove the lower basket. • The dishwasher filter system comprises a coarse/fine filter, microfilter and a flat filter.
MAINTAINING YOUR DISHWASHER General Cleaning Mark Resistant Stainless Steel This Electrolux stainless steel dishwasher boasts a special protective coating that helps to reduce fingerprints, water spots and general soiling. This protective coating therefore reduces the need for cleaning. For occasional cleaning of door & controls •...
HELP & PROBLEM SOLVING GUIDE Helpful Hints. • You must use sufficient rinse aid to get good drying performance. This is especially important with plastic dishes. Even when using ‘3-in-1’/Combi detergent tablets, you may need to use a small amount of rinse aid as well, particularly in hard water areas. Refer to Page 13 for more details on Rinse Aid use &...
Page 18
HELP & PROBLEM SOLVING GUIDE Problem solving guide.
Page 19
HELP & PROBLEM SOLVING GUIDE Problem solving guide.
Page 21
Electrolux Home Products Pty. ABN 51 004 762 341 616-400-406 C/N 04R030A September 04...
