Panasonic WV-LXY18C4 Quick Start Manual

Fixed Iris Lens
WV-LXY18C4, WV-LXY23C4, WV-LXY47C4
PREFACE
This 1/4" fixed iris lens was developed especially for the
WV-CF202 and WV-BF102 camera.
Caution:
When the lens becomes dirty, wipe it using a dry and soft cloth
or a cloth soaked in alcohol. Do not use chemicals, e.g, thinner
or benzine, for cleaning because this may damage the surface.
Please wipe carefully not to scratch the plastic lens surface.
1. Remove the lens (originally mounted on the camera) from the
camera by turning it counterclockwise as shown in the illustra-
tion below.
2. Remove the lens cap from the lens (WV-LXY18C4, WV-
LXY23C4, or WV-LXY47C4).
3. Mount the lens (WV-LXY18C4, WV-LXY23C4, or WV-LXY47C4)
onto the camera by turning it clockwise as shown in the illustra-
tion below.
Cautions:
• Do not forget to install the cushioning ring as shown in the
illustration below.
• Install only one cushioning ring between the lens and the
camera.

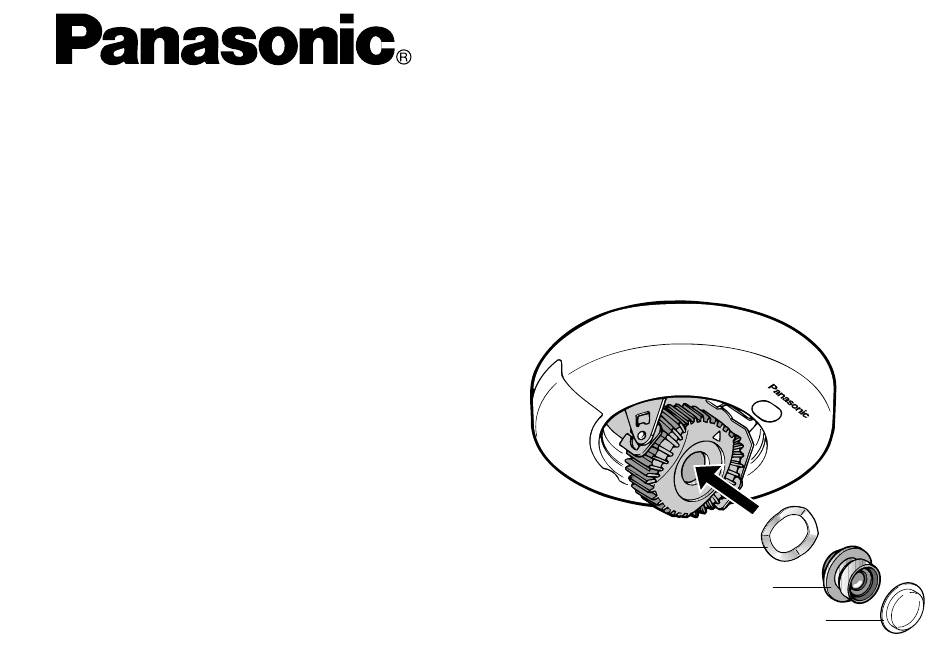

Cushioning Ring
Lens
Lens Cap
