Bluetooth Pairing Tutorial
TR-200 SABT
This tutorial will discuss pairing the TR-200 SABT to a computer using Bluetooth.
Antennas Steps
1. Flip the rocker switch to the on position at the bottom of the antenna (check to make sure the
green LED on the front of the antenna is illuminated).
Computer Steps

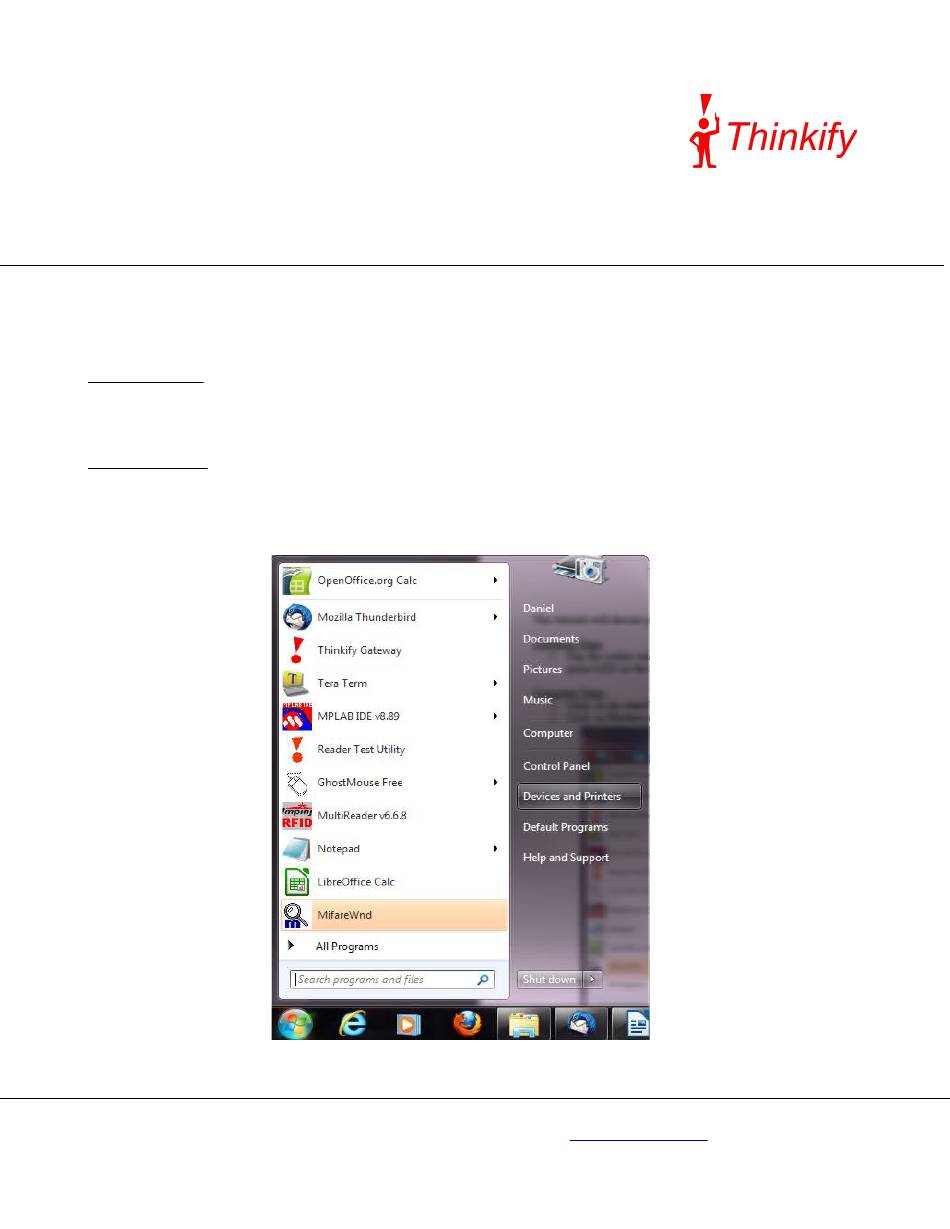

1. Click on the start button in the bottom left of the screen.
2. Click on Devices and Printers
Thinkify, LLC, 18450 Technology Drive, Suite E1, Morgan Hill, Ca. 95037,
TR-200 SABT
TR-200 Smart Antenna w/ Bluetooth
Copyright 2013 Thinkify LLC. All Rights Reserved.
www.thinkifyit.com
408-782-7111
Advertisement
Summary of Contents for Thinkify TR-200
- Page 1 TR-200 SABT TR-200 Smart Antenna w/ Bluetooth This tutorial will discuss pairing the TR-200 SABT to a computer using Bluetooth. Antennas Steps 1. Flip the rocker switch to the on position at the bottom of the antenna (check to make sure the green LED on the front of the antenna is illuminated).
- Page 2 Bluetooth Pairing Tutorial TR-200 SABT 3. Click on Add a device. 4. Select the device named Thinkify and then click Next. Copyright 2013 Thinkify LLC. All Rights Reserved. www.thinkifyit.com Thinkify, LLC, 18450 Technology Drive, Suite E1, Morgan Hill, Ca. 95037, 408-782-7111...
- Page 3 5. Click on Enter the device's pairing code and click Next. 6. Enter in the paring code. The code is 1234. Then click Next. Copyright 2013 Thinkify LLC. All Rights Reserved. www.thinkifyit.com Thinkify, LLC, 18450 Technology Drive, Suite E1, Morgan Hill, Ca. 95037, 408-782-7111...
- Page 4 7. The reader is now paired to the computer. The steps below will determine the COM port that the reader is connected to over Bluetooth. 1. In Devices and Printers right click on the Thinkify Icon and click on Properties. Copyright 2013 Thinkify LLC. All Rights Reserved.
- Page 5 2. Click on Services and the COM port that the reader is using will be listed. In this example the reader is associated with COM port 12. To access the reader launch the Thinkify Gateway or Launch Teraterm and connect over serial and from the drop down menu and select COM12.
