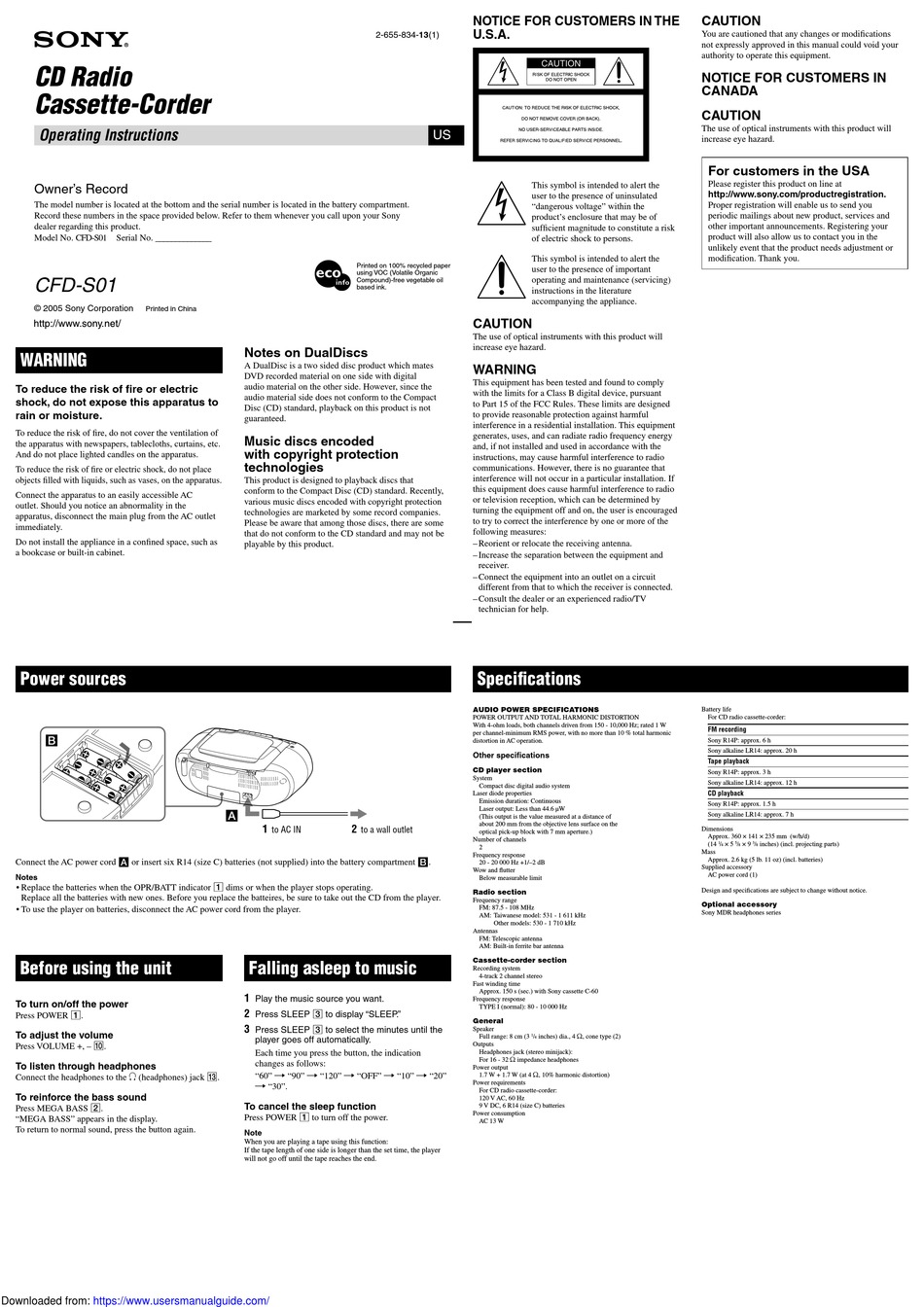

Sony CFD-S01 Operating Instructions

CD Radio
Cassette-Corder
Operating Instructions
Owner's Record
The model number is located at the bottom and the serial number is located in the battery compartment.
Record these numbers in the space provided below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No. CFD-S01 Serial No. ______________
CFD-S01
© 2005 Sony Corporation
Printed in China
WARNING
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To reduce the risk of fire, do not cover the ventilation of
the apparatus with newspapers, tablecloths, curtains, etc.
And do not place lighted candles on the apparatus.
To reduce the risk of fire or electric shock, do not place
objects filled with liquids, such as vases, on the apparatus.
Connect the apparatus to an easily accessible AC
outlet. Should you notice an abnormality in the
apparatus, disconnect the main plug from the AC outlet
immediately.
Do not install the appliance in a confined space, such as
a bookcase or built-in cabinet.
Power sources

Connect the AC power cord  or insert six R14 (size C) batteries (not supplied) into the battery compartment .
Notes
• Replace the batteries when the OPR/BATT indicator
Replace all the batteries with new ones. Before you replace the batteires, be sure to take out the CD from the player.
• To use the player on batteries, disconnect the AC power cord from the player.
Before using the unit
To turn on/off the power

Press POWER .
To adjust the volume

Press VOLUME +, – .
To listen through headphones
Connect the headphones to the  (headphones) jack
To reinforce the bass sound

Press MEGA BASS .
"MEGA BASS" appears in the display.
To return to normal sound, press the button again.
Downloaded from: https://www.usersmanualguide.com/
2-655-834-13(1)
Printed on 100% recycled paper
using VOC (Volatile Organic
Compound)-free vegetable oil
based ink.
Notes on DualDiscs
A DualDisc is a two sided disc product which mates
DVD recorded material on one side with digital
audio material on the other side. However, since the
audio material side does not conform to the Compact
Disc (CD) standard, playback on this product is not
guaranteed.
Music discs encoded
with copyright protection
technologies
This product is designed to playback discs that
conform to the Compact Disc (CD) standard. Recently,
various music discs encoded with copyright protection
technologies are marketed by some record companies.
Please be aware that among those discs, there are some
that do not conform to the CD standard and may not be
playable by this product.

1 2
to AC IN to a wall outlet

dims or when the player stops operating.
Falling asleep to music
1
Play the music source you want.
2

Press SLEEP to display "SLEEP."
3

Press SLEEP to select the minutes until the
player goes off automatically.
Each time you press the button, the indication
changes as follows:
"60"  "90"  "120"  "OFF"  "10"  "20"

.
 "30".
To cancel the sleep function

Press POWER to turn off the power.
Note
When you are playing a tape using this function:
If the tape length of one side is longer than the set time, the player
will not go off until the tape reaches the end.
NOTICE FOR CUSTOMERS IN THE
U.S.A.
US
This symbol is intended to alert the
user to the presence of uninsulated
"dangerous voltage" within the
product's enclosure that may be of
sufficient magnitude to constitute a risk
of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
The use of optical instruments with this product will
increase eye hazard.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful
interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is encouraged
to try to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and
receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV
technician for help.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 4-ohm loads, both channels driven from 150 - 10,000 Hz; rated 1 W
per channel-minimum RMS power, with no more than 10 % total harmonic
distortion in AC operation.
Other specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)
Number of channels
2
Frequency response
20 - 20 000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
Radio section
Frequency range
FM: 87.5 - 108 MHz
AM: Taiwanese model: 531 - 1 611 kHz
Other models: 530 - 1 710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
Cassette-corder section
Recording system
4-track 2 channel stereo
Fast winding time
Approx. 150 s (sec.) with Sony cassette C-60
Frequency response
TYPE I (normal): 80 - 10 000 Hz
General
Speaker
Full range: 8 cm (3 1 / inches) dia., 4 , cone type (2)

4
Outputs
Headphones jack (stereo minijack):
For 16 - 32  impedance headphones
Power output
1.7 W + 1.7 W (at 4  , 10% harmonic distortion)
Power requirements
For CD radio cassette-corder:
120 V AC, 60 Hz
9 V DC, 6 R14 (size C) batteries
Power consumption
AC 13 W
CAUTION
You are cautioned that any changes or modifications
not expressly approved in this manual could void your
authority to operate this equipment.
NOTICE FOR CUSTOMERS IN
CANADA
CAUTION
The use of optical instruments with this product will
increase eye hazard.
For customers in the USA
Please register this product on line at
http://www.sony.com/productregistration.
Proper registration will enable us to send you
periodic mailings about new product, services and
other important announcements. Registering your
product will also allow us to contact you in the
unlikely event that the product needs adjustment or
modification. Thank you.
Battery life
For CD radio cassette-corder:
FM recording
Sony R14P: approx. 6 h
Sony alkaline LR14: approx. 20 h
Tape playback
Sony R14P: approx. 3 h
Sony alkaline LR14: approx. 12 h
CD playback
Sony R14P: approx. 1.5 h
Sony alkaline LR14: approx. 7 h
Dimensions
Approx. 360 × 141 × 235 mm (w/h/d)
(14 / × 5 / × 9 / inches) (incl. projecting parts)
1 5 3
4 8 8
Mass
Approx. 2.6 kg (5 lb. 11 oz) (incl. batteries)
Supplied accessory
AC power cord (1)
Design and specifications are subject to change without notice.
Optional accessory
Sony MDR headphones series
