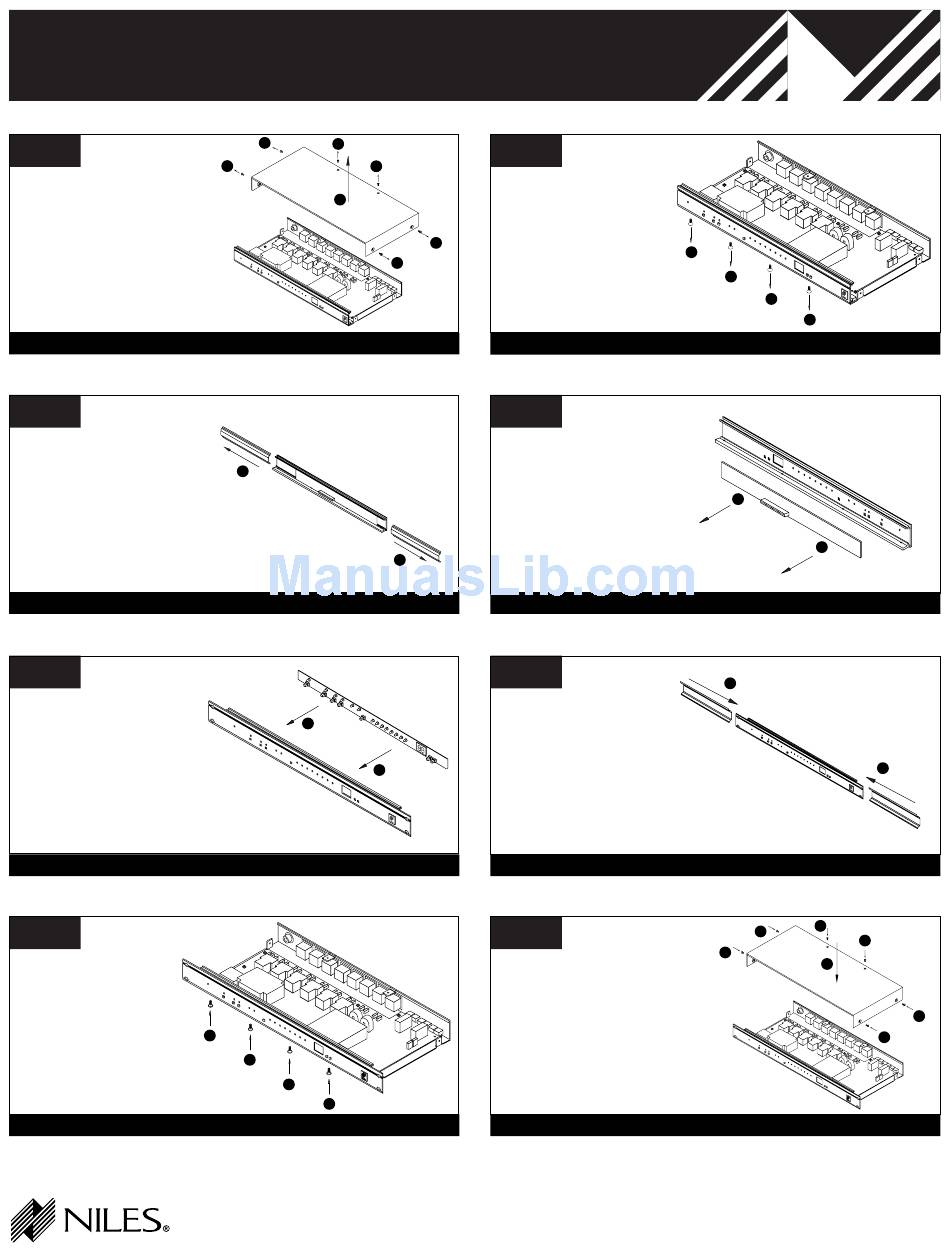

Installing the
IPC-6 RMP
Step 1
CAUTION! Unit must
be unplugged before
cover is removed
A: Remove screws from
the IPC-6 chassis
B: Remove the top
cover.
Step 3
D: Slide out the plastic
retainers
Step 5
F: Gently line-up and
place circuit board
into the rack-mount
panel
Step 7
H: Return the front
panel to the chassis
and replace screws
at the bottom of the
front panel
