ATEN VanCryst VP3520 - 5 X 2 True 4K Seamless Presentation Matrix Switch Quick Start

Hardware Overview

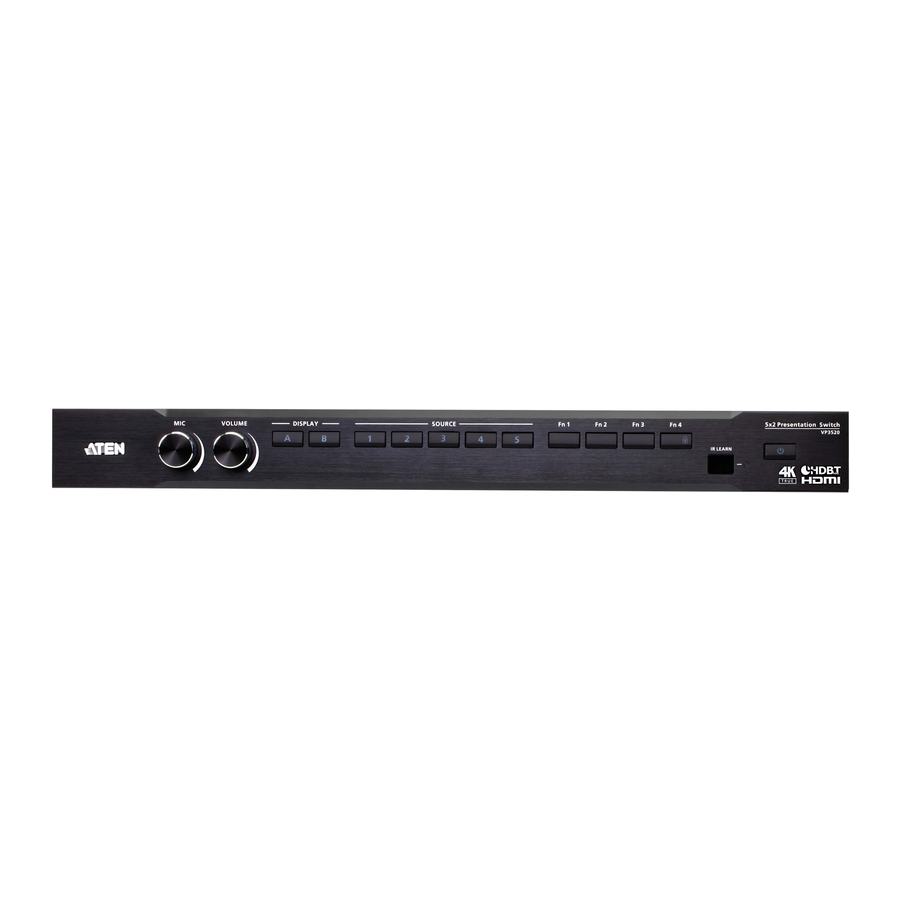

Front View

1. mic volume control
2. overall volume control
3. display selection pushbuttons
4. source selection pushbuttons
5. function selection pushbuttons
6. IR learn panel
7. IR learn LED
8. power pushbutton

Rear View

1. cable lock screw for ATEN LockPro™
2. audio in
3. mic in
4. power socket
5. power switch
6. grounding terminal
7. source 1, 2
   • HDBaseT in
8. source 3, 4, and 5
   • HDMI in

9. output / Display A
   • HDBaseT out
   • relay port 1 & 2
10. output / Display B
    • HDMI out
    • RS-232 port
    • IR port
11. audio out
    • stereo line out
    • Lo-Z out
    • coaxial out

12. IR receiver port
13. Ethernet port
14. RS-232 serial port

IR Remote Control

1. on / off
2. source
3. display
4. mute
5. functions
6. volume up
7. volume down

Installation

1. Use a grounding wire to ground the unit by connecting one end to the grounding terminal, and the other end to a suitable grounded object. Note: Do not omit this step. Proper grounding helps prevent damage to the unit from power surges or static electricity.
2. Connect up to 5 video sources to the unit.

• To connect a video source device via a video extender, connect the video extender (e.g., VE802T) to the VP3520 using an Ethernet cable.
• To connect an HDMI source device, connect the source device to the VP3520 using an HDMI cable. You can connect up to three HDMI source devices.

3. Connect up to two displays to the unit.

• To set up a display at a distance, connect a suitable Rx device (e.g., VE802R) to the VP3520 using an Ethernet cable, to which the display (e.g., projector) is connected. To remotely control the connected projector's screen up and down, connect the screen to the relay ports.
• Connect the unit to an HDMI display using an HDMI cable. To remotely control the connected display, connect the RS-232 and IR ports to the display.

4. (Optional) To supply independent audio, connect an audio source device (e.g., media player) or a microphone to the VP3520.
5. (Optional) Connect the VP3520 to a speaker via an appropriate audio out port.
6. (Optional) To confi gure the unit's settings via RS-232 commands, connect a hardware controller (e.g., ATEN Control Box) to the VP3520.
7. (Optional) To allow access to the web interface, connect a network switch to the VP3520 using an Ethernet cable.
8. (Optional) To control the VP3520 using an IR remote control, connect the IR receiver to the VP3520.
9. Plug the power cord to the power socket.
10. Put the power switch to ON.
11. Press the power pushbutton to power on the VP3520.
12. Power on all the connected devices.

Operation

You can operate the unit using the front-panel pushbuttons, IR remote control, RS-232 serial controller, or the web interface. See the user manual for detailed information. To log in the web interface, use the default IP address 192.168.0.60 and the default credential (administrator / password).

Package Contents

1 VP3520 5 x 2 True 4K Seamless
Presentation Matrix Switch with Control
1 IR receiver
1 IR remote control
1 power cord
1 rack mount kit
1 foot pad set (4 pcs)
1 user instructions

Support and Documentation Notice

All information, documentation, fi rmware, software utilities, and specifi cations contained in this package are subject to change without prior notifi cation by the manufacturer.
To reduce the environmental impact of our products, ATEN documentation and software can be found online at http://www.aten.com/download/

Technical Support

www.aten.com/support

Scan for more information
ATEN Website

The terms HDMI, HDMI High-Defi nition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc.
