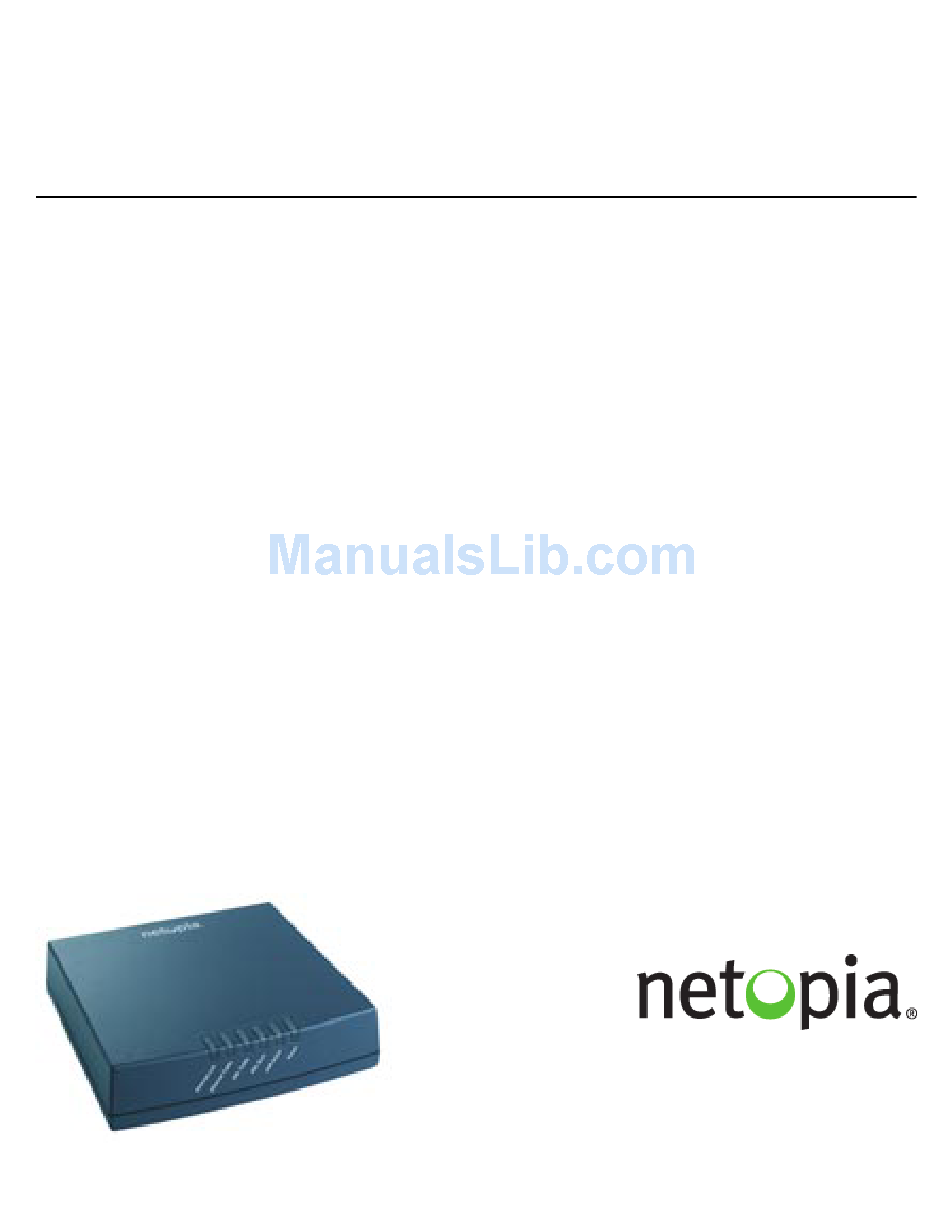

- Page 1 Netopia™ 3381-ENT Cable/DSL Router Getting Started Guide ™ AKING ROADBAND...
- Page 2 This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws such materials may not be copied, in whole or part, without the prior written consent of Netopia, Inc. Under the law, copying includes translation to another language or format.
-
Page 3: Table Of Contents
What You Need ... 2-1 Important Safety Instructions ... 2-2 Identify the Connectors and Attach the Cables ... 2-3 Netopia 3381-ENT Cable/DSL Router Status Lights ... 2-6 Readying Computers on Your Local Network... 3-1 Connecting to an Ethernet Network ... 3-2 Configuring TCP/IP on Windows-based Computers... - Page 4 Getting Started Guide 3. IP Easy Setup ... 6-6 4. Easy Setup Security Configuration ... 6-7 Appendix A — Technical Specifications and Safety Information ..A-1 Description... A-1 Power requirements ... A-1 Environment ... A-1 Software and protocols... A-1 Agency approvals... A-2 Regulatory notices ...
-
Page 5: Chapter 1 - Introduction
The Netopia 3381-ENT Cable/DSL Router is a full-featured, stand-alone Ethernet router for connecting diverse local area networks (LANs) to the Internet and other remote networks. The Netopia 3381-ENT Cable/DSL Router connects easily to the Ethernet port of your cable or DSL modem to provide your whole network with a high-speed connection to the outside world. -
Page 6: How To Use This Guide
3-hole punched paper, so that you can put the pages in a binder for future reference. This guide is organized into chapters describing the Netopia 3381-ENT’s advanced features. You may want to read each chapter’s introductory section to familiarize yourself with the various features available. -
Page 7: Chapter 2 - Making The Physical Connections
Cable length and network size limitations when expanding networks For small networks, install the Netopia 3381-ENT near one of the LANs. For large networks, you can install the Netopia 3381-ENT in a wiring closet or a central network administration site. -
Page 8: Important Safety Instructions
You will need: • A Windows–based PC or a Macintosh computer with Ethernet connectivity for configuring the Netopia 3381-ENT. This may be built-in Ethernet or an add-on card, with TCP/IP installed and configured. See “Sharing the Connection” on page •... -
Page 9: Identify The Connectors And Attach The Cables
3381-ENT to an existing LAN environment. The Ethernet port is auto-sensing, eliminating the need for a crossover cable. USB port A USB jack. You can use this to configure the Netopia 3381-ENT. You can connect your computer directly to the USB port using the supplied USB cable. Power port A DC power adapter cable connection. - Page 10 1. For a direct computer to router Ethernet connection, use the standard Ethernet cable included with your router. 2. Use the supplied RJ-45 Modem cable to connect the router to your cable or DSL modem’s Ethernet port. Be sure your cable or DSL modem is correctly installed according to its instructions.
- Page 11 DSL or Cable Modem 1. Run the USB driver installer program from the Netopia CD to install USB drivers on your Windows PC or Macintosh. Follow the on screen instructions. 2. For a direct computer to router connection, use the USB cable included with your router.
-
Page 12: Netopia 3381-Ent Cable/Dsl Router Status Lights
2-6 Getting Started Guide Netopia 3381-ENT Cable/DSL Router Status Lights The figure below represents the Netopia 3381-ENT status light (LED) panel. Netopia 3381-ENT status indicator lights Ethernet Link: Solid green when connected Ethernet Traffic: Flashes green when there is activity on the LAN... -
Page 13: Chapter 3 — Connecting To Your Local Area Network
C C C C o o o o n n n n n n n n e e e e c c c c t t t t i i i i n n n n g g g g t t t t o o o o Y Y Y Y o o o o u u u u r r r r L L L L o o o o c c c c a a a a l l l l A A A A r r r r e e e e a a a a N N N N e e e e t t t t w w w w o o o o r r r r k k k k This chapter describes how to physically connect the Netopia 3381-ENT to your local area network (LAN). Before you proceed, make sure the Netopia 3381-ENT is properly configured. -
Page 14: Connecting To An Ethernet Network
Ethernet: Ethernet hardware and software drivers enable your PC or Macintosh computer to communicate on the LAN. Once the Netopia 3381-ENT is properly configured and connected to your LAN, PC and Macintosh computers that have their required components in place will be able to connect to the Internet or other remote IP networks. -
Page 15: Chapter 4 - Sharing The Connection
Once you have set up your physical local area network, you will need to configure the TCP/IP stack on each client workstation connected to your Netopia 3381-ENT. This chapter describes how to configure TCP/IP for both Windows-based and Macintosh computers. - Page 16 DNS will be assigned by the router with DHCP. Click OK in this window and the next window. When prompted, reboot the computer. Note: You can also use these instructions to configure other computers on your network to accept IP addresses served by the Netopia 3381-ENT.
-
Page 17: Static Configuration (Optional)
IP Address: 192.168.1.2 Subnet Mask: 255.255.255.0 This address is an example of one that can be used to configure the router. Your ISP or network administrator may ask you to use a different IP address and subnet mask. Sharing the Connection 4-3... -
Page 18: Configuring Tcp/Ip On Macintosh Computers
You must have either Open Transport or Classic Networking (MacTCP) installed. If you want to use the Dynamic Host Configuration Protocol (DHCP) server built into your Netopia 3381-ENT to assign IP addresses to your Macintoshes, you must be running Open Transport, standard in MacOS 8 and higher and optional in earlier system versions. -
Page 19: Dynamic Configuration (Recommended)
Dynamic configuration (recommended) The Dynamic Host Configuration Protocol (DHCP), which enables dynamic addressing, is enabled by default in the router. To configure your Macintosh computer for dynamic addressing do the following: Go to the Apple menu. Select Control Panels and then TCP/IP. - Page 20 Be sure each computer on your network has its own IP address. More information about configuring your Macintosh computer for TCP/IP connectivity through a Netopia 3381-ENT can be found in Technote NIR_026, “Open Transport and Netopia Routers,” located on the Netopia Web site.
-
Page 21: Chapter 5 - Telnet-Based Management
T T T T e e e e l l l l n n n n e e e e t t t t - - - - B B B B a a a a s s s s e e e e d d d d M M M M a a a a n n n n a a a a g g g g e e e e m m m m e e e e n n n n t t t t Telnet-based management is a menu-driven interface for the capabilities built into the Netopia 3381-ENT. -
Page 22: Connecting Through A Telnet Session
The Quick View menu displays at a glance current real-time operating information about your router. Connecting through a Telnet Session Features of the Netopia 3381-ENT can be configured through the Telnet screens. Before you can access the Telnet screens, you must have: •... -
Page 23: Navigating Through The Telnet Screens
If you connect a Macintosh computer, you can use the NCSA Telnet program supplied on the Netopia 3381-ENT CD. You install NCSA Telnet by simply dragging the application from the CD to your hard disk. Navigating through the Telnet Screens Use your keyboard to navigate the Netopia 3381-ENT’s configuration screens, enter and edit information, and... - Page 24 5-4 Getting Started Guide...
-
Page 25: Chapter 6 - Easy Setup
E E E E a a a a s s s s y y y y S S S S e e e e t t t t u u u u p p p p This chapter describes how to use the Easy Setup Telnet screens on your Netopia 3381-ENT. After completing the Easy Setup Telnet screens, your router will be ready to connect to the Internet or another remote site. -
Page 26: Quick Easy Setup Connection Path
6-2 Getting Started Guide Quick Easy Setup Connection Path This section may be all you need to do to configure your Netopia 3381-ENT Cable/DSL Router. Your service provider will supply you with several parameter values. Below is a handy checklist:... - Page 27 The Main Menu appears. If you do not see the Main Menu, verify that: • The computer used to view the Telnet screen has an Ethernet connection to the Netopia 3381-ENT’s Ethernet port. See “Connecting through a Telnet Session” on page •...
-
Page 28: Wan Ethernet Configuration
ISP or a corporate site. On a Netopia 3381-ENT you can add up to 15 more connection profiles, for a total of 16, although you can only use one at a time, unless you are using Virtual Private Networks (VPNs). - Page 29 Address Translation Enabled: IP Addressing... Remote IP Address: Remote IP Mask: PPP Authentication... Send User Name: Send Password: PREVIOUS SCREEN Toggle to Yes if this is a single IP address ISP account. Enter basic information about your WAN connection with this screen. Note: The appearance of this screen varies, depending on the settings in the previous screen.
-
Page 30: Ip Easy Setup
Select Ethernet IP Address and enter the first IP address from the IP address range your ISP has given you only if you are not using Network Address Translation (NAT). This will be the Netopia Router’s IP address. The Ethernet IP Address defaults to an address (192.168.1.1) within a range reserved by the Internet address administration authority for use within private networks. -
Page 31: Easy Setup Security Configuration
If you do not enter a Default IP Gateway value, the router defaults to the remote IP address you entered in the Easy Setup connection profile. If the Netopia Router does not recognize the destination of any IP traffic, it forwards that traffic to this gateway. - Page 32 PREVIOUS SCREEN Configure a Configuration Access Name and Password here. The final step in configuring the Easy Setup Telnet screens is to restart the Netopia 3381-ENT, so that the configuration settings take effect. Select RESTART DEVICE. A prompt asks you to confirm your choice.
-
Page 33: Appendix A - Technical Specifications And Safety Information
Dimensions: 13.5 cm (w) x 13.5 cm (d) x 3.5 cm (h) 5.25” (w) x 5.25” (d) x 1.5” (h) Communications interfaces: The Netopia 3381-ENT Router has an RJ-45 jack for WAN line connections, a USB port and a 1–port 10/100Base-T Ethernet switch for your LAN connections. -
Page 34: Regulatory Notices
EN300 386 V1.2.1 Regulatory notices European Community. This Netopia product conforms to the European Community CE Mark standard for the design and manufacturing of information technology equipment. This standard covers a broad area of product design, including RF emissions and immunity from electrical disturbances. - Page 35 It is the responsibility of users requiring service to report the need for service to our Company or to one of our authorized agents. Service can be obtained at Netopia, Inc., 6001 Shellmound Street, Emeryville, California, 94608. Note: Important This product was tested for FCC compliance under conditions that included the use of shielded cables and connectors between system components.
-
Page 36: Important Safety Instructions
A-4 Getting Started Guide Caution Users should not attempt to make such connections themselves, but should contact the appropriate electric inspection authority, or electrician, as appropriate. The Ringer Equivalence Number (REN) assigned to each terminal device provides an indication of the maximum number of terminals allowed to be connected to a telephone interface. -
Page 37: Electrical Safety Advisory
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of this Netopia 3300 Series router does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult your telephone company or qualified installer. - Page 38 A-6 Getting Started Guide...
