NETGEAR RangeMax WPN511 Installation Manual

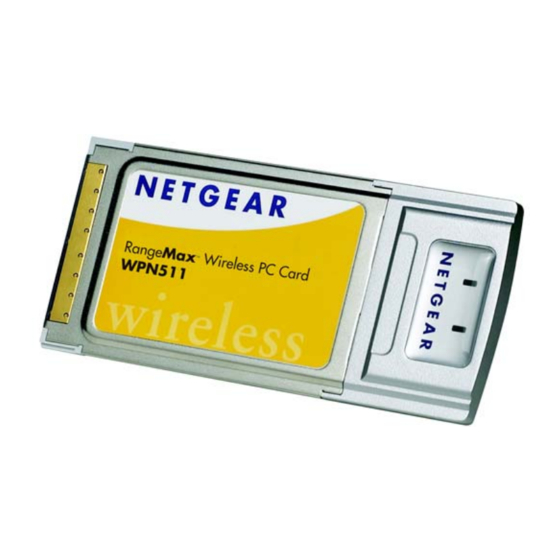

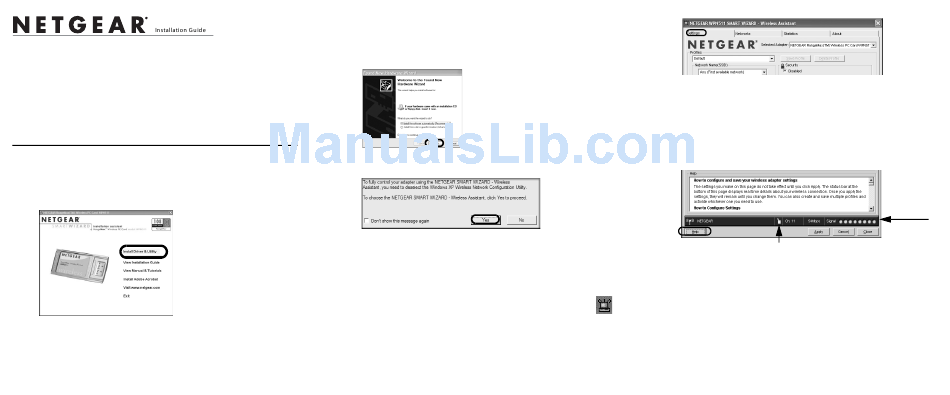

NETGEAR RangeMax™ Wireless PC Card WPN511
These basic setup instructions assume that you will connect to an access point using the
default security options. Please refer to the online help and the Reference Manual on the
Resouce CD for instructions on configuring wireless security, Ad-hoc mode, or advanced
options.
Estimated Completion Time: 5-15 minutes.
Windows XP
1. F , WPN511 .
IRST INSTALL THE SOFTWARE
a. Power on your computer, let the operating system boot up completely, and log in
as needed. Insert the Resource CD for the WPN511 into your CD drive. The CD
main page will load.
Note: If this page does not
automatically load, browse to the
CD, and double-click on
autorun.exe.
b. Click the Install Driver and Utility link.
c. Follow the InstallShield Wizard steps.
d. Click Finish when done, and if prompted restart your computer.
2. N , WPN511 W PC C
EXT INSTALL THE IRELESS
a. Hold the PC Card with the Netgear logo facing up and insert it into a CardBus
slot.
b. After a short delay, the Found New Hardware Wizard displays. Select Install the
software automatically (Recommended) and click Next.
Note: If a Windows XP logo
testing warning appears,
click Continue Anyway to
proceed.
c. You will be prompted to enable the NETGEAR Smart Wireless Settings Utility
configuration utility.
Click Yes to accept this option.
If you choose No, you must read the Windows XP documentation to learn
how to use the Windows XP wireless network configuration utility.
d. You will also be prompted to choose the country where you are located. Select
your location from the list.
e. Click Finish to complete the installation. You will see the WPN511
system tray icon on the lower right portion of the Windows task bar.
3. N , WPN511
OW CONFIGURE YOUR AND SAVE THE
a. Determine the current settings for your wireless access point, including the case-
sensitive SSID and security settings (if any):
• WEP — 64 or 128 bit, Passphrase (case-sensitive) or Key # with hex key
• WPA-PSK — Passphrase (case-sensitive)
b. Click the WPN511 icon in the Windows system tray to open the WPN511 Smart
Wireless Settings Utility and view the Settings tab page.
.
ARD
c. Change the Network Name SSID and security settings to match your wireless
access point.
Tip: To view the available wireless networks, use the drop-down list or the
Networks tab and choose the one you want.
d. Click Apply to activate the connection.
Tip: Create work and home profiles. Then, activate whichever one you need for
your current location.
4. F ,
INALLY VERIFY WIRELESS NETWORK CONNECTIVITY
Help button
• Use the status information at the bottom of the utility verify your wireless
network connection. Click the Help button to view the online help.
Note: The status bar at the bottom of the utility reports the speed of your
connection. 108 Mbps speed is only possible when your wireless network has a
108 Mbps access point such as in the NETGEAR WPN824 RangeMax™
Wireless Router or NETGEAR WGT634U 108 Mbps Wireless Media Router.
P .
ROFILE
• Check the color of the WPN511 icon in the Windows system tray: green or
yellow indicates a working connection; red indicates no connection.
• Check the WPN511 LED: alternate blinking means attempting to connect; both
blinking means a good connection; off means the WPN511 is not plugged in.
• Verify connectivity to the Internet by opening a browser or verify access to
network resources such as files and printers.
.
Signal strength
indicator.
Unlocked: the wireless network does not use security
Locked: the wireless network uses security
