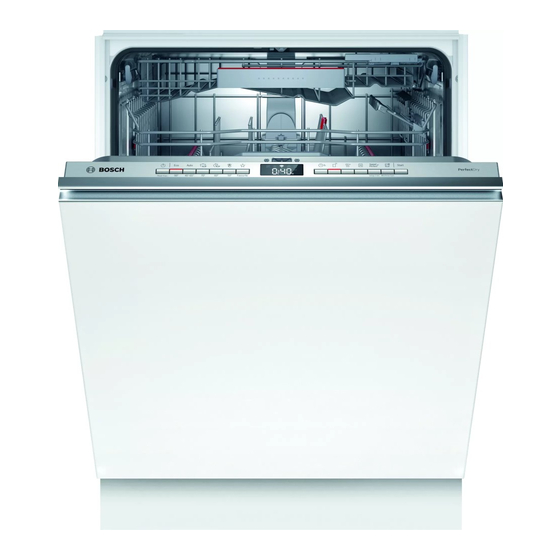

- Page 1 Dishwasher SMH6ZDX00E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 8 Features........ 20 1.1 General information.... 4 8.1 Top basket ....... 21 1.2 Intended use....... 4 8.2 Knife shelf......... 21 1.3 Restriction on user group... 4 8.3 Etagere ........ 22 1.4 Safe installation ...... 4 8.4 Bottom basket ...... 22 1.5 Safe use ........ 6... - Page 3 13 Tableware ......... 31 20 Customer Service..... 52 13.1 Damage to glass and table- 20.1 Product number (E-Nr.), ware........ 32 production number (FD) and consecutive numbering 13.2 Arrange tableware .... 32 (Z-Nr.) ........ 53 13.3 Removing tableware.... 33 20.2 AQUA-STOP guarantee .. 53 14 Basic operation ......
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety WARNING ‒ Risk of burns! The blow opening of the Zeolith container becomes hot and can cause burns. ▶ Never touch the blow opening of the Zeolith container. 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶... - Page 9 Safety en ▶ Never let children play with or operate the appliance. WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on Zeolith drying automatically helps to ▶ the appliance, do not use sponges save energy. with a rough surface or abrasive a → "Zeolith drying ", Page 11 cleaning agents. To prevent corrosion, do not use ▶... -
Page 12: Installation And Connection
en Installation and connection installing it under a continuous work- 4 Installation and con- top that is securely connected to ad- jacent cabinets. nection Follow the safety instructions. To ensure proper operation, connect → Page 4 the appliance to the power and water Follow the instructions for electrical supply correctly. -
Page 13: Drinking Water Connection
Installation and connection en 4.4 Drinking water connec- tion Connect your appliance to a drinking water connection. Installing the drinking water connection Note ¡ If you are replacing the appliance, you must use a new water supply hose. Consult the installation instructions supplied for the steps required here. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 53. The data you need for Customer Service → Page 52. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 29 Bottom basket Bottom basket → Page 22 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 25 Lower spray arm The lower spray arm washes the table- ware in the bottom basket.
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button... - Page 17 Familiarising yourself with your appliance en button If you press for approx. 3 seconds, you can open the basic set- tings. → "Changing basic settings", Page 38 Remote Start → "Remote Start ", Page 39 Timer programming Setting timer programming → Page 34 Door handle Open the appliance door. Display The display shows information about the remaining running time or the ba-...
- Page 18 en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Time-optimised: ¡ Mixed tableware and cutlery ¡ Cleaning 60 °C Express 60° Level of soiling: ¡ Intermediate rinse ¡ Common household food rem- ¡ Final rinse 50 °C nants lightly dried on ¡ Dry Use only if appliance is unloaded. Machine Care 70 °C Machine Care → "Favourite ", Page 19... -
Page 20: Features
en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Top Basket
Features en Raise or lower the basket evenly to 8.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. Knife shelf a The basket clicks into position. You can adjust the height of the top Slide the basket back in. -
Page 22: Etagere
en Features 8.3 Etagere Use the cutlery shelf and space un- derneath for small cups and glasses or for large items of cutlery, e.g. cooking spoons or serving cutlery. 8.5 Folding prongs Use the folding prongs to position tableware securely, e.g. plates. If you do not need the cutlery shelf, you can fold it up. -
Page 23: Cutlery Basket
Features en Push the lever forwards and fold 8.7 3rd basket down the prongs . Use the 3rd basket to wash large items of cutlery that are lightly soiled as well as small items of tableware, e.g. small cups, bowls or cooking spoons. -
Page 24: Extra Clean Zone
en Features Pull the tab on the Extra Clean 8.8 Extra Clean Zone Zone up and forwards . Use the Extra Clean Zone in the top basket to clean soiled tableware thor- oughly, e.g. muesli bowls. Set the slider to ON. Clean under running water. -
Page 25: Before Using For The First Time
first time en Add detergent → Page 29. first time 9 Before using for the Start the Programme with the first time highest cleaning temperature without tableware. first time To remove any marks from water 9.1 Performing the initial con- or other residues, we recommend figuration you operate the appliance without tableware before using it for the... -
Page 26: Setting The Water Softening System
en Water softening system Water hardness Hardness range mmol/l Setting value °E 39 - 62 Hard 5.5 - 8.9 Note: Set the water hardness determ- hardness. The higher the water hard- ined on your appliance. ness, the greater the consumption of special salt. → "Setting the water softening sys- tem", Page 26 ATTENTION! -
Page 27: Switching Off The Water Softening System
Water softening system en Place the lid back on the dis- 10.5 Regeneration of the wa- penser and turn to close. ter softening system 10.4 Switching off the water In order to obtain fault-free function of the water softening system, the appli- softening system ance performs regeneration of the If you find the special salt refill indic- water softening system at regular in-... -
Page 28: Rinse Aid
en Rinse aid system Close the lid of the dispenser for 11 Rinse aid system rinse aid. a The lid clicks into position. 11.1 Rinse aid 11.2 Setting the amount of For optimum drying results, use rinse rinse aid aid. Only use rinse aid for domestic dish- If there are streaks or water marks on washers. -
Page 29: Detergent
Detergent en a The display shows Hxx. Powder detergent a The display shows . Powder detergent is recommended Press repeatedly until for shorter programmes. the display shows the value r05 The dosage can be adjusted to the set at the factory. level of soiling. -
Page 30: Unsuitable Detergents
en Detergent According to the manufacturers, ness, usually 26 °E, without combined detergents generally only adding special salt. For the best function up to a water hardness of washing and drying results we re- 26 °E. With a water hardness above commend using special salt from a 26 °E you will need to add special water hardness of 17 °E. - Page 31 Tableware en Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is a The lid clicks into position. enough. Insert the tablets in a hori- a The detergent dispenser will open zontal position.
-
Page 32: Tableware
en Tableware 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 33: Removing Tableware
operation en ¡ For better washing and drying res- ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 34: Setting A Programme
en operation The Eco 50° programme is espe- 14.4 Setting timer program- cially environmentally friendly and ming ideal for normally soiled tableware. It is the most efficient programme You can delay the start of the pro- for the combination of energy/wa- gramme by up to 24 hours. ter consumption for this type of Press ... -
Page 35: Terminate Programme
operation en will help prevent excess pressure building up in the appliance and stop the appliance door bursting open. Open the appliance door carefully. Press . a The programme is saved and the appliance switches off. Press to resume the pro- gramme. -
Page 36: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H00 - H07 Set the water softening sys- tem to your water hardness. - Page 37 Basic settings en Basic setting Display text Selection Description Status Light I00 - I01 While the programme is run- ning, a strip of light appears on the left-hand side of the appliance. If the appliance door is not completely closed, the strip of light will flash.
-
Page 38: Changing Basic Settings
en Home Connect Basic setting Display text Selection Description Remote Start rc0 - rc2 Activate or deactivate → "Remote Start ", Page 39. The following settings are possible: ¡ With the setting "rc0", the function is permanently deactivated. ¡ With the setting "rc1", the function can be selected via the button. -
Page 39: Home Connect Quick Start
Home Connect en depends on the availability of Start the Home Connect app and Home Connect services in your coun- set up access for Home Connect. try. You can find information about The Home Connect app guides this at: www.home-connect.com. you through the entire login pro- To be able to use Home Connect, cess. -
Page 40: Data Protection
en Cleaning and servicing Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 41: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 42: Filter System
en Cleaning and servicing ¡ Make sure that there are no alu- 17.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 43: Cleaning Spray Arms
Cleaning and servicing en Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 44 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arm and screw it firmly in place.
-
Page 45: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 46 en Troubleshooting Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 47 Troubleshooting en Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 48 en Troubleshooting Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 49 Troubleshooting en Fault Cause and troubleshooting Remnants of food on Filters are inserted incorrectly and/or not engaged. tableware. Insert the filters properly. → "Filter system", Page 42 Engage the filters. Washing programme selected too weak. Select a more intensive washing programme. ▶ → "Programmes", Page 18 Tableware has been precleaned too intensely.
- Page 50 en Troubleshooting Fault Cause and troubleshooting Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware. ▶ Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶...
-
Page 51: Clean Wastewater Pump
Transportation, storage and disposal en Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 52: Protect Appliance From Frost
en Customer Service 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 53: Customer Service
Customer Service en Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 54: Technical Specifications
en Technical specifications 21 Technical specifications Weight Max.: 60 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 13 place settings You can find more information about... -
Page 55: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional basic requirements and other relev- documents on the product page for ant provisions of Directive 2014/53/ your appliance. - Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
