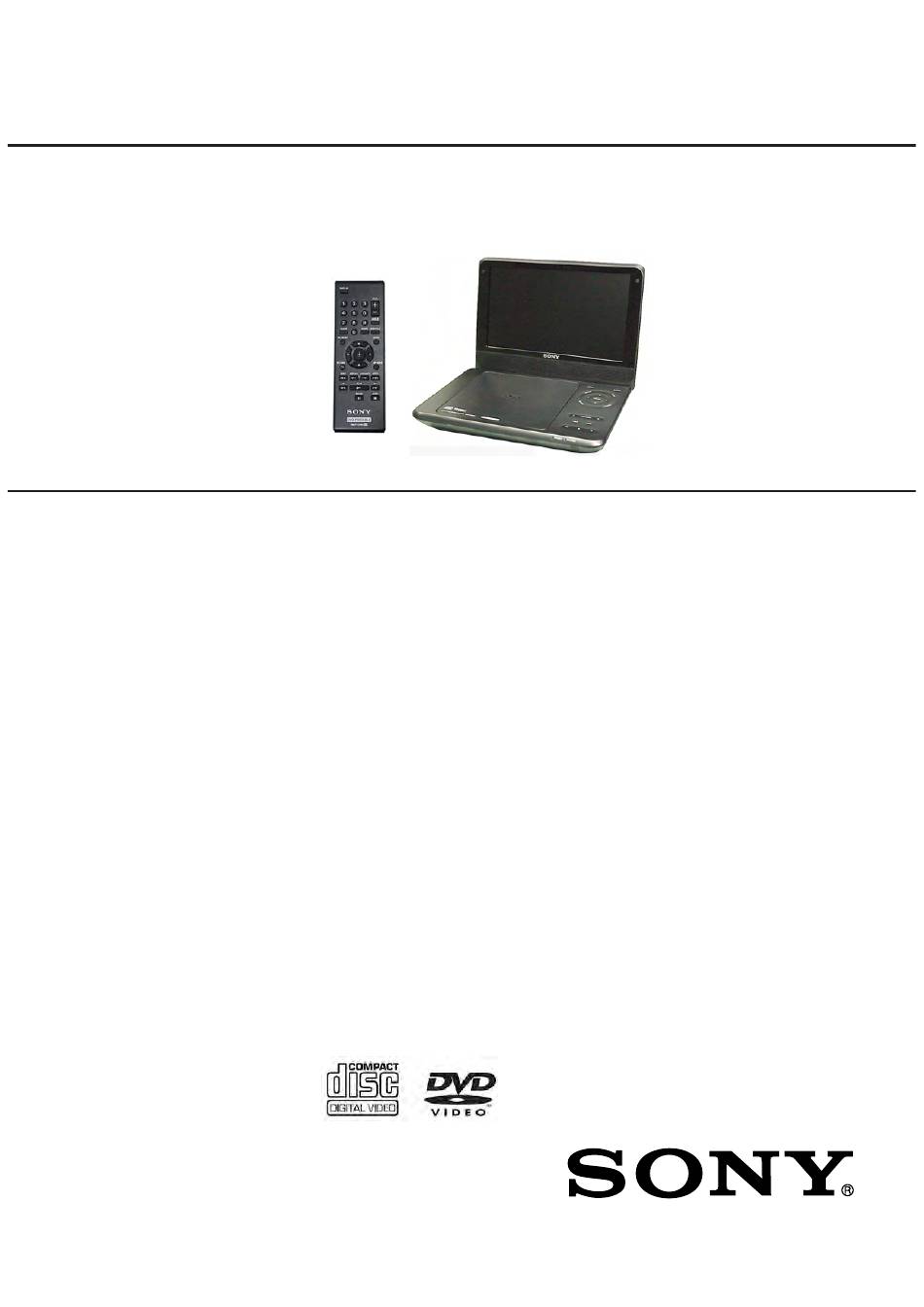

DVP-FX97/FX980/FX980WM
SERVICE MANUAL
Ver. 1.0 2012.01
System
Laser: Semiconductor laser
Signal format system: NTSC
Inputs/Outputs
A/V OUT (audio/video output):
Minijack
PHONES (headphones):
Stereo minijack
USB: USB jack Type A (For connecting USB
memory)
Liquid Crystal Display
Panel size: 9 inches wide (diagonal)
Driving system: TFT active matrix
Resolution: 800 x 480
General
Power requirements:
DC 12V 0.95A (AC Adaptor)
DC 12V 1.5A (Car battery adaptor)
9-890-776-11
SPECIFICATIONS
Power consumption (DVD VIDEO Playback):
6.5W (when used with a headphone)
Dimensions (approx.):
236 × 44 × 170 mm (9 3/8 ×1 3/4 ×
6 3/4 inches) (width/height/depth) incl.
projecting parts
Mass (approx.): 955 g (2.11 lbs)
Operating temperature: 5°C to 35°C (41°F to
95°F)
Operating humidity: 25% to 80%
AC Adaptor: 110-240V AC, 50/60Hz
Car Battery Adaptor: 12V DC
Supplied accessories
• AC adaptor (1)
• Car battery adaptor (1)
• Audio/video adaptor (1)
• Remote commander (remote) (1)
• Size AA (R6) batteries (2)
Specifications and design are subject to change
without notice.
PORTABLE CD/DVD PLAYER
Sony Corporation
Home Entertainment Business Group
RMT-D195
US Model
DVP-FX97/FX980/FX980WM
Canadian Model
DVP-FX980
2012A3100-1
© 2012.01
Published by Sony EMCS Corporation

Advertisement

Table of Contents
loading

Related Manuals for Sony DVP-FX97

Summary of Contents for Sony DVP-FX97

  • Page 1 Power requirements: Specifications and design are subject to change DC 12V 0.95A (AC Adaptor) without notice. DC 12V 1.5A (Car battery adaptor) PORTABLE CD/DVD PLAYER 2012A3100-1 Sony Corporation © 2012.01 9-890-776-11 Published by Sony EMCS Corporation Home Entertainment Business Group...
  • Page 2 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉ- MENTS PUBLIÉS PAR SONY.

  • Page 3: Table Of Contents

    DVP-FX97/FX980/FX980WM TABLE OF CONTENTS Section Title Page Section Title Page DISASSEMBLY WAVEFORMS AND CIRCUIT VOLTAGE 1-1. Disassembly Flow ............1-1 5-1. Waveforms ..............5-1 1-2. Bottom Block ..............1-1 5-2. Circuit Voltage Chart ............ 5-3 1-3. Traverse unit/ Main Board/ Battery ....... 1-2 1-4.

  • Page 4: Disassembly

    DVP-FX97/FX980/FX980WM SECTION 1 DISASSEMBLY ･This set can be disassembled in the order shown below. 1-1.　DISASSEMBLY FLOW 　　　　　　　　　　　 　 　 　 　 　 　 　 　 　 　 　 1-2. BOTTOM BLOCK (Page 1-1) 　 　 　 　 　 　 　 　 　 　 　...

  • Page 5: Upper Block

    DVP-FX97/FX980/FX980WM 1-3.　TRAVERSE UNIT/ MAIN BOARD/ BATTERY ② traverse unit ① two screws (TS2 x 6.5) ② connector ⑤ IO support ① FFC ③ IO support ② battery ④ main board ① connector [NOTE When reassembling the main board, make sure the position of the slide switch and knob.

  • Page 6: Lcd Screen/ Lcd Board

    DVP-FX97/FX980/FX980WM 1-4.　UPPER BLOCK (2/2) ⑥ Panel bezel cover ⑥ top cover ⑤ two screws (TS1.7 x 6) ④ two panel rubbers ③ hinge ② two screws (MS2.5 x 12) ⑤ five screws (TS1.7 x 6) ④ two panel rubbers ① hinge cover ※Slide the hinge cover to the right...

  • Page 7: Block Diagram

    DVP-FX97/FX980/FX980WM SECTION 2 BLOCK DIAGRAM 2-1. OVERALL BLOCK DIAGRAM 　 2-1E...

  • Page 8: Schematic Diagrams

    DVP-FX97/FX980/FX980WM SECTION 3 SCHEMATIC DIAGRAMS 3-1. FRAME SCHEMATIC DIAGRAM (1/3)

  • Page 9: Frame Schematic Diagram (2/3)

    DVP-FX97/FX980/FX980WM 3-2. FRAME SCHEMATIC DIAGRAM (2/3)

  • Page 10: Frame Schematic Diagram (3/3)

    DVP-FX97/FX980/FX980WM 3-3. FRAME SCHEMATIC DIAGRAM (3/3)

  • Page 11: Main Board (1/5)

    DVP-FX97/FX980/FX980WM 3-4. MAIN BOARD (1/5) ・ See page 4-1 printed wiring board. MAIN BOARD(1/5) 1 Disable ADAPTER_DET ADAPTER_DET 2 100K DB_C o Enable BAT_A BAT_A 2 BAT_B ADVCC ADVCC BAT_B 2 DCIN BAT_C BAT_C 2 BAT_D DC_IN UDZ13B 1000pF 0.1uF...

  • Page 12: Main Board (2/5)

    DVP-FX97/FX980/FX980WM 3-5. MAIN BOARD (2/5) ・ See page 4-1 printed wiring board. MAIN BOARD(2/5) GND-LD V1P4 DV33 ADAPTER_DET ADAPTER_DET 1 DVD-LD AADVDD RFVDD3 ADACVDD BAT_A DV33 DV33 DV33 10uH/100mA BAT_A 1 10uH/100mA BAT_B BAT_B 1 4.7K BAT_C BAT_C 1 BAT_D 10uF 0.1uF...

  • Page 13: Main Board (4/5)

    DVP-FX97/FX980/FX980WM 3-6. MAIN BOARD (3/5) ・ See page 4-1 printed wiring board. MAIN BOARD(3/5) DCLK DCLK 2 CAS# CAS# 2 RAS# RAS# 2 WE# 2 BA0 2 BA1 2 MA[0..11] MA[0..11] 2 DQM[0..1] DQM[0..1] 2 DQ[0..15] DQ[0..15] 2 DRAM MA10...

  • Page 14: Main Board (5/5)

    DVP-FX97/FX980/FX980WM 3-7. MAIN BOARD (4/5) ・ See page 4-1 printed wiring board. MAIN BOARD(4/5) SCL 2,3 1.2uH/50mA SDA 2,3 TFT_IRQ MTK_Pb TFT_IRQ 2 PLANE R140 SPLN MTK_Pb SPLP 75R/1% C114 C115 R132 1.8R MTK_Pb 2 MTK_Y 47pF 47pF LED_5V MTK_Y 2...
  • Page 15 DVP-FX97/FX980/FX980WM 3-8. MAIN BOARD (5/5) ・ See page 4-1 printed wiring board. MAIN BOARD(5/5) SPLP 1.8uH/50mA SPLP 4 SPLN MTK_CVBS SPLN 4 SPRP SPRP 4 SPRN R138 SPRN 4 75R/1% C112 C113 47pF 47pF HOLE HOLE EAR_DE EAR_DE 2 AUDIO_L...

  • Page 16: Lcd Board

    DVP-FX97/FX980/FX980WM 3-9. LCD BOARD ・ See page 4-2 printed wiring board. LCD BOARD Gamma Voltage AVDD=10V AVDD AVDD HSD_D Speaker AGND PGND FB12 AVDD3V3 FB13 VDDP 120ohm/100MHz/25% 120ohm/100MHz/25% 3.87V 5K6 1% 9.5V SP1/NC 61.9R/1% SPL1 0.1uF/16V SPL2 SPL2 GMA_V1 PVCC...

  • Page 17: Touch Board

    DVP-FX97/FX980/FX980WM 3-10. TOUCH BOARD ・ See page 4-3 printed wiring board. TOUCH BOARD TINT IR_IN DV33 IR_IN DV33 FB-600R-400mA/0603 IR_IN FB-600R-400mA/0603 TOUCH_PAD1 TOUCH_PAD18 100pF/NC TINT TOUCH_PAD2 TOUCH_PAD17 FB-600R-400mA/0603 TOUCH_PAD3 TOUCH_PAD16 FB-600R-400mA/0603 TOUCH_PAD15 TOUCH_PAD4 TOUCH_PAD5 CON7 TOUCH_PAD6 CS10 TOUCH_PAD7 CS11 TOUCH_PAD8...

  • Page 18: Printed Wiring Board

    DVP-FX97/FX980/FX980WM SECTION 4 PRINTED WIRING BOARDS 4-1. MAIN BOARD : Uses unleaded solder. SIDE B SIDE A...

  • Page 19: Lcd Board

    DVP-FX97/FX980/FX980WM 4-2. LCD BOARD : Uses unleaded solder. SIDE A SIDE B...

  • Page 20: Touch Board

    DVP-FX97/FX980/FX980WM 4-3. TOUCH BOARD : Uses unleaded solder. SIDE A SIDE B 4-3E...

  • Page 21: Waveforms And Circuit Voltage

    DVP-FX97/FX980/FX980WM SECTION 5 WAVEFORMS AND CIRCUIT VOLTAGE 5-1. WAVEFORMS 1.Spindle control waveform (No disc condition) 2.Tracking control relate signal (system checking CD ) SP+ (CN2 PIN2) TRO (U4 PIN21) SP_ (CN2 PIN3) DMSO(R104) TRSO (U5 PIN26) 3. Tracking control relate signal (system checking-DVD)
  • Page 22 DVP-FX97/FX980/FX980WM 4.Audio output waveform (L/R) 5.Video output waveform (CVBS) AUDIO L(J4 PIN2) CVBS(J4 PIN3) AUDIO R(J4 PIN1) 6. Video output waveform (Pr/Y/Pb) 7.RF waveform Pr ( FB16) Y (FB17) RFIP (U4 PIN 123) Pb (FB20)

  • Page 23: Circuit Voltage Chart

    DVP-FX97/FX980/FX980WM 5-2. CIRCUIT VOLTAGE CHART...
  • Page 24 DVP-FX97/FX980/FX980WM 5-4E...

  • Page 25: Ic Pin Function Description

    DVP-FX97/FX980/FX980WM SECTION 6 IC PIN FUNCTION DESCRIPTION 6-1. SERVO & DSP & MPEG IC (MAIN BOARD)
  • Page 26 DVP-FX97/FX980/FX980WM 6-2E...

  • Page 27: Electrical Adjustment

    DVP-FX97/FX980/FX980WM SECTION 7 ELECTRICAL ADJUSTMENT This section describes procedures and instructions necessary for adjusting electrical circuits in this set. Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) Frequency counter (over 8 digits)

  • Page 28: Troubleshooting

    2.Replace the Main board. Replace the Traverse. Does the unit playback CDs? Do the Touch button Replace the Main board. work normally? 1.Replace the Remote control. Does remote Control 2.Replace the Main board. work normally？ Consult with SONY service HQ in each. 8-1E...

  • Page 29: Repair Parts List

    DVP-FX97/FX980/FX980WM SECTION 9 REPAIR PARTS LIST 9-1.　EXPLODED VIEWS NOTE: • Abbreviation • -XX and -X mean standardized parts, so they • Items marked “*” are not stocked since they are seldom required for routine service. Some delay US : USA model may have some difference from the original one. CND : Canadian model • Color Indication of Appearance Parts should be anticipated when ordering these items. Example: • The mechanical parts with no reference number in the exploded views are not supplied. KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ • Accessories and packing materials are given in Parts Color Cabinet’s Color...

  • Page 30: Upper Block

    DVP-FX97/FX980/FX980WM 9-1-3. UPPER BLOCK not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 9-1-4. LCD SCREEN/ LCD BOARD not supplied not supplied not supplied not supplied not supplied not supplied Ref. No.

  • Page 31: Accessories

    DVP-FX97/FX980/FX980WM 9-1-5. ACCESSORIES 102 AC adaptor 101 Remote commander 103 Car battery adaptor 104 AV adaptor 105 Operating Instructions Image: 4-411-682-11 (US) Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. 1-487-884-11 REMOTE COMMANDER (RMT-D195) Replace only with part number specified. 0 102 9-885-167-46 AC-FX190 (SP-12A1200950-U)
  • Page 32 DVP-FX97/FX980/FX980WM REVISION HISTORY Ver. Date Description of Revision 2012.01...
