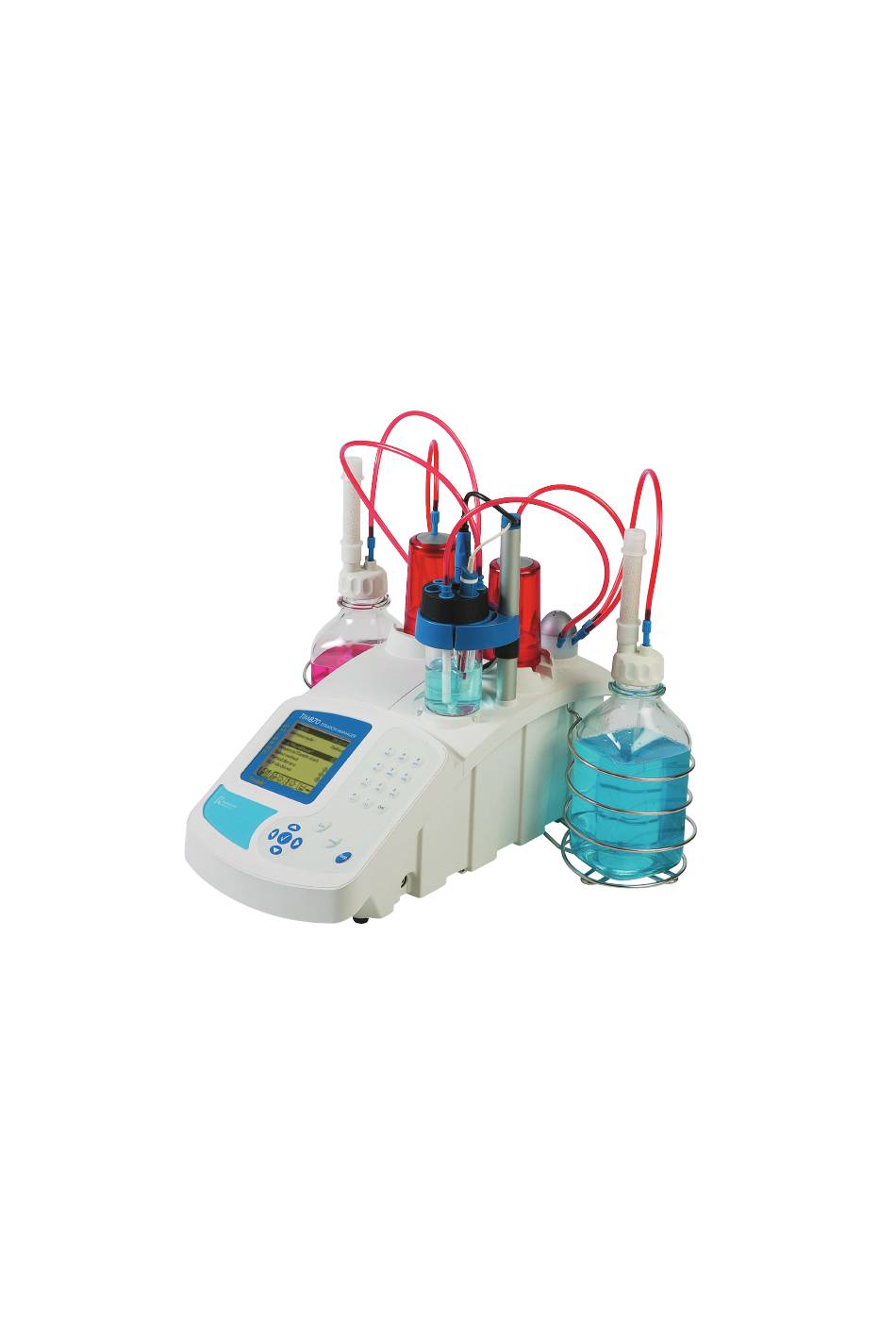

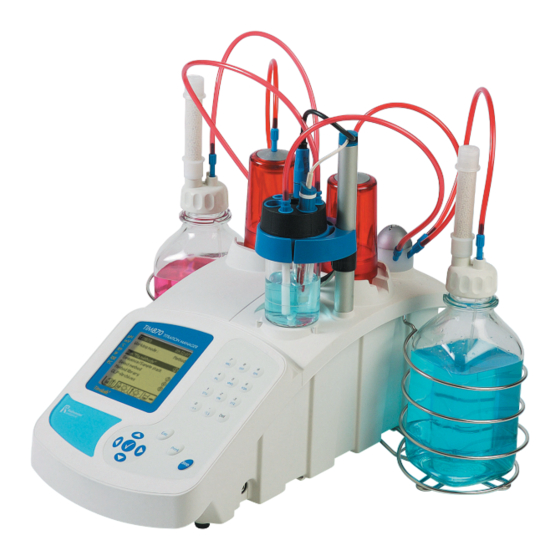

Page 1 ® TitraLab pH/EP/IP/EC/ISE Titration Workstation Reference Manual D21T060...
Page 2 D21T060 • Printed by Radiometer Analytical SAS • 2008-02F...
Page 3: Table Of Contents
TitraLab ® TitraLab 870 Reference Manual Contents Contents........................3 Introduction ......................15 General Information .....................16 Starting up ......................17 Read me! .......................18 Practical examples ....................23 Programming electrodes ...................25 Programming reagents ....................27 Programming methods ....................29 Programming TIM sequences ...................33 Programming SAC sequences ..................35 Programming tips ....................38 Glossary .......................41...
Page 4 TitraLab ® TitraLab 870 Reference Manual Autochaining .......................53 Auxiliary input ......................54 Auxiliary output ......................55 Aux. action / Aux. on for ....................56 Back reagent = Titrant ....................56 Back reagent unknown ....................56 Back titration .......................56 Back titration - ID ......................56 Back titration No/Manual/Automatic .................57 Balance cables - A95Z201, A95Z202 .................58...
Page 5 TitraLab ® TitraLab 870 Reference Manual Calibration request .....................73 Calibration results parameters ..................73 Calibration sequence ....................73 Calibration stack ......................74 Catalogue list ......................74 Cell constant (parameter) ..................74 Cell constant (definition) ...................75 Cell grounding ......................75 Cell window .........................76 Change electrode name .....................76 Change method name ....................76...
Page 6 TitraLab ® TitraLab 870 Reference Manual Delete electrode ......................90 Delete method ......................91 Delete reagent ......................91 Delete sequence ......................91 Demand: Locked ......................91 Demand: Unlocked .....................92 Derivative ........................92 Detailed ........................93 Detection limit (C0) .....................93 Dilution (Yes/No) ......................93 Dilution or sample unit incompatible ...............94 Direction ........................94...
Page 7 TitraLab ® TitraLab 870 Reference Manual Electrode identification ....................117 Electrode library .......................117 Electrode not calibrated ...................117 Electrode system ......................118 Electrode type ......................118 Electrode window .....................119 Electrodes are different ...................119 Empty burette ......................119 Empty sequence .......................119 End point ........................120 End point delay ......................120 End point method .....................120...
Page 8 TitraLab ® TitraLab 870 Reference Manual ID ..........................138 Increment ........................138 Inflection Point (IP) ....................138 Input address conflict ....................138 Insert method menu ....................139 Install burette ......................139 Install reagent ......................140 Insufficient number of beakers in sequence ............140 IP filter ........................140 IP reject ........................141 IP>1 (result indicator) ....................141...
Page 9 TitraLab ® TitraLab 870 Reference Manual Min. ordinate Max. ordinate ..................155 Min. ordinate Max. ordinate - Blank ................156 Min. pH0(25) - Max. pH0(25) ..................156 Min. sensitivity - Max. sensitivity ................156 Min. speed - Max. speed ..................157 Min. Temp. - Max. Temp...................157 Minimum value - Maximum value ................158...
Page 10 TitraLab ® TitraLab 870 Reference Manual pH0(25) ........................169 pH buffer ........................169 pH calibration results parameters ................170 pH calibration solutions parameters ..............170 pH int .........................170 Potential jump ......................171 Potential versus SHE ....................172 Predose mode, Predose until ..................173 Preprogrammed list ....................173 Printer ........................174 Printer cables - A95P201, A95X506 .................175...
Page 11 TitraLab ® TitraLab 870 Reference Manual Reagent ID .........................194 Reagent identification ....................194 Reagent library ......................194 Reagent not calibrated .....................194 Reagent system ......................195 Reagent titre not entered ..................195 Reagent unit ......................195 Reagent window .......................195 Recalculate results ....................196 Ref. electrode conflict ....................197 Reference Temp.
Page 12 TitraLab ® TitraLab 870 Reference Manual Running a method ....................216 Running a reagent calibration sequence ...............216 Running a SAC sequence ..................217 Running a TIM sequence ..................218 Running an electrode calibration sequence ............218 SAC arm obstructed (SAC error) ................219 SAC ext. cell GND .....................219 SAC Method ......................219...
Page 13 TitraLab ® TitraLab 870 Reference Manual Speed .........................234 Stability ........................234 Standard (conductivity standard) ................235 Standard addition ID ....................236 Standard addition method ..................236 Standard amount ......................236 Standard ID .......................236 Standard menu ......................237 Standard potential ....................237 Standard solution (conductivity measurements) ..........237 Standard solution (ISE measurements) ..............237 Standard solution (reagent calibration) ..............237...
Page 14 TitraLab ® TitraLab 870 Reference Manual Tray missing (SAC error) ..................249 TTL 5 V OUT/TTL 12 V OUT (sockets) ..............250 TTL IN (sockets) .......................250 Turntable blocked (SAC error) ................251 Type of method ......................251 User ID (Yes/No) .......................251 User list ........................251 User’s rights ......................252...
Page 15: Introduction
® TitraLab 870 Reference Manual Introduction The TitraLab 870 Titration Workstation is dedicated for routine use. It offers two distinct user levels: • Supervisor Dedicated for operators who wish to edit their methods to fit their specific needs. They can also assign a password to protect the programmed data from eventual changes.
Page 16: General Information
It is therefore aimed at experienced users who have the knowledge required to op- erate the instrument and implement the security instructions enclosed. Please remember that the TitraLab 870 must not, under any circumstances, be used to perform tests on living beings.
Page 17: Starting Up
TitraLab ® TitraLab 870 Reference Manual Starting up Set up the instrument in a properly ventilated place. The power supply connector on the rear panel must remain accessible and close to the user (2 m maximum) so that you can quickly disconnect the cables in case of emergency.
Page 18: Read Me
TitraLab ® TitraLab 870 Reference Manual Read me! An important feature of this Titration Manager interface is that it controls the presence of differ- ent elements necessary to run the defined application for a selected method/sequence, before the method/sequence is run.
Page 19 TitraLab ® TitraLab 870 Reference Manual 3. Create new method or Edit a pre-programmed one Create the measurement or titration method to be used for the analyses. Enter the parameters required to calculate the results, see "Programming methods", page When you have finished programming, select the method/sequence or pre-programmed application, see "Select method", page 226...
Page 20 TitraLab ® TitraLab 870 Reference Manual B.Running methods To run a method or sequence, see "Working in Routine mode", page Page 20...
Page 21 TitraLab ® TitraLab 870 Reference Manual Working in Routine mode A.Access methods A Routine operator has access to all the methods “Select method” and programmed parameters “Display method” for checking purposes B.Running methods When working in “ROUTINE” mode, it is necessary to install your titration system according to the selected method or sequence, prior to running a method or sequence.
Page 22 TitraLab ® TitraLab 870 Reference Manual Page 22...
Page 23: Practical Examples
Practical examples s...
Page 25: Programming Electrodes
TitraLab ® TitraLab 870 Reference Manual Programming electrodes Press 4. Press 1. Select function. Select ID. Select ID from Catalogue or Press 1 to confirm the creation For a combined or a simple Others list. of the new electrode. electrode or for a reference electrode, enter the potential (in Press 1 to confirm.
Page 26 TitraLab ® TitraLab 870 Reference Manual Enter the calibration parame- Press 1. Enter the electrode calibration ters. parameters. Press Esc then 2. Select the buffer solutions Enter the results parameters. Enter the printouts parameters. used. Press Esc then 3. Press Esc then 4.
Page 27: Programming Reagents
TitraLab ® TitraLab 870 Reference Manual Programming reagents Press ✓. Press 4. Press 1. Select ID from Catalogue list or Confirm the creation of the new Enter the burette address. Others list. reagent. Select Titre = Calibrate if a cali- Enter the target titre and unit.
Page 28 TitraLab ® TitraLab 870 Reference Manual Enter the calibration parameters. Press 1. Select the electrode used for the calibration. This electrode must be the one defined in the method using this reagent. Enter the calibration parame- ters. Press Esc then 2.
Page 29: Programming Methods
TitraLab ® TitraLab 870 Reference Manual Programming methods Creating and editing a method Press 4. Press 1. Enter ID. Press 1 to confirm. Press ✓ and select the Enter method parameters. Press 1. electrode(s) from the list(s). Specify the Mode, see "Mode",...
Page 30 TitraLab ® TitraLab 870 Reference Manual Enter the Sample parameters. Enter the results parameters. Enter the printouts parameters. Press Esc then 3. Press Esc then 4. If a QC sample has been defined in step 4, press Esc then 5.
Page 31 TitraLab ® TitraLab 870 Reference Manual For a Coupled method Press 4. Press 1. Enter the Method ID and press 1 to confirm. Select Mode = Coupled. Enter the method to be linked. Press Esc twice. Method programming is completed.
Page 32 TitraLab ® TitraLab 870 Reference Manual Page 32...
Page 33: Programming Tim Sequences
TitraLab ® TitraLab 870 Reference Manual Programming TIM sequences A TIM sequence is a sequence of methods with manual change of the beakers. No sample changer is used. Select Sequence. Press 2. Enter a name for the sequence. Press 3.
Page 34 TitraLab ® TitraLab 870 Reference Manual Press 1 to add a second method to the sequence. Repeat steps 6 to 9. Up to 10 methods can be chained in a sequence. After having added the last method, press Esc twice.
Page 35: Programming Sac Sequences
TitraLab ® TitraLab 870 Reference Manual Programming SAC sequences A SAC sequence is a sequence of methods with automatic change of the beakers. A sample changer (SAC80, SAC90, SAC850 or SAC950) is used. Press Stop for 3 seconds to Press 1.
Page 36 TitraLab ® TitraLab 870 Reference Manual Press 3. Press 1 to add a method. Select the type of method. Select a method in the list of Press 1 to add the method to If Sample has been selected in available methods.
Page 37 TitraLab ® TitraLab 870 Reference Manual Press 1 to add a second method to the sequence. Repeat steps 9 to 12. Up to 10 methods can be chained in a sequence. After having added the last method, press Esc twice.
Page 38: Programming Tips
TitraLab ® TitraLab 870 Reference Manual Programming tips • Do not forget to declare electrode(s) while setting up reagent parameters, if calibrated. • Do not forget to declare electrode(s) and reagents(s) when programming your method parameters • If reagents are calibrated, the same electrode must be used in both sample analysis method and reagent calibration.
Page 39 TitraLab ® TitraLab 870 Reference Manual When a Stormy or a Question mark icon appears, press 1 “Check” . The Titration Manager will automatically guide you through the operations necessary to solve the errors encountered. Page 39...
Page 40 TitraLab ® TitraLab 870 Reference Manual Page 40...
Page 41: Glossary
Glossary...
Page 43: 0Ip (Result Indicator)
TitraLab ® TitraLab 870 Reference Manual 0IP (result Refer to "Result indicators", page 206. indicator) ABU1/ABU2 ABU1 means an ABU52 connected to the Local socket of the Titration Manager. ABU2 means an ABU52 connected to the Slave socket of a second ABU52 itself connected to the Local socket of the Titration Manager.
Page 44: Acceptance Criteria
TitraLab ® TitraLab 870 Reference Manual Acceptance Acceptance criteria = Yes criteria Enables the user to enter preset minimum and maximum values for measurement results. If the result lies outside these values an alarm message appears and the results are rejected by the instrument. The...
Page 45: Acceptation
TitraLab ® TitraLab 870 Reference Manual Acceptation Result acceptance time limit. When the time entered for the Acceptation has elapsed the measurement will be accepted whether stable or not. For the signal to be accepted once the Acceptation has elapsed, the Max. Stab. time must be greater than the Acceptation time.
Page 46: Add Method Menu
TitraLab ® TitraLab 870 Reference Manual Add method Use this menu to set the type (Sample, Blank, Electrode calibration, Reagent calibration or QC sample) and ID of method to be added to a menu sequence. To access: Press 1 in the Edit sequence menu.
Page 47: Add. Reagent = Titrant
TitraLab ® TitraLab 870 Reference Manual Add. reagent = The reagent used for addition is the same as the titrant used for the titration. Titrant Press ✓ and define an addition reagent different from the titrant in the Parameters screen of the method.
Page 48: Addition Method - Definition
TitraLab ® TitraLab 870 Reference Manual Addition An Addition method performs 1 to 3 reagent additions. These additions can be runned simultaneously or one after the other with or method - without a delay between 2 additions. No measurements are per- definition formed.
Page 49: Addition Method - Programmation
TitraLab ® TitraLab 870 Reference Manual Addition For a 1-addition method method - Refer to "Addition method - definition", page programmation For a 2 or 3-addition method At the Simultaneous additions, select whether you want to perform the additions simultaneously or one after the other.
Page 50: Addition Volume
TitraLab ® TitraLab 870 Reference Manual Addition volume Refer to "Reagent addition volume", page 189. Address The position where the electrode and burette are placed during opera- tion: Electrode The electrode address is defined using the format “xxx/y” where “xxx”...
Page 51: Alarm: Unlocked
TitraLab ® TitraLab 870 Reference Manual Alarm: Enables the user to bypass an electrode, reagent calibration and/or QC sample analysis when the last result obtained lies outside the ac- Unlocked ceptance range. Enter in: Setup menu > Access routine mode Aliquot Amount that is taken from the diluted sample.
Page 52: Alphanumeric Characters
TitraLab ® TitraLab 870 Reference Manual Alphanumeric The following alphanumeric characters can be obtained using the Titration Managers Keypad: characters Keys Characters 7, A, B, C, a, b, c, @ 8, D, E, F, d, e, f 9, G, H, I, g, h, i 4, J, K, L, j, k, l 5, M, N, O, m, n, o, µ...
Page 53: Assistant Function
TitraLab ® TitraLab 870 Reference Manual Assistant func- Embedded instructions on the Titration Manager display to guide the user step-by-step through electrode and titrant installations. tion These instructions appear at the start of a run method if the working system has not been correctly installed.
Page 54: Auxiliary Input
TitraLab ® TitraLab 870 Reference Manual Auxiliary input The auxiliary input socket can be connected to an external device unit used to send an analysis start command to the Titration Manager. The analysis is a sequence of methods with manual change of the titration beakers (Working mode = Sequence, see "Working mode",...
Page 55: Auxiliary Output
TitraLab ® TitraLab 870 Reference Manual Auxiliary output The auxiliary outputs are used to control external equipment such as valves or pumps during titrations. This signal is sent between the red and black banana sockets 5V OUT or 12V OUT of the Titration Manager.
Page 56: Aux. Action / Aux. On For
TitraLab ® TitraLab 870 Reference Manual Aux. action / Refer to "Auxiliary output", page Aux. on for Back reagent = The reagent used for the back titration is the same as the titrant used for the titration. Titrant Press ✓ and define a back reagent different from the titrant in the Parameters screen of the method.
Page 57: Back Titration No/Manual/Automatic
TitraLab ® TitraLab 870 Reference Manual Back titration Back titration = No No/Manual/ This is a direct titration. Automatic Back titration = Manual This is a back titration where the excess reagent is added using a separate burette or a pipette not controlled by the Titration Manager.
Page 58: Balance Cables - A95Z201, A95Z202
TitraLab ® TitraLab 870 Reference Manual Balance cables - A95Z201, A95Z202 Titration A95Z201 Manager BALANCE METTLER Balance socket Female 9-pin Male 25-pin Figure 4: Balance cable, A95Z201 Titration A95Z202 Manager BALANCE SARTORIUS Balance socket Return 20 DTR Female 9-pin Male 25-pin...
Page 59: Balance Cables - A95Z204, A95Z205
TitraLab ® TitraLab 870 Reference Manual Balance cables - A95Z204, A95Z205 Titration A95Z204 Manager BALANCE SARTORIUS Balance socket Return 20 DTR Female 9-pin Male 25-pin Figure 6: Balance cable, A95Z204 Titration A95Z205 Manager BALANCE METTLER Balance socket Female 9-pin Male 25-pin...
Page 60: Balance Cables - A95Z206, A95Z207
TitraLab ® TitraLab 870 Reference Manual Balance cables - A95Z206, A95Z207 Titration A95Z206 Manager BALANCE METTLER Balance socket METTLER PLUG Female 9-pin 15-pin Figure 8: Balance cable, A95Z206 1.20 m Titration A95Z207 Manager BALANCE PRECISA Balance socket Female 9-pin Male 25-pin...
Page 61: Balance Cables - A95Z208
TitraLab ® TitraLab 870 Reference Manual Balance cables - A95Z208 Titration A95Z208 Manager Balance socket BALANCE PRECISA RJ45 Male 8-pin Female 9-pin Figure 10: Balance cable, A95Z208 Page 61...
Page 62: Balance Connection
TitraLab ® TitraLab 870 Reference Manual Balance Connect the balance to the Titration Manager using the cable corre- sponding to the type of balance used, see table below: connection Balance Type Cable Cable length Mettler PE + option 016 A95Z201...
Page 63: Balance In Use
TitraLab ® TitraLab 870 Reference Manual Balance in use When using a balance connected to the Titration Manager, proceed as follows: 1. Press 1 to run the method. 2. If required, enter a User ID, confirm. 3. If required, enter a Sample ID.
Page 64: Beaker Detection
TitraLab ® TitraLab 870 Reference Manual Beaker On a SAC850 or SAC950, a Beaker detection module (ultrasonic transducer) makes it possible to detect beakers containing liquid detection sample with a height higher than the minimum detection limit (10 mm), see "Beaker detection minimum height", page In all other cases, the beaker positions are not detected, that is to say: a.
Page 65: Beaker Detection Minimum Height
TitraLab ® TitraLab 870 Reference Manual Beaker The table below reports the minimum height of liquid that must be present in the beaker in order to detect the beaker as not empty, detection also "Beaker detection", page minimum height Beaker type Detection minimum Part no.
Page 66: Beaker Menu
TitraLab ® TitraLab 870 Reference Manual Beaker menu Use this menu to prepare a sample or calibration stack. It defines individual data for all samples/standards used in the sequence. Figure 11: Beaker menu (for a sample stack) To access (for a sample stack): 1.
Page 67: Beakers: [F;L]
TitraLab ® TitraLab 870 Reference Manual Beakers: [F;L] The beakers information is displayed in the Edit sequence menu of a sequence. It indicates the First and Last positions occupied by the beakers in the sequence. Beep If Yes has been selected, three beeps will sound when a result is obtained.
Page 68: Blank Required
TitraLab ® TitraLab 870 Reference Manual Blank required This message appears at the start of a titration when a blank has been programmed in the method, but a blank value is not available. Press ✓ and run blank. Blank volume Volume of titrant consumed by the titration on a blank sample.
Page 69: Burette Speed
TitraLab ® TitraLab 870 Reference Manual Burette speed The maximum burette speed (in ml/min) is three times the nominal value of the burette per minute. However, for the 50 ml burette the maximum burette speed is 1.5 times the nominal value, i.e. 75 ml/min.
Page 70: Cable Capacity
• measuring low conductances (below 4 µS), • the cable capacity of the conductivity cell is greater than 350 pF. The cable capacity is normally specified by the manufacturer. Cable capacities of a few Radiometer Analytical conductivity cells are given below : Conductivity cell...
Page 71: Cable Resistance
• measuring low resistances (below 50 Ω ) or high conductances (above 20 mS). • using a 2 or 3-pole conductivity cell. The cable resistance is normally specified by the manufacturer. Cable resistances of a few Radiometer Analytical conductivity cells are given below: Cable resistance ( Ω ) Conductiivity cell...
Page 72: Calculate With Ep No
TitraLab ® TitraLab 870 Reference Manual Calculate with End point number (1 to Number of EP) for which the volume will be used to calculate the result. Depending on the option selected for EP no. Results by cumulate or difference, this will be the volume delivered from the titration start to the end point no.
Page 73: Calibration Delay Elapsed
TitraLab ® TitraLab 870 Reference Manual Calibration This message appears at titration start. A new electrode or reagent calibration is required. The delay Periodicity entered in the Edit elec- delay elapsed trode or Edit reagent screen has elapsed, see "Periodicity", page 169.
Page 74: Calibration Stack
"Reagent calibration stack", page 192. Catalogue list List of Radiometer Analytical names of electrodes and commonly used reagents. This list cannot be modified. Cell constant Enter the cell constant value. The cell constant is a specification of the conductivity cell and is normally provided by the cell manufacturer.
Page 75: Cell Constant (Definition)
TitraLab ® TitraLab 870 Reference Manual The TIM870 calculates and displays the κ conductivity based on a G Cell constant measured conductance and the K cell constant of the conductivity cell (definition) used. κ (in S ) = K x G (in S)
Page 76: Cell Window
TitraLab ® TitraLab 870 Reference Manual Cell window Use LEFT/RIGHT arrow keys to access. This window controls the stirring function of the measurement cell. Select the instrument having the stirrer (TIM for Titration Manager, ABU1 or ABU2 for an ABU52).
Page 77: Change Sequence Name
TitraLab ® TitraLab 870 Reference Manual Change 1. Display the Main window.and select Sequence or SAC sequence. sequence name If the SAC Sequence command is not available, declare a Sample Changer (SAC80, SAC90, SAC850, SAC950) in the Setup > Configuration menu (Supervisor access only).
Page 78: Check Command
TitraLab ® TitraLab 870 Reference Manual Check If a Stormy or a Question mark icon appears in the Reagent/Electrode windows, press 1 to run the “Check” command. The Titration Manager command will automatically guide you through the operations required to solve the problems encountered.
Page 79: Check Reagents
TitraLab ® TitraLab 870 Reference Manual Check reagents Press 3 in the Reagent window to display the parameters of the current reagent used in the system. For example, reagent ID, date of next calibration, expiry date etc. Communication The data transmission between the sample changer and the worksta- tion cannot be performed properly.
Page 80: Conductivity Cell Calibration
TitraLab ® TitraLab 870 Reference Manual Conductivity Refer to "Electrode calibration (conductivity)", page 108. cell calibration Conductivity Measurement method using a conductivity cell connected to the TIM870 EC socket. measurement method You enter the cell constant of the conductivity cell or detemine it by calibrating the conductivity cell using a standard solution of known conductivity against temperature.
Page 81: Configuration Menu
TitraLab ® TitraLab 870 Reference Manual Configuration Press Stop 3 seconds in the Main window then press 1. menu Contains the configuration parameters for the instrument. . Refer to "Setup menu", page 230. Connections ABU52: Refer to "ABU1/ABU2", page Balance: Refer to "Balance connection", page...
Page 82: Continuous Ip Method
TitraLab ® TitraLab 870 Reference Manual Continuous IP For this type of method, the titration is carried out using continuous addition of titrant. method The titrant addition speed is regulated between two user selectable limits (Min. speed and Max. speed). The addition speed decreases when the slope of the E or pH = f(Volume) titration curve increases and vice versa.
Page 83: Contrast
TitraLab ® TitraLab 870 Reference Manual Contrast The contrast of the display can be adjusted in the Main window. • press 0 to increase the contrast • press 7 to decrease the contrast Proceed as follows to adjust the contrast of the ABU52 display from the Titration Manager: •...
Page 84: Copy Electrode
TitraLab ® TitraLab 870 Reference Manual Copy electrode This procedure is used to create an electrode, without having to enter data nor program the corresponding calibration method. 1. Enter the Electrodes window. 2. Press 4 then 1. 3. In the Function field, select the function according to the elec- trode type then press ✓,...
Page 85: Copy Method
TitraLab ® TitraLab 870 Reference Manual Copy method 1. Switch to Main window. 2. Select Method. 3. Press 4 then 1. 4. Press 3 in New method menu. 5. Enter a method name. 6. Press 2 Copy from method. 7. In the Library field, select the Preprogrammed or User list.
Page 86: Coupled Method
TitraLab ® TitraLab 870 Reference Manual Coupled A Coupled method is a combination of methods performed in the same beaker. When using a coupled method, the instrument runs all method these methods on the same sample. If you wish to run a series of methods in different beakers, it is necessary to program a Sequence instead of a Coupled method.
Page 87: Create Electrode
4. Press ✓ in the ID field. 5. Select From = Other. The option From = Catalogue allows you to create an electrode from a list of Radiometer Analytical electrodes. 6. Enter the electrode name (up to 16 alphanumeric characters). 7. In the Confirm creation screen: •...
Page 88: Create Method
TitraLab ® TitraLab 870 Reference Manual Create method 1. Enter the Main window. 2. Select Working mode = Method. 3. Press 4 then 1. 4. Press ✓ in the New method screen. 5. Enter a method name (up to 17 alphanumerical characters).
Page 89: Curve
TitraLab ® TitraLab 870 Reference Manual Curve Select if you want to print: • the pH/mV = f(volume) titration curve at the end of each test. • the E = f (pC = -log C) calibration curve at the end of each ISE electrode calibration cycle, •...
Page 90: Default Parameters
TitraLab ® TitraLab 870 Reference Manual Default Reset the parameters programmed in the method, reagent, or elec- trode. Use this command to reset the preprogrammed methods, parameters reagents or electrodes to the Titration Manager’s default values. Proceed as follows: 1. Display the Main, Reagent or Electrode window.
Page 91: Delete Method
TitraLab ® TitraLab 870 Reference Manual Delete method 1. Select the method to be deleted. 2. Press 4. 3. Press ✓ to confirm or ESC to leave the menu with deleting. It is not possible to delete a method which is part of a sequence or coupled method.
Page 92: Demand: Unlocked
TitraLab ® TitraLab 870 Reference Manual Demand: Electrode or Reagent calibration Unlocked The routine user is allowed to bypass an electrode and/or reagent cal- ibration demand and continue measurements. This happens when the electrode or the reagent calibration periodicity has elapsed.
Page 93: Detailed
TitraLab ® TitraLab 870 Reference Manual Detailed This parameter sets level of details of report printouts. Detailed = Low • The header only comprises the analysis name, time and date and the instrument serial number. These data are printed on the same line.
Page 94: Dilution Or Sample Unit Incompatible
TitraLab ® TitraLab 870 Reference Manual Dilution or Manual reprocessing error: The method used for reprocessing has a sample definition different from the curve generated. sample unit incompatible Example: you run a titration with a sample dilution programmed and try to reprocess this curve in manual mode with no dilution programmed for the sample.
Page 95: Direct Ise Measurement Method - Definition
TitraLab ® TitraLab 870 Reference Manual Direct ISE Measurement method using a selective electrode (ISE) of the ion you want to determine the concentration. measurement method - In a Direct ISE measurement method, you must calibrate the ISE definition electrode using 1 to 9 standard solutions of known concentration.
Page 96: Direct Ise Measurement Method - Notes
TitraLab ® TitraLab 870 Reference Manual Direct ISE The accuracy of the measurements using a Direct ISE method depends on the following elements: measurement method - notes • The concentrations of the standards used for a 2-point calibration must lie on either side of the samples to be measured.
Page 97: Disconnect Electrodes
TitraLab ® TitraLab 870 Reference Manual Disconnect Disconnect all connected electrodes. electrodes Proceed as follows: 1. Press 2 in the Electrode window. 2. Press 2 Disconnect electrodes. 3. Disconnect electrode from rear panel. 4. Press ✓ to confirm. 5. Repeat steps 3 and 4 for all other electrodes to be disconnected.
Page 98: Display Measurement
TitraLab ® TitraLab 870 Reference Manual Display Press 5 in the Electrode window. measurement The signal measured of a connected electrode in the current system is displayed. If several electrodes are connected, select the electrode at the ID line. Depending on the type of electrode connected, the display shows: •...
Page 99: Dyn. Rinse
TitraLab ® TitraLab 870 Reference Manual Dyn. rinse You have the choice between rinsing dynamically the electrodes : • N-1/st in Park: in previous (just analysed) beaker except 1st and calibration beakers in park, • N-1/st in Rinse 2: in previous (just analysed) beaker except 1st and calibration beakers in R2 (static rinse beaker no.2),...
Page 100: Dynamic Dose
TitraLab ® TitraLab 870 Reference Manual Dynamic dose During Incremental IP titration the size of the increments is controlled by the Dynamic dose. Small increments will be added in the vicinity of the curve inflections, and larger increments will be added at the flat part of the curve.
Page 101: Dynamic Ip Method
TitraLab ® TitraLab 870 Reference Manual Dynamic IP A volume of titrant (increment) of varying size is added to the solution as soon as the electrode response satisfies the measurement method variations satisfy the stability criterion or once the preset Acceptation time has elapsed.
Page 102: Dynamic Rinses
TitraLab ® TitraLab 870 Reference Manual Dynamic rinses Dynamic rinses are performed by a SAC850 or SAC950 Sample Changers if the Dynamic rinsing module is installed on the sample changer. A Dynamic rinse performed in a Park or Rinse beaker consists of the following operations: 1.
Page 103: Ec Socket
The current passing through poles 1 and 4 is measured. The potential between poles 1 and 4 cannot exceed 3 V in absolute value. The following Radiometer Analytical conductivity cells can be connected to the EC socket: Conductivity...
Page 104: Edit Electrode Menu
TitraLab ® TitraLab 870 Reference Manual Edit electrode In this menu, you can rename the electrode (line ID), revise electrode data, decide if you want to calibrate the electrode menu (line Calibration request) and enter the electrode calibration data if relevant.
Page 105: Edit Method Menu
TitraLab ® TitraLab 870 Reference Manual Edit method In this menu, you can rename the method (line ID), revise and enter method data. menu To access: 1. Press 4 in the Main window. 2. Press 2 Edit method. The following menus are accessible using the arrow keys: Method parameters.
Page 106: Edit Reagent Menu
TitraLab ® TitraLab 870 Reference Manual Edit reagent In this menu, you can rename the reagent (line ID), revise reagent data, decide if you want to calibrate the reagent menu (line Titre) and enter the reagent calibration data if relevant.
Page 107: Edit Sequence Menu
TitraLab ® TitraLab 870 Reference Manual Edit sequence 1. Perform steps 1 to 6 of the "Programming sequence" procedure. Refer to "Programming sequence", page 181. menu 2. In the Sequence/Sample stack window (access: press 2 Sequence/Sample stack from the main window), press 3 Edit sequence.
Page 108: Electrode Calibration (Conductivity)
TitraLab ® TitraLab 870 Reference Manual Electrode 1. Select the method which uses the conductivity cell to be calibrated. calibration (conductivity) 2. Connect the electrode system, see "Electrode connection", page 114. 3. Press 1 Calibrate electrodes in the Electrode window.
Page 109: Electrode Calibration (Ise)
TitraLab ® TitraLab 870 Reference Manual Electrode 1. Select the method which uses the electrode to be calibrated. calibration (ISE) 2. Connect the electrode system, see "Electrode connection", page 114. 3. Press 1 Calibrate electrodes in the Electrode window. 4. Select the ISE electrode from the list.
Page 110: Electrode Calibration (Ph)
TitraLab ® TitraLab 870 Reference Manual Electrode 1. Select the method which uses the electrode to be calibrated. calibration (pH) 2. Connect the electrode system, see "Electrode connection", page 114. 3. Press 1 Calibrate electrodes in the Electrode window. 4. Select the pH electrode from the list.
Page 111: Electrode Calibration (Sac Sequence)
TitraLab ® TitraLab 870 Reference Manual Electrode In a calibration sequence, the standard solution beakers are handled automatically using a sample changer. A SAC80, SAC90, SAC850 or calibration (SAC SAC950 Sample Changer must be connected and declared in the sequence) Configuration menu.
Page 112: Electrode Calibration Not Required
TitraLab ® TitraLab 870 Reference Manual Electrode Message appears at the start of a sequence, if a method sequence has been programmed with an electrode calibration. The electrode calibration not used has been programmed without calibration Calibration required request = No.
Page 113: Electrode Calibration Stack
TitraLab ® TitraLab 870 Reference Manual Electrode The electrode calibration stack defines individual data for each buffer solution beakers present in an electrode calibration sequence. calibration stack 1. In the Configuration menu, declare the model of sample changer used (SAC80, SAC90, SAC850 or SAC950).
Page 114: Electrode Connection
TitraLab ® TitraLab 870 Reference Manual Electrode Proceed as follows to connect/install electrodes and temperature sensors: connection 1. In the Electrode window, press 2 then 1 Connect electrode. 2. Enter serial number. 3. Install electrodes on the Titration Manager (TIM), ABU52 or sample changer (SAC80, SAC90, SAC850 or SAC950).
Page 115: Electrode Connection - Important
TitraLab ® TitraLab 870 Reference Manual Electrode In order to simplify user operations when performing several types of daily analyses, the instrument allows the connection of electrodes that connection - do not belong to the electrode system, provided that the electrodes Important are compatible.
Page 116: Electrode Icons
TitraLab ® TitraLab 870 Reference Manual Electrode icons Select to access Electrode window. Indicates the state of the electrode system. Sunny icon: The calibration has been performed on all the electrodes present in the system and/or all the electrodes have been installed.
Page 117: Electrode Id
TitraLab ® TitraLab 870 Reference Manual Electrode ID Name assigned to the electrode (max. 16 alphanumeric characters). Enter in: Electrode window > Edit electrode Electrode An electrode is identified by its name (ID). The ID and other electrode specifications are entered in the Edit Electrode menu. These other...
Page 118: Electrode System
TitraLab ® TitraLab 870 Reference Manual Electrode An electrode system comprises all the electrodes necessary to run a method or a sequence of methods. system A method, consists of an indicating electrode, a reference electrode and, if required a temperature sensor.
Page 119: Electrode Window
TitraLab ® TitraLab 870 Reference Manual Electrode This window contains all the information and operations concerning the electrodes. window To access: Use LEFT/RIGHT arrow keys. Electrodes are This message appears if the active electrode used for the reagent calibration is different from the electrode used in the method.
Page 120: End Point
TitraLab ® TitraLab 870 Reference Manual End point Adjustable pH/mV value to which titrant is to be dispensed. Enter in: Edit method > Parameters menu (end point method) Edit reagent > Calibration parameters menu (end point method) Range available: -9.000 pH to +23.000 pH or -2000.0 mV to +2000.0 mV...
Page 121: Enter Titre
TitraLab ® TitraLab 870 Reference Manual Enter titre Available if Titre = enter 1. Select the method or sequence which uses the current titrant. 2. If necessary, install the reagent. 3. Press 1 in the Reagent window. 4. Press ✓ and select the reagent from the list.
Page 122: Equation Formula
TitraLab ® TitraLab 870 Reference Manual Equation One or two user defined equations can be entered to calculate results using user required units. formula The formula specifies how the calculations should be performed. A formula can use up to 64 characters and can consist of operators and operands, that are derived from the completed titration data.
Page 123: Equation Formula
TitraLab ® TitraLab 870 Reference Manual Equation formula Operators Addition Subtraction or negation Multiplication Division Operation defined in brackets. Each "(" bracket must be associated to one ")" bracket. Up to 10 sets of "( )" are accepted per formula.
Page 124: Equation Unit
TitraLab ® TitraLab 870 Reference Manual Equation unit Use the numeric keypad to enter the units of the result calculated using the equation n (1 or 2). Enter in: Edit method > Results Page 124...
Page 125: Equivalent Point Determination (Ip Methods)
TitraLab ® TitraLab 870 Reference Manual Equivalent point An equivalent point of a titrated species/titrant reaction is determined in two ways depending on the titrant addition mode selected: determination (IP methods) Continuous addition of the titrant (Continuous IP method): • acquisition of the titration curve E (electrode) = f (volume of titrant dispensed), •...
Page 126: Equivalent Point Determination (Ip Methods)
TitraLab ® TitraLab 870 Reference Manual Equivalent point Incremental addition of the titrant (Monotonic/Dynamic IP methods): determination (IP methods) • acquisition of the titration curve E (electrode) = f (volume of titrant dispensed), • determination of the first derivative curve using a smoothing proc- ess (depending on the value set for IP filter), •...
Page 127: Err#32 (Sac Error)
TitraLab ® TitraLab 870 Reference Manual ERR#32 (SAC Refer to "SAC switch Off/On (SAC error)", page 219. error) Page 127...
Page 128: Error Messages
TitraLab ® TitraLab 870 Reference Manual Error messages See also "Check command", page Titration Manager errors: "Active electrode unknown in "method ID"": see page 45. "Add. reagent = Titrant": see page 47. "Archives data lost - Cal. Data lost - Methods kept": see page 52.
Page 129: Error In Equation Formula
TitraLab ® TitraLab 870 Reference Manual Error in The possible errors you may encounter when entering a formula: equation • Operand unknown: term used does not exist, e.g. R2 if only one formula result defined in the method. • Syntax error: typing error in the formula, e.g. a missing bracket.
Page 130: Expiry Date
TitraLab ® TitraLab 870 Reference Manual Expiry date The expiry date of a reagent is to be entered when installing or replacing a reagent. The expiry date is given on the reagent bottle. The reagent cannot be used once this date is exceed. The Titration Manager prompts you to replace the reagent bottle.
Page 131: Flush Burette
TitraLab ® TitraLab 870 Reference Manual Flush burette A flush rinses the burette, tubings and delivery tip thoroughly. It is recommended to flush the burette on a daily basis. The Titration Manager carries out a flush after each installation or rea- gent replacement procedure.
Page 132: Function
TitraLab ® TitraLab 870 Reference Manual Function Select the electrode function relative to the electrode in use. The possible electrode functions are: • pH, • ISE, • mV (i = 0), • mV (i > 0), • T°C, • Reference, •...
Page 133: Global Flush Burettes
TitraLab ® TitraLab 870 Reference Manual Global flush A “Global flush” function is available to expell the air bubbles that may be trapped in the tubings. All installed burettes are flushed burettes simultaneously. Perform the following operations: 1. Display the Burette functions menu: 2.
Page 134: Glp-Archives Menu
TitraLab ® TitraLab 870 Reference Manual GLP-Archives The GLP-Archives (Good Laboratory Practice) command is available in the Main, Reagent and Electrode windows: menu To access: • Sample results: enter Main window and press 5 • Reagent calibration results: enter Reagent window and press 6 •...
Page 135: Gran = F(Volume) Curve
TitraLab ® TitraLab 870 Reference Manual GRAN = Definition: f(Volume) curve Refer to "GRAN representation:", page 271. Displaying the GRAN = f(volume) curve: At the end of an ISE standard addition test, the instrument displays the concentration and the slope calculated at 25°C:...
Page 136: Ground Conflict
TitraLab ® TitraLab 870 Reference Manual Ground conflict Ground conflict: External grounding defined in Setup/Configura- tion and a metal electrode or a coductivity cell. An external grounding is defined for the titration system cell in the Configuration screen and a Ground metal, Double metal or Conductivity type electrode is used by the method.
Page 137: Icons
TitraLab ® TitraLab 870 Reference Manual Icons Everything is OK. Run the method or sequence. Action required within 12 or 24 hours (for a calil- bration) and one week (for a reagent replace- ment). Electrode/reagent calibration date elapsed. Install electrode(s)/reagent(s).
Page 138: Increment
TitraLab ® TitraLab 870 Reference Manual Refer to "Electrode ID", page 117. Refer to "Equation ID", page 123. Refer to "Excess reagent ID", page 129. Refer to "Method ID", page 152. Refer to "QC ID", page 183. Refer to "Reagent addition ID", page 188.
Page 139: Insert Method Menu
TitraLab ® TitraLab 870 Reference Manual Insert method Use this menu to set the ID and the type of method to be inserted before or between two methods in a sequence. This menu is the same menu as Add method, see "Add method menu", page...
Page 140: Install Reagent
TitraLab ® TitraLab 870 Reference Manual Install reagent Proceed as follows: 1. Select the method or the sequence which uses the reagent. 2. Enter the Reagents window. Press 7 to check that the burette is installed. If not, install the burette by pressing 5, see "Install...
Page 141: Ip Reject
TitraLab ® TitraLab 870 Reference Manual IP reject The IP reject sets lower level of the slope of the titration curve for acceptance of an inflection point. Use the IP reject value to eliminate weak inflection points. To set the appropriate IP reject value, display the derivative curve of...
Page 142: Ise Standard Addition Method - Definition
TitraLab ® TitraLab 870 Reference Manual ISE Standard Measurement method using an selective electrode (ISE) of the ion you want to determine the concentration. addition method - definition In this method, a sample measurement is performed then followed by 1 to 9 additions of a standard of known volume and concentration.
Page 143: Ise Standard Addition Method - Programmation
TitraLab ® TitraLab 870 Reference Manual ISE Standard Proceed as follows to edit an ISE standard addition method: addition method 1. From the Main window, press 4 then 2 Edit method. 2. For Mode, select Measurement. programmation 3. For Measurement, select ISE Std Addition.
Page 144: Iso Ph
TitraLab ® TitraLab 870 Reference Manual Iso pH pH at which the electrode potential is no longer temperature dependant. The Iso pH is an electrode characteristic supplied with every Radiometer Analytical electrode. Values are normally between 6.3 and 7.3 pH Enter in: Edit Electrode >...
Page 145: Keyboard Connection
TitraLab ® TitraLab 870 Reference Manual Keyboard Connect an external mini-keyboard to the Titration Manager via the 6- pin mini DIN port situated on the right hand side of the instrument. connection Keyboard type: PCT or compatible with a 6-pin mini DIN connector.
Page 146: Keyboard Connection - Important
PS2/DIN keyboard cable plug. Note: the absence of the ferrite on the PC keyboard cable will not in any way impede the correct operation of the TitraLab 870 system. Language Select from English, French, German, Danish, Spanish, Italian or Swedish.
Page 147: Main Window
TitraLab ® TitraLab 870 Reference Manual Main window First window to appear when the instrument is switched on: Title bar Perform Method, TIM or SAC Sequence Run method Select method Method library GLP Archives Cell Method Electrode Reagent To navigate in the window, use: •...
Page 148: Manual Dosing
TitraLab ® TitraLab 870 Reference Manual Manual dosing A manual dosing consists in adding varying size of reagent volumes at varying addition speeds with or without measuring a signal. No measurements are stored. 1. Select a method, see "Select method", page 226.
Page 149: Max. Stab Time
TitraLab ® TitraLab 870 Reference Manual Max. stab time If the stability criterion has not been fullfiled during the time entered for the Maximum stabilisation time an error message will appear. Check your electrode before repeating the measurement. Enter in: Edit method >...
Page 150: Maximum Dose
TitraLab ® TitraLab 870 Reference Manual Maximum dose This parameter is used in conjunction with the Dynamic dose to opti- mise inflection point determination with respect to the speed of the titration. It is the allowed maximum value of each increment to be dispensed by the burette during an inflection point titration.
Page 151: Measurement
TitraLab ® TitraLab 870 Reference Manual Measurement Measurement type for the method. Enter in: Edit method menu. Edit reagent menu if Titre = Calibrate. Range available: pH measurement (pH), zero-current potential measurement (mV), imposed current potential measurement (mV(i>0)). For Measurement methods (Mode = Measurement : see "Mode",...
Page 152: Method
TitraLab ® TitraLab 870 Reference Manual Method A method, groups the parameters necessary to perform a sample analysis. The following groups of parameters exist: Edit method parameters Sample parameters Result parameters Printout parameters QC parameters An electrode calibration method is defined and saved with the electrode.
Page 153: Method Library
TitraLab ® TitraLab 870 Reference Manual Method library To access, press 4 in the Main window. The method library comprises the following menus and commands: Method library Commands/ Programming data actions Edit Method method Method parameters Default parameters Sample Delete...
Page 154: Method Results Menu
TitraLab ® TitraLab 870 Reference Manual Method results To access: menu 1. Press 4 in the Main window. 2. Press 2 Edit method. 3. Use arrow keys to move to last display. 4. Press 3 Results. Method type Manual reprocessing error: The method selected in reprocessing mode is not correct (wrong method mode).
Page 155: Min. Ordinate Max. Ordinate
TitraLab ® TitraLab 870 Reference Manual Min. ordinate Set the lower and upper limits of a search interval for a given inflection point (IP). Min. and Max. ordinates are entered for each IP to be deter- Max. ordinate mined. Figure 28: Minimum and maximum ordinates Only one inflection point (IP) is determined for each Min./Max.
Page 156: Min. Ordinate Max. Ordinate - Blank
TitraLab ® TitraLab 870 Reference Manual Min. ordinate Set the lower and upper limits of a search interval for the inflection point (IP) to be determined for the blank. The searching process is the Max. ordinate - same as for the sample analysis.
Page 157: Min. Speed - Max. Speed
TitraLab ® TitraLab 870 Reference Manual Min. speed - This is the minimum/maximum speed at which the burette will deliver titrant during an analysis with continuous addition of the titrant (end Max. speed point titration for example). The Min. speed must always be a low value in order to obtain accurate results.
Page 158: Minimum Value - Maximum Value
TitraLab ® TitraLab 870 Reference Manual Minimum value - If the acceptance criteria option has been set to Yes, enter the acceptance range for the result. If the result lies outside these limits, a Maximum value "High" or "Low" warning message appears and the result is rejected by the instrument.
Page 159: Missing Beaker (Sac Error)
TitraLab ® TitraLab 870 Reference Manual Missing beaker Beaker not detected. Solve the problem and restart the sequence from the beaker it stopped (key 1 Resume analysis). (SAC error) Warning! Do not change the turntable before restarting the sequence from the beaker it stopped (key 1) or before restarting the sequence from the next beaker (key 2).
Page 160: Molar Weight
TitraLab ® TitraLab 870 Reference Manual Molar weight When the result unit = weight (g, mg, µg, g/l, mg/l, g/kg, mg/kg,%), enter the molar weight in g/mol of the species to be determined. Enter in: Edit method > Results Range available: 0.001 to 1000 g/mol.
Page 161: Nb Lines Per Page (Printouts)
TitraLab ® TitraLab 870 Reference Manual Nb lines per When printing page by page ( see "Format (printouts)", page 131), this parameter sets the maximum number of lines for one printed page (printouts) page. Access: Setup Menu > Configuration Range available:...
Page 162: No Stirrer (Sac Error)
TitraLab ® TitraLab 870 Reference Manual No stirrer (SAC SAC950 Sample changer error: there is no magnetic stirring possible for the beaker position mentionned. error) When using a 2 or 3-radii turntable with a SAC950, you must use a propeller stirrer to stir the solutions that are placed on the smallest row (2-radii turntable) or on the 2 smallest rows (3-radii turntable).
Page 163: Number Of Additions
TitraLab ® TitraLab 870 Reference Manual Number of Set the number of additions to be performed automatically by an Addition method or an ISE standard addition method. additions Refer to "Addition method - definition", page Refer to "ISE Standard addition method - definition", page 142.
Page 164: Number Of Digits
TitraLab ® TitraLab 870 Reference Manual Number of Number of significant digits (1 to 5) to be displayed and printed for the result calculated. digits Example: If Number of digits = 4: • 1456.1 is displayed “1456” • 12.124 is displayed “12.12”...
Page 165: Number Of Ip
TitraLab ® TitraLab 870 Reference Manual Number of IP Represents the number of inflection points (1 to 8) to be determined during a titration run. Enter in: Edit method > Method parameters menu (for Monotonic IP, Dynamic IP or Continuous IP method).
Page 166: Number Of Static Rinses
TitraLab ® TitraLab 870 Reference Manual Number of If a Sample Changer is in use, enter the desired number of static rinses to be carried out before each sample run of a SAC sequence. static rinses During a static rinse, the electrodes are dipped for a time (selectable between 0 and 30:59 min:s, see "Rinse time", page...
Page 167: Number Of Tests
TitraLab ® TitraLab 870 Reference Manual Number of tests This is the number of times you wish to repeat the method on the same sample. The method will be repeated in a new beaker. If the method is part of a coupled method the number entered here will not be taken into account.
Page 168: Pc Cable - A95X501
TitraLab ® TitraLab 870 Reference Manual PC cable - A95X501 Titration A95X501 Manager PC 9-pin PC/Printer socket Female, 9-pin Female, 9-pin Figure 30: PC cable, A95X501 PC connection Connect the PC serial port to the PC/Printer socket of the Titration Manager using the cable, part no.
Page 169: Periodicity
TitraLab ® TitraLab 870 Reference Manual Periodicity Available if Electrode calibration request = Yes or Titre = Calibrate Maximum period of time between two calibrations. If the period of time is exceed measurements can no longer be performed using this electrode or reagent.
Page 170: Ph Calibration Results Parameters
Refer to "Create electrode", page This is the internal pH of a single or combined pH electrode. The pH int is used for the buffer recognition. The table below gives the pH int of Radiometer Analytical pH electrodes: Electrode pH int PHG301, PHG311, XG100, XG200, XG250 6.06 pH...
Page 171: Potential Jump
TitraLab ® TitraLab 870 Reference Manual Potential jump In an ISE standard addition method with automatic determination of the standard volumes added, the user enters the absolute value of the potential jump due to all n additions (n = 1 to 9).
Page 172: Potential Versus She
TitraLab ® TitraLab 870 Reference Manual Potential versus This parameter is available when creating a reference or a combined electrode with the option From = Other. Refer to "Create electrode", page This parameter enables you to calibrate electrodes with automatic buffer checking using any kind of reference electrodes (for example with a mercurous sulphate electrode Hg/Hg2SO4 (Sat.
Page 173: Predose Mode, Predose Until
TitraLab ® TitraLab 870 Reference Manual Predose mode, The Predose is the dose of titrant to be added at maximum burette speed at the beginning of the titration before the measurement starts. Predose until The predose parameter is intended as a means of optimising the titra- tion time and should be based on experience or experimental data.
Page 174: Printer
TitraLab ® TitraLab 870 Reference Manual Printer Declare a printer: Refer to "Printouts setup", page 179. Connect a printer: Refer to "Printer connection", page 176. Printouts parameters: Refer to "Printouts menu", page 178. Refer to "Printouts title", page 179. Refer to "Printouts detailed", page 178.
Page 175: Printer Cables - A95P201, A95X506
TitraLab ® TitraLab 870 Reference Manual Printer cables - A95P201, A95X506 Titration A95P201 Manager Printer PC/Printer socket Female 9-pin Male 25-pin Figure 31: Printer cable, A95P201 Kyosha Kyoline MTP640 printer 1.5 m Titration A95X506 Manager PC/Printer socket Din 6 pin male from the front Pow.
Page 176: Printer Connection
TitraLab ® TitraLab 870 Reference Manual Printer Connect the printer to the PC/Printer socket on the rear panel using the cable, 9-25 pin, part no. A95P201. connection The printer must have the following characteristics for connection to the Titration Manager.
Page 177: Printouts
TitraLab ® TitraLab 870 Reference Manual Printouts Printouts can be initiated automatically at the end of a test or manually by pressing key Print from the following data screens: • Main window: list of available methods. • Reagent window: list of available reagents.
Page 178: Printouts Detailed
TitraLab ® TitraLab 870 Reference Manual Printouts Refer to "Detailed", page detailed Printouts menu To access: • Method: Method library > Edit method > Printouts (key 4). • Reagents: Reagents library > Edit reagent > Printouts (key 4). • Electrode: Electrode library > Edit electrode > Printouts (key 4).
Page 179: Printouts Setup
TitraLab ® TitraLab 870 Reference Manual Printouts setup Perform the following, before printing: 1. Connect the printer to the Titration Manager. 2. Enter the Setup menu (Stop, 3 seconds from the Main window). 3. Press 1 Configuration. 4. Select Printer = 80 columns.
Page 180: Programming Method
TitraLab ® TitraLab 870 Reference Manual Programming 1. Check or create the electrode(s) to be used by the method. Refer to "Create electrode", page method 2. Check or create the reagent(s) to be used by the method. If you intend to perform a reagent calibration, make sure that the electrode(s) used for calibration are the same as the one(s) used in the method.
Page 181: Programming Sequence
TitraLab ® TitraLab 870 Reference Manual Programming 1. Start by programming each method that will be used in the sequence, see "Programming method", page 180. sequence 2. If you are using a Sample Changer only: In the Configuration menu, declare the model of sample changer used (SAC80, SAC90, SAC850 or SAC950).
Page 182: Proportional Band
TitraLab ® TitraLab 870 Reference Manual Proportional This is the pH (mV) span prior to the end point, at which the titrant speed will be reduced. The speed will increasingly reduce as the end band point is approached. For titrations where the slope of the curve is high near the end point, the proportional band setting should be large.
Page 183: Qc Data Menu
TitraLab ® TitraLab 870 Reference Manual QC data menu This menu is available for measurement and titration methods. To access: 1. Enter the Main window. 2. Select or create a method. 3. Select QC sample = Yes in the Edit method menu.
Page 184: Qc Sample
TitraLab ® TitraLab 870 Reference Manual QC sample Quality control (QC) samples are used as a means of studying the variation within and between batches of a particular analysis. A typical QC sample will be stable, homogenous, typical in composition to the types of sample normally examined.
Page 185: Reaction X Exc. + Y Titr
TitraLab ® TitraLab 870 Reference Manual Reaction X Exc. Enter stoichiometric coefficients for the reaction between the excess reagent and the titrant when the following units have been selected: + Y Titr • Excess titrant unit (M, mM), • Titrant unit (M, mM) To determine the X and Y stoichiometric coefficients: The reaction is: X Exc + Y Titr ->...
Page 186: Reaction X Smp + Y Titr
TitraLab ® TitraLab 870 Reference Manual Reaction X Smp Enter stoichiometric coefficients for the reaction between the sample and the titrant when the following units have been selected: + Y Titr • Result unit molar or weight (mol, mmol, g, mg, µg, mol/l, mmol/l, g/ l, mg/l, mg/ml, µg/ml, mol/kg, mmol/kg, mg/g, mg/kg, %, g/kg, µg/g...
Page 187: Reaction X Smp + Y Exc
TitraLab ® TitraLab 870 Reference Manual Reaction X Smp Enter stoichiometric coefficients for the reaction between the sample and the titrant in excess when the following units have been selected: + Y Exc • Excess titrant unit (M, mM), • Titrant unit (M, mM) To determine the X and Y stoichiometric coefficients: The reaction is: X Smp + Y Exc ->...
Page 188: Reaction X Std + Y Titr
TitraLab ® TitraLab 870 Reference Manual Reaction X Std Enter stoichiometric coefficients for the calibration if molar unit (M, mM) has been selected + Y Titr To determine the X and Y stoichiometric coefficients: The reaction is: X Std + Y Titr ->...
Page 189: Reagent Addition Volume
TitraLab ® TitraLab 870 Reference Manual Reagent Volume of reagent to be added. addition volume Enter in: Edit method (Addition method), see "Addition method - definition", page Edit method > Parameters (if Addition = Yes) Edit reagent > Calibration parameters (if Addition = Yes) Range available: 0.001 ml to 999 ml...
Page 190: Reagent Calibration (Sac Sequence)
TitraLab ® TitraLab 870 Reference Manual Reagent In a calibration sequence, the standard solution beakers are handled automatically using a sample changer. A SAC80, SAC90, SAC850 or calibration (SAC SAC950 Sample Changer must be connected and declared in the sequence) Configuration menu.
Page 191: Reagent Calibration Not Required
TitraLab ® TitraLab 870 Reference Manual Reagent Message appears at the start of a sequence, when a method sequence had been programmed with a reagent calibration. calibration not The reagent has been reprogrammed without a calibration. required Go to Sequence/Sample stack, Edit sequence screen and remove the reagent calibration from the sequence.
Page 192: Reagent Calibration Stack
TitraLab ® TitraLab 870 Reference Manual Reagent The reagent calibration stack defines individual data for each standard solution beakers present in a reagent calibration sequence. calibration stack 1. In the Configuration menu, declare the model of sample changer used (SAC80, SAC90, SAC850 or SAC950).
Page 193: Reagent Icons
TitraLab ® TitraLab 870 Reference Manual Reagent icons Indicates the state of the reagent system. This icon is displayed at the bottom of the Reagent window. Sunny icon: The reagent calibration or manual entry of the titre value has been performed on all the reagents present in the system.
Page 194: Reagent Id
TitraLab ® TitraLab 870 Reference Manual Reagent ID Name of the reagent. It is recommended to enter the chemical for- mula of the reagent followed by its concentration (e.g. HCL 0.1) Enter in: Reagent window > Edit reagent. Range available: Up to 20 alphanumeric characters.
Page 195: Reagent System
TitraLab ® TitraLab 870 Reference Manual Reagent system A reagent system comprises all the reagents necessary to run a method or a sequence of methods: When a method/sequence is run, the instrument prompts you to install or replace the reagents that will be required to run this method/sequence.
Page 196: Recalculate Results
TitraLab ® TitraLab 870 Reference Manual Recalculate You can recalculate a result at the end of a sample titration or reagent calibration method. The old result is replaced with the new. The results recalculated result is saved with the indication "Recalculated".
Page 197: Ref. Electrode Conflict
TitraLab ® TitraLab 870 Reference Manual Ref. electrode Two reference electrodes are being used in the same beaker. conflict Change one of the reference electrodes in the electrode system. Reference Refer to "Temp. correction None/Linear/Nat. water", page 246. Temp. Reject a result Refer to "Result accepted (Yes/No)", page...
Page 198: Replace Burette
TitraLab ® TitraLab 870 Reference Manual Replace burette Before replacing, rinse the burette to remove the reagent. 1. Enter the Burette functions menu. 2. Select the burette to be replaced at the Address line, "Address", page 3. Press 5 Replace burette. The piston is moved to its lowest posi- tion (filling operation).
Page 199: Replace Reagent
TitraLab ® TitraLab 870 Reference Manual Replace reagent The procedure described below installs the reagents used by the cur- rent sequence or method. If a reagent with an ID different to the one used by the method, is installed at the address indicated, the Titration Manager detects the error and prompts you for the replacement.
Page 200: Reprocessing A Curve
TitraLab ® TitraLab 870 Reference Manual Reprocessing a This method mode enables to reprocess the last curve obtained using another method or method parameters that differs from the original curve ones (parameters defined before obtaining the curve). Thus, you can correct or obtain a result.
Page 201: Reprocessing A Curve (Rules)
TitraLab ® TitraLab 870 Reference Manual Reprocessing a The so-called “Reprocess“ method must satisfy a few conditions regarding the original method the curve comes from. curve (rules) 1. Same electrode and reagent systems, 2. Same sample preparation (diluted or non-diluted samples), 3.
Page 202: Reprocessing A Curve (Automatic Mode)
TitraLab ® TitraLab 870 Reference Manual Reprocessing a Perform the following operations to reprocess a curve in automatic mode (Supervisor mode only): curve (Automatic 1. Create a Coupled method, see "Programming methods", page mode) 2. For line 1(or at the line preceding the so-called “Reprocess“...
Page 203: Reprocessing A Curve (Manual Mode)
TitraLab ® TitraLab 870 Reference Manual Reprocessing a Perform the following operations to reprocess a curve in manual mode (Supervisor mode only): curve (Manual mode) 1. Create then run the method that generates the curve being reprocessed. An EP or IP method must be used.
Page 204: Reprocessing A Reagent Calibration Curve
TitraLab ® TitraLab 870 Reference Manual Reprocessing a Refer to "Reprocessing a curve", page 200. reagent calibration curve An internal error has occurred. Press ✓ . The Titration Manager resets Reset memory the parameters to default settings. The method, electrode and reagent lists are reset to the preprogrammed list.
Page 205: Result Accepted (Yes/No)
TitraLab ® TitraLab 870 Reference Manual Result accepted A result is automatically accepted by the instrument if it lies within the minimum/maximum acceptation limits set. The user can then decide (Yes/No) to keep the result or reject it. A result will be automatically rejected by the instrument if it lies out- side these limits.
Page 206: Result Id
TitraLab ® TitraLab 870 Reference Manual Result ID The name assigned by default to a method result number n is Rn (n=1 to 8). You can change the Rn name of each method result (16 alphanumerical characters maximum). Enter in: Edit method >...
Page 207: Result Unit
TitraLab ® TitraLab 870 Reference Manual Result unit Unit used for the result. Enter in: Edit method > Results Range available: If Sample unit = ml or µl: mol, mmol, eq/l, meq/l, mol/l, mmol/l, g/l, mg/l, mg/ml or µg/ml If Sample unit = g or mg: mol, mmol, eq/kg, meq/kg, mol/kg, mmol/kg, g/kg, mg/kg, mg/g, µg/g, % (w/w) or ppm (w/w).
Page 208: Results
TitraLab ® TitraLab 870 Reference Manual Results The following results are displayed automatically at the end of a run. pH calibration Mean of zero pH (pH0(25)) Mean of sensitivity ISE calibration Mean of E0 Mean of sensitivity Mean of Co detection limit concentration...
Page 209: Results By Difference/Cumulate
TitraLab ® TitraLab 870 Reference Manual Results by Results by difference (ml) difference/ Volumes between two End points or Inflection points are used for cumulate result calculation. Results by cumulate (ml) Total volume delivered up to the End point or Inflection point is used for result calculation.
Page 210: Results Menu
TitraLab ® TitraLab 870 Reference Manual Results menu This menu displays the result identification parameters and acceptance criteria required to run a sample method, an electrode or a reagent calibration. To access: • Method: Method library > Edit method > Results (key 3).
Page 211: Rinse Burette
TitraLab ® TitraLab 870 Reference Manual Rinse burette For safe reagent handling rinse the burette each time the burette is to be replaced. It makes sure the delivery tubes and tubings are reagent free. The rinse cycle lasts for approximately 5 minutes.
Page 212: Routine Mode
TitraLab ® TitraLab 870 Reference Manual Routine mode In “ROUTINE” mode the user is able to select and run methods. Clear-text messages and icons present on the large graphic display guide the user at every step. However, the routine user cannot create or modify methods, reagents or electrodes.
Page 213: Run Window
TitraLab ® TitraLab 870 Reference Manual Run window Follow the measurements on this window when an analysis is in progress. The displayed information depends on the type of the method which is running. Enter in: How to run an analysis? Refer to "Running a method", page...
Page 214: Run Window (Continued)
TitraLab ® TitraLab 870 Reference Manual Run window (continued) Sample name. Method name. Test number. Electrode name and serial number. Measurement stability indicator. Time elapsed since measurements started. Temperature measured (if a probe is used) or entered. Conductivity live measurement corrected back...
Page 215: Running A Manual Dosing
TitraLab ® TitraLab 870 Reference Manual Running a To prepare a manual dosing, see "Manual dosing", page 148. manual dosing Adjust the increment size (0.01 ml to 10 ml). Select Yes to add the increments continuously Select No to add a given number of increments.
Page 216: Running A Method
TitraLab ® TitraLab 870 Reference Manual Running a Before running a method, perform the following operations in the order listed below: method 1. Select method. Refer to "Select method", page 226. 2. If a Question mark "?" is present in the Reagent and/or Electrode tabs, it means that the method needs to be programmed - a rea- gent or an electrode is missing.
Page 217: Running A Sac Sequence
TitraLab ® TitraLab 870 Reference Manual Running a SAC 1. Select SAC sequence, see "Select sequence", page 227. sequence 2. If a Question mark "?" is present in the Reagent tab, it means that the sequence needs to be programmed - a reagent is missing.
Page 218: Running A Tim Sequence
TitraLab ® TitraLab 870 Reference Manual Running a TIM 1. Select sequence, see "Select sequence", page 227. sequence 2. If Question marks "?" are present in the Electrode and/or Reagent tabs, it means that the method needs to be programmed - an electrode and/or a reagent is missing.
Page 219: Sac Arm Obstructed (Sac Error)
TitraLab ® TitraLab 870 Reference Manual SAC arm The arm has been blocked and or cannot function properly. Remove the obstruction and press Resume analysis (key 1) to obstructed continue the sequence from the point it stopped. (SAC error) SAC ext. cell...
Page 220: Sac80/Sac90/Sac850/Sac950
TitraLab ® TitraLab 870 Reference Manual SAC80/SAC90/ Define and connect a sample changer: Refer to "Sample changer", page 221. SAC850/SAC950 Edit a sequence with a sample changer: Refer to "Programming sequence", page 181. Select a sequence with a sample changer: Refer to "Select sequence", page...
Page 221: Sample Changer
TitraLab ® TitraLab 870 Reference Manual Sample changer To automate your entire titration procedure (up to 126 samples in one go), the SAC80, SAC90, SAC850 or SAC950 sample changers can be connected to the SAC socket of the Titration Manager using the cable, part no.
Page 222: Sample Changer Cable - A95A202 (Sac80/Sac90)
TitraLab ® TitraLab 870 Reference Manual Sample changer cable - A95A202 (SAC80/SAC90) A95A202 Titration Sample Manager changer "SAC" socket Female, 9-pin Male, 25-pin Figure 38: SAC80/SAC90 Sample changer cable, A95A202 Sample changer cable - A95X501 (SAC850/ SAC950) A95X501 Titration Sample...
Page 223: Sample Dilution Conflict
TitraLab ® TitraLab 870 Reference Manual Sample dilution In a coupled method, the sample parameters are not the same for the two titration methods. For example: Sample method 1 has been conflict programmed with Dilution = Yes. Sample method 2, has been programmed with Dilution = No.
Page 224: Sample Preparation No
TitraLab ® TitraLab 870 Reference Manual Sample The Sample preparation routine gathers all the information required by a SAC850 or SAC950 Sample Changer to prepare each sample preparation no. beakers of the sequence (sample dilution by adding a solvent, stirring delay, sample degassing, set the sample to a given temperature, start a dynamic rinse, etc.).
Page 225: Sample Stack
TitraLab ® TitraLab 870 Reference Manual Sample stack The sample stack gathers individual data for all the samples present in a sequence. 1. Perform steps 1 to 8 of the "Programming sequence" procedure. Refer to "Programming sequence", page 181. 2. In the Main window, press 2 Sequence/Sample stack.
Page 226: Sample Unit
TitraLab ® TitraLab 870 Reference Manual Sample unit Unit of the sample amount. The sample unit can be expressed in weight (g, mg) or volume (ml, µl) except for the ISE standard addition method where volume (ml or µl) units are only available.
Page 227: Select Reagent
TitraLab ® TitraLab 870 Reference Manual Select reagent Routine user Is able to select a reagent to check the parameters and/or start a calibration. 1. Select the method or the sequence using the reagent. 2. Press 1 to start a calibration or 3 to check the reagent parame- ters.
Page 228: Sequence/Sac Sequence
TitraLab ® TitraLab 870 Reference Manual Sequence/SAC Two sequences are available: Sequence or SAC Sequence. The sequences are empty and must be programmed. sequence Unlike Coupled methods, sequences also allow you to link reagent calibration and electrode calibration methods. A sequence is a chain of up to 10 methods that will be carried out in different beakers and in a defined order given by the operator.
Page 229: Sequence/Sample Stack Menu
TitraLab ® TitraLab 870 Reference Manual Sequence/ In this menu, you can edit a sequence and the sample stack associated. Sample stack menu To access: 1. In the Main window, select Sequence or SAC sequence for Working mode. 2. Press 2 Sequence/Sample stack.
Page 230: Serial Number
TitraLab ® TitraLab 870 Reference Manual Serial number Burette The serial number is indicated on the burette and is entered during the installation or replacement procedures. Enter in: Reagent library > Burette functions > Install burette. Reagent library > Burette functions > Replace burette.
Page 231: Simultaneous Additions (Yes/No)
TitraLab ® TitraLab 870 Reference Manual Simultaneous In an Addition method, you can run automatically 2 or 3 additions. These additions can be performed simultaneously or one after the additions (Yes/ other. Refer to "Addition method - definition", page The reagents are added using burettes all controlled by the Titration Manager.
Page 232: Smoothing Parameter
TitraLab ® TitraLab 870 Reference Manual Smoothing The Smoothing parameter is a filter used in IP continuous method. It is used to eliminate false inflection points that might appear on noisy parameter curves. Increasing the Smoothing parameter will decrease the ability to detect weak inflection points.
Page 233: Solution Menu
TitraLab ® TitraLab 870 Reference Manual Solution menu This menu is available for pH or ISE electrodes that are edited with the Calibrate request = Yes option. To access: 1. From the Electrode window, press 4. 2. Select the electrode to be edited.
Page 234: Speed
TitraLab ® TitraLab 870 Reference Manual Speed Sets the speed of the burette used for dosing the increments during a Monotonic IP or Dynamic IP titration. When carrying out titrations where the reaction is very slow, decrease the speed value. For titrations in non aqueous media, where a deposit is created, the speed can also be decreased.
Page 235: Standard (Conductivity Standard)
TitraLab ® TitraLab 870 Reference Manual Standard Selection of the conductivity standard used to calibrate the conductivity cell. 8 standards are available: (conductivity standard) Conductivity Temperature Radiometer Analytical standard range part no. 1 D KCl 0 to 27 °C S51M001 (500 ml) 0.1 D KCl...
Page 236: Standard Addition Id
TitraLab ® TitraLab 870 Reference Manual Standard Name assigned to the standard added during an ISE standard addition method. This reagent can be selected from the User list or addition ID created from the Catalogue list. Enter in: Edit method (for an ISE standard addition method) > Parameters, see "ISE Standard addition method - definition", page...
Page 237: Standard Menu
TitraLab ® TitraLab 870 Reference Manual Standard menu This menu is available for reagent that are edited with the Titre = Calibrate option. In this menu, identify and enter the concentration of the standard solution that will be used for the reagent calibration.
Page 238: Standard Unit Incompatible
TitraLab ® TitraLab 870 Reference Manual Standard unit Manual reprocessing error: The calibration method used for the reprocessing has a standard definition different from the calibration incompatible curve stored. Edit the parameters of the calibration method to be reprocessed (Standard menu).
Page 239: Start Timer
TitraLab ® TitraLab 870 Reference Manual Start timer This is the time delay the Titration Manager will respect before starting the titration. If a predose is programmed, this delay will be counted down at the end of the predose. The Start timer delay will allow the solution to stabilise before performing the first measurement.
Page 240: Std Conc. Too Low (Or High)
TitraLab ® TitraLab 870 Reference Manual Std conc. too This message is displayed when running an ISE standard addition method with automatic determination of the volumes in the following 2 low (or high) cases: • The TIM870 performs a first addition equal to 0.1% of the aliquot volume.
Page 241: Stirring
TitraLab ® TitraLab 870 Reference Manual Stirring Internal stirrer, e.g. magnetic Display the Cell window. Select the instrument the stirrer is connected to (TIM for Titration Manager, ABU1 or ABU2 for an ABU52). Start/stop stirrer Select stirring speed: 100 to 1100 rpm...
Page 242: Stoichiometric Coefficients
TitraLab ® TitraLab 870 Reference Manual Stoichiometric Refer to "Reaction X Exc. + Y Titr", page 185. Refer to "Reaction X Smp + Y Titr", page 186. coefficients Refer to "Reaction X Smp + Y Exc", page 187. Refer to "Reaction X Std + Y Titr", page 188.
Page 243: Stop Point
TitraLab ® TitraLab 870 Reference Manual Stop point In Continuous IP, Monotonic IP or Dynamic IP method, the Stop point is the potential (or pH) at which the titration will stop if the Maximum volume or the selected Number of IP has not been reached.
Page 244: Supervisor Code
TitraLab ® TitraLab 870 Reference Manual Supervisor Enter a Supervisor code to differentiate between the 2 operator modes - Routine and Supervisor. code This code will protect your parameters from any unwanted changes. DO NOT FORGET this code! it will be asked for each time you try and enter the SETUP mode during Routine use.
Page 245: Supervisor Mode
TitraLab ® TitraLab 870 Reference Manual Supervisor In SUPERVISOR mode, you can create, select, edit, delete sequence of methods electrodes and reagents. mode To select the Supervisor mode, a supervisor code is required. Proceed as follows: • Press Stop for 3 seconds in the Main window.
Page 246: Temp. Correction None/Linear/Nat. Water
TitraLab ® TitraLab 870 Reference Manual Temp. None correction The TIM870 displays the sample conductivity at the sample None/Linear/ temperature. No correction is performed. Nat. water Linear The TIM870 measures the sample conductivity and sample temperature and then converts it to the reference temperature using a temperature linear compensation function and displays the conductivity at the reference temperature.
Page 247: Temperature Probe/ Fixed At 25°C/Entered
TitraLab ® TitraLab 870 Reference Manual Temperature Probe Probe/ Fixed at The sample or standard temperature can be measured using a tem- 25°C/Entered perature sensor connected to the Temp socket of the Titration Manager. Select a temperature sensor in the Method parameters menu.
Page 248: The Sequence Is Empty
TitraLab ® TitraLab 870 Reference Manual The sequence is You are trying to run or complete a sample stack/sequence experi- ment which contains no programmed methods. empty Go to Sequence/Sample stack, Edit sequence screen and check the sequence. TIM cell external Specify in the Configuration menu if the grounding of the measuring cell takes place using an external connection to the titration system.
Page 249: Titrant Id
TitraLab ® TitraLab 870 Reference Manual Titrant ID The name of the titrant used by the method. The titrant can be selected from the Users list of available reagents or created from the preprogrammed list of reagents. If the titrant is calibrated, the electrode(s) used for the calibra- tion must be the same electrode(s) used in the method.
Page 250: Ttl 5 V Out/Ttl 12 V Out (Sockets)
TitraLab ® TitraLab 870 Reference Manual TTL 5 V OUT/ Red and black banana sockets (diameter = 2 mm). TTL 12 V OUT The red banana sockets send a TTL 0 ± 5 V or 0 ±12 V. (sockets) The black banana sockets are connected to the electrical zero of the instrument.
Page 251: Turntable Blocked (Sac Error)
TitraLab ® TitraLab 870 Reference Manual Turntable The turntable has been blocked or forced and or cannot function properly. blocked (SAC Remove the obstruction and press Resume analysis (key 1) to error) continue the sequence from the point it stopped.
Page 252: User's Rights
TitraLab ® TitraLab 870 Reference Manual User’s rights The Supervisor and Routine modes set the user’s rights as shown in the table below: Supervisor Routine Create, edit sequence. Yes (if the Remove all methods from a sequence. Supervisor Delete a sequence...
Page 253: Valency
TitraLab ® TitraLab 870 Reference Manual Valency This parameter is available when creating an ISE electrode with the option From = Other. Refer to "Create electrode", page Select the valency of the ion under study. For example: Valency = -1 for a fluoride (F ) ion selective electrode.
Page 254: Working Mode
TitraLab ® TitraLab 870 Reference Manual Working mode Select the way in which you want to work. Method: to run a single method. Sequence: to create or run a sequence of methods. Beakers are manually changed between two method runs.
Page 255: Appendixes
Appendixes...
Page 257: Appendix 1: Preprogrammed Methods
TitraLab ® TitraLab 870 Reference Manual Appendix 1: Preprogrammed methods Method name Type Reagent Electrodes Measure - Mesure Mesure pH PHC2401-a Alkalinity End point, HCl 0.1 N PHC3081-a E.P. = 8.3 pH and 4.5 pH EC ISO7888 Measurement CDC741T-a conductivity...
Page 258 TitraLab ® TitraLab 870 Reference Manual Page 258...
Page 259: Appendix 2: General Information
Titration Manager must conform to the relative safety standards. DO NOT ATTEMPT TO SERVICE THIS PRODUCT YOURSELF. For servicing, please contact your Radiometer Analytical service representative at the address given below: RADIOMETER ANALYTICAL SAS 72, rue d'Alsace 69627 Villeurbanne CEDEX - France Tel.: +33 (0) 4 78 03 38 38...
Page 260 TitraLab ® TitraLab 870 Reference Manual International Standards RADIOMETER ANALYTICAL SAS 72 rue d’Alsace 69627 Villeurbanne Cedex, France E-mail : radiometer@nalytical.com Web : www.radiometer-analytical.com Tél. : +33 (0)4 78 03 38 38 - Fax : +33 (0)4 78 68 88 12...
Page 261 TitraLab ® TitraLab 870 Reference Manual The Titration Manager complies with the following standards: UL 61010A - 1 CAN / CSA C22 2 N° 1010.1 - 92. Page 261...
Page 262 TitraLab ® TitraLab 870 Reference Manual Page 262...
Page 263: Appendix 3: Result Calculations
TitraLab ® TitraLab 870 Reference Manual Appendix 3: Result calculations Titration ends with determination of several volumes, corresponding to the different equivalent points: Vepi. The blank volumes are Bi. Calculations are based on these volumes and you determine with which volume (or which equivalent point) you want to work.
Page 264 TitraLab ® TitraLab 870 Reference Manual The stoichiometry of the reaction is considered as: x Smp + y T ---> D with: T: titrant of concentration 1 mol/l = x eq/l of titrant Smp: sample of concentration 1 mol/l = y eq/l of sample The following tables give the conversion factor to use in the calculation equation.
Page 265 TitraLab ® TitraLab 870 Reference Manual Sample amount ms in g: “C ” ” “c” if “ms” in “g” reag eq/kg eq/l = N eq/kg meq/l 0.001 eq/kg mol/l = M eq/kg mmol/l 0.001 x meq/kg Same formula as C...
Page 266 TitraLab ® TitraLab 870 Reference Manual 3. Standard deviation calculation For every result obtained on several aliquots, a mean value is calculated with which a standard deviation is associated. Definitions: = Result of test i ¦ ¦ Mean result: Standard deviation on the mean value σ...
Page 267 TitraLab ® TitraLab 870 Reference Manual 4. Back titration The back titration is performed in two steps: - reaction of the excess reagent with the sample : z sample + w Excess - reaction of the titrant with the excess of reagent : x Excess + y titrant According to the definition of stoichiometric coefficients, z is equal to y.
Page 268 TitraLab ® TitraLab 870 Reference Manual “C ” “c” if “ms” in “g” eq/kg meq/kg 1000 mol/kg 1 / w mmol/kg 1000 / w mg/kg = ppm * 1000 / w * 0.1 / w g/kg ms * 0.001 / w...
Page 269 TitraLab ® TitraLab 870 Reference Manual 5. ISE measurements - Direct ISE method In Direct ISE measurements, the ion selective electrode (ISE) must be calibrated using 1 to 9 standard solutions. For an ion selective electrode, the measured electrode potential E can be plotted versus the...
Page 270 TitraLab ® TitraLab 870 Reference Manual While running direct ISE measurements (or standard addition measurements or ISE electrode calibration), the temperature cannot vary by more than 5°C over the whole batch of samples (if this condition is not fulfilled, a warning message is displayed with the indication dT>5 and the result is rejected).
Page 271 TitraLab ® TitraLab 870 Reference Manual 6. ISE measurements - ISE standard addition method In an ISE standard addition method, the additions are automatically performed using a pre- programmed standard addition reagent. The addition volumes can be programmed or automatically determined.
Page 272 TitraLab ® TitraLab 870 Reference Manual The result is converted as follows according to the result and standard unit selected: Result unit = standard unit x c x V where: • V = if a dilution is progammed for the sample.
Page 273 TitraLab ® TitraLab 870 Reference Manual 7. Conductivity measurements To determine a conductivity value, the TIM870 performs the following operations in this order: 1. Measurement of the G conductance (value displayed live). 2. Cable correction (cable resistance and cable capacity correction): G corrected conductance value.
Page 274 TitraLab ® TitraLab 870 Reference Manual 7.2 Cell constant correction The TIM870 calculates and displays the κ conductivity of a solution on the basis of the conductance measured (after cable resistance and capacity correction) and the K cell constant of the conductivity cell used.
Page 275 TitraLab ® TitraLab 870 Reference Manual "Natural water" type correction The conductivity κ measured at the sample temperature T is corrected to 25°C to give κ using the following equation: κ (T) x κ (T) is the temperature correction factor used for the conversion of conductivity values of natural water from T to 25°C.
Page 276 TitraLab ® TitraLab 870 Reference Manual 8. Conductivity cell calibration This is a 1-point calibration. A conductance and a temperature measurement is performed on a standard solution that has been defined in the Edit electrode menu of the conductivity cell, see "Standard (conductivity standard)", page 235.
Page 277 TitraLab ® TitraLab 870 Reference Manual 8.2 KCl Molar standards The conductivity of these standards as a function of temperature is given by Kolraugh 1940, Handbook of Chemistry p. 1211. A 1M KCl (solution A) is prepared by dissolving 74.59g of KCl in water and diluting to 1 l at 18°C.
Page 278 TitraLab ® TitraLab 870 Reference Manual 8.3 KCl 0.001 M standard Standard is prepared using demineralised water, the conductivity of this water is known in advance. KCl amount per 1000g of Conductivity at 25°C (µS/cm) solution (g) 0.001M KCl 0.0746 146.9...
Page 279 TitraLab ® TitraLab 870 Reference Manual 8.5 NaCl 0.05% standard (w/w) With this standard, the measurements obtained with the TIM870 fit the tables published in October 1960 by G.F. Hewitt, Atomic Energy Research Establishment, Harwell, U.K. The κ conductivity (in µS/cm) is given a function of T temperature by the equation stated by IEC draft 1980 (*): κ...
Page 280 TitraLab ® TitraLab 870 Reference Manual Page 280...
Page 281: Appendix 4: Technical Specifications
TitraLab ® TitraLab 870 Reference Manual Appendix 4: Technical specifications Potentiometric Methods End point titration: 1 to 4 pre-set. Inflection point titration: Auto determination of 1 to 8 inflection points with programmable IP acceptation windows. IP detection using 1st and 2nd derivative curve.
Page 282 TitraLab ® TitraLab 870 Reference Manual Measuring ranges Resolution -9 to 23 pH 0.001 pH ±2000 mV 0.1 mV 4 µS to 400 mS 1/4000 of the scale -10°C to +100°C 0.1°C Printout Automatic. GLP compliant. Selectable: no, 80 columns, continuous, page to page.
Page 283 TitraLab ® TitraLab 870 Reference Manual Sample list Up to 126 data with alphanumeric ID. QC sample definition. Electrode stand - stirring Magnetic stirrer, 22 reproducible speeds (0 to 1100 rpm) in 50 rpm steps. Propeller connection. Beaker volume: 5 to 400 ml.
Page 284 TitraLab ® TitraLab 870 Reference Manual General specifications Casing: Fully splashproof chemical resistant latene®. Graphic 128x128 dot LCD protected from spillages with TPX® cover. Soft-touch alphanumeric keypad (silicone). Languages: English, German, Danish, French, Italian, Spanish, Swedish. Dimensions (H x W x D): 380 x 230 x 450 mm (excl.
Page 285 TitraLab ® TitraLab 870 Reference Manual Burette specifications according to ISO 8655-3 Burette Nominal Maximum permissible Maximum permissible stand volume systematic errors random errors Type ± % ± µl (a) ± % (b) ± µl (c) B501 < 1 B505 B510 0.07...
Page 286 TitraLab ® TitraLab 870 Reference Manual Page 286...
