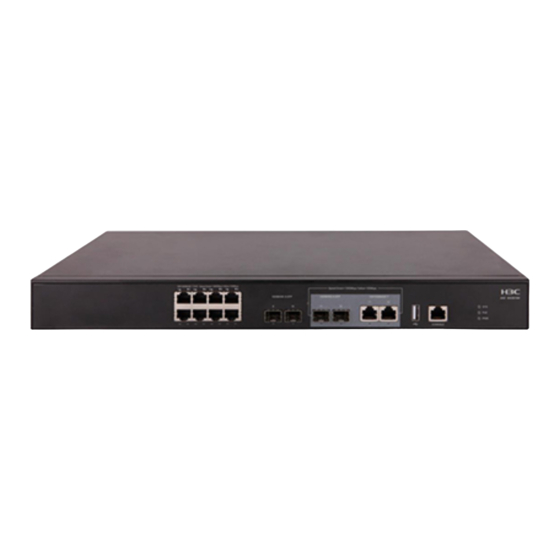

- Page 1 H3C WX3000H Series Access Controllers Installation Guide New H3C Technologies Co., Ltd. http://www.h3c.com Document version: 6W103-20200228...
- Page 2 The information in this document is subject to change without notice. All contents in this document, including statements, information, and recommendations, are believed to be accurate, but they are presented without warranty of any kind, express or implied. H3C shall not be liable for technical or editorial errors or omissions contained herein.
- Page 3 Preface This installation guide describes the procedures for installing, troubleshooting, and maintaining the WX3000H access controllers. This preface includes the following topics about the documentation: • Audience • Conventions • Documentation feedback Audience This documentation is intended for: • Network planners. •...
- Page 4 Symbols Convention Description An alert that calls attention to important information that if not understood or followed WARNING! can result in personal injury. An alert that calls attention to important information that if not understood or followed CAUTION: can result in data loss, data corruption, or damage to hardware or software. An alert that calls attention to essential information.
- Page 5 Documentation feedback You can e-mail your comments about product documentation to info@h3c.com. We appreciate your comments.
-
Page 6: Table Of Contents
Contents 1 Preparing for installation ······························································· 1-1 Safety recommendations ·········································································································· 1-1 General safety recommendations ························································································ 1-1 Electrical safety ················································································································ 1-1 Laser safety ···················································································································· 1-2 Examining the installation site ···································································································· 1-2 Temperature and humidity ·································································································· 1-2 ... - Page 7 Rebooting the device ··············································································································· 4-5 Restrictions and guidelines ································································································· 4-6 Configuration procedure ···································································································· 4-6 5 Appendix A Chassis views and technical specifications ······················· 5-1 Chassis views ························································································································ 5-1 WX3010H ······················································································································· 5-1 WX3010H-X-PWR ············································································································ 5-1 ...
-
Page 8: Preparing For Installation
Preparing for installation H3C WX3000H Series Access Controllers include the following models: • WX3010H. • WX3010H-X-PWR. • WX3010H-L-PWR. • WX3024H. • WX3024H-L-PWR. Safety recommendations General safety recommendations To avoid any equipment damage or bodily injury, read the following safety recommendations before installation. -
Page 9: Laser Safety
Laser safety WARNING! • Do not stare into any open apertures of operating transceiver modules or optical fiber connectors. The laser light emitted from these apertures might hurt your eyes. • Before you remove the optical fiber connector from a fiber port, execute the shutdown command in interface view to shut down the port. -
Page 10: Cooling
To eliminate corrosion and premature aging of components, the equipment room must also meet limits on salts, acids, and sulfides, as shown in Table1-3. Table1-3 Harmful gas limits in an equipment room Max. (mg/m 0.006 0.05 0.01 0.04 Cooling The device uses left to right airflow for heat dissipation. Plan the installation site for adequate ventilation. -
Page 11: Emi
Attach the alligator clip to the rack. Make sure the rack is reliably grounded. Figure1-2 Attaching an ESD wrist strap (WX3010H-X-PWR) All electromagnetic interference (EMI) sources, from outside or inside of the device and application system, adversely affect the device in the following ways: •... -
Page 12: Installation Accessories
Installation accessories The installation accessories vary by device model. Table1-4 Table1-5 describe the installation accessories available for the access controllers. Table1-4 Installation accessories for the access controllers (1) WX3010H-L-P Accessory WX3010H WX3010H-X-PWR Cage nut 4, user supplied 8, user supplied 4, user supplied M6 rack screw 4, user supplied... -
Page 13: Installation Tools
Table1-5 Installation accessories for the access controllers (2) Accessory WX3024H WX3024H-L-PWR Cage but 8, user supplied 4, user supplied M6 rack screw 8, user supplied M4 mounting bracket screw M3 mounting bracket screw M4 shoulder screw for weight bearing Rubber feet 1 set 1 set Grounding cable... -
Page 14: Pre-Installation Checklist
Flathead screwdriver Phillips screwdriver Needle-nose pliers Wire-stripping pliers Diagonal pliers ESD wrist strap Heat gun Marker Pre-installation checklist Table1-6 Pre-installation checklist Item Requirements Result • There is a minimum clearance of 100 mm (3.94 in) around the inlet and outlet vents for heat dissipation of the device chassis. - Page 15 Item Requirements Result • The rack has a good ventilation system. • The rack is sturdy enough to support the weight of the device and installation accessories. Rack-mounting • requirements The size of the rack is appropriate for the device. •...
-
Page 16: Installing The Device
WARNING! Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C Support for permission. Otherwise, H3C will not be liable for any consequence caused thereby. Confirming installation preparations Before you install the device, verify that you have read "Preparing for... -
Page 17: Installation Flow
Installation flow Figure2-1 Installation flow Mounting the device on a workbench CAUTION: Do not place heavy objects on the device. If a standard 19-inch rack is not available, you can mount the device on a clean, flat workbench. -
Page 18: Installing The Device In A 19-Inch Rack
To mount the device on a workbench: Place the device upside down. Clean the recessed areas in the chassis bottom. Attach the four rubber feet to the recessed areas in the chassis bottom. Place the device on the workbench with the upside up. Make sure the four rubber feet stand firmly on the workbench. -
Page 19: Installing Cage Nuts
Table2-2 Mounting brackets and slide rails available for the access controllers Front mounting Rear mounting Device model Slide rail bracket bracket WX3010H WX3010H-X-P WX3010H-L-P WX3024H WX3024H-L-P Installing cage nuts Before mounting the device in a rack, install cage nuts on the rack. To install cage nuts: Wear an ESD wrist strap and make sure the rack is stable and is reliably grounded. -
Page 20: Rack-Mounting The Device By Using Front And Rear Mounting Brackets And Slide Rails
For a device that uses rear mounting brackets or slide rails for installation, install two cage nuts on each rack posts, keeping 1U distance between the two cage nuts. Make sure the upper cage nuts on the four rack posts are on the same horizontal plane and the lower cage nuts are on the same horizontal plane. - Page 21 Figure2-5 Attaching the front mounting brackets to the device Use M4 screws supplied with the rear mounting brackets to attach the rear mounting brackets to the device. Figure2-6 Attaching the rear mounting brackets to the device Use M6 rack screws and cage nuts to attach the slide rails to the rear rack posts.
-
Page 22: Rack Mounting The Device By Using Front And Rear Mounting Brackets
Figure2-7 Attaching the slide rails to the rear rack posts Align the rear mounting brackets with the slide rails, slide the rear mounting brackets onto the slide rails, and push the device into the rack along the slide rails. Use M6 rack screws and cage nuts to secure the front mounting brackets to the front rack posts, as shown in Figure2-8. - Page 23 Use M4 screws supplied with the front mounting brackets to attach the front mounting brackets to the device. Figure2-9 Attaching the front mounting brackets to the device Attach the M4 shoulder screws supplied with the rear mounting brackets to the device. The M4 shoulder screws are used for weight bearing.
-
Page 24: Rack-Mounting The Device By Using The Front Mounting Brackets
Push the device into the rack. Make sure the shoulder screws rest firmly on the upper edge of the slide rails so that the weight of the device can rest on the shoulder screws. Use M6 rack screws and cage nuts to secure the front mounting brackets to the front rack posts. Make sure the device is installed securely in the rack. -
Page 25: Grounding The Device
Figure2-13 Installing the device in the rack by using front mounting brackets (WX3010H) Grounding the device WARNING! • Correctly connecting the grounding cable is crucial to lightning protection and EMI protection. Before you install and use the device, make sure the device is reliably grounded. •... - Page 26 Figure2-14 Grounding the device with a grounding strip Ground the device with the rack—Connect the other end of the grounding cable to the grounding point on the rack and make sure the rack has been reliably grounded. Figure2-15 Grounding the device with the rack Grounding the device with a grounding conductor buried in the earth—If earth is available at the installation site, hammer a 0.5 m (1.64 ft) or longer angle iron or steel tube into the earth to serve as a grounding conductor.
-
Page 27: (Optional) Installing Network Port Lightning Protectors
Figure2-16 Grounding the device by burying the grounding conductor into the earth (Optional) Installing network port lightning protectors IMPORTANT: • Before installing a network port lightning protector, read the instructions in the document that comes with the protector. • Network port lightning protectors are available only for 10M/100M/1000M RJ-45 Ethernet copper ports. -
Page 28: (Optional) Installing A Surge Protected Power Strip
Figure2-17 Installing a lightning protector for a network port (WX3010H-X-PWR) (Optional) Installing a surge protected power strip IMPORTANT: Before installing a surge protected power strip, read the instructions in the document that comes with the strip. If you use an AC power line routed from outdoors for the device, use a surge protected power strip for the device to protect against damages caused by lightning strikes. -
Page 29: Connecting Ethernet Cables
The following are the required terminal settings: • Bits per second—9600. • Data bits—8. • Stop bits—1. • Parity—None. • Flow control—None. Connecting Ethernet cables Connecting a copper Ethernet port Connect one end of the Ethernet cable to the copper Ethernet port of the device, and the other end to the Ethernet port of the peer device. -
Page 30: Connecting The Power Cord
Figure2-18 Connecting an optical fiber Connecting the power cord CAUTION: Do not connect both AC and DC power sources to the same device. Connecting the AC power cord CAUTION: Before connecting the AC power cord, make sure the device is reliably grounded. To connect the AC power cord: Pivot the bail latch upward. -
Page 31: Connecting The Device To An Rps
Figure2-19 Connecting the device to an AC power source (WX3010H-X-PWR) Connecting the device to an RPS Among the RPS power modules, the WX3010H-X-PWR, WX3024H, and WX3024H-L-PWR access controllers support only the RPS 1600-A. No RPS is provided the device. Prepare one yourself if required. The following procedure uses the WX3010H-X-PWR access controller as an example. -
Page 32: Verifying The Installation
Line con0 is available. Press ENTER to get started. Press Enter at the prompt, and you can configure the device when the prompt <H3C> appears. During the startup process, the CPLD is automatically upgraded to the most recent version. 2-17... -
Page 33: Troubleshooting
Verify that the power source is as required. Verify that the power cord is connected securely. Verify that the power cord is in good condition. If the issue persists, contact H3C Support. Software loading failure Symptom The device fails in software loading. -
Page 34: Hardware Management And Maintenance
H3C Comware Software, Version 7.1.064, ESS 5118 Copyright (c) 2004-2020 New H3C Techbologies Co., Ltd. All rights reserved. H3C WX3010H-X uptime is 0 weeks, 0 days, 0 hours, 14 minutes Last reboot reason : User soft reboot Boot image: cfa0:/boot.bin Boot image version: 7.1.064, Release 5324... -
Page 35: Displaying Operational Statistics For The Device
H3C Comware Software, Version 7.1.064, Release 5324 Copyright (c) 2004-2020 New H3C Technologies Co., Ltd. All rights reserved. H3C WX3010H-X uptime is 0 weeks, 0 days, 0 hours, 8 minutes Last reboot reason : User soft reboot Boot image: cfa0:/boot.bin Boot image version: 7.1.064, Release 5324... -
Page 36: Displaying Detailed Information About The Device
An electronic label is a profile of a device. It contains the permanent configuration, including the serial number, manufacturing date, MAC address, and vendor name. Use the display device manuinfo command to display the electronic label data for the device. <H3C> display device manuinfo DEVICE_NAME:WX3010H-X DEVICE_SERIAL_NUMBER:210235A0L4000000000128... -
Page 37: Displaying The Cpu Usage Of The Device
Displaying the CPU usage of the device Use the display cpu-usage command to display CPU usage statistics for the device. <H3C> display cpu-usage Unit CPU usage: 2% in last 5 seconds 2% in last 1 minute 2% in last 5 minutes... -
Page 38: Displaying The Operating State Of The Built-In Fans
Swap Swap memory. Displaying the operating state of the built-in fans Use the display fan command to display the operating state of the built-in fans. <H3C> display fan Fan 1 State: Normal Fan 2 State: Normal Table4-5 Command output Field... -
Page 39: Restrictions And Guidelines
Before you reboot the device, perform the following tasks: Use the save command to save the running configuration. For more information about the command, see configuration file management commands in H3C Access Controllers Fundamentals Command Reference. Use the display startup and display boot-loader commands to verify the next-startup configuration files and startup software images. -
Page 40: Appendix A Chassis Views And Technical Specifications
Appendix A Chassis views and technical specifications Chassis views WX3010H Figure5-1 Front panel (1) 100/1000BASE-T PoE+ autosensing Ethernet ports 1 through 8 (2) 1000BASE-X SFP ports 9 and 10 (3) 1000BASE-X SFP ports 11 and 12 (combo ports) (4) 100/1000BASE-T autosensing Ethernet ports 11 and 12 (combo ports) (5) USB port (6) Console port Figure5-2 Rear panel... -
Page 41: Wx3010H-L-Pwr
Figure5-4 Rear panel (1) DC power receptacle (2) AC power receptacle (3) Grounding screw WX3010H-L-PWR Figure5-5 Front panel (1) 100/1000BASE-T PoE+ autosensing Ethernet ports 1 through 8 (2) 100/1000BASE-T autosensing Ethernet ports 9 and 10 (3) 1000BASE-X SFP ports 11 and 12 (4) USB port (5) Console port Figure5-6 Rear panel... -
Page 42: Wx3024H
WX3024H Figure5-7 Front panel (1) 100/1000BASE-T PoE+ autosensing Ethernet ports 1 through 24 (2) 10GBASE-R SFP+ autosensing ports 25 and 26 (3) 1000BASE-X SFP ports 27 and 28 (combo ports) (4) 100/1000BASE-T autosensing Ethernet ports 27 and 28 (combo ports) (5) USB port (6) Console port Figure5-8 Rear panel... -
Page 43: Interface Numbering
Figure5-10 Rear panel (1) Grounding screw (2) AC power receptacle (3) DC power receptacle Interface numbering WX3010H Ports on a WX3010H access controller are numbered as follows: • Ports marked 1 through 8 are 100/1000BASE-T PoE+ autosensing Ethernet ports, represented by interface number GigabitEthernet 1/0/1 through GigabitEthernet 1/0/8, respectively. -
Page 44: Wx3024H
WX3024H Ports on a WX3024H access controller are numbered as follows: • Ports marked 1 through 24 are 100/1000BASE-T PoE+ autosensing Ethernet ports, represented by interface number GigabitEthernet 1/0/1 through GigabitEthernet 1/0/24, respectively. • Ports marked 25 and 26 are 10G/1GBASE-R SFP+/SFP autosensing ports, represented by interface number Ten-GigabitEthernet 1/0/25 and Ten-GigabitEthernet 1/0/26, respectively. - Page 45 Item WX3010H Max. PoE+ output capacity of the 196 W (allows six PoE+ ports to provide the max. PoE+ output chassis concurrently) Weight 4.5 kg (9.92 lb) Operating temperature 0°C to 45°C (32°F to 113°F) Relative humidity 5% RH to 95% RH (noncondensing) Table5-2 WX3010H-X-PWR technical specifications Item...
- Page 46 Item WX3010H-L-PWR Dimensions (H × W × D) 43.6 × 330 × 230 mm (1.72 × 12.99 × 9.06 in) (excluding rubber feet) • Rated voltage range: 100 to 240 VAC @ 50/60 Hz AC input voltage • Max voltage range: 90 to 264 VAC @ 47 to 63 Hz System power consumption 14.5 W to 21 W Number of ports that support...
-
Page 47: Transceiver Module, Fiber Connector, And Optical Fiber Views
Table5-5 WX3024H-L-PWR technical specifications Item WX3024H-L-PWR Console port One, 9600 bps (default) to 115200 bps Gigabit Ethernet port 24 × 100/1000BASE-T autosensing Ethernet port 4 × 1000BASE-X SFP port (Each forms a combo interface with its SFP port corresponding 100/1000BASE-T autosensing Ethernet port.) Memory 1GB DDR3 Storage media... -
Page 48: Transceiver Module Specifications
Figure5-11 SFP transceiver module Figure5-12 SFP+ transceiver module Figure5-13 Optical fiber with LC connectors (1) LC connector (2) Optical fiber Transceiver module specifications The transceiver modules whose names contain MM and SM support multi-mode optical fibers and single-mode optical fibers, respectively. - Page 49 Table5-6 Transceiver modules available for the access controllers Device model Available transceiver modules • SFP-GE-SX-MM850-A (see Table5-7 • SFP-GE-LX-SM1310-A (see Table5-8) • SFP-GE-LH40-SM1310 (see Table5-9) WX3010H • SFP-GE-LH40-SM1550 (see Table5-10) • SFP-GE-LH80-SM1550 (see Table5-11) • SFP-GE-SX-MM850-A (see Table5-7) • SFP-GE-LX-SM1310-A (see Table5-8) •...
- Page 50 Item Specification Receive sensitivity ≤ –17 dBm Saturation ≤ –3 dBm Table5-8 SFP-GE-LX-SM1310-A specifications Item Specification Central wavelength 1310 nm Max transmission distance 10 km (6.21 miles) Data rate 1250 Mbps Connector type Duplex LC Fiber mode Fiber diameter 9 µm Transmit power –9.5 to –3 dBm Receive sensitivity...
- Page 51 Item Specification Saturation ≤ –3 dBm Table5-11 SFP-GE-LH80-SM1550 specifications Item Specification Central wavelength 1550 nm Max. transmission distance 80 km (49.71 miles) Data rate 1250 Mbps Connector type Duplex LC Fiber mode Fiber diameter 9 µm Transmit power –4 to +5 dBm Receive sensitivity ≤...
- Page 52 Table5-14 SFP-XG-LX-SM1310 specifications Item Specification Central wavelength 1310 nm Max transmission distance 10 km (6.21 miles) Data rate 10.31 Gbps Connector type Duplex LC Fiber mode Fiber diameter 9 µm Transmit power –8.2 to +0.5 dBm Receive sensitivity ≤ –14.4 dBm Saturation ≤...
- Page 53 Table5-17 SFP-XG-SX-MM850-E specifications Item Specification Central wavelength 850 nm Max transmission distance 300 m (984.25 ft) Data rate 10.31 Gbps Connector type Duplex LC Fiber mode Fiber diameter 50 µm Transmit power –7.3 to –1 dBm Receive sensitivity ≤ –9.9 dBm Saturation ≤...
-
Page 54: Appendix B Leds
Appendix B LEDs WX3010H Figure6-1 Front panel LEDs (1) 100/1000BASE-T PoE+ autosensing Ethernet port status LEDs (2) 1000BASE-X SFP port status LEDs (3) 1000BASE-X SFP port (combo) status LEDs (4) 100/1000BASE-T autosensing Ethernet port (combo) status LEDs (5) System status LED (SYS) (6) PoE+ system status LED (PoE) (7) AC power status LED (PWR) Table6-1 LED description... -
Page 55: Wx3010H-X-Pwr
Mark Status Description No link is present on the port. Steady green A 1000 Mbps link is present on the port. 1000BASE-X SFP The port is receiving or transmitting data at Flashing green port status LED 1000 Mbps. No link is present on the port. Steady green A 1000 Mbps link is present on the port. -
Page 56: Wx3010H-L-Pwr
Mark Status Description AC power is being input and the power module Steady green is operating correctly. AC power status LED Steady red The power module is faulty. The device is powered off. DC power is being input and the power module Steady green is operating correctly. -
Page 57: Wx3024H
Table6-3 LED description Mark Status Description Flashing green (4 Hz) The system is loading software. Flashing green (0.5 Hz) The system is operating correctly. System A system exception, such as startup failure, fan status LED Steady red failure, or overtemperature, has occurred. The system is not operating or is in reset state. - Page 58 Table6-4 LED description Mark Status Description Flashing green (4 Hz) The system is loading software. Flashing green (0.5 Hz) The system is operating correctly. System status LED A system exception, such as startup failure, fan Steady red failure, or overtemperature, has occurred. The system is not operating or is in reset state.
-
Page 59: Wx3024H-L-Pwr
Mark Status Description Steady green A 1000 Mbps link is present on the port. The port is receiving or transmitting data at Flashing green 1000 Mbps. Combo 100/1000BASE-T Steady yellow A 100 Mbps link is present on the port. autosensing Ethernet port status LED The port is receiving or transmitting data at 100 Flashing yellow... - Page 60 Mark Status Description Steady green A 1000 Mbps link is present on the port. The port is sending or receiving data at 1000 Flashing green Mbps. Ethernet port status Link/Act Steady yellow A 100 Mbps link is present on the port. The port is receiving or transmitting data at 100 Flashing yellow Mbps.
