Summary of Contents for Hamilton Beach HBFRF1100
- Page 1 11 cu. ft. Upright Freezer upright freezer Curtis International Ltd.
-
Page 2: Table Of Contents
Catalog Product introduction Product features.........1 Part names..........2 Safety and warning information....3 Carrying and installing the appliance..4 Connecting the appliance......4 Usage Preparation before using......5 Thermostat..........5 Switching on and temperature control..5 Freezer compartment........6 Cleaning and maintaining Defrosting..........7 Cleaning the appliance......7 the appliance Ways to save power consumption....8 Other notices..........8 Troubeshooting... -
Page 3: Part Names
Product Introduction Part names The below picture is for your reference. There maybe some differences from your appliance. 1 - Thermostat 2 - Door 3 - Drawer... -
Page 4: Safety And Warning Information
Product Introduction Safety and Warning information ■ This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 5: Carrying And Installing The Appliance
Product Introduction Carrying and installing the appliance ■ Carrying ·Carry the appliance by touching the bottom. Do not carry by touching the door or door handle. ·Do not carry the appliance transversely or in reverse. ·The appliance has 2 wheels on the back. During moving, lift the front side and move the appliance useing the two wheels on the back. -
Page 6: Preparation Before Using
Usage Preparation before Using ■ Remove all the packing materials include polyfoams and tapes. ■ Check the accessories and documents according to the packing list. ■ Before switching on the appliance for the first time, clean the interior. ■ After installing the appliance, wait for 30 minutes at least before switching on the appliance. -
Page 7: Freezer Compartment

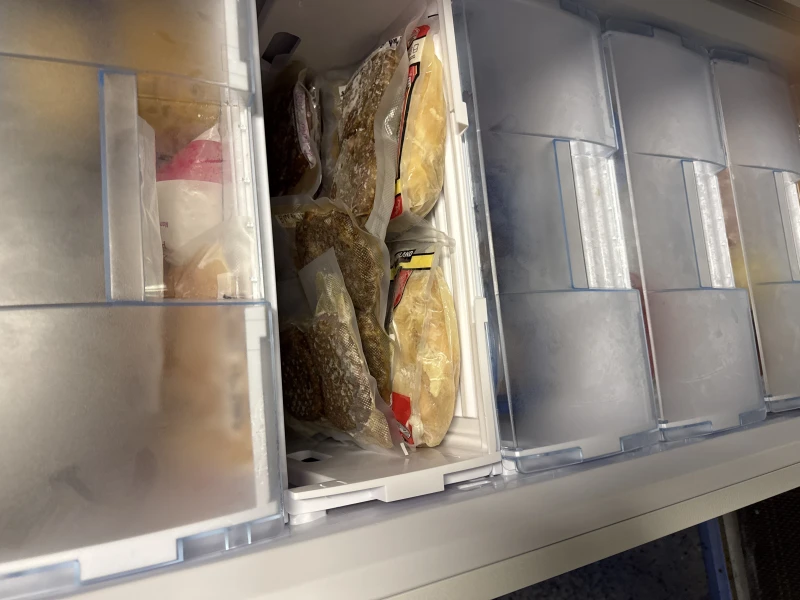

Usage Freezer compartment The freezer compartment is for long time stored food, freezing food and making ice using removable cube tray(not included). ■ The freezer drawer can be taken out by lifting up. ■ The top drawer can freeze and store small size food. ■... -
Page 8: Defrosting
Usage Defrosting the freezer compartment ■ Much frost on the refrigerant tube will decrease the freezing efficiency and increase power consumption. Arrange defrosting once or twice per year in the freezer compartment. If frost is often heavy, arrange defrosting more times. ■... -
Page 9: Ways To Save Power Consumption
Cleaning and maintaining the appliance Ways to save power consumption ■ Install the appliance in a cool, well ventilated room, but not in direct sunlight and not near a heat source (ratiator, cooker, etc.) Otherwise, use an insulating plate. ■ Leave warm food and drinks to cool down firstly. ■... -
Page 10: Non-Fault Instances
Troubeshooting Non-fault instances ■ Frost on the out surface of the appliance High humidity in air caused this. Just wipe off frost. ■ Frost on the evaporator surface The evaporator working temperature is -6.8 F(-20℃). After working for a long time, the humidity in the air will change into frost on the evaporator. -
Page 11: Special Instances
■ Higher power consumption than the rating parameter The rating parameter is from the test. Test condition are on 77 F(25℃) ambient temperature, -64.4 F(-18℃) in the freezer compartment, without opening the doors and keeping working 24hours. If with more food inside, on a higher ambient temperature or open the doors frequently, the actual power consumption is higher. - Page 12 General knowledge for the appliance ■ Keep space among containers Keep space among containers (e.g. dishes, plates and wine bottles) in the compartments, to avoid impacts from touches. ■ Check the drawers and fruit & vegetable container Loosening and impact of the drawers and fruit &...
-
Page 13: Product Specifications
MODEL NO. HBFRF1100 CAPACITY OF UPRIGHT FREEZER IN CU FT TEMPERATURE CONTROL TYPE MECHANICAL TEMPERATURE RANGE -4 F~6.8 F (-14 C~-20 C) DEPTH (EXCLUDING HANDLES) (IN): DEPTH (INCLUDING HANDLES) (IN): 24.4 DEPTH WITH DOOR OPEN 45 DEGREES (IN): 39.8 DEPTH WITH DOOR OPEN 90 DEGREES (IN): 45.7... -
Page 14: Warranty Card
Warranty card Curtis International Ltd. - Page 15 11 cu. ft. Congélateur Vertical utilisé sous licence par Curtis International Ltd.
- Page 16 Nettoyage de l’appareil Spécifications du produit Spécifications du produit Carte de garantie Carte de garantie...
- Page 17 1 - Thermostat 2 - Porte 3 - Tiroir...
- Page 21 Compartiment congélateur le compartiment congélateur est pour longtemps des aliments de temps stockés, congélation des aliments et faire de la glace le tiroir du congélateur peut être souscrite en soulevant. le tiroir haut peut congeler et conserver les aliments de petite taille le tiroir du milieu peut geler et entreposer des aliments de grande taille le tiroir vers le bas peut stocker des aliments congelés déjà...
- Page 22 Dégivrage du compartiment congélateur ■ Une grande partie du gel sur le tube réfrigérant diminuera l'efficacité de congélation et augmentant la consommation d'énergie. Arrangez le dégivrage une fois ou deux fois par an dans le compartiment congélateur. Si le gel est souvent lourd, arrangez plus de dégivrages. ■...
- Page 27 MODÈLE NO. HBFRF1100 HBFRF1100 CAPACITÉ DU CONGÉLATEUR VERTICAL EN CU PI TYPE DE CONTRÔLE DE TEMPÉRATURE MECHANICAL PLAGE DE TEMPÉRATURE À FAHRENHEIT ET CELSIUS -4 F~6.8 F (-14 C~-20 C) PROFONDEUR (HORS POIGNÉE) (PO): PROFONDEUR (COMPRIS POIGNÉE) (PO): 24.4 PROFONDEUR AVEC PORTE OUVERTURE 45 DEGRÉS (PO): 39.8...
- Page 28 Carte de garantie utilisé sous licence par Curtis International Ltd.
