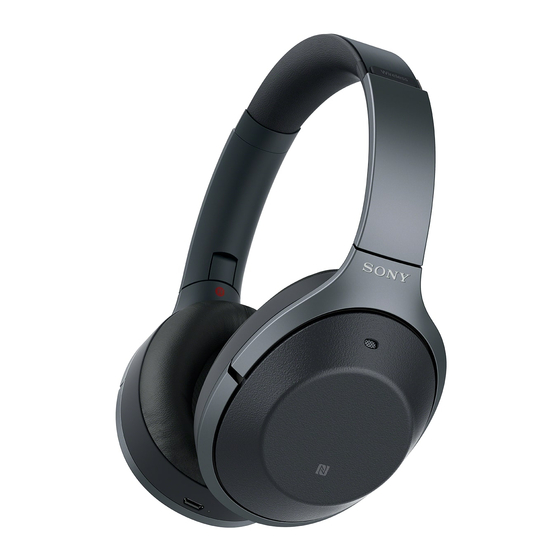

Sony WH-1000XM2 Service Manual

SERVICE MANUAL
Ver. 1.0 2017.08
Except Chinese model
General
Communication system: BLUETOOTH Specification version 4.1
Output: BLUETOOTH Specification Power Class 2
Maximum communication range: Line of sight approx. 10 m
(30 ft) 1)
Frequency band: 2.4 GHz band (2.4000 GHz - 2.4835 GHz)
(AEP, UK)
Operating frequency:
BLUETOOTH 2,400 MHz - 2,483.5 MHz
NFC 13.56 MHz
Maximum output power:
BLUETOOTH < 20.0 dBm
NFC < 60 dBμA/m at 10 m
Compatible BLUETOOTH profiles 2) :
A2DP (Advanced Audio Distribution Profile)
AVRCP (Audio Video Remote Control Profile)
HFP (Hands-free Profile)
HSP (Headset Profile)
Supported Codec 3) : SBC 4) , AAC 5) , LDAC, aptX, aptX HD
Supported content protection method: SCMS-T
Transmission range (A2DP):
20 Hz - 20,000 Hz (Sampling frequency 44.1 kHz)
20 Hz - 40,000 Hz (Sampling frequency LDAC 96 kHz,
990 kbps)
Included items:
Wireless noise canceling stereo headset (1)
Micro-USB cable (approx. 50 cm (19 3/4 in.)) (1)
Headphone cable (approx. 1.5 m (59 1/8 in.)) (1)
Carrying case (1)
Plug adaptor for airplane 6) (1)
Reference Guide (1)
Operating Instructions (1)
Other documents (1 set) (US, CND, AEP, UK, LA)
1) The actual range will vary depending on factors such as
obstacles between devices, magnetic fields around a microwave
oven, static electricity, reception sensitivity, antenna's
performance, operating system, software application, etc.
2) BLUETOOTH standard profiles indicate the purpose of
BLUETOOTH communications between devices.
3) Codec: Audio signal compression and conversion format
4) Subband Codec
5) Advanced Audio Coding
6)
Depending on the in-flight entertainment services, it may not be
supported.
Wireless noise canceling stereo
headset
Power source:
DC 3.7 V: Built-in lithium-ion rechargeable battery
DC 5 V: When charged using USB
Mass: Approx. 275 g (9.70 oz)
Operating temperature: 0 °C to 40 °C (32 °F to 104 °F)
Usage hours:
When connecting via the BLUETOOTH device
Music playback time:
Max. 30 hours (NC ON), Max. 38 hours (NC OFF)
Communication time:
Max. 30 hours (NC ON), Max. 38 hours (NC OFF)
Standby time:
Max. 40 hours (NC ON), Max. 200 hours (NC OFF)
When connecting via the headphone cable with NC ON:
Max. 40 hours
Note: Usage hours may be shorter depending on the Codec
and the conditions of use.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
注意
如果电池更换不当会有爆炸危险
只能用同样类型或等效类型的电池来更换
9-896-427-01
2017H33-1
Sony Video & Sound Products Inc.
©
2017.08
WH-1000XM2
SPECIFICATIONS
Charging time:
Approx. 4 hours
(About 70 minutes of music playback is possible after
10 minutes charging.)
Note: Charging and usage hours may be different depending
on the conditions of use.
Charging temperature: 5 °C to 35 °C (41 °F to 95 °F)
Receiver
Type: Closed, Dynamic
Driver unit: 40 mm
Frequency response:
4 Hz - 40,000 Hz (JEITA) (when connecting via the headphone
cable with the unit turned on)
Impedance:
46 Ω (1 kHz) (when connecting via the headphone cable with
the unit turned on)
14 Ω (1 kHz) (when connecting via the headphone cable with
the unit turned off)
Sensitivity:
103 dB/mW (when connecting via the headphone cable with
the unit turned on)
98 dB/mW (when connecting via the headphone cable with
the unit turned off)
Microphone
Type: Electret condenser
Directivity: Omni directional
Effective frequency range: 50 Hz - 8,000 Hz
System requirements for battery
charge using USB
USB AC adaptor (US, CND, AEP, UK, LA)
Using a commercially-available USB AC adaptor capable of feeding
in 1.5 A or 0.5 A
(the charging time will be shorter with a USB AC adaptor capable of
feeding in 1.5 A)
Personal Computer
(As of August 2017)
Personal Computer with pre-installed with any of the following
operating systems and USB port:
Operating Systems
(when using Windows)
Windows ® 10 Home / Windows ® 10 Pro
Windows ® 8.1 / Windows ® 8.1 Pro
Windows ® 8 / Windows ® 8 Pro
Windows ® 7
Home Basic / Home Premium / Professional / Ultimate
(when using Mac)
Mac OS X (version 10.9 or later)
Design and specifications are subject to change without notice.
WIRELESS NOISE CANCELING STEREO HEADSET
Chinese model
™
®
®
®
US Model
Canadian Model
AEP Model
UK Model
E Model
Australian Model
Chinese Model
Tourist Model
The LDAC™ name and logo is a trademark of Sony Corporation.
