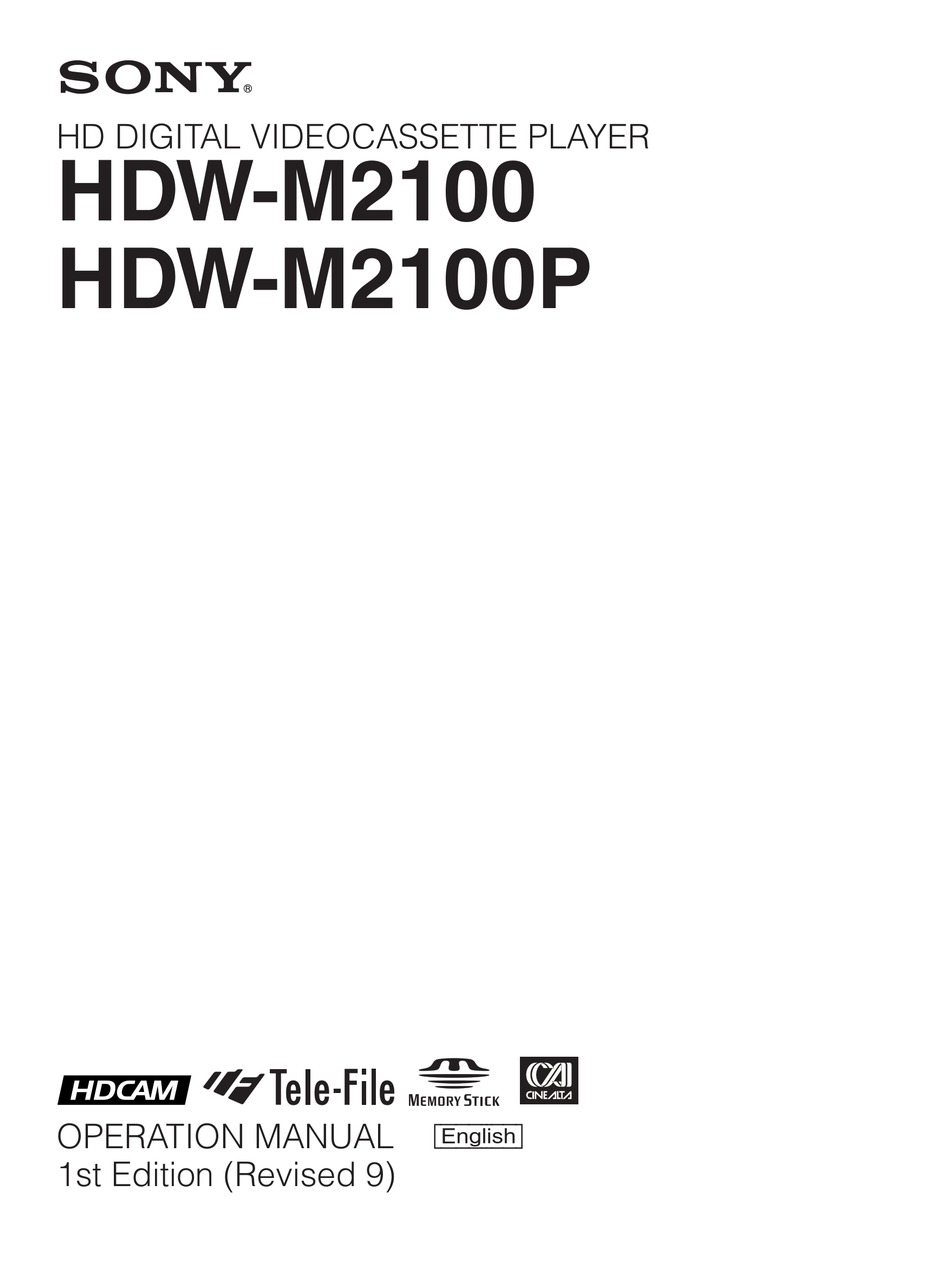

- Page 1 HD DIGITAL VIDEOCASSETTE PLAYER HDW-M2100 HDW-M2100P OPERATION MANUAL [English] 1st Edition (Revised 9)
- Page 2 All interface cables used to connect peripherals must be shielded in order to comply with the limits for a digital device The manufacturer of this product is Sony Corporation, 1-7-1 pursuant to Subpart B of Part 15 of FCC Rules.
- Page 3 électromagnétique suivant: E4 (environnement EMC Suomessa asuville asiakkaille contrôlé, ex. studio de télévision). Laite on liitettävä suojamaadoituskoskettimilla varustettuun Le fabricant de ce produit est Sony Corporation, 1-7-1 pistorasiaan Konan, Minato-ku, Tokyo, 108-0075 Japon. Le représentant autorisé pour EMC et la sécurité des...
- Page 4 • EN55103-2: Elektromagnetische Verträglichkeit (Störfestigkeit) Für die folgende elektromagnetische Umgebung: E4 (kontrollierter EMV-Bereich, z.B. Fernsehstudio). Der Hersteller dieses Produkts ist Sony Corporation, 1-7-1 Konan, Minato-ku, Tokyo, 108-0075 Japan. Der autorisierte Repräsentant für EMV und Produktsicherheit ist Sony Deutschland GmbH, Hedelfinger Strasse 61, 70327 Stuttgart, Deutschland.
- Page 5 Table of Contents 1-1 Features ................... 1-1 Chapter 1 1-2 Example System Configuration ............ 1-3 Overview 2-1 Control Panels ................2-1 Chapter 2 2-1-1 Upper Control Panel .............. 2-2 Location and Function of 2-1-2 Lower Control Panel .............. 2-3 Parts 2-1-3 Switch Panel ................
- Page 6 Table of Contents 7-1 Overview of UMID Functions ............7-1 Chapter 7 7-2 UMID Output and Display ............7-2 UMID Functions 7-2-1 UMID Output Settings ............7-2 7-2-2 UMID Display ............... 7-2 8-1 Overview ..................8-1 Chapter 8 8-1-1 Function Menu Configuration ..........8-1 Function Menu 8-1-2 Using the Function Menu ............
- Page 7 1-1 Features The HDW-M2100/M2100P is a high-definition (HD) High-precision digital signal processing digital videocassette player based on the HDCAM and range of interfaces format. This unit uses large scale integrated circuits for signal The digital signal processing uses HD 4:2:2...
- Page 8 1-1 Features Basic operation buttons and jog/shuttle Downward converter function dial The unit has an HD-to-SD downward converter function, and can output standard definition SDI, The basic buttons and jog/shuttle dial for VTR and analog component and analog composite signals even editing operations are provided in the conventional while playing back an HDCAM format tape.
- Page 9 1-2 Example System Configuration The following conceptual diagram shows an example of use. BVE-series editor Tape control SDTI (optional) Audio/video HDSDI server system Digital cassette HDW-M2100/M2100P HDSDI/Analog SDTI (optional) composite HDSDI Video monitor HD VTR Analog composite/component Analog audio Audio monitor...
- Page 10 2-1 Control Panels There are three control panels, as follows: • Upper control panel • Lower control panel • Switch panel Upper control panel (see page 2-2) 59.94 CTL/TC MENU Lower control panel (see page 2-3) Switch panel (access by opening the lower control panel) (see page 2-11) CONTROL PANEL KEY INHI PANEL SEL...
- Page 11 2-1 Control Panels 2-1-1 Upper Control Panel 1 POWER switch 2 REMOTE buttons and RS-232C indicator 3 EJECT button Cassette compartment 4 Format indicators BETACAM/SP BETACAM SX MPEG IMX Digital BETACAM HDCAM REMOTE POWER EJECT 1(9P) 2(50P) RS-232C PHONES 5 PHONES jack and control 1 POWER switch 4 Format indicators Pressing the ‘...
- Page 12 2-1-2 Lower Control Panel 4 Time data/menu display section (see page 2-6) 2 CHANNEL CONDITION indicator (see page 2-5) 5 MULTI CONTROL knob and PUSH/ SHIFT indicator (see page 2-7) 3 Menu control buttons (see page 2-5) 1 Audio control section 6 RESET button (see page 2-7) (see page 2-4) 59.94...
- Page 13 2-1 Control Panels 2 Audio setting display section 1 Audio control section DATA indicator DATA 1 DISPLAY FULL/FINE button 2 Audio setting display section OVER OVER indicator Level meter EMPH Monitor channel L and R indicators 3 Audio monitor signal selection EMPH indicator buttons 4 PB controls...
- Page 14 3 Audio monitor signal selection buttons (CH1 to 3 Menu control buttons CH4, and CUE) The buttons in the upper and lower rows select tracks These buttons are used for function menu (see the to be output to the MONITOR OUTPUT L and R following section “Overview of the function menu”) connectors on the connector panel or the PHONES and setup menu (see Chapter 9) operations.
- Page 15 2-1 Control Panels Time data type indicator 4 Time data/menu display section This indicates the type of data displayed in the time data display area 1. LTC (longitudinal time code): Time code recorded 1 Time data display on a longitudinal track on the tape LUB: LTC user bit values 59.94 VITC (vertical interval time code): Time code...
- Page 16 DOLBY NR indicator 5 MULTI CONTROL knob and PUSH/ This lights when the Dolby noise-reduction circuit is SHIFT indicator functioning. In function menu operations, rotate the MULTI Speed indication area CONTROL knob to change settings that flash in the This indicates the speed of a DMC playback. menu display section.
- Page 17 2-1 Control Panels 2 JOG button Playback modes using the search dial To use the search dial for playback in jog mode, press Playback mode Operations and functions this button, turning it on. Press the SHUTTLE button or the Shuttle search dial so that the SHUTTLE button lights, then turn the search dial.
- Page 18 Fault display function 8 Tape transport control section The STOP button flashes in the following cases: • When setup menu item 105 is set to ON, there is no external reference signal input. 1 PREROLL button • The input external reference signal is different from the signal specified by setup menu item 337.
- Page 19 2-1 Control Panels 4 TRIM buttons q; Editing control section Use these buttons to trim an edit point to single-frame precision. Hold down the STUNT IN, STUNT OUT, PLAY IN, 1 DMC EDIT button or PLAY OUT button, and press one of these buttons. 2 MEMORY indicator The ‘+’...
- Page 20 7 LEARN button 1 LIST button After setting a speed variation start point (STUNT IN Use this button to read in and list shot marks. point) and a speed variation end point (STUNT OUT point), pressing this button makes the tape start 2 REC/ERASE indicator running.
