When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of rocks,
branches and other hard or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
do not position the door of tent into
the wind.
1
Layout & Positioning
of Tent, Pole Assembly

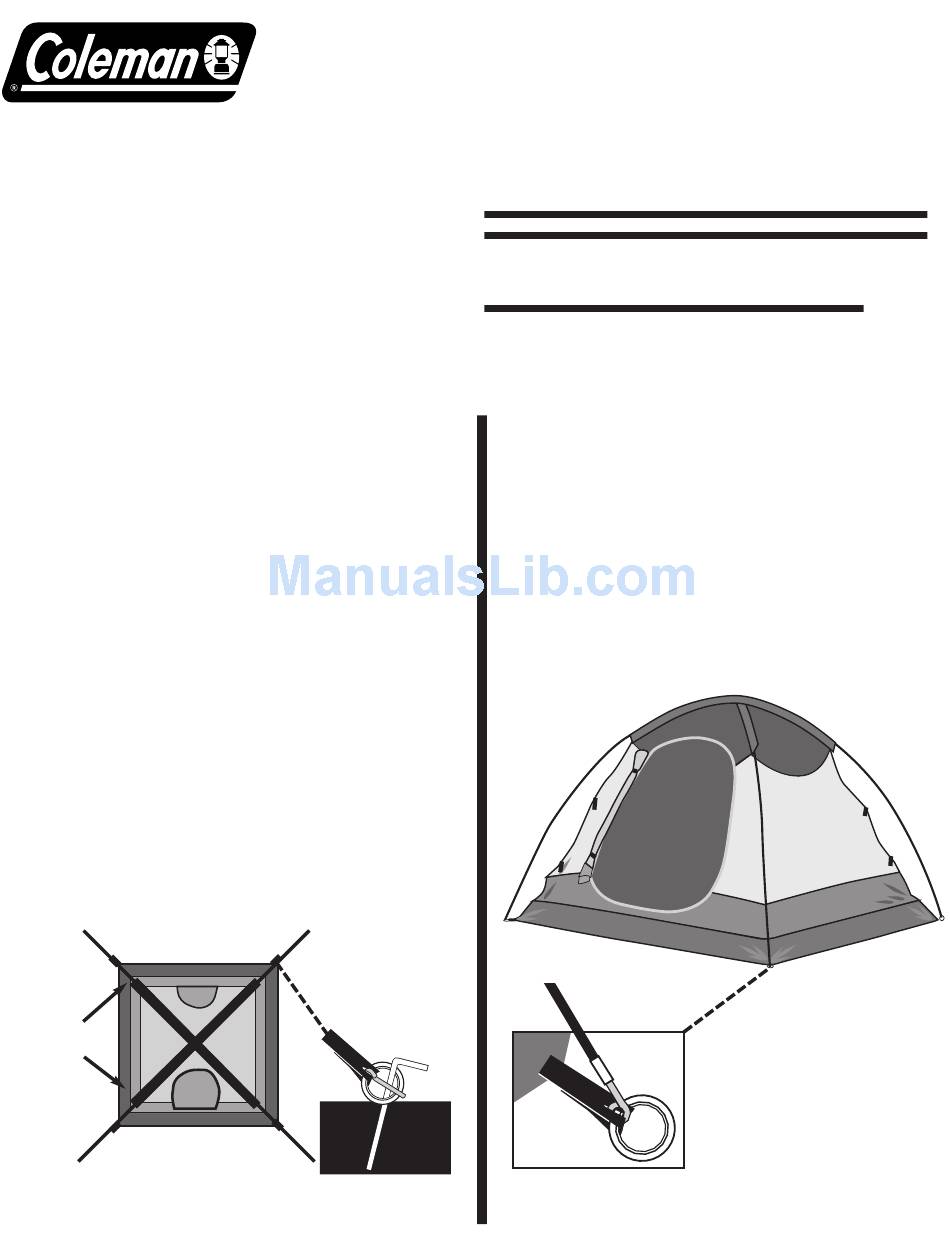

– Layout and position tent with door
facing desired direction. (illus. 1)
– Unzip door.
– Stake down tent corners only, using the
rings at the end of the stake loops.
Keep the floor taut. (illus. 2)
– Assemble frame poles by
interlocking shock-corded poles.
This will make two long poles.
– Insert the poles diagonally into pole
sleeves.The center of the poles should
cross forming an "X" in the middle of
tent. (illus. 1)
Assembled
poles
inserted
through
pole
sleeves
illus. 1
Cimarron
Instructions apply to Part Number 9260B107
(2) Main
Tent Poles
(1) Rainfly
Pole
illus. 2
Tent stake
through ring
™
4 10'x 7'
POLE ASSEMBLY PARTS
Part No. 9260B2121
Part No. 9260B2131
Rainfly Part No. 9260B2111
2
Connect Frame to Tent
– Insert one end of main tent pole end
onto pin of pin & ring system, at tent
corner. (illus. 3)
– Go to opposite end of pole and
gradually apply pressure to the pole
forming an arch until you are able to
insert the pin into the pole.
– Repeat for second pole.
plus Vestibule
illus. 4
Tent frame
set-up
illus. 3
Insert pole end onto
pin & ring
