Summary of Contents for Toshiba CAMILEO X-SPORTS
- Page 1 User’s Manual CAMILEO X-SPORTS...
-
Page 2: Table Of Contents
Connect your Remote Control with the Camcorder ....29 Start pairing your Remote Control with the Camcorder..29 WI-FI ..................29 Turn on and off Wi-Fi ............29 Toshiba APP “Toshiba WiFi Connect” ........29 Viewing Photos or Videos on TV ..........30 Connecting to a high-definition 16:9 (wide) TV ....30 Specifications ................30 Operating Environment Conditions ...........32... -
Page 3: Introduction
CAMILEO X-SPORTS Introduction Welcome and thank you for choosing a TOSHIBA product. For your convenience, your TOSHIBA product is furnished with two guides: a) a Quick Start Guide, and b) this comprehensive PDF User’s Manual. We recommend to read this manual carefully and keep it with your product documentation for future reference. -
Page 4: About The Battery Pack
CAMILEO X-SPORTS • Do not open and close the Casing door when the camcorder is wet or while it is immersed in water. • Do not open and close the Casing door with wet hands. • Do not open the Casing door on the beach or at the poolside. -
Page 5: Toshiba Support
Residential, Commercial & Light Industry Environment. Any other working environment has not been verified by Toshiba and the use of this product in these working environments is maybe restricted or cannot be recommended. Possible consequences of the... - Page 6 Evaluation, Authorization and Restriction of Chemicals), entered into force on 1 June 2007, with phased deadlines to 2018. Toshiba will meet all REACH requirements and is committed to provide our customers with information about the presence in our articles of substances included on the candidate list according to REACH regulation.
- Page 7 For more detailed information about the collection and recycling programs available in your country, please visit our website (www.toshiba.eu/recycling) or contact your local city office or the shop where you purchased the product. Disposal of batteries and/or accumulators...
-
Page 9: Getting Started
CAMILEO X-SPORTS Getting Started Inserting and removing battery Your camcorder comes with a battery that needs to be inserted in the camcorder before usage. 1. Open the ports cover. 2. Insert the battery into the slot until it locks properly. -
Page 10: Inserting And Removing A Microsd™ Card
To record in higher video resolutions with high frame rates we recommend to use at least a Class 6 SD card. Quick Tour This section identifies the various components of your Camileo X-Sports camcorder. For a description of each component please refer to the table beneath each illustration. -

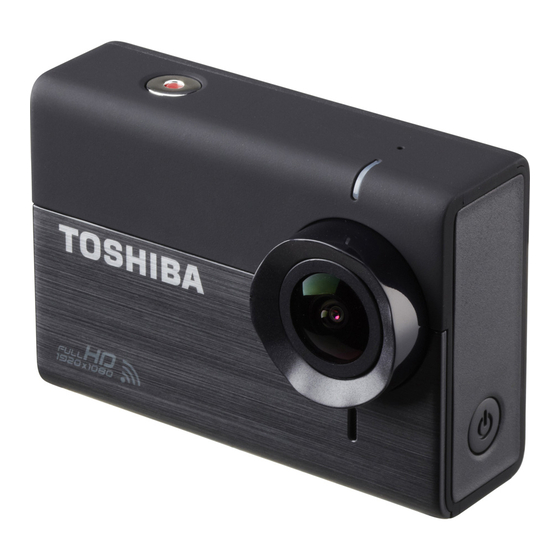

Page 11: Camileo X-Sports Camcorder
CAMILEO X-SPORTS Camileo X-Sports Camcorder 1: Record/Exit button 8: Up/Left/Zoom In button 2: HDMI port (Mini-C) 9: Down/Right/Zoom Out button ® 3: microSD™ slot 10: LCD screen 4: Battery slot 11: Power button 5: micro-USB port 12: Playback/Confirm button 6: Status LED... -
Page 12: Remote Control
CAMILEO X-SPORTS Remote Control 1. Record/Pairing button 3. USB door 2. Stop/Mode button 4. Door lock Buttons Description Record • Press and hold the Record button to power your remote on and off. • The LED indicates current camera mode. -
Page 13: Waterproof Casing
CAMILEO X-SPORTS Remote LED status Operation Blinking Red + Blue (alternatively) Simultaneous Video & Photo Mode Blinking Red continuously Record a Video/ Simultaneous Video & Photo Blinking Blue continuously Taking Photos in Timelapse Blinking Blue once (1 sec.) Taking a single Photo/ Continuous... -
Page 14: Main Menu
CAMILEO X-SPORTS 2. The screen will be turned on, this will show the Toshiba welcome display for 2 seconds, then enter into Live view. 3. The camera will enter into the default mode: Video 1080p/60fps live view. Mode is indicated by the icon in the top left of the display, as well as by the status LED. - Page 15 WiFi APP from the camera to your tablet/smartphone device and further to upload your videos and photos to social networks with your WiFi APP.* *Please refer to further information about the WiFi APP to section Toshiba APP “Toshiba WiFi Connect”.
- Page 16 CAMILEO X-SPORTS TIMELAPSE MODE In Timelapse mode status LED will be blinking blue slowly. Once the user presses the Record button from either camera or remote, the camera will start to capture photos continuously in a pre-defined interval set by the user in advance (please refer to Timelapse Settings section) and the LED will start blinking blue continuously.
- Page 17 CAMILEO X-SPORTS Playback Menu When Playback Menu is highlighted press Playback button to enter the playback options in which you can select media files taken in different video and photo modes: Video Playback, Photo Playback, Photo Burst Playback, Timelapse Playback.
- Page 18 CAMILEO X-SPORTS Mode Settings By entering the Mode Settings menu with the Playback button you can configure the camera for each 5 camera modes. Video Settings You can choose Resolution and Frame Rate with the Up and Down buttons. Use the Playback button to toggle the different options.
- Page 19 CAMILEO X-SPORTS Video resolution / FULL HD 1920 x 1080: (60 / 48 / 30 / 24 fps NTSC) Frame rate (50 / 48 / 25 / 24 fps PAL) HD 1280 x 720: (120 / 60 fps NTSC) (100 / 50 fps PAL)
- Page 20 CAMILEO X-SPORTS Image resolution 12MP: 12 megapixels, (4000 x 3000) 8MP: 8 megapixels, (3264 x 2448) 5MP: 5 megapixels, (2592 x 1944) Sequence interval 0.5s* / 1 s / 2 s / 5 s / 10 s / 30 s / 60 s *When using the 0.5 seconds setting, an SD card with a Speed Class 10...
- Page 21 CAMILEO X-SPORTS Simultaneous Video and Photo Settings You can choose Interval with the Up and Down buttons. Use the Playback button to toggle the different options. Pressing the Menu button will bring you back to previous navigation level. Pressing the Record button will bring you back to video or photo live view directly.
- Page 22 CAMILEO X-SPORTS WI-FI ON/OFF UPSIDE DOWN ON/OFF Supported resolutions: FULL HD 1920 x 1080: (30 / 24 fps NTSC) (25 / 24 fps PAL) HD 1280 x 720: (60 fps NTSC / 50 fps PAL) 1200P 1600 x 1200: (30 fps NTSC, 25 fps PAL)
- Page 23 CAMILEO X-SPORTS SCENE AUTO, SKIN, NIGHT, BACKLIGHT WHITE BALANCE AUTO, DAY LIGHT, TUNGSTEN, FLUORESCENT SPOT METER ON/OFF LOOPING VIDEO OFF/ MAX/ 5MIN/ 20MIN/ 60MIN/ 120MIN TV OUTPUT NTSC/PAL POWERSAVE NEVER/ 1MIN/ 2MIN/ 5MIN DATA&TIME YEAR/MONTH/DAY/HOUR/MINUTE PHOTO DATE/ ON/OFF TIMESTAMP LANGUAGE...
-
Page 24: About The Electronic Image Stabiliser (Eis) Built-In Your X-Sports
CAMILEO X-SPORTS 20 Min Camera records 4 x 5 minutes file, then deletes the first 5 minutes file to continue recording a new video. 60 Min Camera records 4 x 15 minutes file, then deletes the first 15 minutes file to continue recording a new video. - Page 25 CAMILEO X-SPORTS You can clip the Flat Clip Mount into the Flat or Curved Adhesive Mount and screw the Waterproof Casing on the Flat Clip Mount. You can clip the Flat Clip Mount into the Vented Helmet Mount and screw the Waterproof Casing on the Flat Clip Mount.
- Page 26 CAMILEO X-SPORTS Use the Waterproof Casing screwed on the Flat Clip Mount and clipped into the Surfboard Mount. You can save your Waterproof Casing with camera by connecting the safety mount strap to the Flat Clip Mount. You can screw the Waterproof Casing on the Bike Mount.
- Page 27 CAMILEO X-SPORTS For further usage scenarios on your bike you can disassemble the Side Mount into two parts and use each of these parts to connect the Bike Mount with your Waterproof Casing. Please check below for further usage scenarios with your Waterproof Casing.
- Page 28 CAMILEO X-SPORTS Please check below for further usage scenarios with your Tripod Mount screwed on your camera without using the Waterproof Casing. Camera And other Mounts EN-28 User’s Manual...
-
Page 29: Optional Accessory Packs
Wi-Fi is activated. Toshiba APP “Toshiba WiFi Connect” With the APP* “Toshiba WiFi Connect” you can operate your camera wirelessly from iOS and Android devices, such as smartphones and tablets. *(available for free on iOS and Google Play stores, compatible with latest iOS versions 5.x &... -
Page 30: Viewing Photos Or Videos On Tv
HDMI, WiFi is automatically turned off to ensure high resolution viewing of your stored photos and videos. The configuration of WiFi will automatically be restored once the HDMI connection is removed. Specifications Part number CAMILEO X-SPORTS: PA5150 series Remote Controller: RC-A10 Image sensor 12MP (megapixels) CMOS sensor Operation modes... - Page 31 CAMILEO X-SPORTS View angle 1080P : 135 degrees 720P : 135 degrees 1200P : 145 degrees 960P : 145 degrees WVGA : 128 degrees VGA : 143 degrees 12M : 152 degrees 8M : 152 degrees 5M : 152 degrees Focus range 0.3 meters to infinity...
-
Page 32: Operating Environment Conditions
© 2014 Toshiba (Australia) Pty Limited. All rights reserved. TOSHIBA reserves the right to make technical changes. TOSHIBA assumes no liability for damages incurred directly or indirectly from errors, omissions or discrepancies between this product and the documentation. - Page 33 UM_X-SPORTS_0314 For more information, please visit: www.mytoshiba.com.au/products/camcorders...
