Feng Yun Series
1. Summary
MODEL
KF-50GW/A10
KF-60GW/A10
KF-50GW/NA1
KF-60GW/NA10
KF-50GW/A10-12206
KFR-50GW/A10-12206
GSW24-22L/A GSW24-22R/A
KT3F-60GW/A10
KT3FR-60GW/A10
KT3F-60GW/A10-12206
KT3FR-60GW/A10-12206
KFR-60GW/A10-12405
F e n g Y u n S e r i e s
KFR-50GW/A10
KFR-60GW/A10
KFR-50GW/NA1
KFR-60GW/NA10

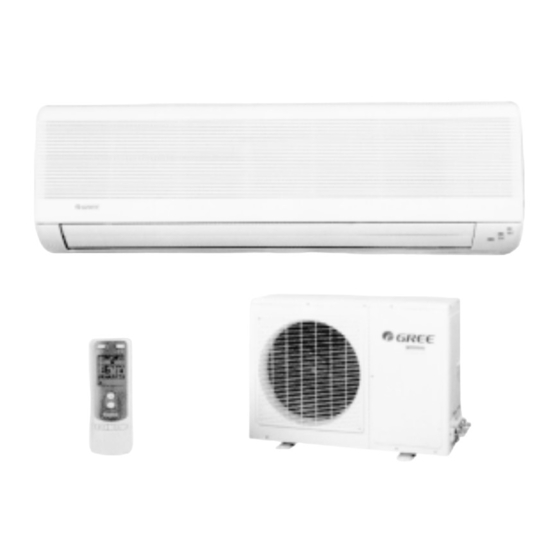

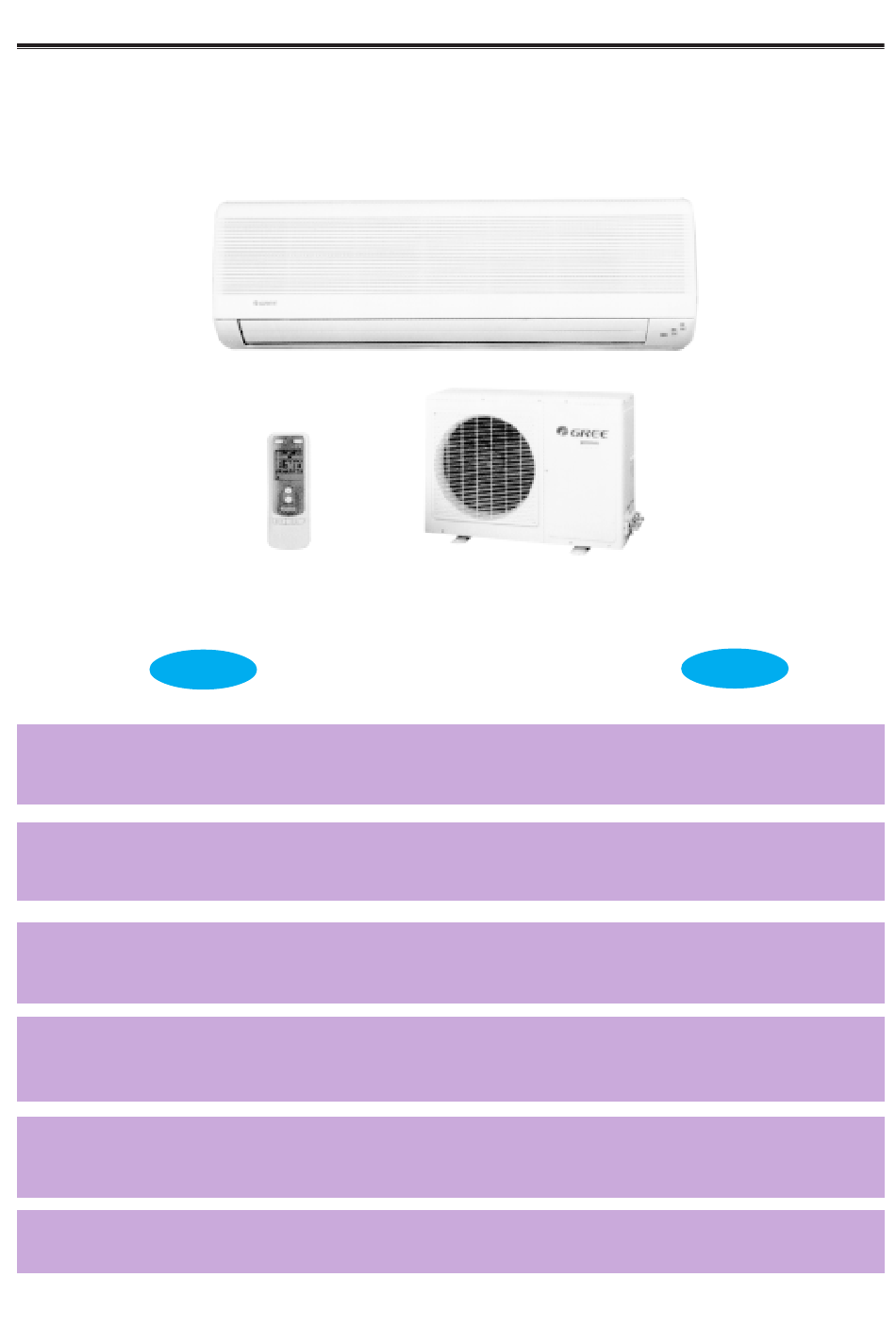

figure 1
CE STANDARD
1Ph 220-230V 50Hz
R22
CE STANDARD
1Ph 220-230V 50Hz
R407C
1Ph 220V 60Hz
R22
TROPICAL AIR-CONDITIONER
1Ph 220V 50Hz
R22
TROPICAL AIR-CONDITIONER
1Ph 220V 60Hz
R22
1Ph 240V 50Hz
R22
-1-
NOTE
Advertisement
Related Manuals for Gree Feng Yun Series
Summary of Contents for Gree Feng Yun Series
- Page 1 Feng Yun Series F e n g Y u n S e r i e s 1. Summary figure 1 MODEL NOTE CE STANDARD KF-50GW/A10 KFR-50GW/A10 1Ph 220-230V 50Hz KF-60GW/A10 KFR-60GW/A10 CE STANDARD KF-50GW/NA1 KFR-50GW/NA1 1Ph 220-230V 50Hz KF-60GW/NA10 KFR-60GW/NA10...
-
Page 2: Technical Specifications
Feng Yun Series 2. Technical specifications Table 1 KF-50GW/A10 KFR-50GW/A10 Model Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity (W) 5000 5000 6000 Rated input (W) 1960 1960 2160 Rated current (A) Air flow (m Dehumidifying volume (L/h) C.O.P(W/W) - Page 3 Feng Yun Series Table 2 KF-60GW/A10 KFR-60GW/A10 Model Function Cooling Cooling Heating Power supply 1Ph 220-230V 50Hz Capacity(W) 6000 6000 7000 Rated input(W) 2600 2600 2680 Rated current(A) 11.3 11.7 Air flow(m Dehumidifying volume(L/h) EER(W/W) 2.61 Model KF-60G/A10 KFR-60G/A10 1400/1200/1100...
- Page 4 Feng Yun Series Table 3 Model KF-50GW/NA1 KFR-50GW/NA1 Function Cooling Heating Cooling Power supply 1Ph 220-230V 50Hz Capacity(W) 5000 5000 6200 Rated input(W) 2400 2400 2650 Rated current(A) Air flow(m Dehumidifying volume(L/h) 2.08 2.34 C.O.P(W/W) 2.08 Model KF-50G/NA1 KFR-50G/NA1 Motor fan speed(r/min)
- Page 5 Feng Yun Series Table 4 Model KF-60GW/NA10 KFR-60GW/NA10 Function Cooling Heating Cooling Power supply 1Ph 220-230V 50Hz Capacity(W) 6000 6000 7000 Rated input(W) 2600 2600 2600 Rated current(A) 11.3 11.7 Air flow(m Dehumidifying volume(L/h) 2.08 2.34 C.O.P(W/W) 2.08 Model KF-60G/NA10...
- Page 6 Feng Yun Series Table 5 Model GSW24-22L/A GSW24-22R/A Function Cooling Cooling Heating Power supply 1Ph 220V 60Hz 6000 Capacity(W) 6000 6800 Rated input(W) 2600 2600 2500 Rated current(A) 12.8 12.8 12.6 Air flow(m Dehumidifying volume(L/h) 2.72 C.O.P(W/W) Model GSW24-22R/A(I) GSW24-22L/A(I)
- Page 7 Feng Yun Series Table 6 KF-50GW/A10- KFR-50GW/A10-12206 Model 12206 Function Cooling Cooling Heating Power supply 1Ph 220V 60Hz Capacity(W) 5000 5000 6000 Rated input(W) 2000 2000 Rated current(A) Air flow(m Dehumidifying volume(L/h) 2.727 C.O.P(W/W) Model KF-50G/A10-12206 KFR-50G/A10-12206 Motor fan speed(r/min)
- Page 8 Feng Yun Series Table 7 KT3F-60GW/A10-12206 KT3FR-60GW/A10-12206 Model COOL/HEAT COOL Function 1Ph 220V 60Hz Power supply 6000 6000/6800 Capacity(W) 2500 2500/2400 Rated input(W) 12/11.5 Rater current(A) Air flow(m Dehumidifying volume(L/h) 2.4/2.7 EER(W/W) Model KT3F-60G/A10-12206 KT3FR-60G/A10-12206 Motor fan speed(rpm) 1400/1200/1100 Output power(W)
- Page 9 Feng Yun Series Table 8 KT3F-60GW/A10 KT3FR-60GW/A10 Model COOL/HEAT COOL Function 1Ph 220V 50Hz Power supply 6000 6000/6800 Capacity(W) 2800 2800/2800 Rated input(W) 13.8 13.8/14.8 Rater current(A) Air flow(m Dehumidifying volume(L/h) 2.14 2.14/2.42 EER(W/W) Model KT3F-60G/A10 KT3FR-60G/A10 Motor fan speed(rpm)
- Page 10 Feng Yun Series Table 9 Model KFR-60GW/A10-12405 Content Function Cooling Heating Power supply 1Ph 240V 50Hz Capacity (W) 6000 7000 Rated input (W) 2600 2680 Rated current (A) 11.7 Air flow (m Dehumidifying volume (L/h) C.O.P(W/W) 2.61 KFR-60G/A10-12405 Model 1400/1200/1100...
-
Page 11: Performance Curves
Feng Yun Series 3. Performance curves The change relation between low pressure,operation current and temp. Cooling operation condition:In testing, indoor and outdoor have same work condition. Heating operation Indoor work condition: dry bulb temp.21 , wet bulb temp. 15.5 . - Page 12 Feng Yun Series figure 3 -13-...
- Page 13 Feng Yun Series figure 4 -14-...
-
Page 14: Outlines And Dimensions Of Indoor Unit
Feng Yun Series 4. Outlines and dimensions of indoor unit unit:mm Above 150 Above 150 Above 150 figure 5 -15-... -
Page 15: Outlines And Dimensions Of Outdoor Unit
Feng Yun Series 5. Outlines and dimensions of outdoor unit unit:mm figure 6 -16-... - Page 16 Feng Yun Series (Blank) -17-...
-
Page 17: Explosive View And Spare Parts List Of Indoor Unit
Feng Yun Series 6. Explosive view and spare parts list of indoor unit figure 7 -18-... - Page 18 Feng Yun Series Table 10 Part No. Description KFR- KFR- 50G/A10 50G/A10 60G/A10 60G/A10 Front Panel 20002010 20002010 20002010 20002010 Filter 11122022 11122022 11122022 11122022 Electric Box Cover 20102011 20102011 20102011 20102011 Screw Cover 24252011 24252011 24252011 24252011 Front Case Assy...
- Page 19 Feng Yun Series Table 11 Part No. Description KFR- KFR- 50G/NA1 60G/NA10 50G/NA1 60G/NA10 Front Panel 20002010 20002010 20002010 20002010 Filter 11122022 11122022 11122022 11122022 Electric Box Cover 20102011 20102011 20102011 20102011 Screw Cover 24252011 24252011 24252011 24252011 Front Case Assy...
- Page 20 Feng Yun Series Table 12 Part No. Description K F - K F R- GSW24- GSW24- 50G/A10- 50G/A10- 22R/A(I) 22L/A(I) 12206 12206 Front Panel 20002010 20002010 20002010 20002010 Filter 11122022 11122022 11122022 11122022 Electric Box Cover 20102011 20102011 20102011 20102011...
- Page 21 Feng Yun Series Table 13 Part No. Description KT3FR- KT3F- KT3FR- KT3F- 60G/A10- 60G/A10- 60G/A10 60G/A10 12206 12206 Front Panel 20002010 20002010 20002010 20002010 Filter 11122022 11122022 11122022 11122022 Electric Box Cover 20102011 20102011 20102011 20102011 Screw Cover 24252011 24252011...
- Page 22 Feng Yun Series Table 14 Part No. Description KFR-60G/A10-12405 Front Panel 20002010 Filter 11122022 Electric Box Cover 20102011 Screw Cover 24252011 Front Case Assy 20002013 Lower Guide Louver 10512012 Upper Guide Louver 10512011 Guide Louver Bearing 10542011 Right Swing Louver...
-
Page 23: Explosive View And Spare Parts List Of Outdoor Unit
Feng Yun Series 7. Explosive view and spare parts list of outdoor unit figure 8 -24-... - Page 24 Feng Yun Series Table 15 Part No. Description KFR- KFR- 50W/A10 50W/A10 60W/A10 60W/A10 Front Grill 22265250 22265250 22265250 22265250 Front Plate 01433030 01433030 01433030 01433030 Rear grill Assy 01473024 01473024 01473024 01473024 Top cover Assy 01255260 01255260 01255260 01255260...
- Page 25 Feng Yun Series Table 16 Part No. Description KFR- KFR- 50W/NA1 60W/NA10 50W/NA1 60W/NA10 Front Grill 22265250 22265250 22265250 22265250 Front Plate 01433030 01433030 01433030 01433030 Rear grill Assy 01473024 01473024 01473024 01473024 Top Cover Assy 01255260 01255260 01255260 01255260...
- Page 26 Feng Yun Series Table 17 Part No. Description KF-50W/A10- KFR-50W/A10- GSW24-22 GSW24-22 12206 R/A(O) 12206 L/A(O) Front Grill 22265250 22265250 22265250 22265250 Front Plate 01433030 01433030 01433030 01433030 Rear grill Assy 01473024 01473024 01473024 01473024 Top cover Assy 01255260 01255260...
- Page 27 Feng Yun Series Table 18 Part No. Description KT3FR- KT3FR- KT3FR- KT3F- 60W/A10- 60W/A10- 60W/A10 60W/A10 12206 12206 Front Grill 22265250 22265250 22265250 22265250 Front Plate 01433030 01433030 01433030 01433030 Rear grill Assy 01473024 01473024 01473024 01473024 Top cover Assy...
- Page 28 Feng Yun Series Table 19 Part No. Description KFR-60W/A10-12405 Front Grill 22265250 Front Plate 01433030 Rear grill Assy 01473024 Top cover Assy 01255260 Rear Side Plate 01305001 Handle 26235253 Valve Support 01715256 Metal Base 01205107 Front Side Support 01303019 Electric Plate...
-
Page 29: Circuit Diagram
Feng Yun Series 8. Circuit diagram These circuit diagrams are subject to change without notice. Please refer to the ones stuck on the machines. figure 9 -30-... - Page 30 Feng Yun Series figure 10 -31-...
- Page 31 Feng Yun Series figure 11 -32-...
- Page 32 Feng Yun Series figure 12 -33-...
-
Page 33: Pcb Function Manual
Feng Yun Series 9. PCB function manual 5 In 1 PCB Function manual A. running mode 1. cooling 2.dehumidifying 3.heating 4.fan 5.auto B. input parameters 1.indoor ambient temp. T 2.evaporator tube temp. T 3.setting temp. T 4.condenser tube temp. T 5.outdoor ambient temp. - Page 34 Feng Yun Series Compressor’s starting interval should be more than 3 minutes no matter in whatever modes and conditions. If it’s plugged in first time, the compressor does not have 3 minutes delay. When compressor is started, it will not stop within 5 minutes unless it is plugged out.
- Page 35 Feng Yun Series (3) The working conditions of auxiliary electric heater. In heating mode, when compressor is working, indoor motor runs at high speed and middle speed .if it detect T <50 for continuous 8 seconds and T 25 , electric heater will work ,if com-...
- Page 36 Feng Yun Series becomes active , indoor motor will run as the anti cool air condition, then it cycles again, recalcu- lates the compressor’s running time again. (In this period , if any protection works ,and after the machine is back to work , it will re-start defrosting state. it will not detect outdoor tube temp when compressor’s in its first 6 minutes running )
- Page 37 Feng Yun Series In Gree 2000 line and new 24000BTU line , =93, =45 In Bird line, =80, Attention : in Bird line, the louver will stop at position D . in other lines, the louver will stop at position L) Bird line: a.
- Page 38 Feng Yun Series low speed indoor F. Fresh air function. 1.There are two fresh air modes . a. fresh air 2 Fresh air motor will work 1 hour, then rest 1 hour, then cycle again. b. fresh air 1 Press the button AIR on the remote controller to select fresh air 1 function, the swing motor keeps running till you give a signal to change it.
- Page 39 TECHNICAL SERVICE MANUAL Feng Yun Series GREE ELECTRIC APPLIANCES, INC. OF ZHUHAI Jinji West Rd. Qianshan Zhuhai Guangdong China...
- Page 40 Introduction In this technical service manual, you will find rich references to Feng Yun Series products, including photos, technical specifications, explosive views, spare parts lists and circuit diagrams. Service people and engineers of Gree’s customers and distributors would find it a very handy source of technical information of our products.
-
Page 41: Table Of Contents
CONTENTS 1.Summary ..........................1 2. Technical specifications ......................3 3. Performance curves ......................12 4. Outlines and dimensions of indoor unit ................. 15 5. Outlines and dimensions of outdoor unit................16 6. Explosive view and spare parts list of indoor unit ..............18 7.
