Philips HD3119 User Manual

HD3119
EN User manual ID Buku Petunjuk Pengguna
PHILIPS
PENANAK NASI
HD3119
Daya memasak: 400W
220V 50-60Hz
Negara Pembuat: Cina
Diimpor oleh:
PT Philips Domestic Appliances Indonesia Commercial
Gedung Cibis Nine Lantai 10
Jl. T.B. Simatupang No. 2 RT. 001 RW. 005
Kel. Cilandak Timur, Kec. Pasar Minggu
Jakarta Selatan 12560 – Indonesia
Negara Pembuat: Cina
No. Reg.: IMKG.249.01.2021
© 2022 Philips Domestic Appliances Holding B.V.
All rights reserved.
6608.000.0713.5 (10/11/2022)
English

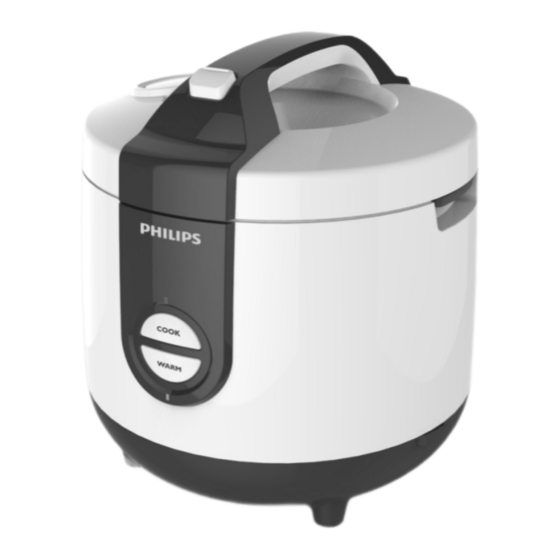

1 Your rice cooker
Congratulations on your purchase, and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at
www.philips.com/welcome.
2 Important
Read this important information leaflet carefully before you use the rice
cooker and save it for future reference.
Danger
•
The appliance must not be immersed.
Warning
•
This appliance is not intended for use by persons (including children) with
reduced physical sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety.
•
Children should be supervised to ensure that they do not play with the
appliance.
• This appliance should be positioned in a stable situation with the handles
(if any) positioned to avoid spillage of the hot liquids.
•
This appliance is intended to be used in household and similar applications
such as:
•
staff kitchen areas in shops, offices and other working environments;
•
farm houses;
•
by clients in hotels, motels and other residential type environments;
•
bed and breakfast type environments.
• If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•
The appliance is not intended to be operated by means of an external
timer or a separate remote-control system.
a
b
c
d
e
f
g
Register your product and get support at Register your product and get support at
www.philips.com/welcome www.philips.com/welcome
User manual Warranty
•
Make sure to avoid spillage on the power connector to avoid a potential
hazard.
•
Always follow the instructions and use the appliance properly to avoid
potential injury.
• According to the instructions prescribed in this user manual, use a soft
damp cloth to clean the surfaces in contact with food and make sure to
remove all the food residues stuck to the appliance.
•
Check if the voltage indicated on the appliance corresponds to the local
power voltage before you connect it.
•
Only connect the appliance to a grounded power outlet. Always make
sure that the plug is inserted firmly into the power outlet.
•
Do not use the appliance if the plug, the power cord, the inner pot, the
sealing ring, or the main body is damaged.
•
Do not let the power cord hang over the edge of the table or worktop on
which the appliance stands.
•
Make sure the heating element, the temperature sensor, and the outside
of the inner pot are clean and dry before you put the plug in the power
outlet.
•
Do not plug in the appliance or press any of the buttons on the control
panel with wet hands.
Caution
•
Surface of the heating element is subject to residual heat after use.
•
Never use any accessories or parts from other manufacturers or that Philips
does not specifically recommend. If you use such accessories or parts, your
guarantee becomes invalid.
• Do not expose the appliance to high temperatures, nor place it on a
working or still hot stove or cooker.
•
Do not expose the appliance to direct sunlight.
•
Place the appliance on a stable, horizontal, and level surface.
•
Always put the inner pot in the appliance before you put the plug in the
power outlet and switch it on.
•
Do not place the inner pot directly over an open fire to cook rice.
•
Do not use the inner pot if it is deformed.
• The accessible surfaces may become hot when the appliance is operating.
Take extra caution when touching the appliance.
•
Beware of hot steam coming out of the steam vent during cooking or out
of the appliance when you open the lid. Keep hands and face away from
the appliance to avoid the steam.
•
Do not lift and move the appliance while it is operating.
•
Do not exceed the maximum water level indicated in the inner pot to
prevent overflow which might cause potential hazard.
• Do not place the cooking utensils inside the pot while cooking, keeping
warm or reheating rice.
•
Only use the cooking utensils provided. Avoid using sharp utensils.
•
To avoid scratches, it is not recommended to cook ingredients with
crustaceans and shellfish. Remove the hard shells before cooking.
•
Do not insert metallic objects or alien substances into the steam vent.
•
Do not place a magnetic substance on the lid. Do not use the appliance
near a magnetic substance.
• Always let the appliance cool down before you clean or move it.
•
Always clean the appliance after use. Do not clean the appliance in a
dishwasher.
•
Always unplug the appliance if not used for a longer period.
•
If the appliance is used improperly or for professional or semiprofessional
purposes, or if it is not used according to the instructions in this user
manual, the guarantee becomes invalid and Philips refuses liability for any
damage caused.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable standards and regulations
regarding exposure to electromagnetic fields.
1
2
n
m
5 6
l
k
j
9 10
i
h
13 14
3 What's in the box
Rice cooker main unit Rice&Soup ladle
Measuring cup Steam basket
User manual Warranty card
Overview
Sealing ring Measuring cup
a h
Water level indications Steam basket
b i
Inner pot Main body
c j
Cook button Heating element
d k
Keep-warm button Lid
e l
Power cord Lid release button
f m
Rice&Soup ladle Detachable steam vent cap
g n
4 Using the rice cooker
Before first use
1
Take out all the accessories from the inner pot. Remove the packaging
material of the inner pot.
2 Clean the parts of the rice cooker thoroughly before using the rice
cooker for the first time (see chapter "Cleaning").
Note
• Make sure all parts are completely dry before you start using the rice
cooker.
Preparations before use
Before using the rice cooker, you need to follow the preparation:
1 Measure the rice using the measuring cup provided (Fig. 1).
2 Wash the rice thoroughly (Fig. 2).
3
Put the pre-washed rice in the inner pot.
4
Add water to the level indicated on the scale inside the inner pot that
corresponds to the number of cups of rice used (Fig. 3). Then smooth
the rice surface.
5 Press the lid release button to open the lid (Fig. 4).
6 Wipe the outside of the inner pot dry (Fig. 5), then put the inner pot in
the rice cooker (Fig. 6). Check if the inner pot is in proper contact with
the heating element.
7
Close the lid of the rice cooker (Fig. 7), put the plug in the power socket
(Fig. 8).
Note
•
Each cup of uncooked rice normally gives 3 cups of cooked rice. Do not
exceed the quantities indicated on the inside of the inner pot.
•
The level marked inside the inner pot is just an indication. You can
always adjust the water level for different types of rice and your own
preference. If the voltage is unstable at the area you live, it is possible
that the rice cooker overflows.
•
Besides following the water level indications, you can also add rice and
water at 1:1-1.2 ratio for rice cooking. Do not exceed the quantities
indicated on the inside of the inner pot.
•
Use a separate container to wash the rice to avoid damaging the non-
stick coating of the inner pot.
• Make sure that the outside of the inner pot is dry and clean, and that
there is no foreign residue on the heating element or the magnetic
switch.
4
3
8
7
12
11
Cooking Rice
1
Follow the steps in "Preparations before use".
2 Press the cook button (Cook), and the cook indicator lights up (Fig. 9).
3 When the cooking is finished, the cooking indicator will be off.
4
The rice cooker switches to the keep warm mode automatically, and the
keep warm (Warm) indicator lights up (Fig. 10).
Note
•
Do not exceed the volume indicated nor exceed the maximum water
level indicated in the inner pot, as this may cause the rice cooker to
overflow.
•
Do not open the lid right after the rice cooker enters the keep-warm
mode and ensure that rice is in keep-warm mode for 15 minutes if you
cook much rice.
Steaming
1
Measure a few cups of water with the measuring cup (Fig. 11).
2 Pour the water into the inner pot (Fig. 12).
3 Put the steam basket into the inner pot (Fig. 13).
4
Put the food into the steam basket (Fig. 14).
5
Close the lid of the rice cooker, put the plug in the power socket.
6
Press the cook button (Cook), and the cook indicator lights up (Fig. 9).
7 When the steaming is finished, pull up the control lever.
8 The rice cooker switches to the keep warm mode, and the keep warm
(Warm) indicator lights up (Fig. 10).
Note
• Use a kitchen glove or a cloth, as the plate and steam basket will be very
hot.
•
You can cook rice while steaming food. Do not exceed the volume
indicated nor immerse the steam basket in the water, as this may cause
the rice cooker to overflow.
•
You can adjust the water level as needed.
5 Cleaning and Maintenance
Note
• Unplug the rice cooker before starting to clean it.
•
Wait until the rice cooker has cooled down sufficiently before cleaning it.
Interior
Inside of the lid and the main body:
•
Wipe with wrung out and damp cloth.
•
Make sure to remove all the food residues stuck to the rice cooker.
Heating element:
• Wipe with wrung out and damp cloth.
•
Remove food residues with wrung out and damp cloth or toothpicks.
Exterior
Surface of the lid and outside of the main body:
• Wipe with a cloth damped with soap water.
•
Only use soft and dry cloth to wipe the control panel.
•
Make sure to remove all the food residues around the control buttons.
Accessories
Rice&Soup ladle and inner pot, steam basket, steam vent cap, detachable
inner lid:
•
Soak in hot water and clean with sponge.
