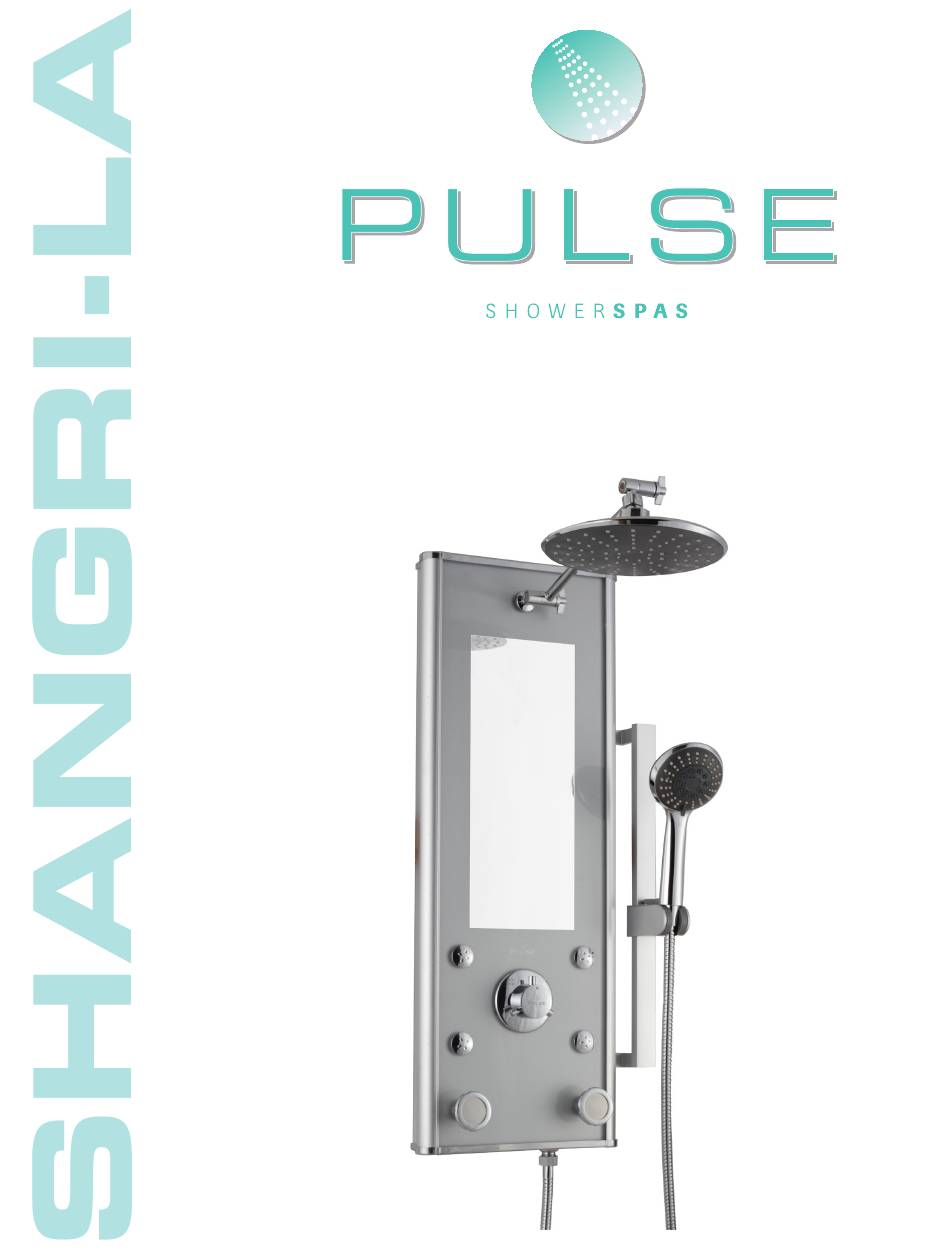

- Page 1 Shangri-La ShowerSpa Model #1036 Owner's Manual...
- Page 2 Shangri-La ShowerSpa Model #1036 Please Read The Following Instructions COMPLETELY Before Beginning! Our goal is to ensure your installation goes smoothly and safely. Please read these instructions carefully and follow recommendations for plumbing and mounting. After reading instructions, if you determine you do not have the necessary skills and/or tools, we recommend that a licensed plumbing contractor complete the installation.
-
Page 3: Product Dimensions
Product Dimensions... - Page 4 Parts Legend 1. 2"x1/2" NPT Brass Nipple 6. Cap ......(2) 11. Lock Washer .... (4) 2. Showerhead 7. Hand Shower 12. Rubber Washer ..(4) 3. Shower Arm 8. Hand Shower Holder 13. Wall Mounting Bracket 4. Slide Bar 9.
- Page 5 Assembly Some Assembly is Required Prior to Installation. Slide Bar Assembly Refer to exploded line drawing for reference. 1. Hold slide bar (4) with grooves facing away from you. Press button on hand shower holder (8) and place onto slide bar (4) with holder facing you and button on top.
-
Page 6: Installation
Installation Retrofit – Existing Shower Replacement 1. TURN OFF WATER SUPPLY TO SHOWER. Ensure your hot/cold mixing valve is turned off. 2. Determine length of brass NPT nipple (1) needed: a. Place mark on existing shower arm at wall surface. Unscrew shower arm from elbow in wall. -
Page 7: Care And Maintenance
Usage Brass Diverter The brass four-way Simple Select™ diverter allows you to easily select the function you desire. Simply rotate the diverter knob either direction to select desired function—showerhead, hand shower, top four misting jets, or bottom two Silk-Spray™ jets. Body Jets The Shangri-La ShowerSpa comes with six body jets . -
Page 8: Manufacturer's Limited Warranty
PULSE ShowerSpas, Inc. within thirty days of discovery of such defect. Pulse ShowerSpas, Inc. ~ 297 Anna St ~ Watsonville, CA 95076 ~ 888.785.7320 info@pulseshowerspas.com ~ www.pulseshowerspas.com ~ support@pulseshowerspas.com Part #1036-OM-ENG Rev. Y2015-10-21...
