Summary of Contents for BEETEL BG65
- Page 1 BEETEL BG65 Quick Guide BEETEL TELETECH LTD, Regd. Office: 1st Floor, Plot No 16,Udyog Vihar Phase-IV Gurgaon-122015,Haryana,India.
- Page 2 BEETEL TELETECH LTD. The manual is published by BEETEL TELETECH LTD. We reserve the right to make modifications on print errors or update specifica- tions without prior notice.
-
Page 3: Specification

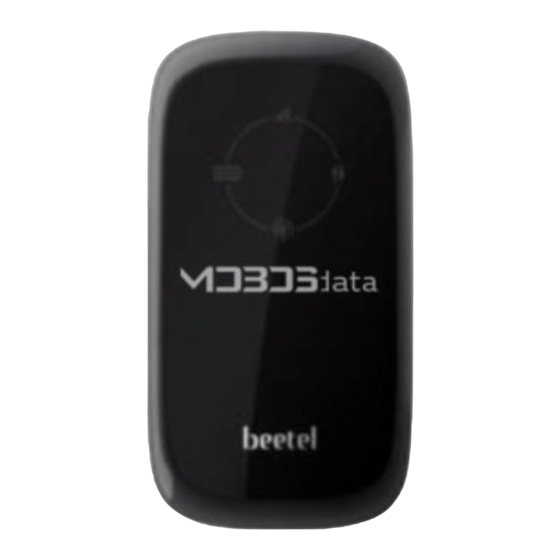

Quick Guide Introduction BEETEL BG65 is a 3G/2G device, working in GSM/GPRS/EDGE/ WCDMA/HSPA network. This device could connect via USB or Wi- Fi interface. The device supports data and SMS services, enabling you to communicate anytime and anywhere. This quick guide provides instructions on how to install and get started with the product. -
Page 4: Getting To Know Your Device
microSD card Support up to 32GB microSD card Power Adapter 5V/700mA Battery 1500mAh *Standby time 100hours *Working time 4hours Windows 7, Windows Vista, Windows Operate system XP (SP2 or later), MAC 10.4 or later IE (7.0 or later), Firefox (3.0 or later), Web Browser Opera (10.0 or later), Safari (4.0 or later), Chrome (5.0 or later) - Page 5 Interface and Buttons Hold the Power button to switch on/off the 1.Power device. 2.Memory card slot It is where you insert the memory card (mi- (microSD card) croSD card). This button is used to start Wi-Fi Protected Setup authentication process and enable/ disable the Wi-Fi function.
-
Page 6: Led Indicator
Notes: Hold the WPS and Power buttons simultaneously until all LEDs are off, and then release the buttons. The device will restart automati- cally and restore to the factory default settings. LED Indicator It indicates the status of your device. When the device is powered on: Indicator Status... -
Page 7: Hardware Installation
When the device is powered off and charging: Indicator Status Description Green blinking Charging Battery Voltage of battery is LED off indication full(Charging complete) Hardware Installation Inserting SIM Card and Battery 1. Use the thumb catch at the bottom of the device to open the battery cover. -
Page 8: Inserting Microsd Card
4. Line the battery cover up correctly and press gently to close the case. Inserting microSD Card 1. Pull the microSD cover out of the card slot. Notes: Do not pull the cover rudely, as it is connected with the device. 2. -
Page 9: Charging Your Device
3. Close the microSD cover. Switching On/Off Your Device Hold the Power button to switch on/off the device. Notes: The device is powered on when the signal strength indication lights Charging Your Device You can charge your device by using USB cable or adapter. 1. -
Page 10: Working Mode
Working Mode Your device supports three working modes. For the client, we only use PC or laptop as the example in this document. USB Mode: Connect to the device with the USB cable. Wi-Fi Mode: Connect to the device via Wi-Fi. - Page 11 Mixed Mode: Connect to the device with the above two connection methods. Notes: If you want to connect to the Internet by using Wi-Fi mode, make sure that the client supports the Wi-Fi function. The following picture is the application example. All of the client de- vices can surf on the Internet at the same time.
- Page 12 Notes: • If the system does not launch installation automatically, you can run the installation program in path of My Computer > BG65. • The driver of your device will be installed at the same time. 4. After the installation, the system will create a shortcut icon on your desktop and a BG65 program group in the Start→Pro-...
- Page 13 Notes: There will be a pop-up window to require the password. Check the label on your device to gain the SSID and preset password informa- tion. Make sure that you can remember the new password if you have changed the password by selecting Settings > Wi-Fi Settings >...
-
Page 14: Access The Internet
2. Launch the internet browser and enter http://192.168.0.1 or http://beetel3gmax.home/login.asp in the address bar, or double click the Beetel BG65 3GMAX icon on the desktop directly. Notes: It is recommended that you use IE (7.0 or later), Firefox (3.0 or later), Opera (10.0 or later), Safari (4.0 or later) or Chrome (5.0 or... -
Page 15: Pin Code Verification
3. The login page appears as follows. View the information of WAN, WLAN and Device. Input the case- sensitive default password “admin”, and then click Login to access the WebGUI Configuration page. Notes: • Do not put anything on the top of your device. Do not lay de- vices to overlap each other when using. -
Page 16: Quick Setup
Notes: The SIM card will be locked if you enter wrong PIN code consecu- tively for three times. If you want to modify the PIN Status, please select Settings > Ad- vanced > PIN Manage to do the actions. Quick Setup After logging in, select Quick Setup, and then the Quick Setup wiz- ard appears. -
Page 17: Wan Connection
Notes: The parameter settings may have been preset by your service provider, and you will enjoy your Internet service directly. Please contact your service provider for details if you want to do some modification. WAN Connection After logging in, select WAN Connection, and you can choose the WAN Connection Mode according to your requirement. -
Page 18: Disconnect From The Internet
View the current status of your device, change Select Settings > the Administrator Settings, restore factory Advanced defaults, manage PIN or set the LAN interface configuration. Notes: Make sure that you can remember the new password if you change the login password by selecting Settings > Advanced > Manage- ment. -
Page 19: Microsd Card
After logging in, select SMS, and you can do the following operations. Select SMS > Local Operate the SMS in your device. Select SMS > SIM Card Operate the SMS in your SIM card. Select SMS > New Message Send or save SMS. Select SMS >... -
Page 20: Usage Of Wps
Notes: Please insert your microSD card before selecting this menu. Usage of WPS If your client device supports WPS, you need not to input the pass- word manually after WPS has been available. Please do the follow- ing: 1. Start up your device. 2. -
Page 21: Warning And Notice
Warning and Notice To the Owner • Some electronic devices are susceptible to electromagnetic interference sent by your device if inadequately shielded, such as the electronic system of vehicles. Please consult the manu- facturer of your device before using if necessary. •... -
Page 22: Using Your Device
Using Your Device • Please use original accessories or accessories that are au- thorized. Using any unauthorized accessories may affect your device’s performance, and violate related national regulations about telecom terminals. • Avoid using your device near or inside metallic structures or es- tablishments that can emit electromagnetic waves. -
Page 23: Limited Warranty
End User’s mishandling, misuse, negligence, or improper installation, disassembly, storage, servicing or operation of the Product. iv. Modifications or repairs not made by BEETEL or a BEETEL- certified individual. v. Power failures, surges, fire, flood, accidents, actions of third parties or other events outside BEETEL’s reasonable control. -
Page 24: Limitation Of Liability
Limitation of Liability BEETEL shall not be liable for any loss of profits or indirect, special, incidental or consequential damages resulting from or arising out of or in connection with using of this product, whether or not BEETEL...
