Nedis DOORPW10CBK - Wireless Video Door Bell Installation

Table of Contents

Description

(fig. A)

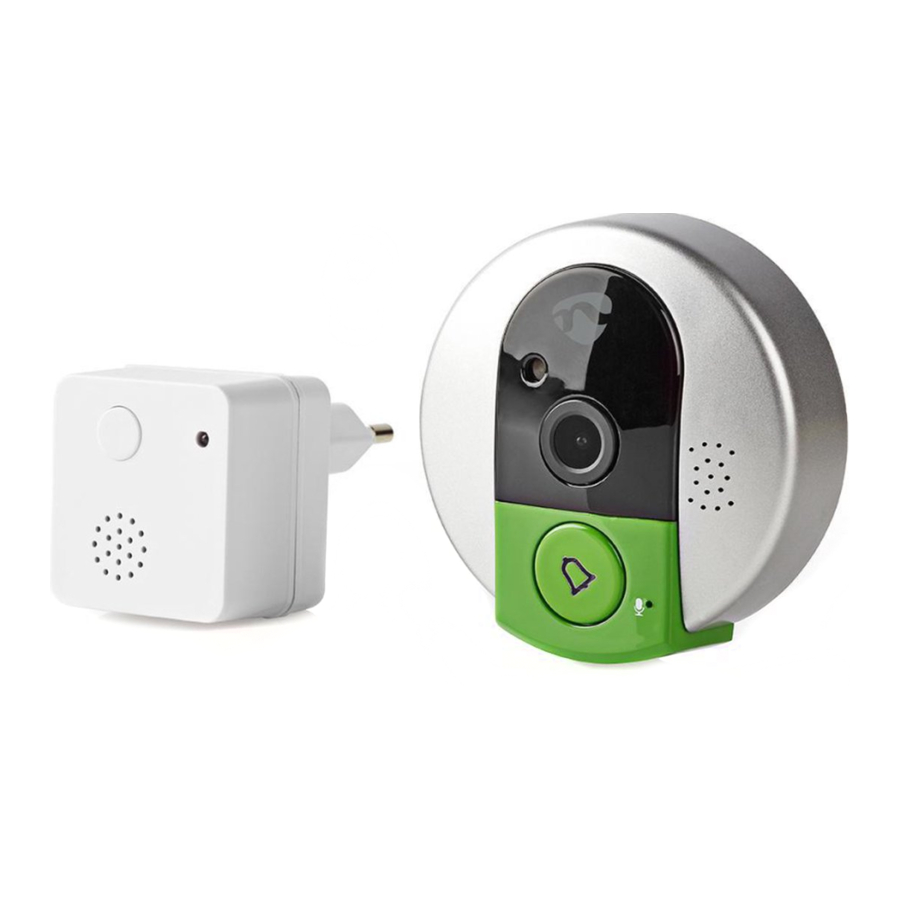

Description

Door camera
Doorbell button	If the doorbell is pressed, the doorbell will sound. You will receive a message in the app.
Infrared LED
Camera lens
Speaker
Microphone
Reset button	To reset the device, use a small needle or a paper clip to press and hold the reset button for 10 seconds. You will hear a voice prompt. Enter the password. The default password is "888888".
Memory card slot (microSD)	Insert the memory card into the memory card slot.
Doorbell
Code button Reset button	Code matching the door camera and the doorbell: If both the door camera and the doorbell are powered, press the code button. The status indicator flashes. Press the doorbell button. If the doorbell responds, the code matching is successful.
Status indicator	Resetting the device: To reset the device, use a small needle or a paper clip to press and hold the reset button for 10 seconds.
Buzzer	If the doorbell is pressed, the buzzer will sound.

Door camera (fig. B)

Fig. B1: Refer to the illustrations to mount the door camera to the wall.
Fig. B2: Refer to the illustrations to mount the door camera to the peephole.
Connect the door camera to the wall socket. Depending on the actual situation, use either the supplied 5V DC power adapter (+/- 0.3V, 1W) and power cables or a 24V AC power adapter used for a common doorbell.
Note: To mount the door camera and guide the power cables throught the wall, drill a hole into the wall with a minimum diameter of ø 8mm.

Doorbell

Take one of the following actions:
- Download and install the "EyeCloud" app from Apple App Store or Google Play Store on your mobile device.
- Scan the QR code (fig. C) to download and install the "EyeCloud" app.

Using the app

Open the app on your mobile device.
Click "Quick Register" to register and log in onto your account. Enter the user name and password.
Click "+" to add the camera to the device management interface.
Take one of the following actions: Wi-Fi configuration: Hold your mobile device near the camera. If you hear a voice prompt, follow the steps given by the app. For the inital configuration, enter your Wi-Fi password. If the pairing is succesful, you will hear voice prompt. Note: If you do not hear a voice prompt, reset the device to the factory settings.
If the sound configuration is successful, wait for approximately 15 seconds. If you hear the voice prompt whether to pair the device immediately, click "Add" to complete the pairing process.

App settings

"Basic Parameters": Camera information, Wi-Fi settings, change password, upgrade firmware, delete camera.
"Video Viewing": Night vision mode, horizontal mirror, vertical mirror, light mode.
"SD recording": Memory card information, recording mode, recording sound, format memory card.
"Alarm": Motion detection alarm (time frame, sensitivity, arming schedule).

Push notifications

Select the options in the app to receive push notifications on your mobile device.

General safety

Read the manual carefully before use. Keep the manual for future reference.
The manufacturer is not liable for consequential damages or for damages to property or persons caused by nonobservance of the safety instructions and improper use of the device.
Only use the device for its intended purposes. Do not use the device for other purposes than described in the manual.
Do not use the device if any part is damaged or defective. If the device is damaged or defective, replace the device immediately.
The device is suitable for indoor use only. Do not use the device outdoors.
The device is suitable for domestic use only. Do not use the device for commercial purposes.
Do not use the device in locations with high humidity, such as bathrooms and swimming pools.
Do not use the device near bathtubs, showers, basins or other vessels containing water.
Do not use a timer or a separate remote-control system that switches on the device automatically.
Do not cover the device.
Keep the device away from flammable objects.

Electrical safety

To reduce risk of electric shock, this product should only be opened by an authorized technician when service is required.
Disconnect the product from the mains and other equipment if a problem should occur.
Do not use the device if the mains cable or mains plug is damaged or defective. If the mains cable or mains plug is damaged or defective, it must be replaced by the manufacturer or an authorised repair agent.
Before use, always check that the mains voltage is the same as the voltage on the rating plate of the device.
Do not move the device by pulling the mains cable. Make sure that the mains cable cannot become entangled.
Do not immerse the device, the mains cable or the mains plug in water or other liquids.
Do not leave the device unattended while the mains plug is connected to the mains supply.
Do not use an extension cable.

Before cleaning or maintenance, always switch off the device, remove the mains plug from the wall socket and wait until the device has cooled down.
Do not use cleaning solvents or abrasives.
Do not clean the inside of the device.
Do not attempt to repair the device. If the device does not operate correctly, replace it with a new device.
Do not immerse the device in water or other liquids.
Clean the outside of the device using a soft, damp cloth. Thoroughly dry the device with a clean, dry cloth.

Support
If you need further help or have comments or suggestions, please visit www.nedis.com/support

Contact
NEDIS B.V., De Tweeling 28, 5215 MC 's-Hertogenbosch, The Netherlands
