Coleman 14'x14' Instructions

When You Are Ready
To Set Up Your Tent
– Select a level campsite clear of
rocks, branches and other hard
or sharp objects.
– Do not set up your tent under trees.
– For best results in windy conditions,
position the end of tent into the wind.

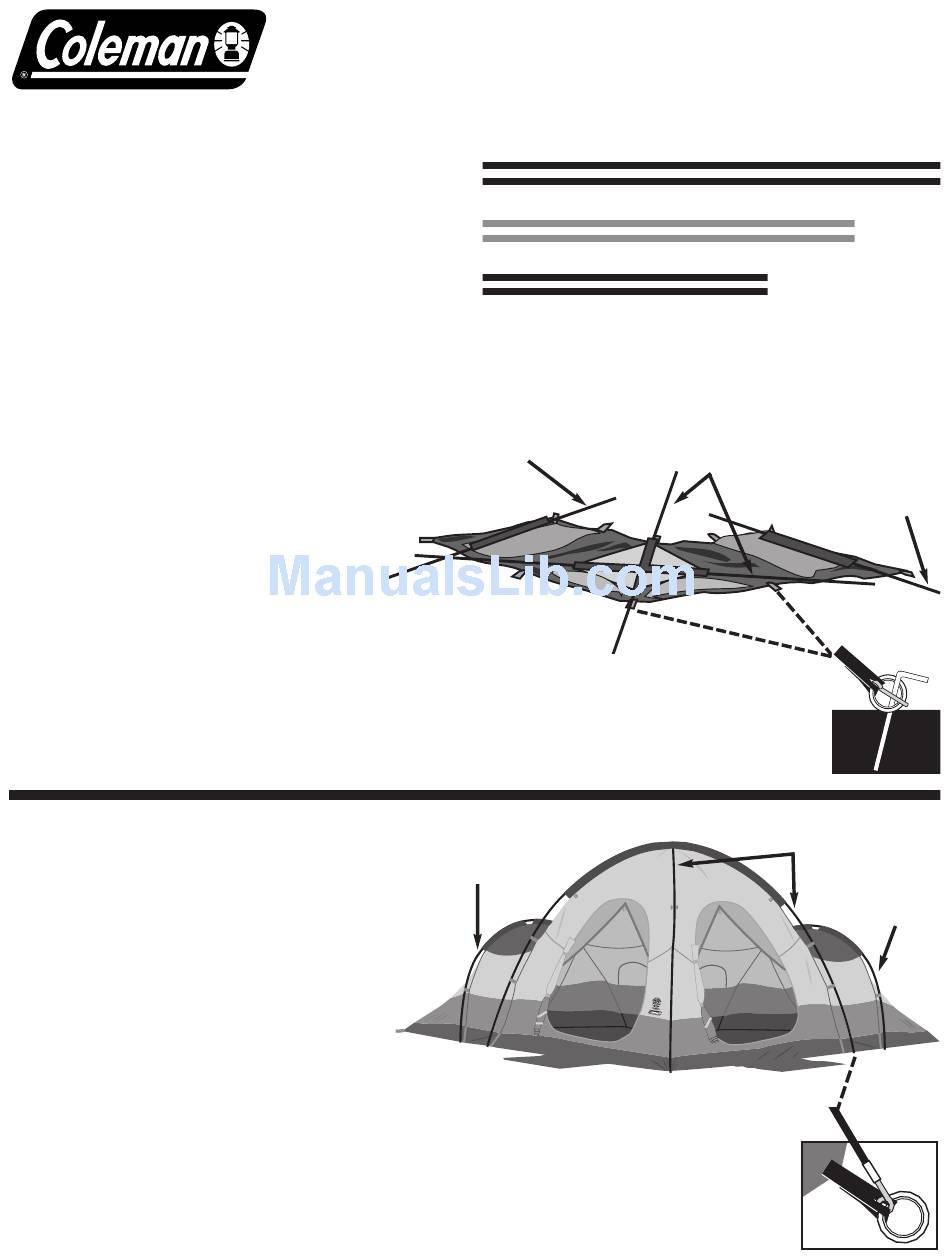

1 Layout & Positioning
of Tent, Pole Assembly
– Layout and position tent with doors
facing desired direction. (illus. 1)
– Stake down tent corners,
using the tent stake loops.
Keep the floor taut. (illus. 2)
– Assemble all poles by
interlocking shock-corded poles.
– Insert the longer Center Frame
Poles (black) into Center Pole
Sleeves. The poles should cross
forming an "X" in the middle of tent. (illus. 1)
– Insert the shorter Side Frame Poles (grey)
through the pole sleeves located at the
sides of tent. (illus. 1)
Connect Frame to Tent
2
– Unzip doors.
– Locate the Pin & Ring Systems
on either side of the front doors
and the corresponding Pin & Ring
on the back side of tent.
– Insert one end of Frame Pole
onto Pin & Ring System on tent
stake loop on either side of
the doors. (illus. 3)
– Go to opposite end of pole diagonally
from starting point and gradually
apply pressure to the pole forming an
arch until you are able to insert the
Pin into pole end.
– Repeat for second pole.
– Attach tent frame clips to poles.
14'x14' 3-Room Dome Tent
Instructions apply to Part Number 9271-191
POLE ASSEMBLY PARTS
(2) Center Tent Part No. 9271A402
Poles (Black)
(2) Side Tent Part No. 9271A405
Poles (Grey)
(2) Rainfly
Part No. 9271A403
Poles
Rainfly Part No. 9271A406
Side pole
Side pole
Door
Door
illus. 1
illus. 2
through stake loop
illus. 4
Center section upright
Ring & Pin System
Center poles
Side pole
Tent stake
Center poles
Side pole
illus. 3
