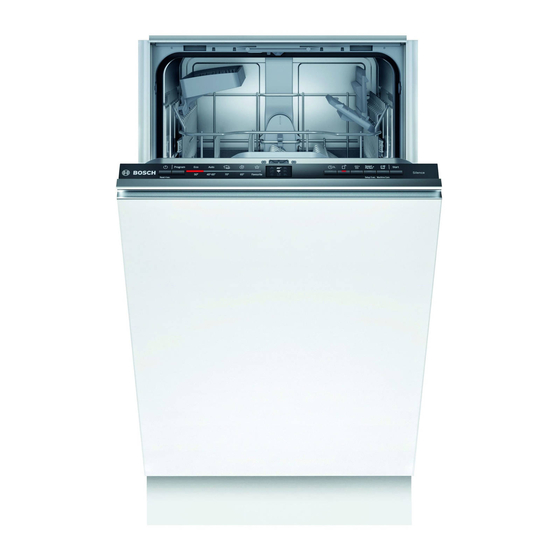

- Page 1 Dishwasher SPV2HKX41E [en] Information for Use Connect Get the app Scan QR code your dishwasher with Home Google Play and the Google Play logo are trademarks of Google Connect today! LLC. Apple and the Apple logo are trademarks of Apple Inc.
-
Page 2: Table Of Contents
Futher information and explanations are available online: Table of contents 1 Safety .......... 4 8.2 Knife shelf......... 20 1.1 General information.... 4 8.3 Etagere ........ 20 1.2 Intended use....... 4 8.4 Bottom basket ...... 21 1.3 Restriction on user group... 4 8.5 Folding prongs ...... 21 1.4 Safe installation ...... 4 8.6 Cutlery basket ...... 22 1.5 Safe use ........ 6... - Page 3 20 Customer Service..... 49 13.2 Arrange tableware .... 30 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 31 production number (FD) 14 Basic operation ...... 31 and consecutive numbering (Z-Nr.) ........ 50 14.1 Switching on the appliance .. 31 20.2 AQUA-STOP guarantee .. 50 14.2 Setting a programme ..... 31 14.3 Setting additional functions .. 31 21 Technical specifications..
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information ¡ Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe for future reference or for the next owner. ¡ Do not connect the appliance if it has been damaged in transit. 1.2 Intended use Only use this appliance: ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. ▶ Connect and operate the appliance only in accordance with the specifications on the rating plate. ▶ Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- rent only via a properly installed socket with earthing.
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. ▶ Check that there is a distance of at least 5 cm between the ap- pliance and installation lines. - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. ▶ Never use highly caustic alkaline or highly acidic cleaning agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. ▶ Never operate a damaged appliance. ▶ Never operate an appliance with a cracked or fractured surface. ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains. - Page 9 Safety en WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk. ▶ With redundant appliances, unplug the power cord. Then cut through the cord and damage the lock on the appliance door beyond repair so that the appliance door will no longer close.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on ▶ 4 Installation and con- the appliance, do not use sponges with a rough surface or abrasive nection cleaning agents. To prevent corrosion, do not use To ensure proper operation, connect ▶... -
Page 12: Drainage Connection
en Installation and connection installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 13: Familiarising Yourself With Your Appliance
Familiarising yourself with your appliance en 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 50. The data you need for Customer Service → Page 49. - Page 14 en Familiarising yourself with your appliance Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 26 Bottom basket Bottom basket → Page 21 Filter system Filter system → Page 40 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 22 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 15: Controls
Familiarising yourself with your appliance en 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 4 5 6 7 ON/OFF button and reset Switching on the appliance button... - Page 16 en Familiarising yourself with your appliance Programme buttons and addi- Programmes tional functions → "Programmes", Page 17 Additional functions → "Additional functions", Page 19 Door handle Open the appliance door. WLAN display Home Connect → Page 36 Rinse aid refill indicator Rinse aid system → "Adding rinse aid", Page 25 Special salt refill indicator Water softening system → "Adding special salt", Page 23...
- Page 17 Programmes en 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 18: Information For Test Institutes
en Programmes Programme Programme se- quence Favourite Note: The relatively long running time ¡ To reset the programme to the in the Eco 50 ° programme is due to Pre-rinse programme stored at the longer soaking and drying times. This factory, use the Home Connect results in optimal consumption val- or reset your appliance to ues. -
Page 19: Additional Functions
Additional functions en 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 20: Knife Shelf
en Features You can adjust the height of the top 8.2 Knife shelf basket to make room for larger items Use the shelf for knives and long of tableware. items of cutlery. Adjusting top basket with pairs of rollers To wash large items of tableware in the baskets, adjust the shelf position of the top basket. -
Page 21: Bottom Basket
Features en 8.4 Bottom basket 8.5 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Cutlery basket You can fold the prongs down to po- sition pans, bowls and glasses Large plates up to a diameter of better. -
Page 22: Cutlery Basket
en first time Add special salt. → Page 23 8.6 Cutlery basket Add rinse aid. → Page 25 Arrange cutlery in the cutlery basket, Switch on the appliance. always without sorting it and with the → Page 31 sharp points downwards. Setting the water softening system. → Page 23 Set the amount of rinse aid to be dispensed. -
Page 23: Setting The Water Softening System
Water softening system en Water Hardness mmol/l Level LED A LED B LED C hardness range value °E 0 - 8 Soft 0 - 1.1 9 - 20 Medium 1.2 - 2.9 21 - 26 Hard 3.0 - 3.7 27 - 44 Hard 3.8 - 6.2 Press... -
Page 24: Switching Off The Water Softening System
en Water softening system Special salt for dishwashers can 10.4 Switching off the water damage the tub due to corrosion. softening system To make sure that any special salt ▶ that escapes is washed out of the If you find the special salt refill indic- tub, add the special salt to the dis- ator irritating, e.g. -
Page 25: Regeneration Of The Water Softening System
Rinse aid system en 10.5 Regeneration of the wa- 11 Rinse aid system ter softening system In order to obtain fault-free function of 11.1 Rinse aid the water softening system, the appli- ance performs regeneration of the For optimum drying results, use rinse water softening system at regular in- aid. -
Page 26: Setting The Amount Of Rinse Aid
en Detergent Close the lid of the dispenser for 11.3 Switching the rinse aid rinse aid. system off a The lid clicks into position. If you find the rinse aid refill indicator irritating, e.g. when using combined 11.2 Setting the amount of detergents with a rinse aid compon- rinse aid ent, you can switch the rinse aid sys- tem off. -
Page 27: Unsuitable Detergents
Detergent en Note: Follow the manufacturer's in- For better washing and drying results structions for each detergent. and to avoid damage to the appli- ance, please additionally use Special Tip: Suitable detergents are available salt → Page 23 and Rinse aid online via our website or from Cus- → Page 25. -
Page 28: Information On Detergents
en Detergent Add the detergent to the dry deter- 12.3 Information on deter- gent dispenser. gents Follow the instructions on detergents 50 ml in everyday use. 25 ml ¡ Detergents marked as "organic" or 15 ml "ecological" (environmentally friendly) generally contain lower levels of active agents or com- pletely dispense with certain sub- stances. -
Page 29: Tableware
Tableware en Close the lid of the detergent dis- 13.1 Damage to glass and penser. tableware Only put glasses and china in the dishwasher if it is marked as dish- washer-safe by the manufacturer. Avoid damage to glass and table- ware. Cause Recommenda- tion The following... -
Page 30: Arrange Tableware
en Tableware ¡ For better washing and drying res- Cause Recommenda- ults, position items with curves or tion recesses at an angle so water can Highly caustic al- If you are using run off. kaline or highly highly caustic al- acidic cleaning kaline or highly solutions, in par- acidic cleaning... -
Page 31: Removing Tableware
operation en The Eco 50° programme is espe- cially environmentally friendly and ideal for normally soiled tableware. It is the most efficient programme for the combination of energy/wa- ter consumption for this type of tableware and evidences conform- ity with the EU Ecodesign Direct- ive. -
Page 32: Setting Timer Programming
en operation ¡ The appliance switches off auto- 14.4 Setting timer matically 1 minute after the end of programming the programme to save energy. If you open the appliance door im- You can delay the start of the pro- mediately after the programme has gramme by 3, 6 or 9 hours. - Page 33 operation en Tip: If you press during the wash cycle, the programme currently run- ning will be interrupted. When you switch the appliance back on, the programme continues automatically.
-
Page 34: Basic Settings
en Basic settings 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Selection Description Water hardness Scale with 4 levels Set the water hardness. - Page 35 Basic settings en Basic setting Selection Description Remote Start Scale with 3 levels Activate or deactivate the function. → "Activating Remote Start ", Page 36 This basic setting is not available until you have connected the appliance with the Home Connect app. → "Home Connect ", Page 36 Factory setting Reset...
- Page 36 en Home Connect Press repeatedly until the Set Wi-Fi LEDs show the right value. Press . To open the appliance settings, press for 3 seconds. flashes. Press repeatedly until flash. Press repeatedly until the LEDs show the right value. If LED A lights up, the function is permanently deactivated.
-
Page 37: Home Connect Quick Start
Home Connect en Home Connect services in your coun- The Home Connect app guides try. You can find information about you through the entire login pro- this at: www.home-connect.com. cess. To be able to use Home Connect, Setting up Home Connect you must first set up the connection to the WLAN home network (Wi-Fi Requirements and to the Home Connect app. -
Page 38: Data Protection
en Cleaning and servicing Note: Please note that the Requirements ¡ The appliance is connected to your Home Connect functions can only be WLAN home network. utilised with the Home Connect app. ¡ The appliance is connected to the Information on data protection can be Home Connect app. -
Page 39: Tips On Appliance Care
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.bosch-home.com/ mend cleaning your appliance at reg- store or from customer service. ular intervals. Machine Care is a programme which... -
Page 40: Filter System
en Cleaning and servicing ¡ Make sure that there are no alu- 17.5 Filter system minium parts, e.g. extractor hood The filter system removes coarse grease filters or aluminium pans, in soiling from the dishwashing cycle. the interior of the appliance. ¡ If you have not run Machine Care after 3 washing cycles, the indic- ator for Machine Care will go out automatically. -
Page 41: Cleaning Spray Arms
Cleaning and servicing en Pull down the micro filter to re- Insert the filter system into the ap- move. pliance and turn the coarse filter clockwise. Make sure that the arrow mark- ‒ ings match up. Press the locking catches gether and lift the coarse filter out ... - Page 42 en Cleaning and servicing Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. a The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
-
Page 43: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website www.bosch-home.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 44 en Troubleshooting Fault Cause and troubleshooting Display for water sup- Re-insert the filter in the supply hose. ply lights up Screw the water connection back on. Check the water connection for leaks. Restore the power supply. Switch the appliance on. Wastewater hose is blocked or kinked. Reposition the wastewater hose without kinks.
- Page 45 Troubleshooting en Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 46 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Select a more intensive washing programme. ▶ tableware. → "Programmes", Page 17 Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed. Only remove large remnants of food and do not ▶...
- Page 47 Troubleshooting en Fault Cause and troubleshooting Rust spots on cutlery. Cutlery may also rust if washed together with rusting items. Do not wash rusting items. ▶ Salt content in washing water is too high. Remove any spilled special salt from the tub. Screw the cap of the special salt dispenser on tight.
-
Page 48: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 49: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 50: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 51: Technical Specifications
Technical specifications en 21 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure ¡ min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 9 place settings You can find more information about... -
Page 52: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at www.bosch- Connect functionality conforms to the home.co.uk among the additional basic requirements and other relev- documents on the product page for ant provisions of Directive 2014/53/ your appliance. - Page 56 Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts. Find out everything about the many ways Bosch can support you: www.bosch-home.com/service Contact data of all countries are listed in the attached service direct- ory.
