Page 1

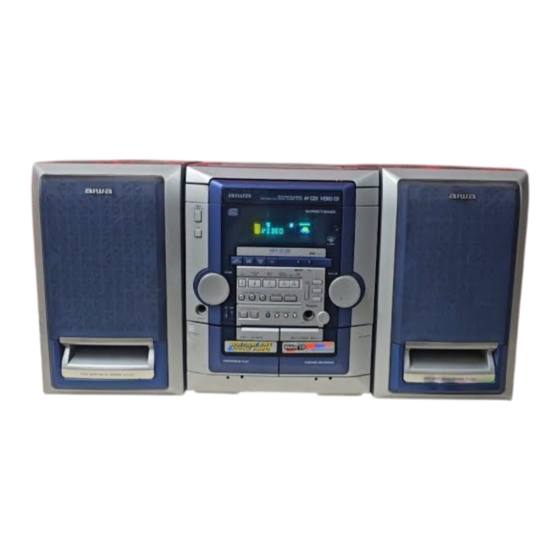

6ZM–3 PR2NM AZG–1 VZD3RDM • This Service Manual contains information about the difference between NSX-VC28 (HR) / NSX-VC38 (HC,HT) / NSX-VC43 (HR) and NSX-VC38 (HR). If requiring other information, see Service Manual of NSX-VC38 (HR,HS) (S/M Code No. 09-006-430-3R1). • If requiring information about the CD mechanism, see Service Manual of AZG-1, (S/M Code No.
CHIP RESISTOR PART CODE Chip Resistor Part Coding Figure Resistor Code Value of resistor Chip resistor Dimensions (mm) Symbol Wattage Type Tolerance Resistor Code Form 1/16W 1005 0.35 1/16W 1608 0.45 1/10W 2125 1.25 0.45 1/8W 3216 0.55 TRANSISTOR ILLUSTRATION E C B E C B B C E...
Page 21
ADJUSTMENT <TUNER / FRONT> < TUNER SECTION > 6. SW VT Adjustment Settings : • Test point : TP1 (VT) • Adjustment location : L942 Method : Set to SW 17.9MHz and adjust L942 so that the test point becomes 8.0V ± 0.05V. Then set to SW 5.73MHz and check that the test point is more than 0.3V.
