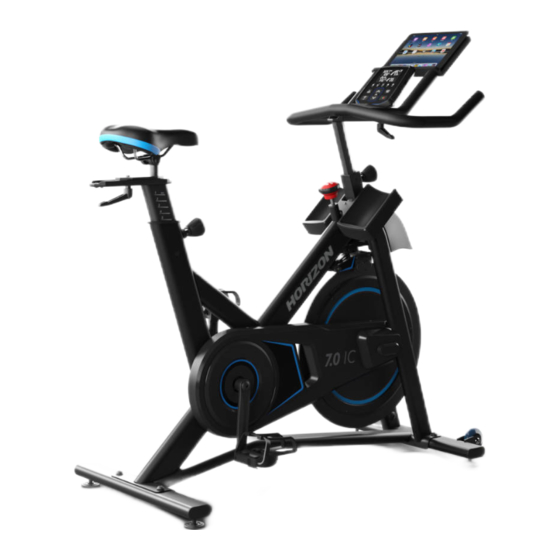

Summary of Contents for Horizon Fitness 7.0IC
- Page 1 INDOOR CYCLE OWNER’S MANUAL...
- Page 2 ASSEMBLY ENGLISH WARNING There are several areas during the assembly process that special attention must be paid. It is very important to follow the assembly instructions correctly and to make sure all parts are firmly tightened. If the assembly instructions are not followed correctly, the indoor cycle could have parts that are not tightened and will seem loose and may cause irritating noises.
-
Page 3: Model Information
MODEL INFORMATION MAIN PARTS INCLUDED: PRE ASSEMBLY Main Frame (20) Tablet holder UNPACKING Front Stabilizer (21F) Rear Stabilizer (21R) Due to the weight of the indoor cycle, it is recommended that two people Handlebar Set (30) perform the assembly. Unpack the product where you will be using it. It is Console (32) Handlebar set (30) recommended that you place a protective covering on your floor. -
Page 4: Assembly Step
ASSEMBLY STEP 1 ASSEMBLY STEP 2 STEP 1 HARDWARE : STEP 2.2 2.1 Turn Adjustment Knob (22) counter-clockwise to fully loosen. Bolt Spring Washer Flat Washer 2.2 Attach Lead Wire (24) to Console Cable (23) Ø8.2 Ø8.2 Qty: 4 Qty: 4 Qty: 4 and pull Console Cable (23) from Head Tube (25) through Handlebar Post (26) and out hole... - Page 5 ASSEMBLY STEP 3 ASSEMBLY STEP 4 STEP 3 HARDWARE : STEP 4 HARDWARE : STEP 4.2 Bolt Flat Washer Bolt Ø10 Qty: 2 Qty: 1 Qty: 4 3.1 Open hardware for Step 3. 4.1 Open hardware for Step 4. 3.2 Remove Handlebar Adjustment Lever (27) from 4.2 Attach Console Cable (23) to Console (32).
- Page 6 ASSEMBLY STEP 5 ASSEMBLY STEP 6 STEP 5 HARDWARE : STEP 6 HARDWARE : Bolt Flat Washer Ø10 Qty: 1 Qty: 1 5.1 Open hardware for Step 5. 6.1 Open hardware for Step 6. 5.2 Attach Bottle Holder (33) to Main Frame (20) 6.2 Unscrew Seat Adjustment Lever (34) from Seat with 1 Screw (4).
- Page 7 ASSEMBLY STEP 7 STEP 7.1 7.1 Identify Left Pedal (37L) which is labeled L on spindle and Right Pedal (37R) labeled R. 7.2 Insert Left Pedal (37L) into Left Crank Arm (38L) and tighten Counter Clockwise. 7.3 Insert Right Pedal (37R) into Right Crank Arm (38R) and tighten Clockwise.
-
Page 8: Resistance Control And Emergency Brake
RESISTANCE CONTROL AND EMERGENCY BRAKE INDOOR CYCLE OPERATION The preferred level of difficulty in pedaling (resistance) can be regulated in increments by use of the resistance buttons on the console. To increase the resistance, push the up arrow. To decrease the resistance, push the down arrow. FOR INDOOR CYCLE: WARNING Emergency brake... -
Page 9: Console Operation
CONSOLE CONSOLE OPERATION LCD DISPLAY WINDOWS: time, distance, calories, heart rate, RPM, speed and resistance level. LCD DISPLAY INDICATORS: indicates what information is being displayed. START : press to begin exercising, start your workout, or resume exercising after pause. HR MODE TIME STOP : press to pause/end your workout. -
Page 10: Program Information
PROGRAM INFORMATION GETTING STARTED Check to make sure no objects are nearby that will hinder the movement of the Bike. Plug in the power cord. P1) MANUAL: Adjust your resistance manually during your workout. NOTE: The Bike does not have a power switch and will turn on when power is supplied. QUICK START UP Simply press the START key to begin working out. - Page 11 HOW TO SWITCH BETWEEN APP MODE & BT HEART RATE MODE Home- P1 Connecting to an App (default mode) Connecting to HR Strap (off by default) If using a 3rd party App, please turn on your device’s In order to access to HR Strap mode, make sure the Bluetooth (BT) and follow the App pairing instructions.
- Page 12 7.0IC Horizon | Rev. 1.1 E ©2022 Johnson Health Tech...
