Mitsubishi Electric Unisen LT-46249 Dimensions

LT-46249

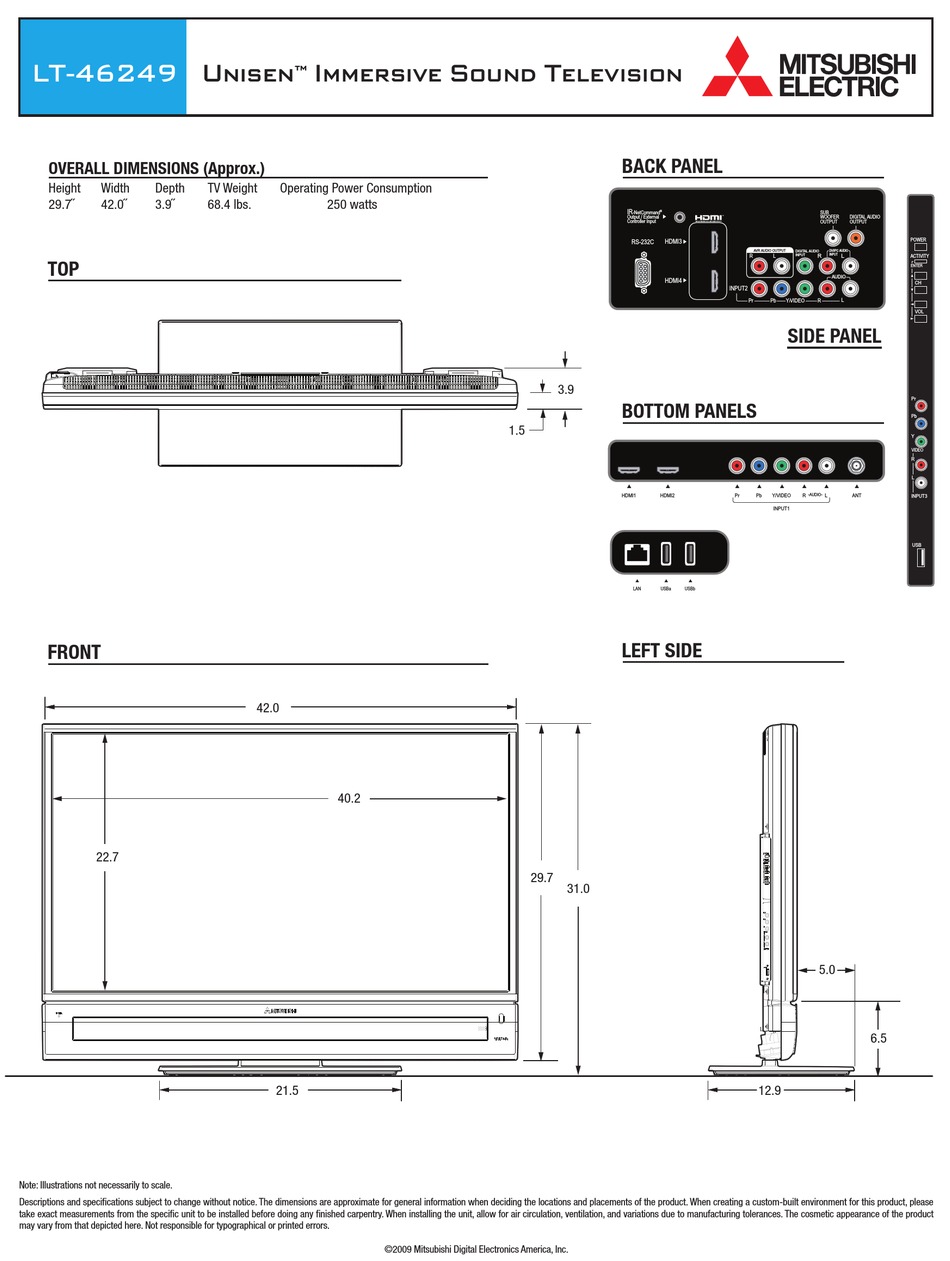

OVERALL DIMENSIONS (Approx.)
Height Width Depth
29.7˝ 42.0˝ 3.9˝
TOP
FRONT
22.7
Note: Illustrations not necessarily to scale.
Descriptions and specifications subject to change without notice. The dimensions are approximate for general information when deciding the locations and placements of the product. When creating a custom-built environment for this product, please
take exact measurements from the specific unit to be installed before doing any finished carpentry. When installing the unit, allow for air circulation, ventilation, and variations due to manufacturing tolerances. The cosmetic appearance of the product
may vary from that depicted here. Not responsible for typographical or printed errors.
Unisen Immersive Sound Television
™
TV Weight Operating Power Consumption
68.4 lbs. 250 watts
42.0
40.2
21.5
3.9
1.5
29.7
©2009 Mitsubishi Digital Electronics America, Inc.

BACK PANEL

IR
-NetCommand ®

Output / External
Controller Input
HDMI3
RS-232C 
HDMI4

INPUT2
BOTTOM PANELS
  
HDMI1 HDMI2 Pr
  
LAN USBa USBb

LEFT SIDE

31.0
SUB
WOOFER DIGITAL AUDIO
OUTPUT
OUTPUT
POWER
AVR AUDIO OUTPUT DIGITAL AUDIO DVI/PC AUDIO
R L INPUT R INPUT L
ACTIVITY
ENTER
AUDIO
CH
Pr Pb Y VIDEO R L
/
VOL

SIDE PANEL

Pr
Pb
Y
VIDEO
R
L
    
Pb Y/VIDEO R -AUDIO- L ANT INPUT3
INPUT1
USB
5.0
6.5
12.9
