RCA TVPRAMP12E User Manual

The TVPRAMP12E is designed specifically to improve the
performance of outdoor antennas in low signal strength areas,
extending antenna range to give you the most channels and best
reception possible. The TVPRAMP12E is engineered for digital
signals, so it outperforms old preamps made for analog.

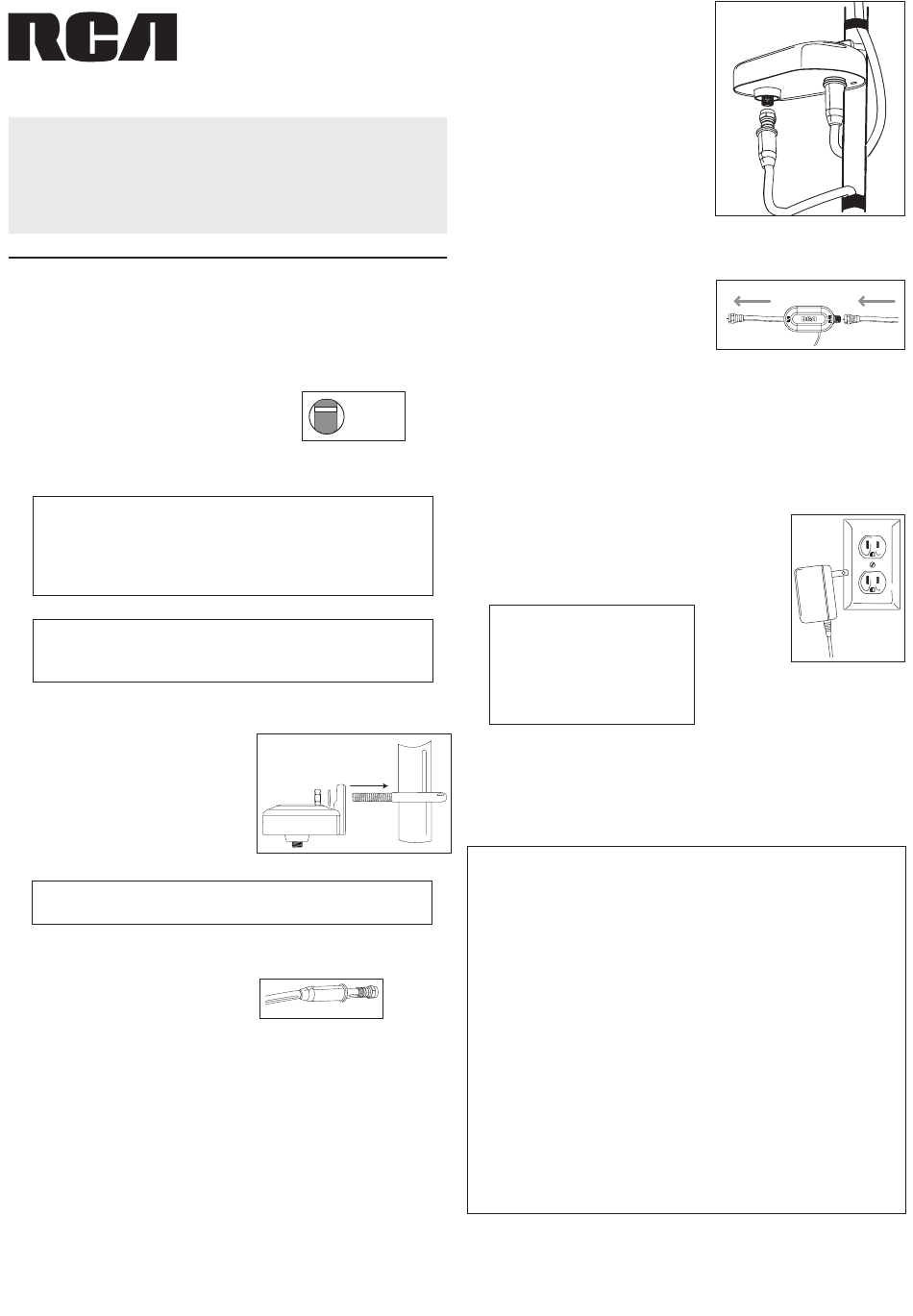

Preamplifier Installation
IMPORTANT: Do not plug in the power adapter until all connections
are completed (step 8).
1. Set the FM TRAP switch on the bottom of the
preamplifier.
The preamplifier's FM Trap is set
to ON by default. If you would
like to turn it off, use a small
flathead screwdriver to set this
switch to OFF. (The switch is protected by a weatherproof cover
that you'll have to remove first.)
NOTE: For best perfomance, keep the FM trap in the ON
position. If you use your antenna for FM as well as for TV
broadcasts, switch the FM trap off. Please note, however,
that switching the FM trap off may affect TV reception
performance.
IMPORTANT: Make sure the weatherproof cover for this
switch is back in place before you mount the preamplifier to
your antenna mast.
2. Mount the preamplifier to your antenna mast.
Position the U-bolt on the
antenna mast where you want
to mount the preamplifier. Make
sure you mount it within easy
reach.
Put the preamplifier on the
U-bolt as shown. Then place
the washers on both ends, followed by the nuts.
NOTE: For best results, mount the preamplifier as close to
the antenna as possible.
3. Slide the weather boots over the antenna downlead.
Attach F-connectors to the
coaxial cable if necessary.
4. Connect the antenna downlead to your antenna.
Leave enough slack in the cable to form a drain loop.
You can secure the coaxial downlead to the mast with
weatherproof tape or cable ties.
Slide the weather boot over the cable connector and boot collar
on the antenna.
5. Connect the other end(s) of the antenna downlead(s)
to the preamplifier.
Connect the downlead to the ANTENNA INPUT jack on the
preamplifier.
Slide the weather boot over the cable connector and boot collar
on the preamplifier.
Digital Signal
Preamplifier
For Outdoor Antennas
TVPRAMP12E User's Guide
ON
FM TRAP
OFF
6. Connect the preamplifier
downlead to the
preamplifier.
Connect the downlead to the
OUTPUT/POWER jack on the
preamplifier.
Slide the weather boot over the
cable connector and boot collar
on the preamplifier.
7. Connect to the power injector and TV/digital
converter box.
Connect the downlead cable
from the preamplifier to the TO
ANT jack on the power injector.
Make sure your TV or digital
converter box is turned off. Then
attach the power injector's built-
in coaxial cable to the antenna
input jack on your TV or digital
converter box.
8. Plug the power injector's power cord into a standard
wall outlet or surge protector.
The power injector must be
plugged in INSIDE your house.
Note: This power unit should
be plugged in so that it stays
vertical or lies flat.
WARNING: TO PREVENT
FIRE OR SHOCK HAZARD,
DO NOT EXPOSE POWER
SUPPLY SECTION OF THIS
APPLIANCE TO RAIN OR
MOISTURE.
9. Turn your TV or digital converter box back on and
rescan for channels.
