Cobra 6468B Instruction Manual

Items Supplied >
1 - FRONT HEADPIPE W/ HEATSHIELD
1 - REAR HEADPIPE W/ HEATSHIELD
1 - MUFFLER ASSEMBLY
1 - BIKINI HEATSHIELD
1 - BRACKET, EXHAUST MOUNT
4 - CLAMP, HS-24 (SMALL)
1 - CLAMP, HS-28 (LARGE)
2 - CLAMP, 27-61MSC
2 - BOLT, 5/16" X 1/2" FLANGE W/ LOCK PATCH
1 - SPACER, .750"O.D. X .343"I.D. X .550"L BLACK
2 - SPACER, ALUMINUM .550"O.D. X .344"I.D. X .170"L
Instruction Manual >
PRIOR TO INSTALLATION, MAKE SURE YOUR STOCK HEAD PIPE GASKETS ARE IN GOOD CONDITION.
IF YOU HAVE ANY DOUBTS AS TO THEIR CONDITION, REPLACE THEM.
Read all instructions carefully and completely before installing your new exhaust system!
1. Apply masking tape to any surrounding parts to protect them from getting scratched.
2. For Switchback models, the right side floorboard will need to be removed from the mounts. Also remove
the forward mount bolt and loosen the rearward mount bolt so the mount will swing out of the way for
clearance.
3. Unplug O
sensors on front and rear headpipes from motorcycle wire harnesses.
2
4. Remove the stock exhaust system being careful not to damage the headpipe gaskets. If the headpipe
gaskets are in good condition they do not need to be removed from the cylinders. Remove and save the
flanges, nuts, retaining rings and O
5. Remove the stock exhaust mount bracket.

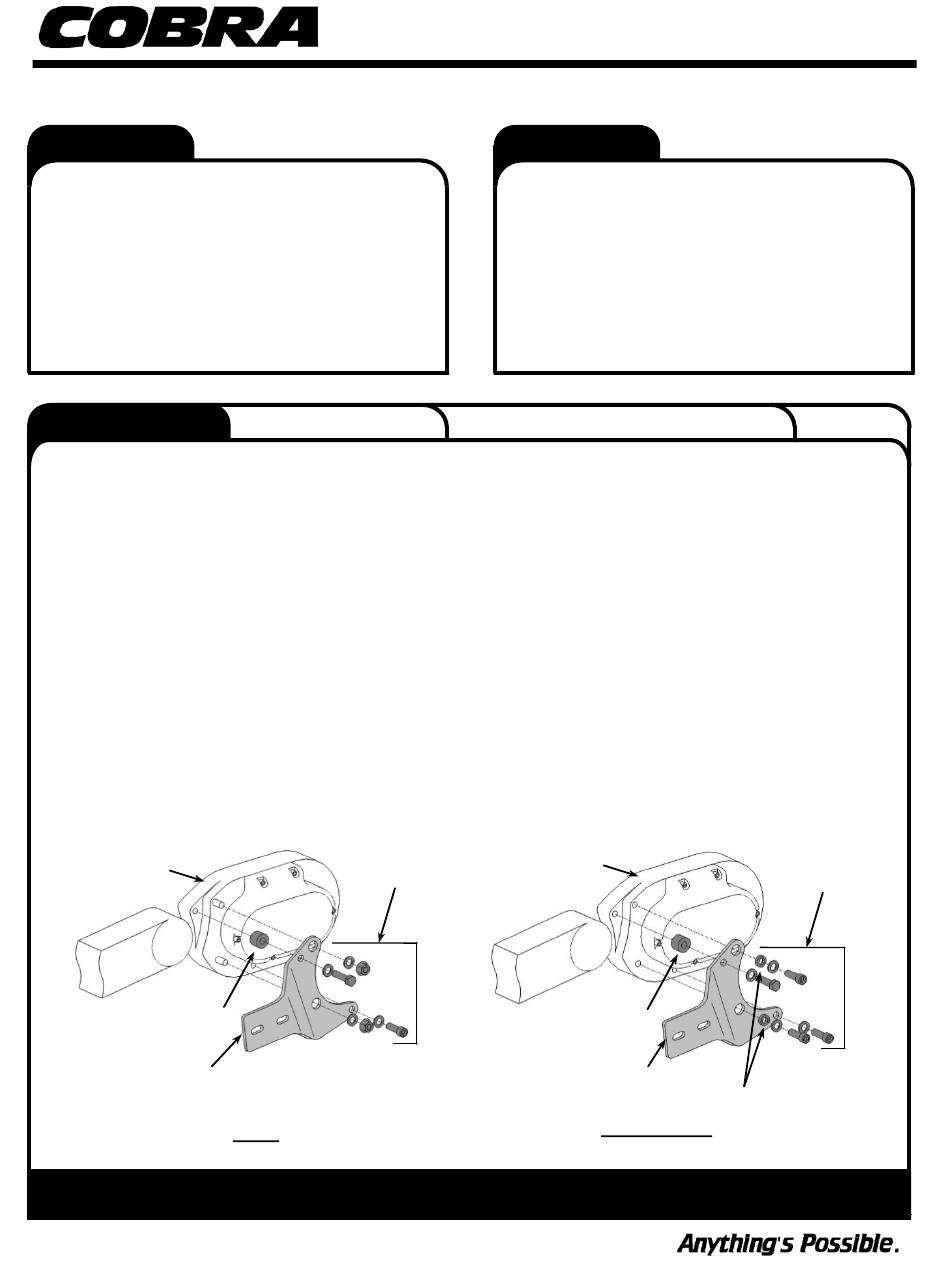

6. Install the supplied exhaust mount bracket using the stock bolts. See FIGURE 1. Tighten the bolts to
factory specifications. If applicable, be sure to insert the large spacer between the exhaust mount and the
transmission case as shown in FIGURE 1. For Switchback models, also insert 2 of the supplied small
aluminum spacers into the large holes in the exhaust mount bracket as shown in FIGURE 2.
TRANSMISSION
CASE
SUPPLIED LARGE
SPACER
EXHAUST MOUNT
BRACKET
FIGURE 1
DISCLAIMER: NOT LEGAL FOR SALE OR USE IN CALIFORNIA ON ANY POLLUTION
CONTROLLED MOTOR VEHICLES.
DOCUMENT NO. 0017 REV. A
04/17
23801 E. La Palma Ave., Yorba Linda, Ca 92887 Ph. 714.692.8180, Fax. 714.692.5016
®
sensors from the stock exhaust.
2
STOCK HARDWARE
DYNA
Continued on Page 2
Application(s) >
HARLEY:
DYNA
SWITCHBACK
6468B
TRANSMISSION
CASE
SUPPLIED LARGE
SPACER
EXHAUST MOUNT
BRACKET
FIGURE 2
SWITCHBACK
1
www.cobrausa.com
12-17
12-16
Page 1 of 3
STOCK BOLTS AND
WASHERS
2X SUPPLIED SMALL
ALUMINUM SPACERS
INSERTED IN BRACKET HOLES
®
