IMPORTANT SAFETY
TO REDUCE THE RISK OF
WARNING
INJURY, USER MUST READ
OPERATOR'S MANUAL AND ALL LABELS FOR
THIS ACCESSORY,
BATTERY. Failure to follow all instructions listed
below may result in electric shock, fire and/or
serious injury. SAVE THESE INSTRUCTIONS - THIS
OPERATOR'S MANUAL CONTAINS IMPORTANT
SAFETY AND OPERATING INSTRUCTIONS.
• Use latex or rubber gloves inside the gloves
recommended by the manufacturer, goggles, face
shields, protective clothing, and respirator when
chemicals, bacteria and other toxic or infectious
substances are suspected to be in a drain line.
Drains may contain chemicals, bacteria, and
other substances that may cause burns, be toxic
or infectious or may result in other serious
personal injury.
•
Only use cables that range between 9.5 mm (3/8")
and 12.7 mm (1/2").
• Cable tip may be sharp.

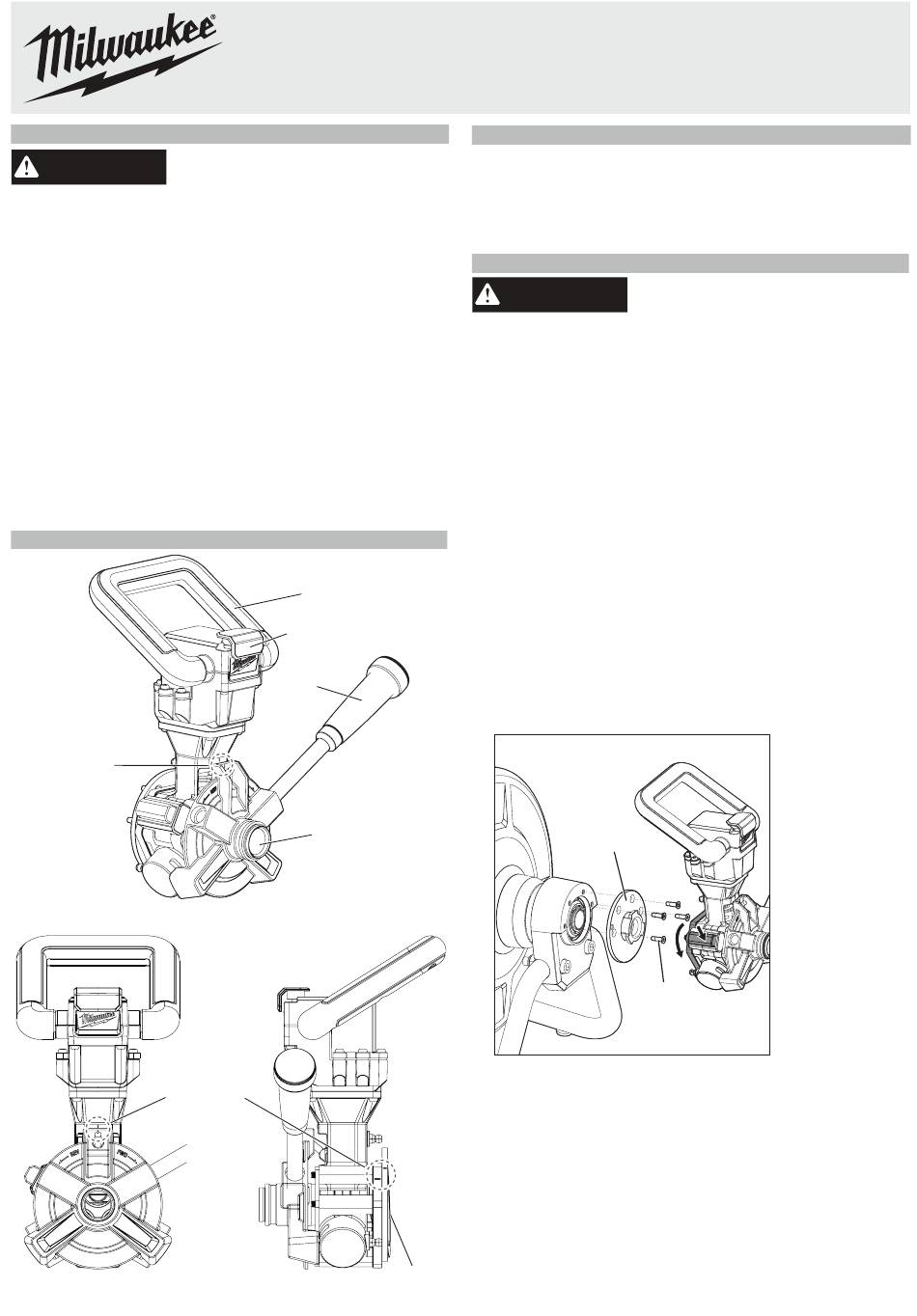

FUNCTIONAL DESCRIPTION
Figure 1
Alignment
lines
Figure 2
Alignment
CABLE DRIVE™ ASSEMBLY FOR M18™
DRUM MACHINE
Cat. No.:
INSTRUCTIONS
THE TOOL, AND
Cable feed
ratchet lever
Cable feed quick
release button
Feed
handle
Guide tube
mount
Figure 3
lines
47-53-2816
For use with ............................................. M18 BCDM
Compatible with MILWAUKEE
cables...........................................................48532776
THE ...........................................................48532777
...........................................................48532778
WARNING
accessories. Only use accessories specifically
recommended for this tool. Others may be
hazardous.
Inspect mounting plate and Cable Drive™ Assembly
before use.
1. Remove battery pack.
2. Remove Cable Accessory from cable - Refer to
Brushless Compact Drum Machine manual .
3. Remove mounting plate from the Cable Drive™
Assembly.
Remove the Cable Drive™ Assembly from the
4.
cable. Refer to the Brushless Compact Drum
Machine manual.
5. Remove mounting plate from the Cable Drive™
Assembly by rotating plate anti-clockwise.
6. Align mounting plate to the four screws holes on the
front of the drum attachment block.
7. Use the four T20 screws and fasten mounting plate
to the front of the drum attachment block using a
T20 bit.
The mounting plate is now ready for the Cable
8.
Drive™ Assembly.
Installing the Cable Drive™ Assembly onto
Align the attachment to the mounting plate using the
1.
two alignment lines shown in figure 3.
2.
Press the Cable Drive™ Assembly flush against the
mount.
Rotate the attachment clockwise until it clicks.
3.
4. The Cable Drive™ Assembly attachment is now
ready to use.
Mounting
plate
1
SPECIFICATIONS
®
ASSEMBLY
Always remove battery pack
before changing or removing
Installing the Mounting Plate
Mounting
Plate
Screw
the Mounting Plate
