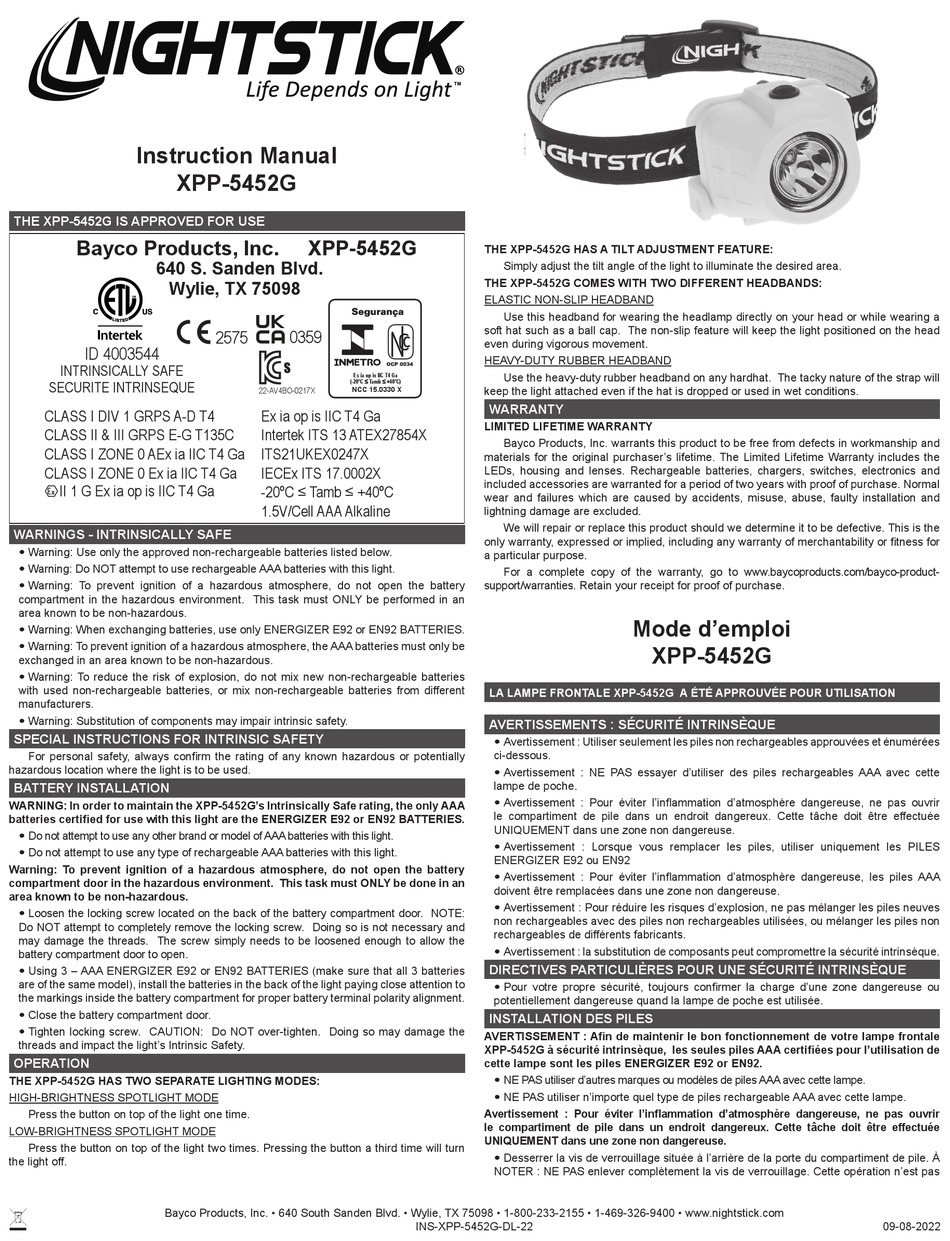

Bayco Products NightStick XPP-5452G Instruction Manual

Instruction Manual
XPP-5452G
THE XPP-5452G IS APPROVED FOR USE
Bayco Products, Inc.
640 S. Sanden Blvd.
Wylie, TX 75098
ID 4003544
INTRINSICALLY SAFE
SECURITE INTRINSEQUE
CLASS I DIV 1 GRPS A-D T4
CLASS II & III GRPS E-G T135C
CLASS I ZONE 0 AEx ia IIC T4 Ga
CLASS I ZONE 0 Ex ia IIC T4 Ga
II 1 G Ex ia op is IIC T4 Ga
WARNINGS - INTRINSICALLY SAFE
y Warning: Use only the approved non-rechargeable batteries listed below.
y Warning: Do NOT attempt to use rechargeable AAA batteries with this light.
y Warning: To prevent ignition of a hazardous atmosphere, do not open the battery
compartment in the hazardous environment. This task must ONLY be performed in an
area known to be non-hazardous.
y Warning: When exchanging batteries, use only ENERGIZER E92 or EN92 BATTERIES.
y Warning: To prevent ignition of a hazardous atmosphere, the AAA batteries must only be
exchanged in an area known to be non-hazardous.
y Warning: To reduce the risk of explosion, do not mix new non-rechargeable batteries
with used non-rechargeable batteries, or mix non-rechargeable batteries from different
manufacturers.
y Warning: Substitution of components may impair intrinsic safety.
SPECIAL INSTRUCTIONS FOR INTRINSIC SAFETY
For personal safety, always confirm the rating of any known hazardous or potentially
hazardous location where the light is to be used.
BATTERY INSTALLATION
WARNING: In order to maintain the XPP-5452G's Intrinsically Safe rating, the only AAA
batteries certified for use with this light are the ENERGIZER E92 or EN92 BATTERIES.
y Do not attempt to use any other brand or model of AAA batteries with this light.
y Do not attempt to use any type of rechargeable AAA batteries with this light.
Warning: To prevent ignition of a hazardous atmosphere, do not open the battery
compartment door in the hazardous environment. This task must ONLY be done in an
area known to be non-hazardous.
y Loosen the locking screw located on the back of the battery compartment door. NOTE:
Do NOT attempt to completely remove the locking screw. Doing so is not necessary and
may damage the threads. The screw simply needs to be loosened enough to allow the
battery compartment door to open.
y Using 3 – AAA ENERGIZER E92 or EN92 BATTERIES (make sure that all 3 batteries
are of the same model), install the batteries in the back of the light paying close attention to
the markings inside the battery compartment for proper battery terminal polarity alignment.
y Close the battery compartment door.
y Tighten locking screw. CAUTION: Do NOT over-tighten. Doing so may damage the
threads and impact the light's Intrinsic Safety.
OPERATION
THE XPP-5452G HAS TWO SEPARATE LIGHTING MODES:
HIGH-BRIGHTNESS SPOTLIGHT MODE
Press the button on top of the light one time.
LOW-BRIGHTNESS SPOTLIGHT MODE
Press the button on top of the light two times. Pressing the button a third time will turn
the light off.
Bayco Products, Inc. • 640 South Sanden Blvd. • Wylie, TX 75098 • 1-800-233-2155 • 1-469-326-9400 • www.nightstick.com
XPP-5452G
2575 0359
Ex ia op is IIC T4 Ga
(-20ºC ≤ Tamb ≤ +40ºC)
22-AV4BO-0217X
NCC 15.0330 X
Ex ia op is IIC T4 Ga
Intertek ITS 13 ATEX27854X
ITS21UKEX0247X
IECEx ITS 17.0002X
-20ºC ≤ Tamb ≤ +40ºC
1.5V/Cell AAA Alkaline
THE XPP-5452G HAS A TILT ADJUSTMENT FEATURE:
Simply adjust the tilt angle of the light to illuminate the desired area.
THE XPP-5452G COMES WITH TWO DIFFERENT HEADBANDS:
ELASTIC NON-SLIP HEADBAND
Use this headband for wearing the headlamp directly on your head or while wearing a
soft hat such as a ball cap. The non-slip feature will keep the light positioned on the head
even during vigorous movement.
HEAVY-DUTY RUBBER HEADBAND
Use the heavy-duty rubber headband on any hardhat. The tacky nature of the strap will
keep the light attached even if the hat is dropped or used in wet conditions.
WARRANTY
LIMITED LIFETIME WARRANTY
Bayco Products, Inc. warrants this product to be free from defects in workmanship and
materials for the original purchaser's lifetime. The Limited Lifetime Warranty includes the
LEDs, housing and lenses. Rechargeable batteries, chargers, switches, electronics and
included accessories are warranted for a period of two years with proof of purchase. Normal
wear and failures which are caused by accidents, misuse, abuse, faulty installation and
lightning damage are excluded.
We will repair or replace this product should we determine it to be defective. This is the
only warranty, expressed or implied, including any warranty of merchantability or fitness for
a particular purpose.
For a complete copy of the warranty, go to www.baycoproducts.com/bayco-product-
support/warranties. Retain your receipt for proof of purchase.
LA LAMPE FRONTALE XPP-5452G A ÉTÉ APPROUVÉE POUR UTILISATION
AVERTISSEMENTS : SÉCURITÉ INTRINSÈQUE
y Avertissement : Utiliser seulement les piles non rechargeables approuvées et énumérées
ci-dessous.
y Avertissement : NE PAS essayer d'utiliser des piles rechargeables AAA avec cette
lampe de poche.
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas ouvrir
le compartiment de pile dans un endroit dangereux. Cette tâche doit être effectuée
UNIQUEMENT dans une zone non dangereuse.
y Avertissement : Lorsque vous remplacer les piles, utiliser uniquement les PILES
ENERGIZER E92 ou EN92
y Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, les piles AAA
doivent être remplacées dans une zone non dangereuse.
y Avertissement : Pour réduire les risques d'explosion, ne pas mélanger les piles neuves
non rechargeables avec des piles non rechargeables utilisées, ou mélanger les piles non
rechargeables de différents fabricants.
y Avertissement : la substitution de composants peut compromettre la sécurité intrinsèque.
DIRECTIVES PARTICULIÈRES POUR UNE SÉCURITÉ INTRINSÈQUE
y Pour votre propre sécurité, toujours confirmer la charge d'une zone dangereuse ou
potentiellement dangereuse quand la lampe de poche est utilisée.
INSTALLATION DES PILES
AVERTISSEMENT : Afin de maintenir le bon fonctionnement de votre lampe frontale
XPP-5452G à sécurité intrinsèque, les seules piles AAA certifiées pour l'utilisation de
cette lampe sont les piles ENERGIZER E92 or EN92.
y NE PAS utiliser d'autres marques ou modèles de piles AAA avec cette lampe.
y NE PAS utiliser n'importe quel type de piles rechargeable AAA avec cette lampe.
Avertissement : Pour éviter l'inflammation d'atmosphère dangereuse, ne pas ouvrir
le compartiment de pile dans un endroit dangereux. Cette tâche doit être effectuée
UNIQUEMENT dans une zone non dangereuse.
y Desserrer la vis de verrouillage située à l'arrière de la porte du compartiment de pile. À
NOTER : NE PAS enlever complètement la vis de verrouillage. Cette opération n'est pas
INS-XPP-5452G-DL-22
Mode d'emploi
XPP-5452G
09-08-2022
